Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

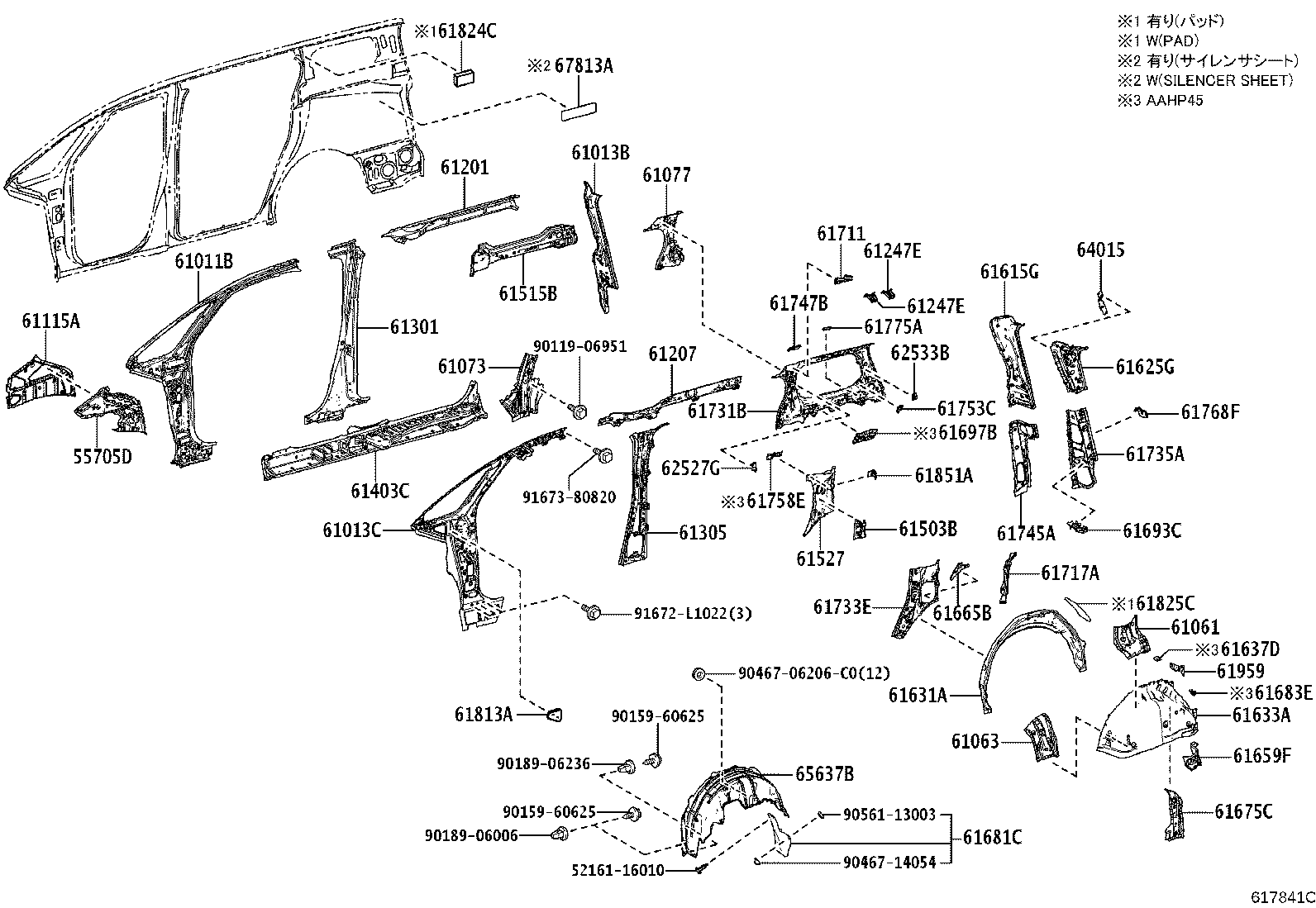

Exploded illustration 617841C 61615G — REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH (2 parts) 61851A — BRACKET, QUARTER INNER COMPUTER, NO.1 (3 parts) 61697B — PLATE, REAR WHEEL OPENING EXTENSION, INNER RH (1 parts) 61758E — RETAINER, DECK SIDE TRIM, UPPER NO.1 (1 parts) 61683E — PLATE, QUARTER PANEL, LOWER NO.3 (1 parts) 61637D — REINFORCEMENT, QUARTER, INNER RH (1 parts) 61824C — PAD, NOISE SHUTTER, NO.1 (2 parts) 67813A — SHEET, QUARTER PANEL SILENCER, RH (2 parts) 61115A — PANEL, NO.4 SIDE, RH (2 parts) 55705D — PANEL SUB-ASSY, COWL TOP SIDE, RH, (2 parts) 61011B — PANEL SUB-ASSY, SIDE, OUTER RH (2 parts) 61301 — PILLAR SUB-ASSY, CENTER BODY, RH (2 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (2 parts) 61013B — PANEL SUB-ASSY, QUARTER, OUTER RH (2 parts) 61077 — SHIELD SUB-ASSY, QUARTER WINDOW, REAR RH (2 parts) 61515B — EXTENSION, QUARTER LOCK PILLAR, RH (2 parts) 61073 — BRACE SUB-ASSY, QUARTER WHEEL HOUSE, RH (2 parts) 61403C — REINFORCE SUB-ASSY, ROCKER, OUTER RH (4 parts) 61013C — PANEL SUB-ASSY, SIDE, INNER RH (2 parts) 9011906951 — not listed in this catalogue 61207 — RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH (2 parts) 9167380820 — not listed in this catalogue 61813A — PLATE, DUSTPROOF, NO.1 RH (4 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61747B — REINFORCEMENT, ROOF SIDE, INNER REAR, RH (2 parts) 61247E — BRACKET, ASSIST GRIP, NO.4 RH (2 parts) 61247E — BRACKET, ASSIST GRIP, NO.4 RH (2 parts) 61775A — GUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH (2 parts) 62533B — BRACKET, QUARTER TRIM, RH (2 parts) 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 62527G — PAD, QUARTER TRIM, LOWER RH (2 parts) 61753C — RETAINER, QUARTER TRIM, LOWER (2 parts) 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (2 parts) 64015 — PANEL SUB-ASSY, BACK CORNER, INNER RH (2 parts) 61625G — EXTENSION, QUARTER PANEL, REAR RH (2 parts) 61768F — REINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH (2 parts) 61735A — PANEL, ROOF SIDE, INNER REAR RH (2 parts) 61693C — RETAINER, REAR SEATBACK SET, RH (2 parts) 61745A — REINFORCEMENT, BACK DOOR OPENING, LOWER RH (2 parts) 61503B — REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH (2 parts) 61527 — REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH (2 parts) 61717A — REINFORCEMENT, QUARTER PANEL EXTENSION, RH (3 parts) 61825C — PAD, NOISE SHUTTER, NO.2 (4 parts) 61061 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH (2 parts) 61959 — BRACKET, REAR SEAT LEG, NO.2 RH (2 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (2 parts) 61659F — BRACKET, REAR SHOCK ABSORBER, NO.2 RH (2 parts) 61675C — REINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH (2 parts) 61063 — BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH (2 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (2 parts) 61733E — PANEL, ROOF SIDE, INNER FRONT RH, NO.2 (2 parts) 9046706206C0 — not listed in this catalogue 91672L1022 — not listed in this catalogue 9015960625 — not listed in this catalogue 9018906236 — not listed in this catalogue 9018906006 — not listed in this catalogue 9015960625 — not listed in this catalogue 5216116010 — not listed in this catalogue 65637B — LINER, REAR WHEEL HOUSE, RH (2 parts) 9046714054 — not listed in this catalogue 9056113003 — not listed in this catalogue 61681C — EXTENSION, REAR WHEEL OPENING, RH (2 parts) 61665B — REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH (2 parts)
617841C · 52 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
55705D — Panel Sub-assy, Cowl Top Side, RH,
55705-V2010 Panel Sub-assy, Cowl Top Side, RH,
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥6,600
55705-V2010 Panel Sub-assy, Cowl Top Side, RH,
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥6,600
61011B — Panel Sub-assy, Side, Outer RH
61106-V2050 Panel Sub-assy, Side, Outer RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥27,300
61106-V2050 Panel Sub-assy, Side, Outer RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥27,300
61013B — Panel Sub-assy, Quarter, Outer RH
61601-V2010 Panel Sub-assy, Quarter, Outer RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥7,600
61601-V2010 Panel Sub-assy, Quarter, Outer RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥7,600
61013C — Panel Sub-assy, Side, Inner RH
61013-V2010 Panel Sub-assy, Side, Inner RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥20,300
61013-V2010 Panel Sub-assy, Side, Inner RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥20,300
61061 — Reinforcement Sub-assy, Wheel House, RH
61061-V2010 Reinforcement Sub-assy, Wheel House, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥2,700
61061-V2010 Reinforcement Sub-assy, Wheel House, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥2,700
61063 — Bracket, Sub-assy, Rear Shock Absorber, RH
61063-V2010 Bracket, Sub-assy, Rear Shock Absorber, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥6,400
61063-V2010 Bracket, Sub-assy, Rear Shock Absorber, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥6,400
61073 — Brace Sub-assy, Quarter Wheel House, RH
61073-V2010 Brace Sub-assy, Quarter Wheel House, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥4,420
61073-V2010 Brace Sub-assy, Quarter Wheel House, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥4,420
61077 — Shield Sub-assy, Quarter Window, Rear RH
61077-V2010 Shield Sub-assy, Quarter Window, Rear RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥6,000
61077-V2010 Shield Sub-assy, Quarter Window, Rear RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥6,000
61115A — Panel, NO.4 Side, RH
61115-V2010 Panel, NO.4 Side, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥4,460
61115-V2010 Panel, NO.4 Side, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥4,460
61201 — Rail Sub-assy, Roof Side, RH
61201-V2020 Rail Sub-assy, Roof Side, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥11,900
61201-V2020 Rail Sub-assy, Roof Side, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥11,900
61207 — Rail Sub-assy, Roof Side, Inner Center RH
61207-V2030 Rail Sub-assy, Roof Side, Inner Center RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥9,900
61207-V2030 Rail Sub-assy, Roof Side, Inner Center RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥9,900
61247E — Bracket, Assist Grip, NO.4 RH
61247-V2010 Bracket, Assist Grip, NO.4 RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥840
61247-V2010 Bracket, Assist Grip, NO.4 RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥840
61301 — Pillar Sub-assy, Center Body, RH
61301-V2020 Pillar Sub-assy, Center Body, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥22,700
61301-V2020 Pillar Sub-assy, Center Body, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥22,700
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-V2010 Reinforce Sub-assy, Center Body Pillar, Lower RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥8,500
61305-V2010 Reinforce Sub-assy, Center Body Pillar, Lower RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥8,500
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-V2070 Reinforce Sub-assy, Rocker, Outer RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥21,400
61403-V2070 Reinforce Sub-assy, Rocker, Outer RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥21,400
61403-V2080 note Reinforce Sub-assy, Rocker, Outer RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥21,400
61403-V2080 note Reinforce Sub-assy, Rocker, Outer RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥21,400
61503B — Reinforcement Sub-assy, Quarter Lock Pillar, RH
61503-V2020 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥2,420
61503-V2020 Reinforcement Sub-assy, Quarter Lock Pillar, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥2,420
61515B — Extension, Quarter Lock Pillar, RH
61515-V2010 Extension, Quarter Lock Pillar, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥4,460
61515-V2010 Extension, Quarter Lock Pillar, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥4,460
61527 — Reinforcement, Quarter Lock Piller, Lower RH
61527-V2010 Reinforcement, Quarter Lock Piller, Lower RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥3,920
61527-V2010 Reinforcement, Quarter Lock Piller, Lower RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥3,920
61615G — Reinforcement, Rear Body Rear Side Panel, RH
61615-V2010 Reinforcement, Rear Body Rear Side Panel, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥5,400
61615-V2010 Reinforcement, Rear Body Rear Side Panel, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥5,400
61625G — Extension, Quarter Panel, Rear RH
61625-V2010 Extension, Quarter Panel, Rear RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥4,420
61625-V2010 Extension, Quarter Panel, Rear RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥4,420
61631A — Panel, Quarter Wheel House, Outer RH
61631-V2010 Panel, Quarter Wheel House, Outer RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥8,100
61631-V2010 Panel, Quarter Wheel House, Outer RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥8,100
61633A — Panel, Quarter Wheel House, Inner RH
61633-V2020 Panel, Quarter Wheel House, Inner RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥12,800
61633-V2020 Panel, Quarter Wheel House, Inner RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥12,800
61637D — Reinforcement, Quarter, Inner RH
61637-V2010 Reinforcement, Quarter, Inner RH
2025-01 → —
AAHP45 ¥290
61659F — Bracket, Rear Shock Absorber, NO.2 RH
61659-V2010 Bracket, Rear Shock Absorber, NO.2 RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥2,030
61659-V2010 Bracket, Rear Shock Absorber, NO.2 RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥2,030
61665B — Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61665-V2010 Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
2023-06 → —
AAHH4#,AGH4# 08S ¥660
61665-V2010 note Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
2023-06 → —
AAHH4# G;AGH4# 07S (G,X) ¥660
61675C — Reinforcement, Quarter Wheel House, Inner Rear RH
61675-V2010 Reinforcement, Quarter Wheel House, Inner Rear RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥3,400
61675-V2010 Reinforcement, Quarter Wheel House, Inner Rear RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥3,400
61681C — Extension, Rear Wheel Opening, RH
61681-V2010 Extension, Rear Wheel Opening, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥2,570
61681-V2010 Extension, Rear Wheel Opening, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥2,570
61683E — Plate, Quarter Panel, Lower NO.3
61683-V2010 Plate, Quarter Panel, Lower NO.3
2025-01 → —
AAHP45 ¥290
61693C — Retainer, Rear Seatback Set, RH
61693-V2010 Retainer, Rear Seatback Set, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥800
61693-V2010 Retainer, Rear Seatback Set, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥800
61697B — Plate, Rear Wheel Opening Extension, Inner RH
61697-V2010 Plate, Rear Wheel Opening Extension, Inner RH
2025-01 → —
AAHP45 ¥1,430
61711 — Panel, Roof Side, Outer RH
61711-V2010 Panel, Roof Side, Outer RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥1,450
61711-V2010 Panel, Roof Side, Outer RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥1,450
61717A — Reinforcement, Quarter Panel Extension, RH
61717-V2010 Reinforcement, Quarter Panel Extension, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥1,030
61717-V2010 Reinforcement, Quarter Panel Extension, RH
2025-01 → —
AAHH4# 04S ¥1,030
61717-V2040 Reinforcement, Quarter Panel Extension, RH
2025-01 → —
AAHP45 ¥1,320
61731B — Panel, Roof Side, Inner RH
61731-V2010 Panel, Roof Side, Inner RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥12,400
61731-V2010 Panel, Roof Side, Inner RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥12,400
61733E — Panel, Roof Side, Inner Front RH, NO.2
61733-V2010 Panel, Roof Side, Inner Front RH, NO.2
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥3,450
61733-V2010 Panel, Roof Side, Inner Front RH, NO.2
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥3,450
61735A — Panel, Roof Side, Inner Rear RH
61735-V2010 Panel, Roof Side, Inner Rear RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥3,450
61735-V2010 Panel, Roof Side, Inner Rear RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥3,450
61745A — Reinforcement, Back Door Opening, Lower RH
61745-V2010 Reinforcement, Back Door Opening, Lower RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥2,770
61745-V2010 Reinforcement, Back Door Opening, Lower RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥2,770
61747B — Reinforcement, Roof Side, Inner Rear, RH
61747-V2010 Reinforcement, Roof Side, Inner Rear, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥480
61747-V2010 Reinforcement, Roof Side, Inner Rear, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥480
61753C — Retainer, Quarter Trim, Lower
61753-V2010 Retainer, Quarter Trim, Lower
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥280
61753-V2010 Retainer, Quarter Trim, Lower
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥280
61758E — Retainer, Deck Side Trim, Upper NO.1
61758-V2010 Retainer, Deck Side Trim, Upper NO.1
2025-01 → —
AAHP45 ¥900
61768F — Reinforce, Belt Anchor TO Quarter, Inner Lower RH
61768-V2010 Reinforce, Belt Anchor TO Quarter, Inner Lower RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥710
61768-V2010 Reinforce, Belt Anchor TO Quarter, Inner Lower RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥710
61775A — Guide, Roof Side Drain Hose, NO.1 RH
61775-V2010 Guide, Roof Side Drain Hose, NO.1 RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥310
61775-V2010 Guide, Roof Side Drain Hose, NO.1 RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥310
61813A — Plate, Dustproof, NO.1 RH
61813-V2010 Plate, Dustproof, NO.1 RH
2023-06 → 2024-09 ended
AAHH4# 08S ¥770
61813-V2010 Plate, Dustproof, NO.1 RH
2023-06 → 2024-10 ended
AGH4# 08S ¥770
61813-V2010 Plate, Dustproof, NO.1 RH
2023-06 → —
AAHH4#,AAHP45,AGH4#,TAHA4# 04S,06S,07S ¥770
61813-V2010 Plate, Dustproof, NO.1 RH
2025-01 → —
AAHH4#,AGH4# 08S ¥770
61824C — Pad, Noise Shutter, NO.1
61824-V2010 Pad, Noise Shutter, NO.1
2024-10 → —
AGH4#,TAHA4# 07S ¥2,790
61824-V2010 Pad, Noise Shutter, NO.1
2025-01 → —
AAHH4#,AAHP45 04S,06S,07S ¥2,790
61825C — Pad, Noise Shutter, NO.2
61812-V2020 Pad, Noise Shutter, NO.2
2025-01 → —
AAHH4#,AAHP45 04S —
61825-V2010 Pad, Noise Shutter, NO.2
2023-06 → 2024-09 ended
AAHH4# 08S ¥910
61825-V2010 Pad, Noise Shutter, NO.2
2023-06 → —
AGH4# PREM,Z;AAHH4#,AAHP45,TAHA4# 06S,07S ¥910
61825-V2010 Pad, Noise Shutter, NO.2
2025-01 → —
AAHH4# 08S ¥910
61851A — Bracket, Quarter Inner Computer, NO.1
61851-V2010 Bracket, Quarter Inner Computer, NO.1
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥370
61851-V2010 Bracket, Quarter Inner Computer, NO.1
2025-01 → —
AAHH4# 04S ¥370
61851-V2020 Bracket, Quarter Inner Computer, NO.1
2025-01 → —
AAHP45 ¥380
61959 — Bracket, Rear Seat Leg, NO.2 RH
61959-V2010 Bracket, Rear Seat Leg, NO.2 RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥850
61959-V2010 Bracket, Rear Seat Leg, NO.2 RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥850
62527G — Pad, Quarter Trim, Lower RH
61755-V2010 Pad, Quarter Trim, Lower RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥340
61755-V2010 Pad, Quarter Trim, Lower RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥340
62533B — Bracket, Quarter Trim, RH
61751-V2010 Bracket, Quarter Trim, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥250
61751-V2010 Bracket, Quarter Trim, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥250
64015 — Panel Sub-assy, Back Corner, Inner RH
64015-V2010 Panel Sub-assy, Back Corner, Inner RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥1,340
64015-V2010 Panel Sub-assy, Back Corner, Inner RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥1,340
65637B — Liner, Rear Wheel House, RH
65637-V2020 Liner, Rear Wheel House, RH
2023-06 → —
AAHH4#,AGH4#,TAHA4# 07S,08S ¥5,400
65637-V2020 Liner, Rear Wheel House, RH
2025-01 → —
AAHH4#,AAHP45 04S,06S ¥5,400
67813A — Sheet, Quarter Panel Silencer, RH
67814-V2060 Sheet, Quarter Panel Silencer, RH
2023-06 → —
AAHH4#,TAHA4# EL ¥1,650
67814-V2060 Sheet, Quarter Panel Silencer, RH
2025-01 → —
AAHH4#,AAHP45 (04S,06S) (EL,SL,SLS) ¥1,650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
