Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01
Ventilation Hose
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

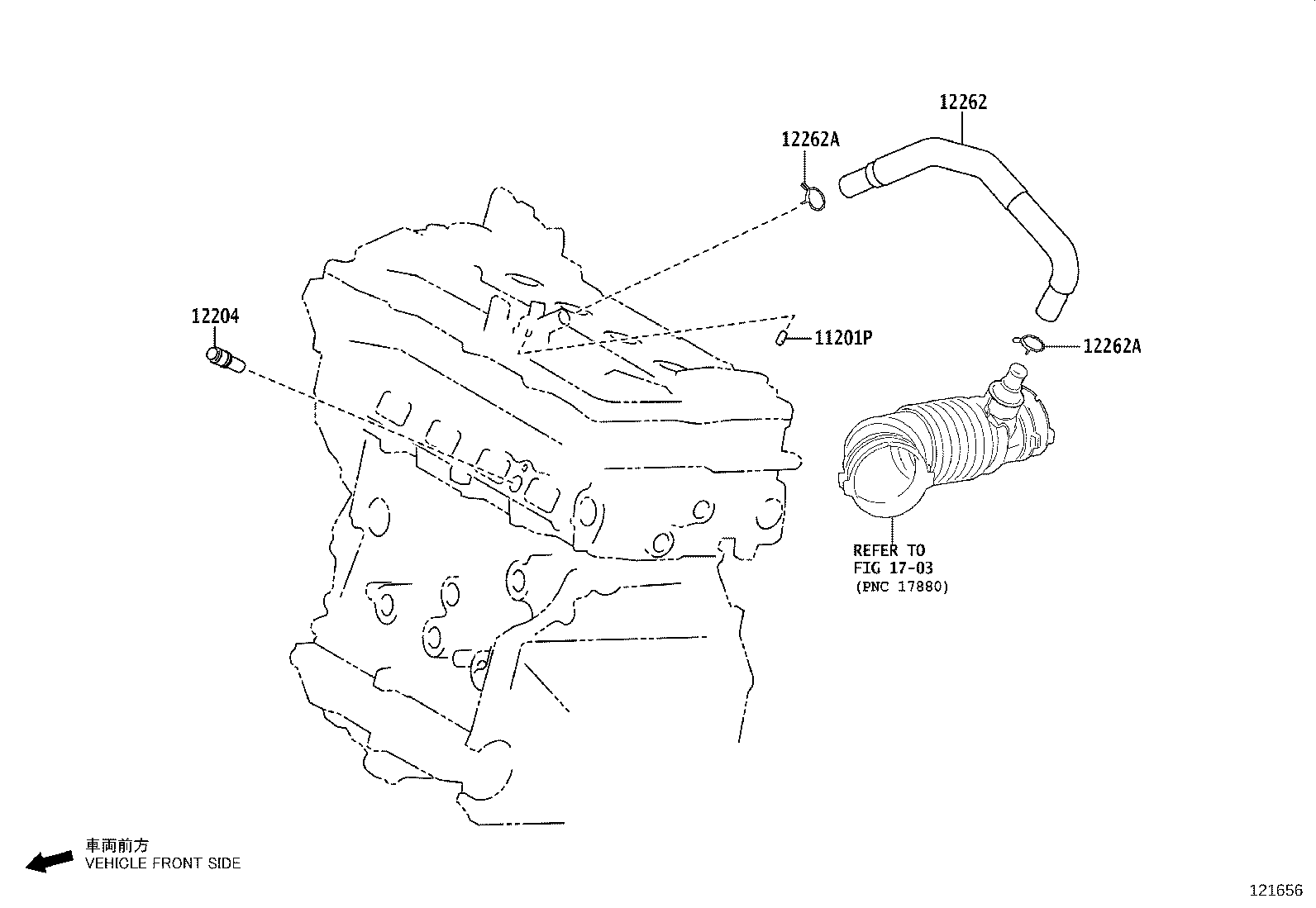

| 11201P | Plug(FOR CYLINDER HEAD COVER) |
| 12204 | Valve Sub-assy, Ventilation |
| 12205 | Case Sub-assy, Ventilation |
| 12205A | Ring, O(FOR VENTILATION CASE) |
| 12215 | Separator, Case |
| 12260 | Hose Assy, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |

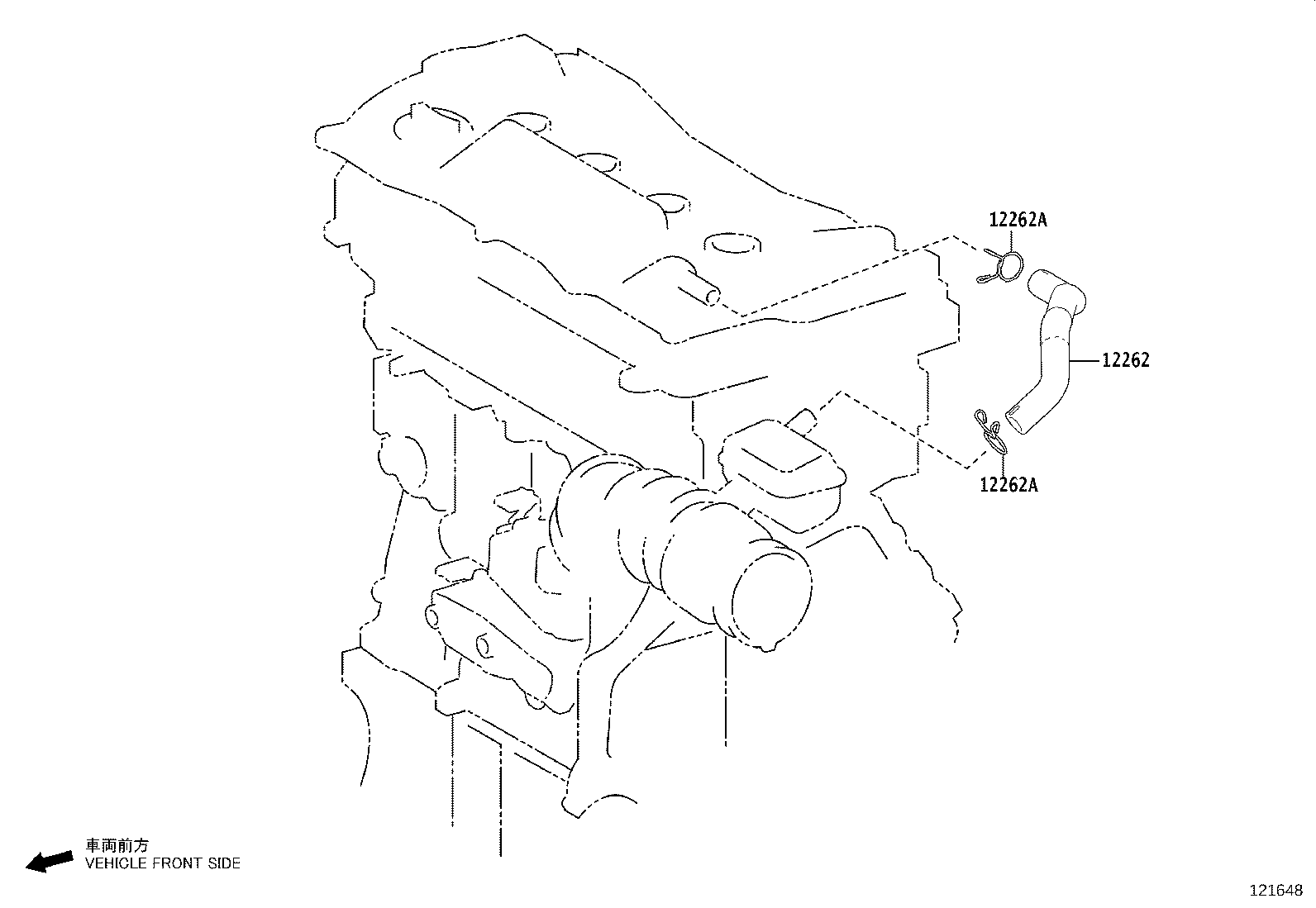

| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
