Brake Pedal & Bracket

3 part groups · 2 illustrations

Illustrations

Figure 47E482B

47E482B 2023-06 → —

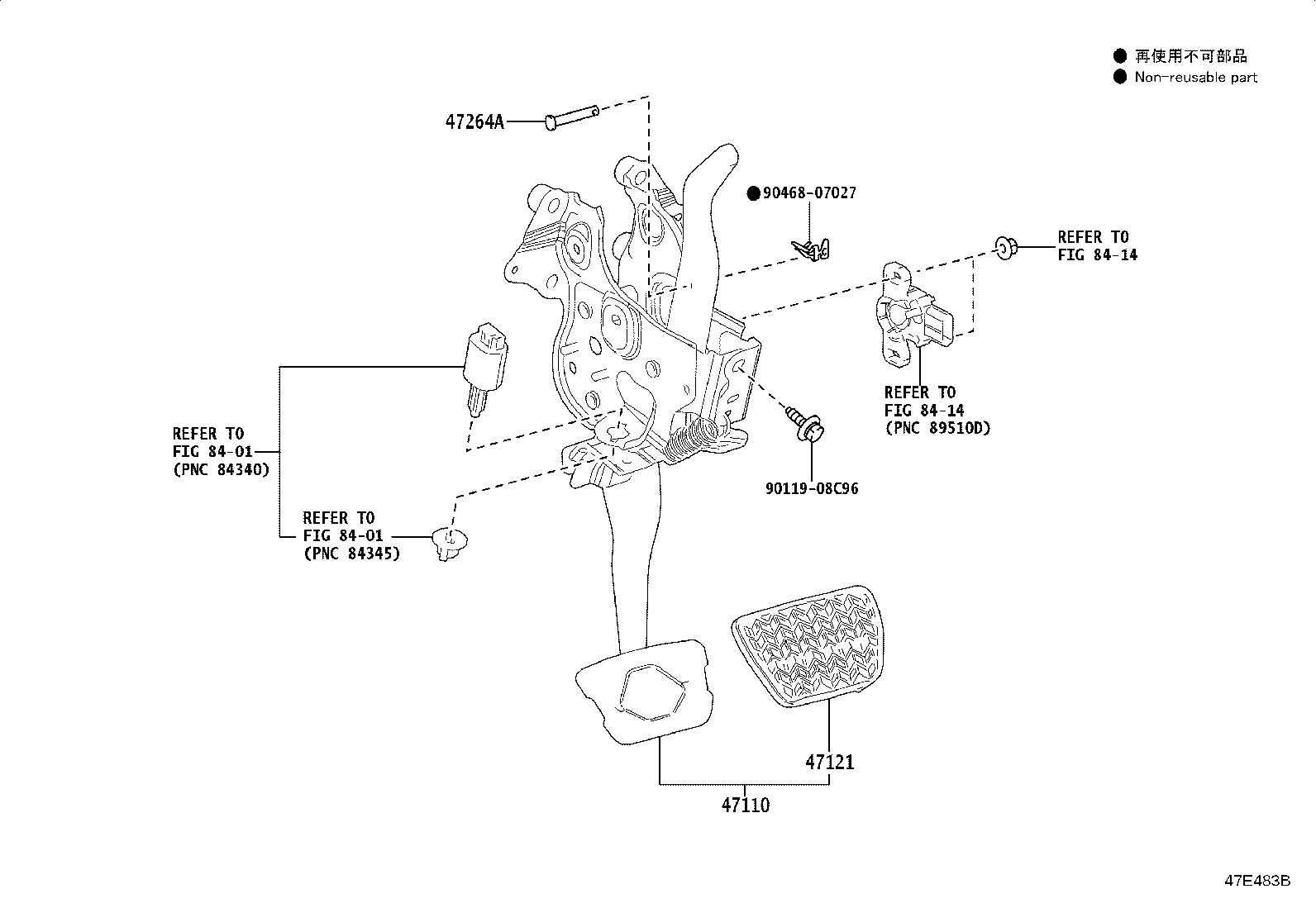

Figure 47E483B

47E483B 2023-06 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
