Brake Master Cylinder

15 part groups · 2 illustrations

Illustrations

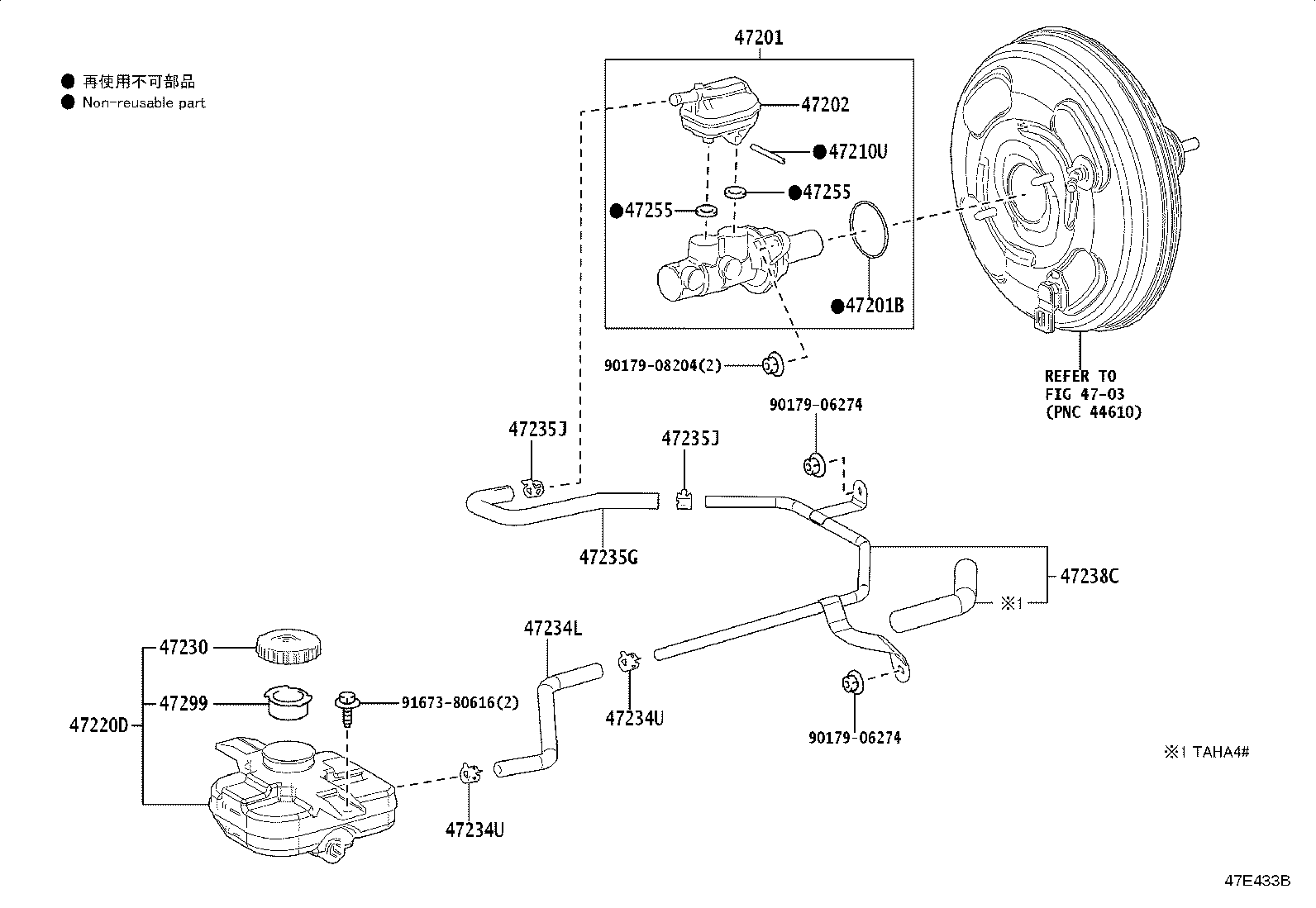

Figure 47E432A 47E432A 2023-06 → — Figure 47E433B 47E433B 2023-06 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47210L Brake Booster Assy, W/Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234L Hose, Reservoir, NO.1
47234U Clip(FOR RESERVOIR HOSE NO.1)
47235G Hose, Reservoir, NO.2
47235J Clip(FOR RESERVOIR HOSE NO.2)
47238C Tube, Reservoir
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
