Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01

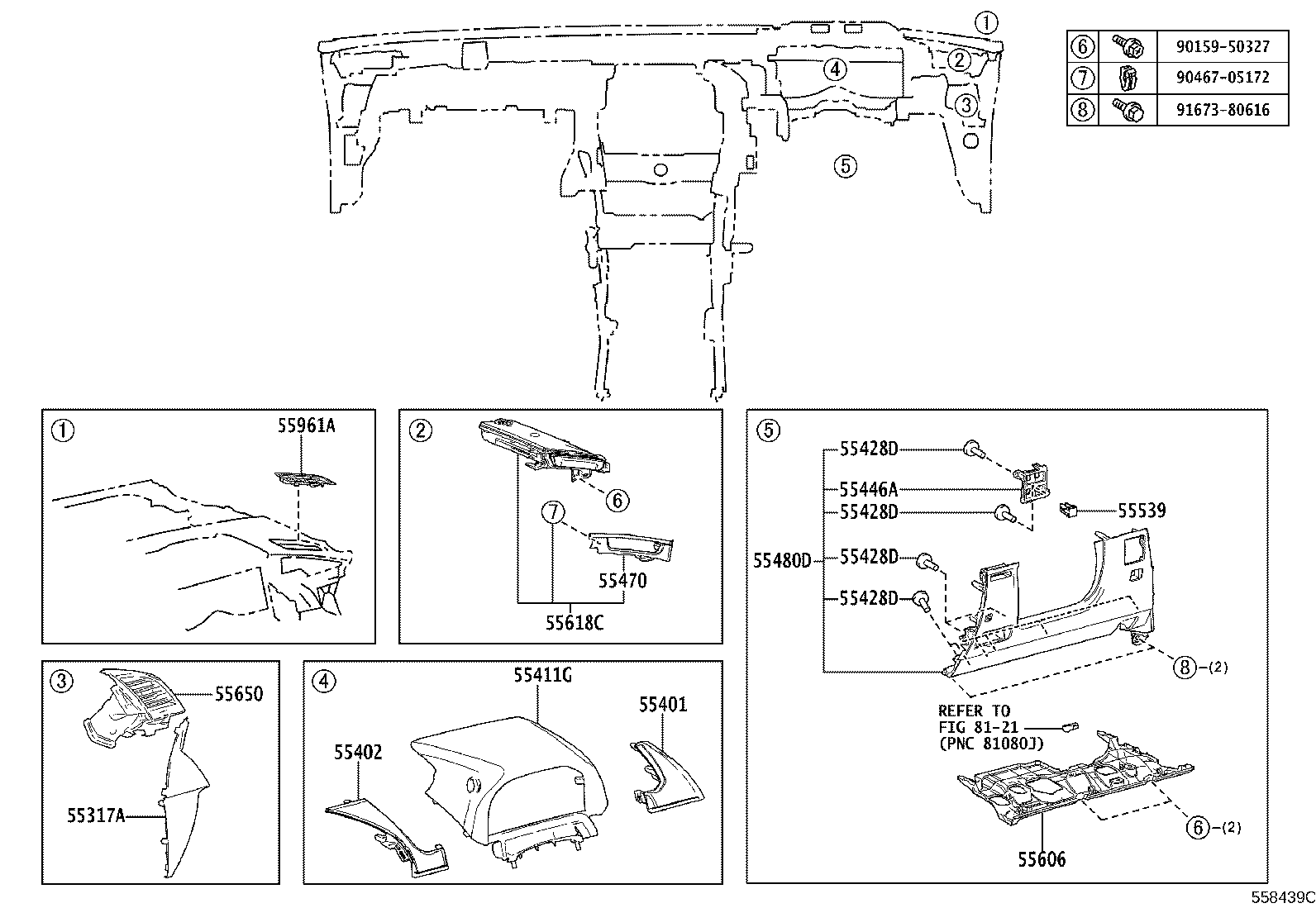

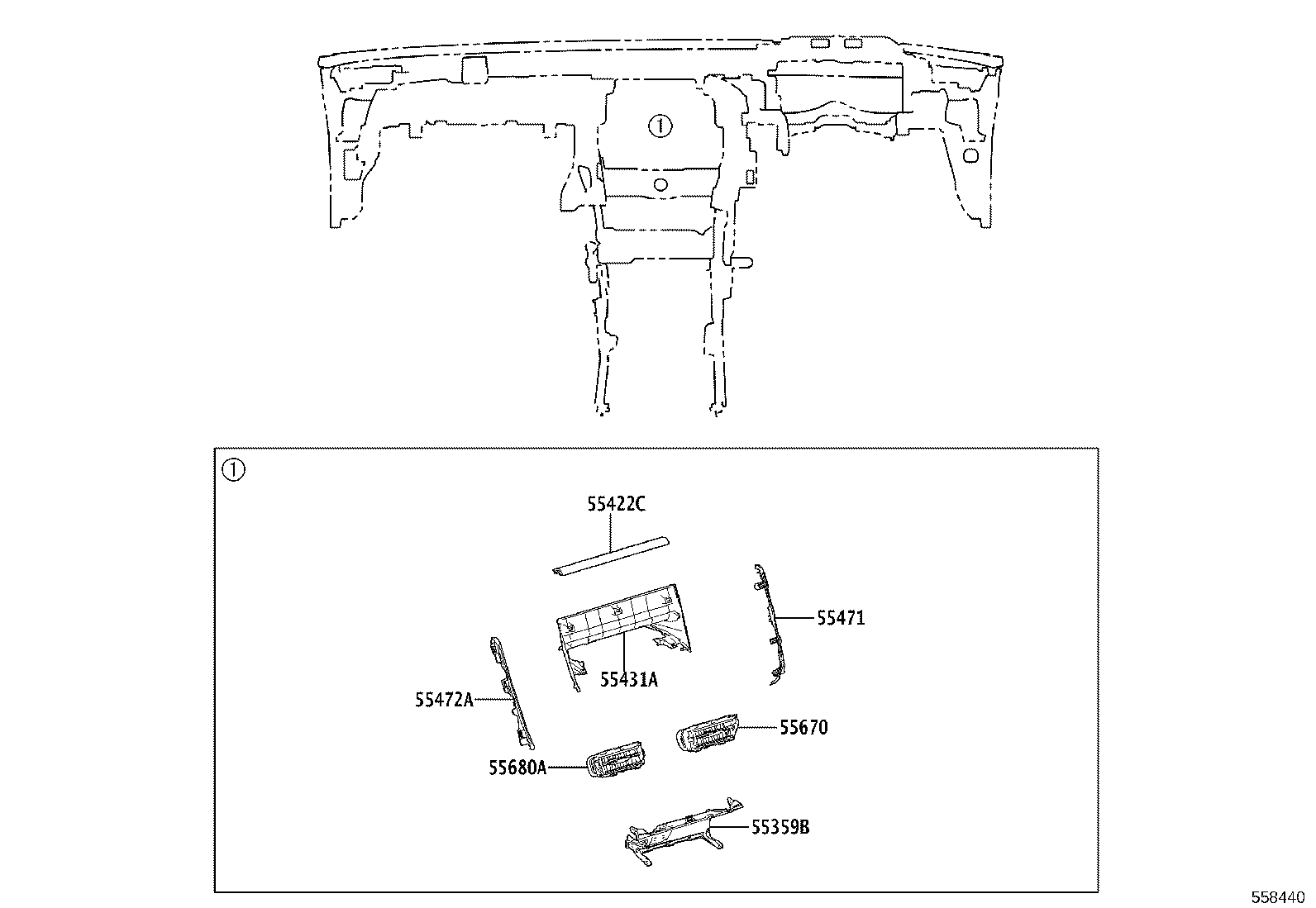

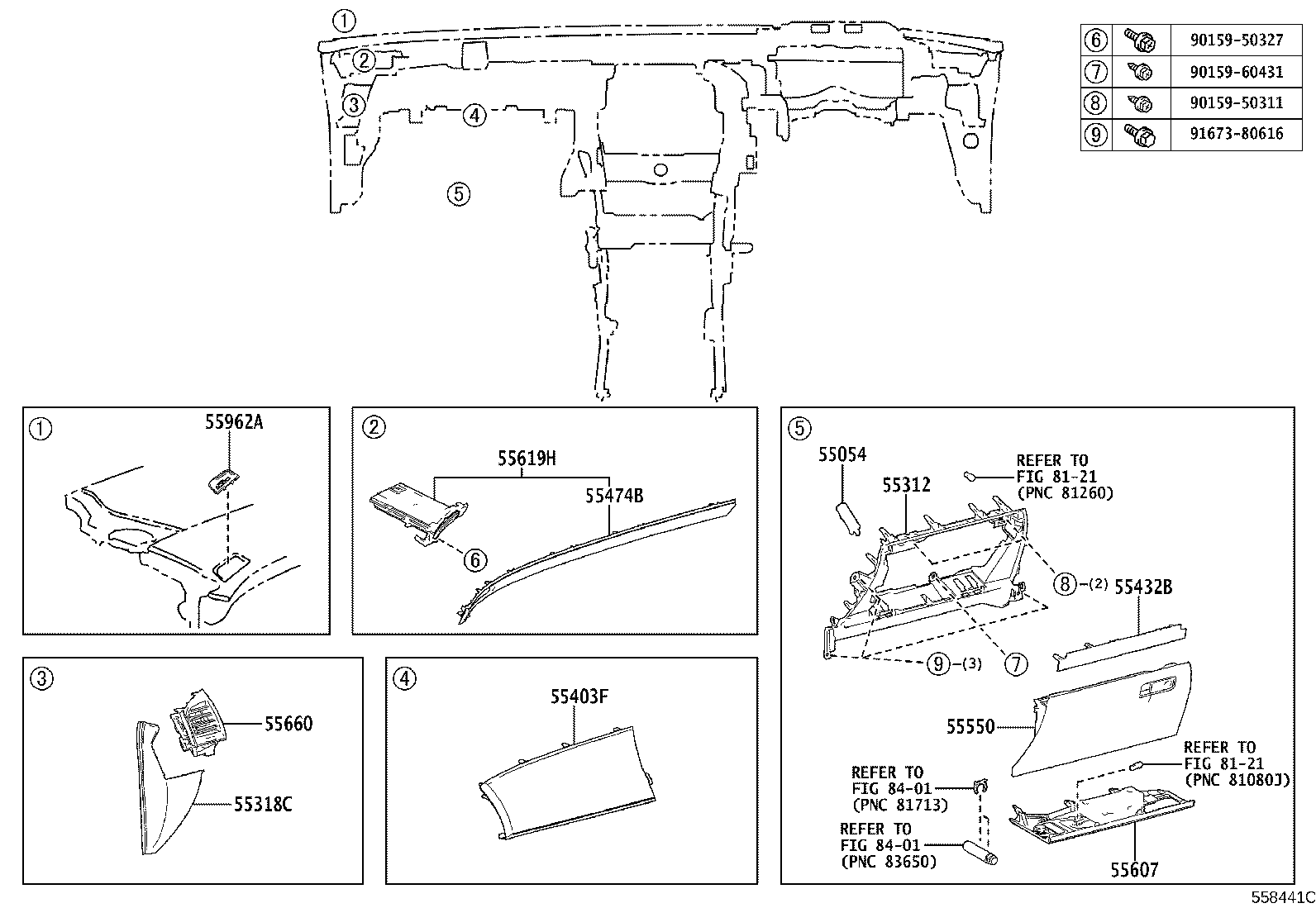

Instrument Panel & Glove Compartment
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161V | Piece, Instrument Panel |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55300 | Panel Assy, Instrument, Upper |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55312 | Panel, Instrument, Lower |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55351A | Brace, Instrument Panel TO Floor |
| 55352A | Brace, Instrument Panel TO Floor, NO.2 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55359B | Box, Instrument Panel, Center |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55402 | Panel Sub-assy, Instrument Layout, Center |
| 55403F | Panel Sub-assy, Instrument Panel Finish |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55428D | Retainer, Instrument Finish Panel, Lower NO.2 |
| 55431A | Panel, Instrument Panel Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55446A | Base, Switch Hole, NO.1 |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55470 | Garnish Assy, Instrument Cluster Finish Panel |
| 55471 | Moulding, Instrument Cluster, NO.1 |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55539 | Cover, Spare Switch Hole |
| 55548D | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55618C | Holder, Instrument Panel Cup |
| 55619H | Holder, Instrument Panel Cup, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55961A | Nozzle, Side Defroster, RH |
| 55962A | Nozzle, Side Defroster, LH |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
