Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01
Rear Door Panel & Glass

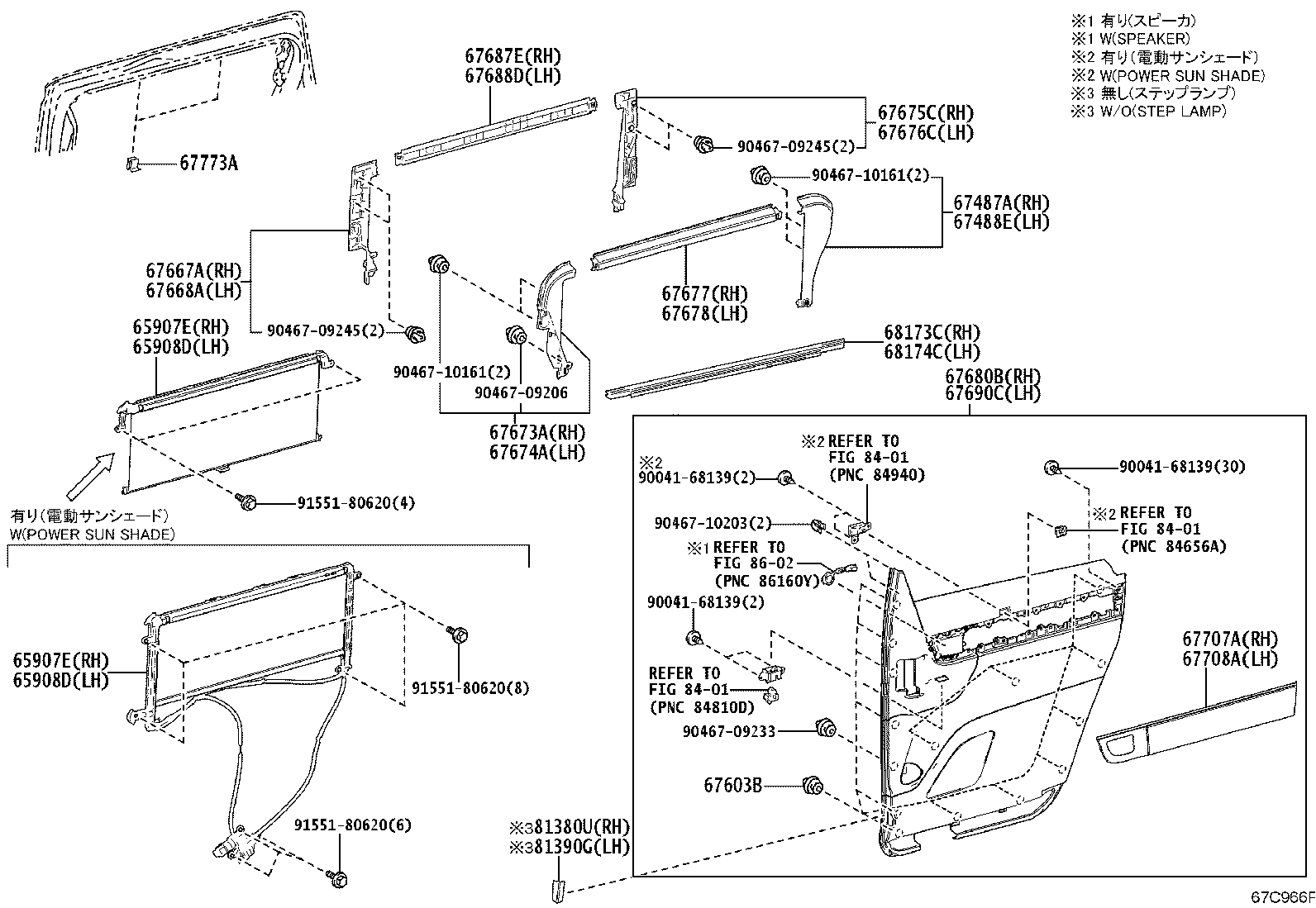

87 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58743D | Protector, Slide Door Panel, RH |
| 58744E | Protector, Slide Door Panel, LH |
| 62345D | Weatherstrip, Slide Door, NO.3 RH |
| 62346C | Weatherstrip, Slide Door, NO.3 LH |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 67003H | Door Sub-assy, Slide, RH |
| 67004H | Door Sub-assy, Slide, LH |
| 67405D | Guide Sub-assy, Slide Door Window, Front RH |
| 67406D | Guide Sub-assy, Slide Door Window, Front LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67487A | Garnish, Rear Door Rear Guide Bracket, RH |
| 67487C | Seal, Rear Door Rear Guide, RH |
| 67488C | Seal, Rear Door Rear Guide, LH |
| 67488E | Garnish, Rear Door Rear Guide Bracket, LH |
| 67521 | Cover Sub-assy, Slide Door Panel, RH |
| 67522 | Cover Sub-assy, Slide Door Panel, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67677 | Cover, Side Trim Board, Rear RH |
| 67678 | Cover, Side Trim Board, Rear LH |
| 67680B | Board Assy, Slide Door Trim, RH |
| 67687E | Cover, Side Trim Board, Rear RH |
| 67688D | Cover, Side Trim Board, Rear LH |
| 67690C | Board Assy, Slide Door Trim, LH |
| 67707A | Ornament Sub-assy, Rear Door Trim, RH |
| 67708A | Ornament Sub-assy, Rear Door Trim, LH |
| 67773A | Clip, Rear Door Trim Upper Retainer, NO.1 |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67852E | Cover, Slide Door Service Hole, LH |
| 67856J | Weatherstrip, Slide Door, Rear RH |
| 67857B | Protector, Rear Door Panel, RH |
| 67857R | Weatherstrip, Slide Door, Rear LH |
| 67858B | Protector, Rear Door Panel, LH |
| 67859B | Cover, Rear Door Lower Hole |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67867Q | Retainer, Slide Door Weatherstrip, NO.2 |
| 67867R | Retainer, Slide Door Weatherstrip, NO.3 |
| 67869L | Clip, Rear Door Weatherstrip |
| 67869N | Clip, Rear Door Weatherstrip, RH |
| 67869P | Clip, Rear Door Weatherstrip, LH |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67873M | Weatherstrip, Center Door, Upper RH |
| 67874J | Weatherstrip, Center Door, Upper LH |
| 67887B | Clip(FOR REAR DOOR WEATHERSTRIP) |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 67897M | Weatherstrip, Slide Door, NO.4 RH |
| 67898H | Weatherstrip, Slide Door, NO.4 LH |
| 67923H | Retainer, Door Corner Seal |
| 68103A | Glass Sub-assy, Slide Door, RH |
| 68104A | Glass Sub-assy, Slide Door, LH |
| 68142E | Run, Slide Door Glass, RH |
| 68152E | Run, Slide Door Glass, LH |
| 68173C | Weatherstrip, Slide Door Glass, Inner RH |
| 68174C | Weatherstrip, Slide Door Glass, Inner LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 75726A | Cover, Rear Door Belt Moulding End, Front RH |
| 75727A | Cover, Rear Door Belt Moulding End, Front LH |
| 75728A | Cover, Rear Door Belt Moulding End, Rear RH |
| 75729A | Cover, Rear Door Belt Moulding End, Rear LH |
| 81380U | Garnish, Slide Door, RH |
| 81390G | Garnish, Slide Door, LH |
| 84250C | Clip (FOR POWER SLIDE DOOR SENSOR, RH) |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
| 84260L | Clip (FOR POWER SLIDE DOOR SENSOR, LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
