Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

481 part groups · 38 illustrations

Illustrations

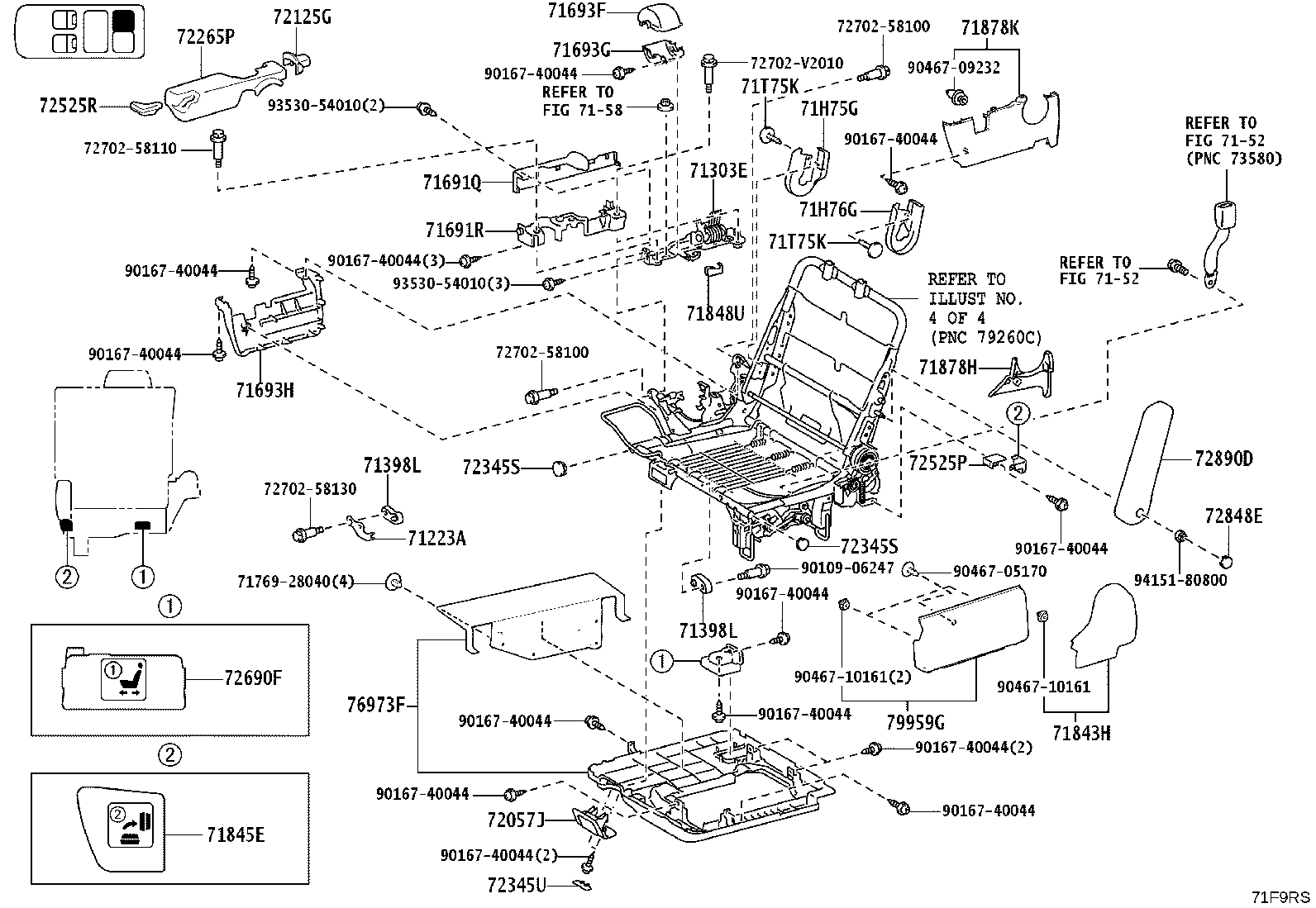

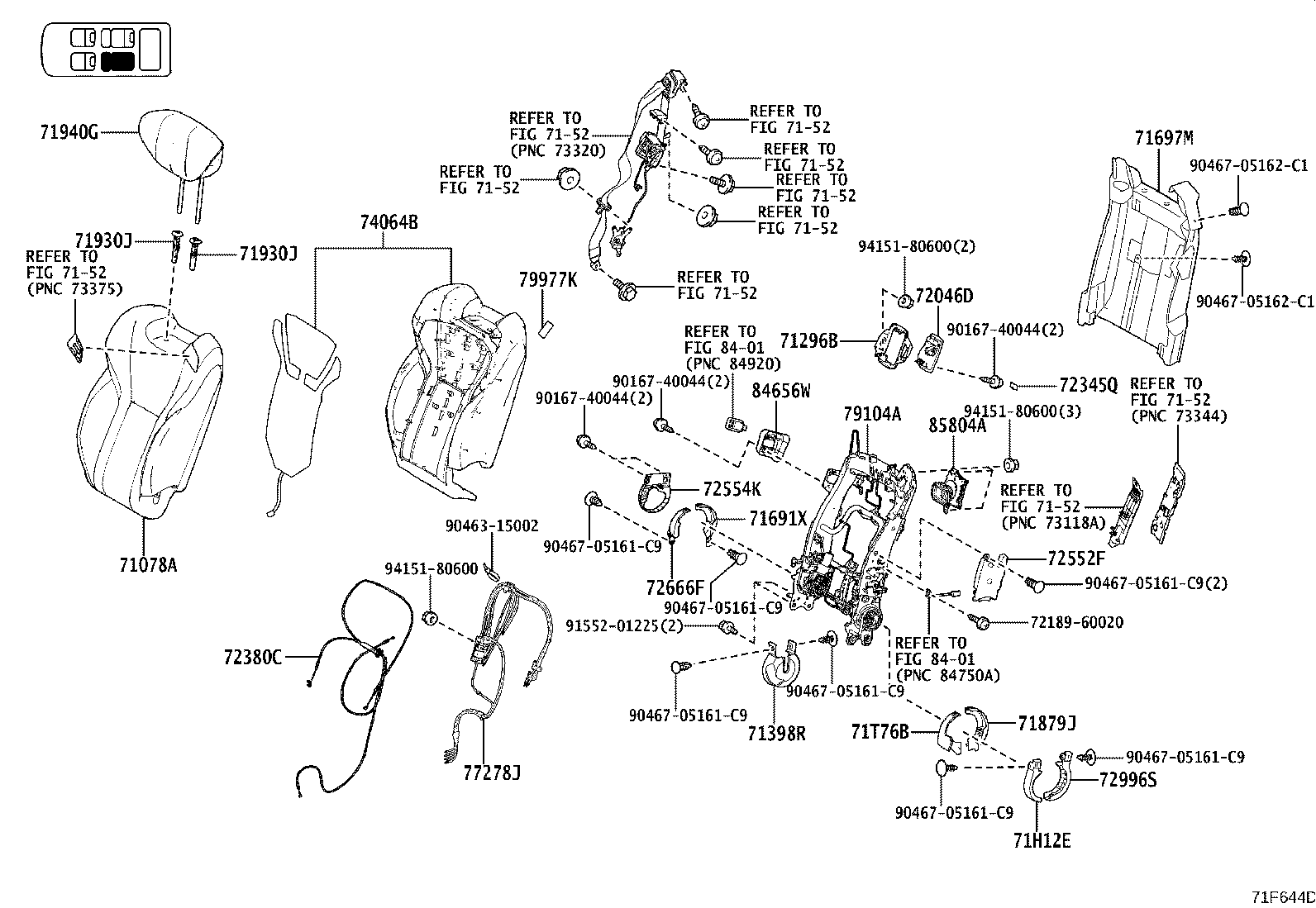

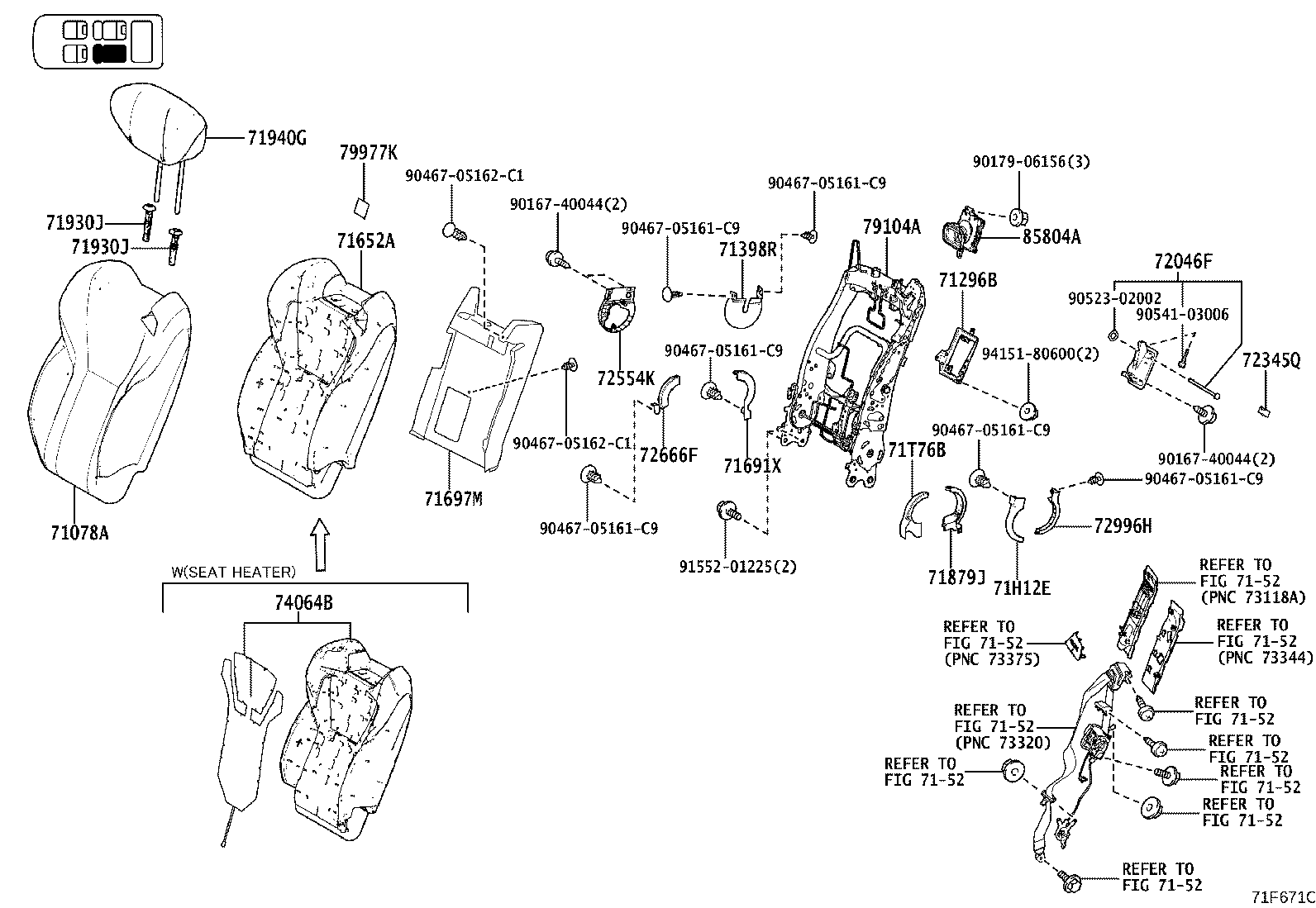

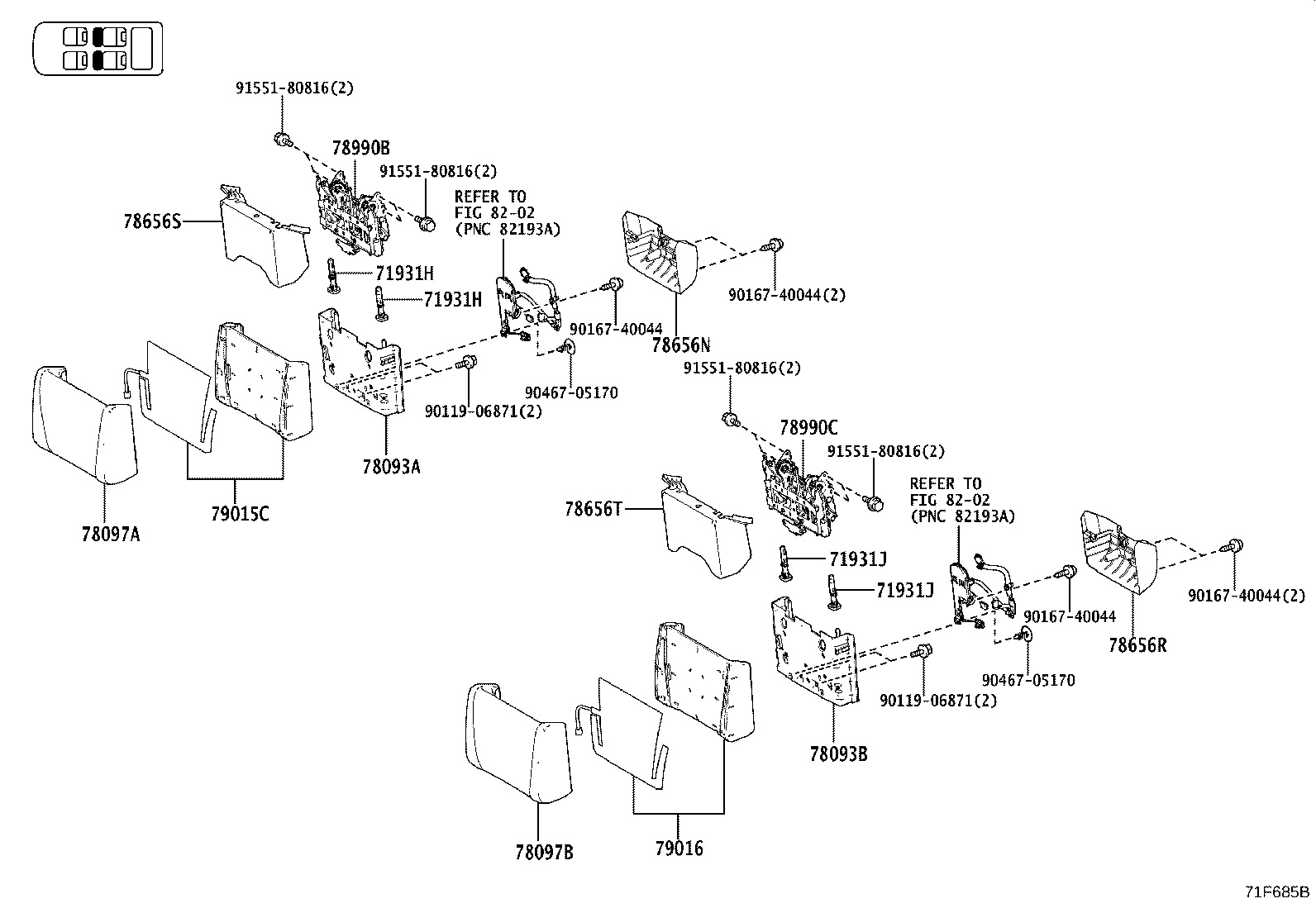

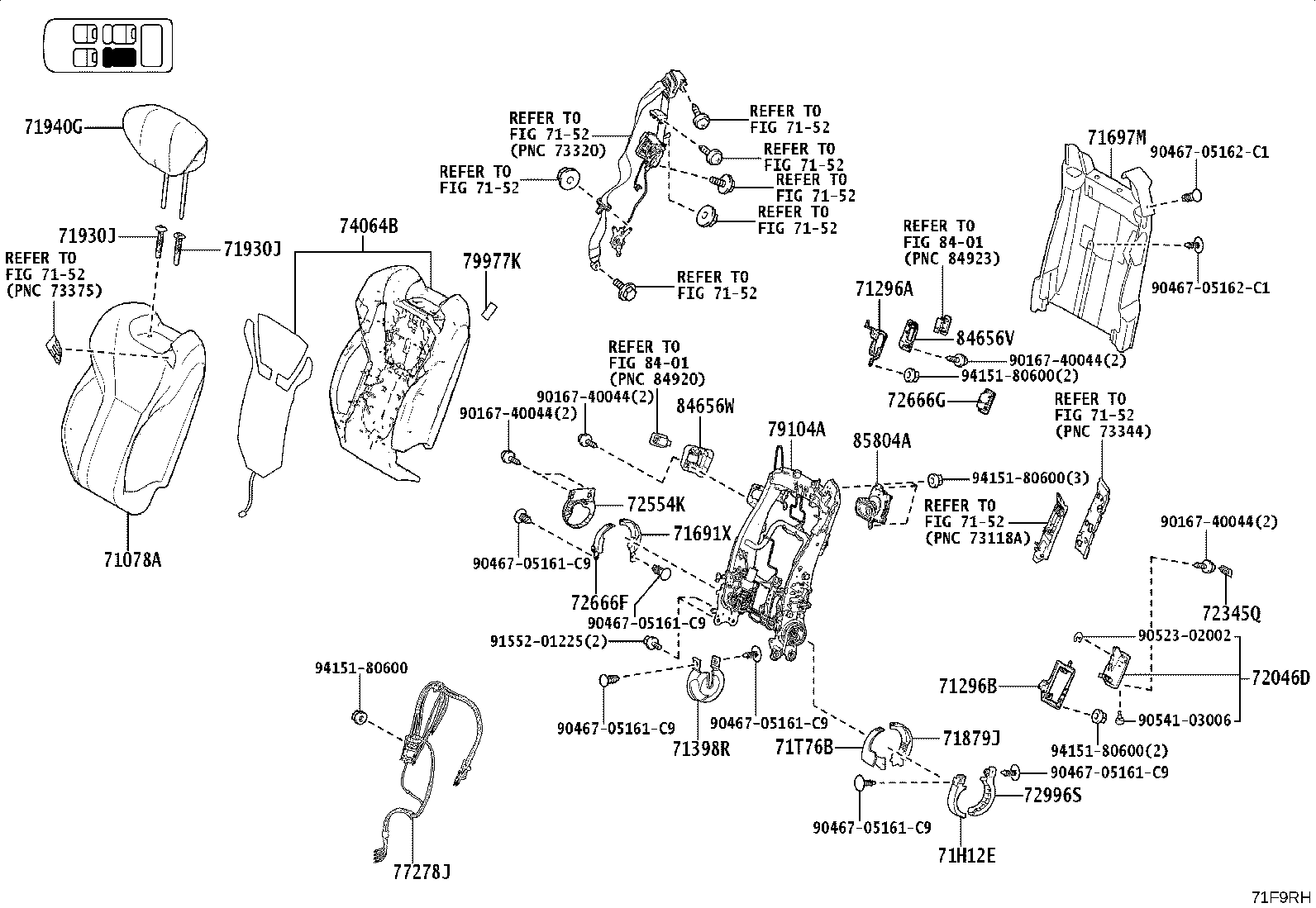

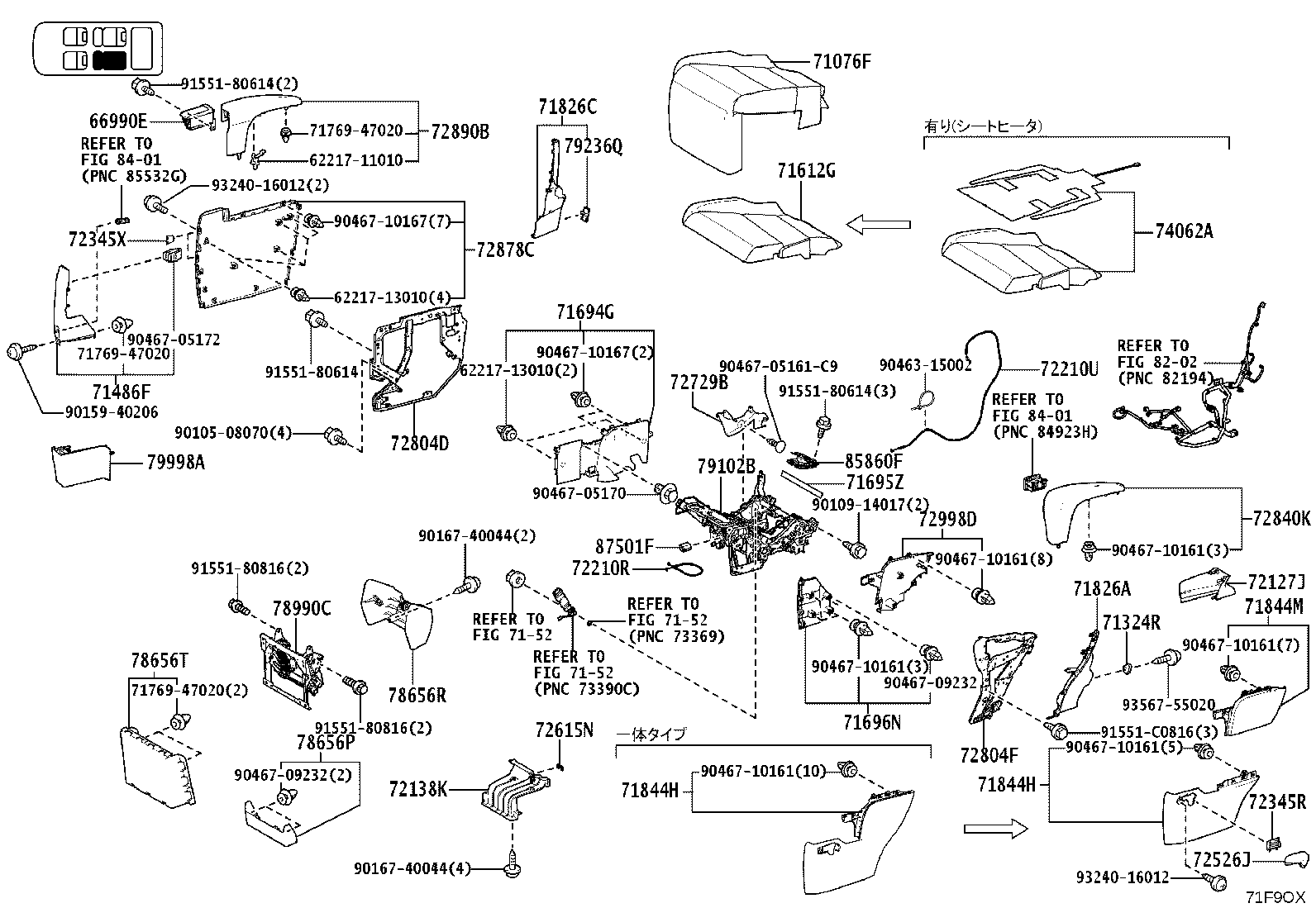

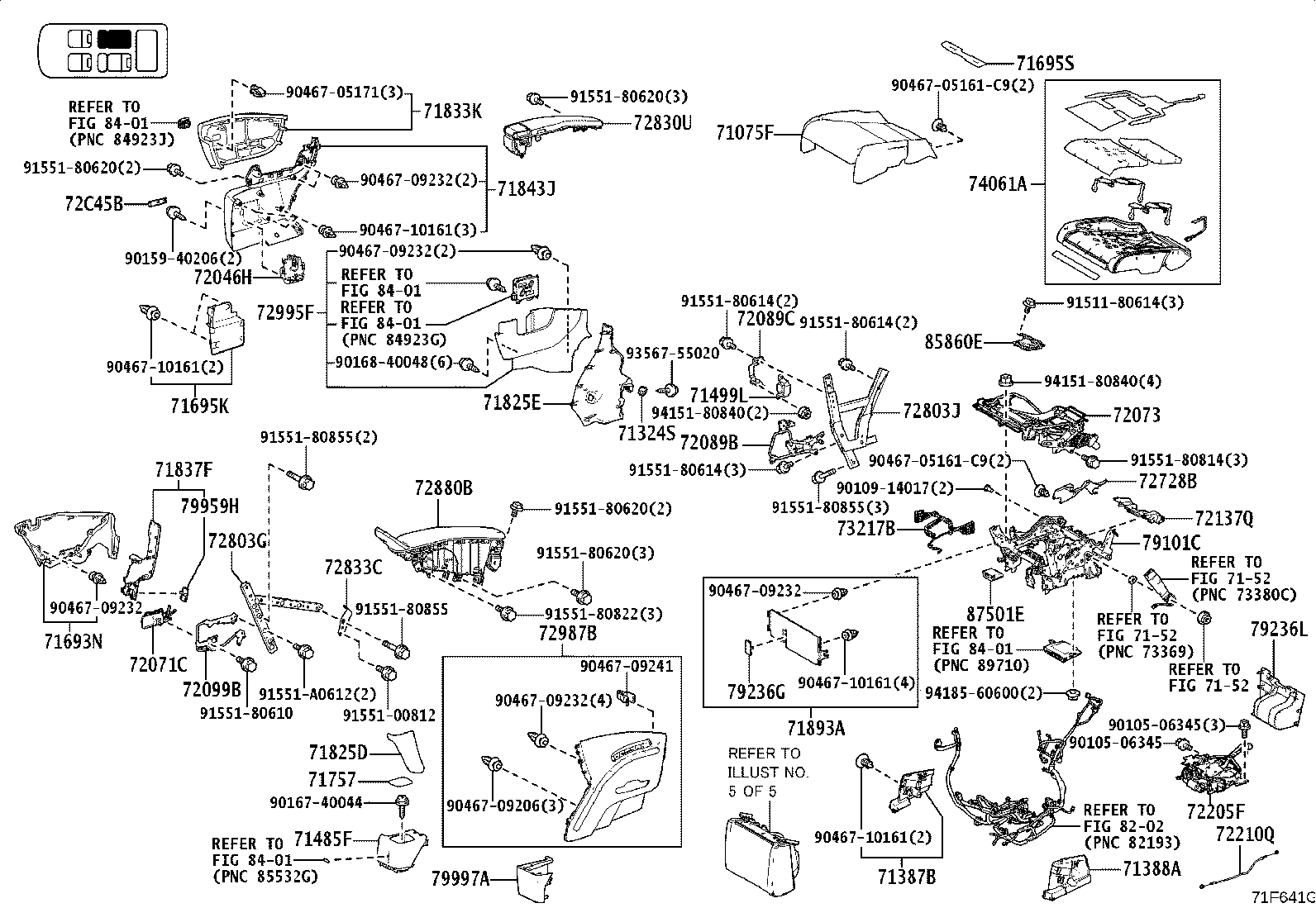

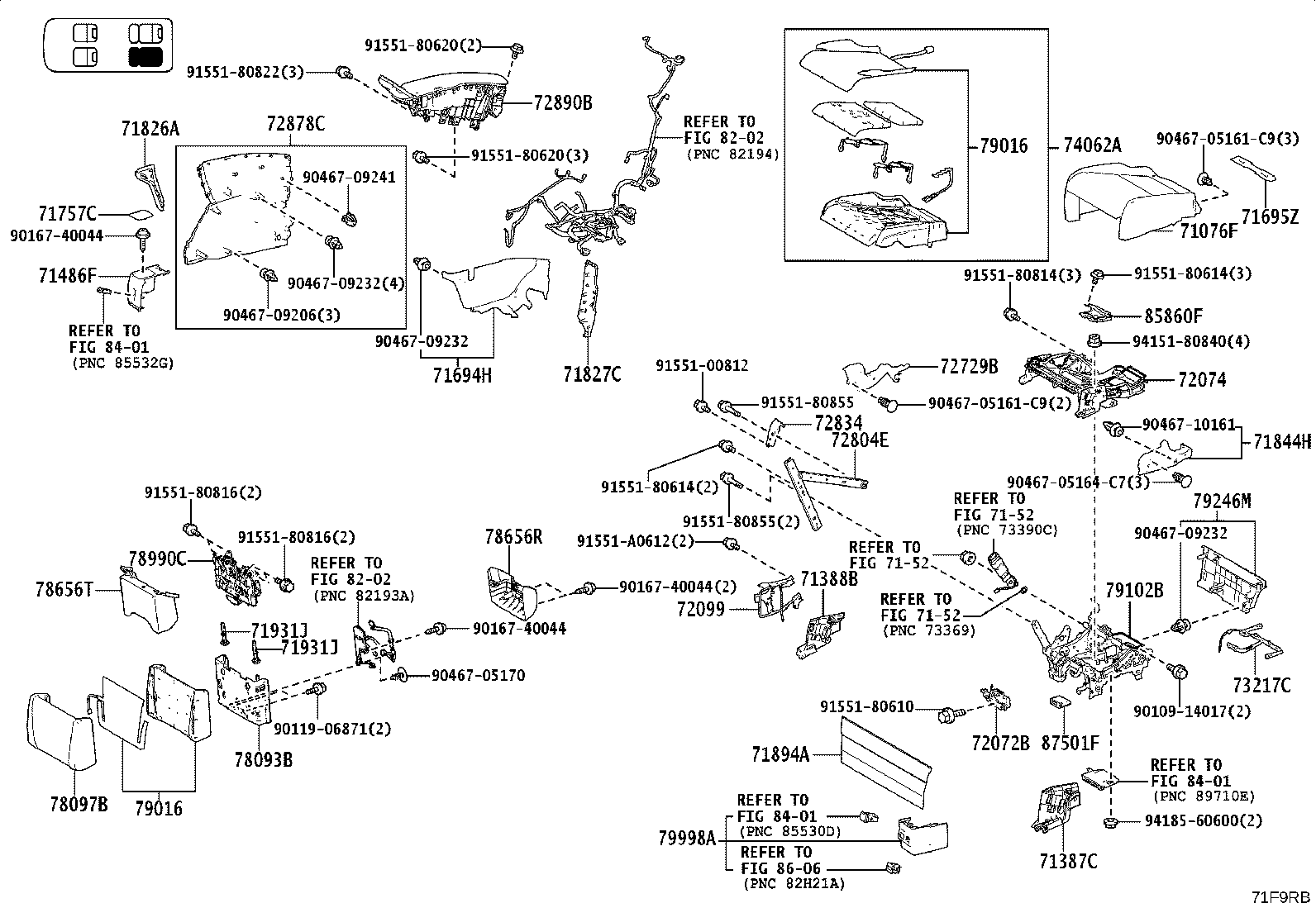

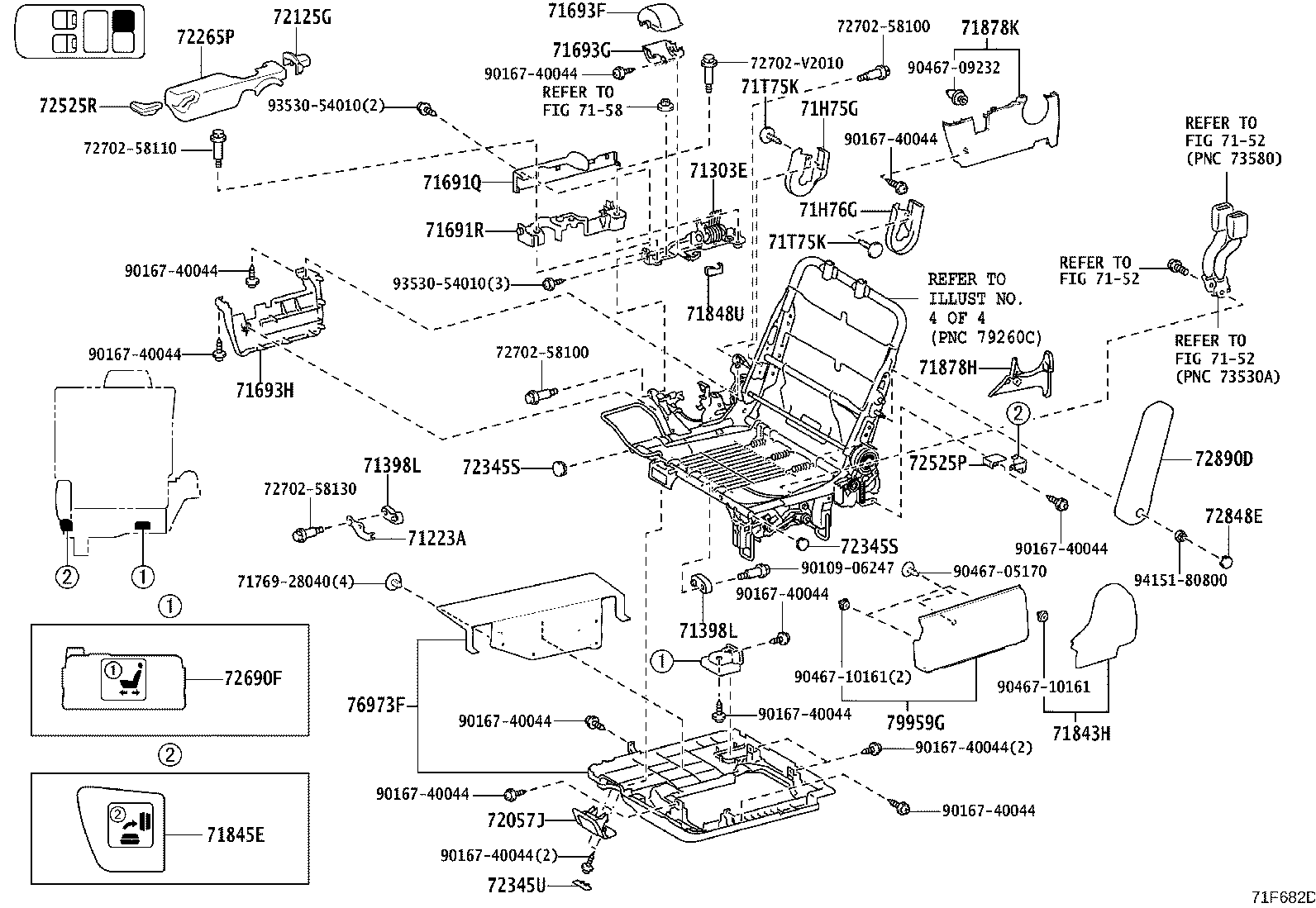

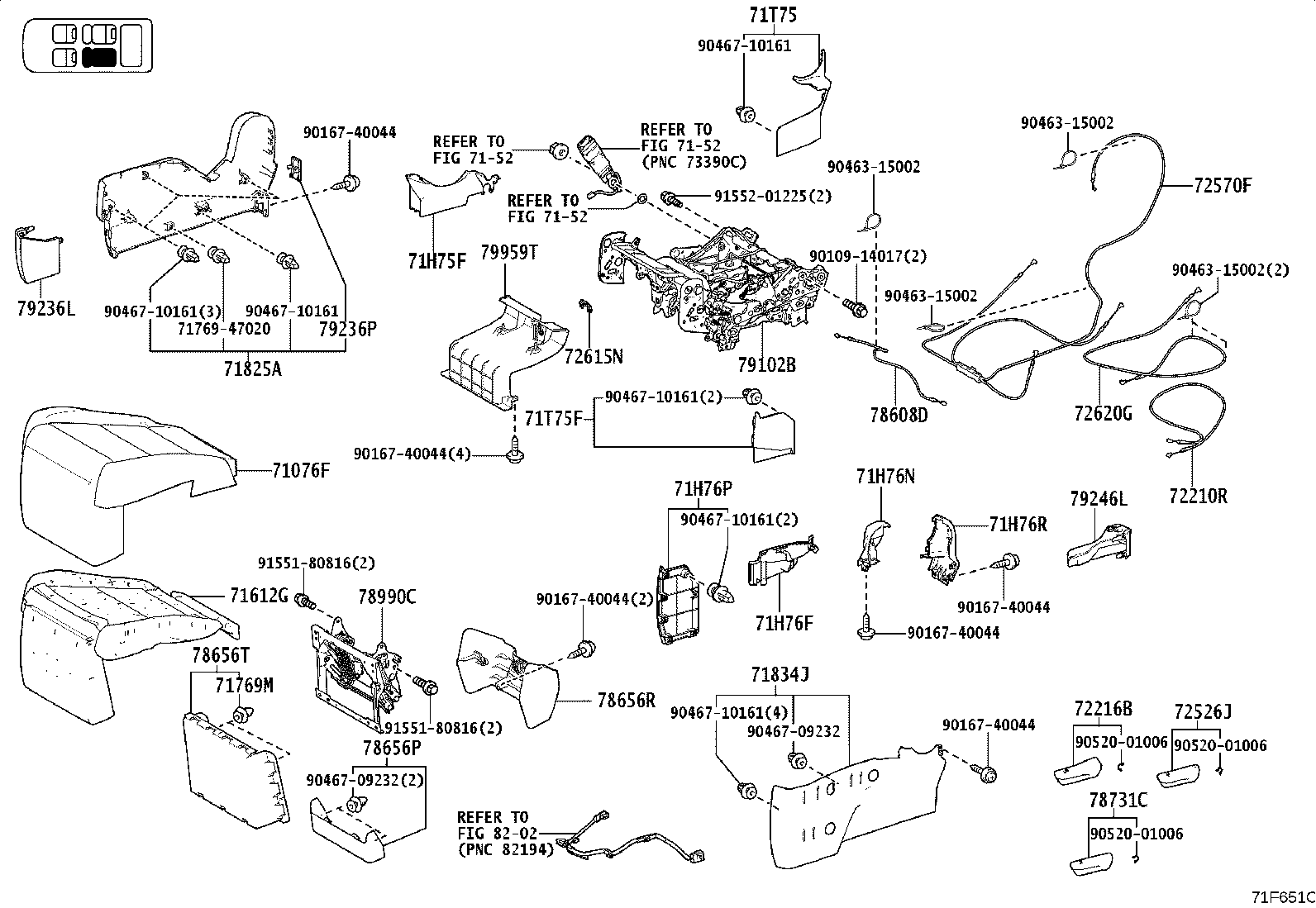

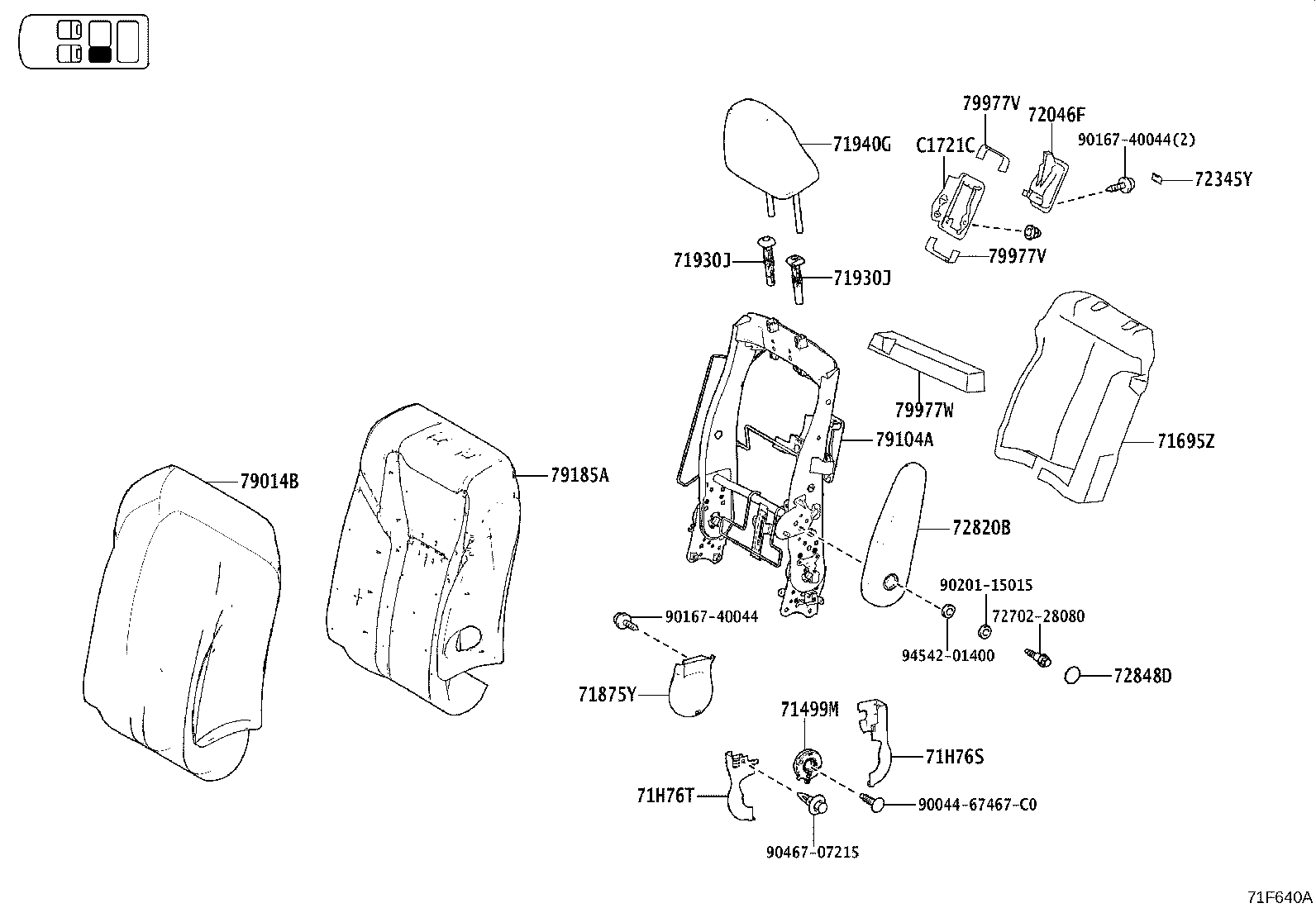

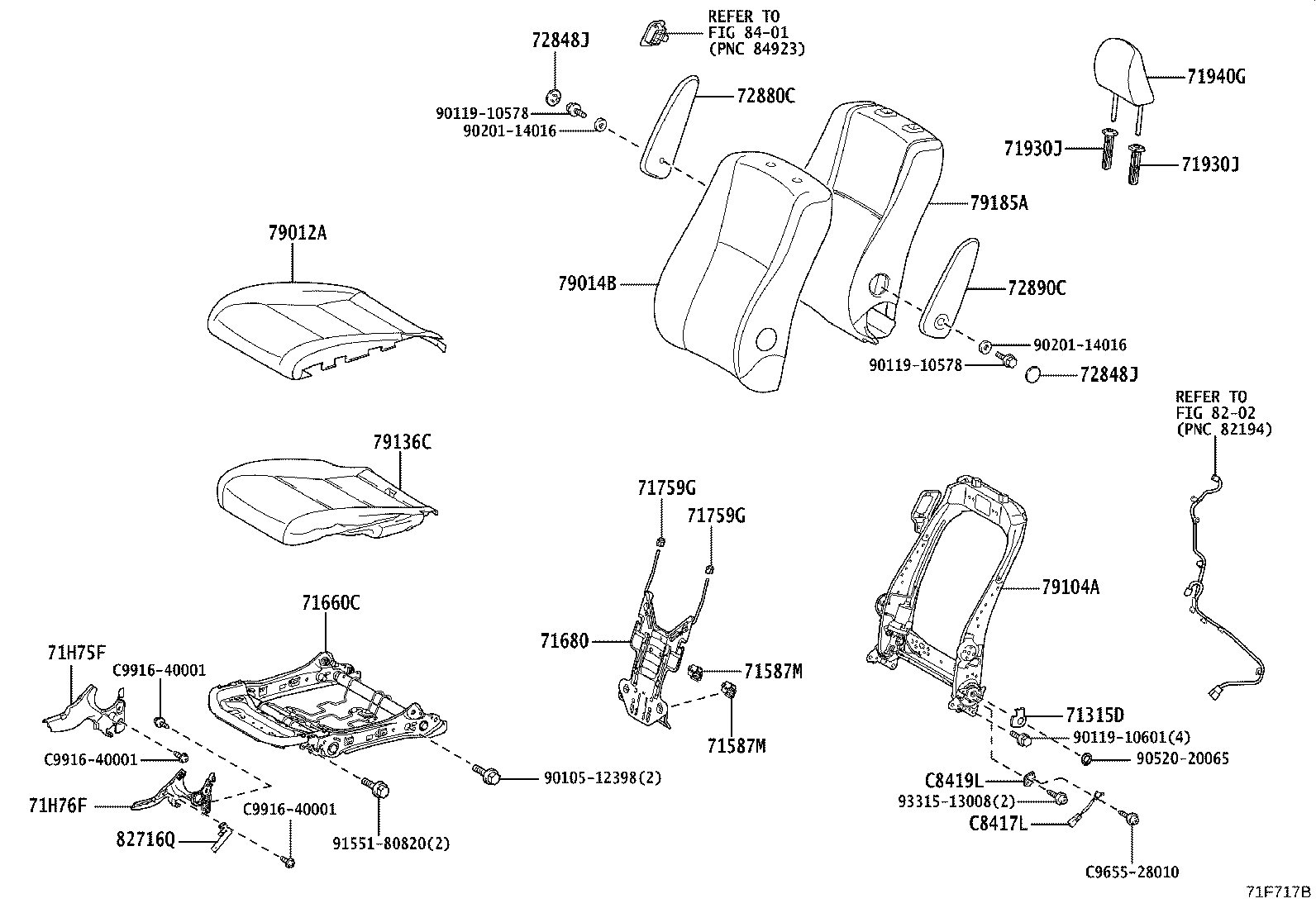

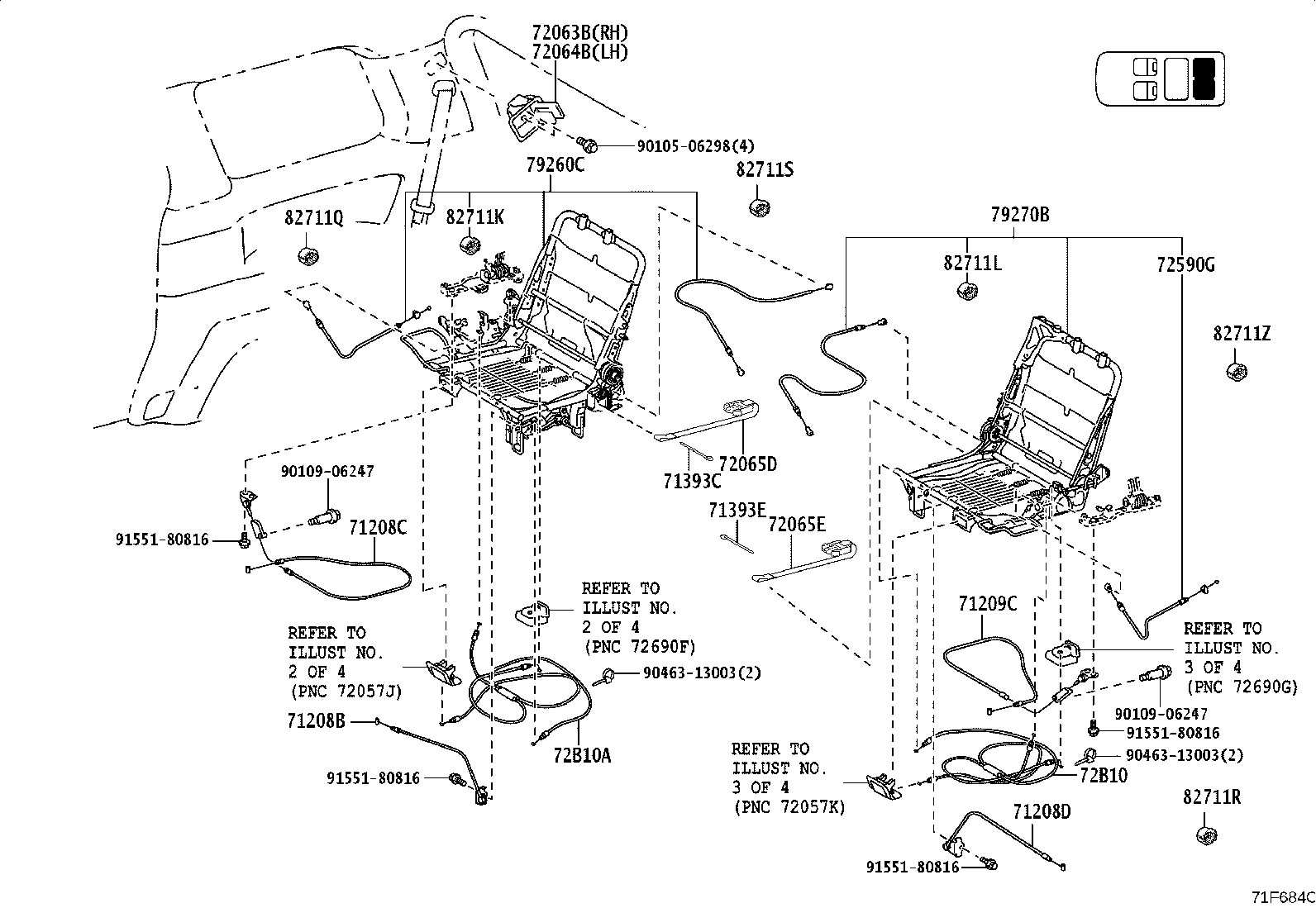

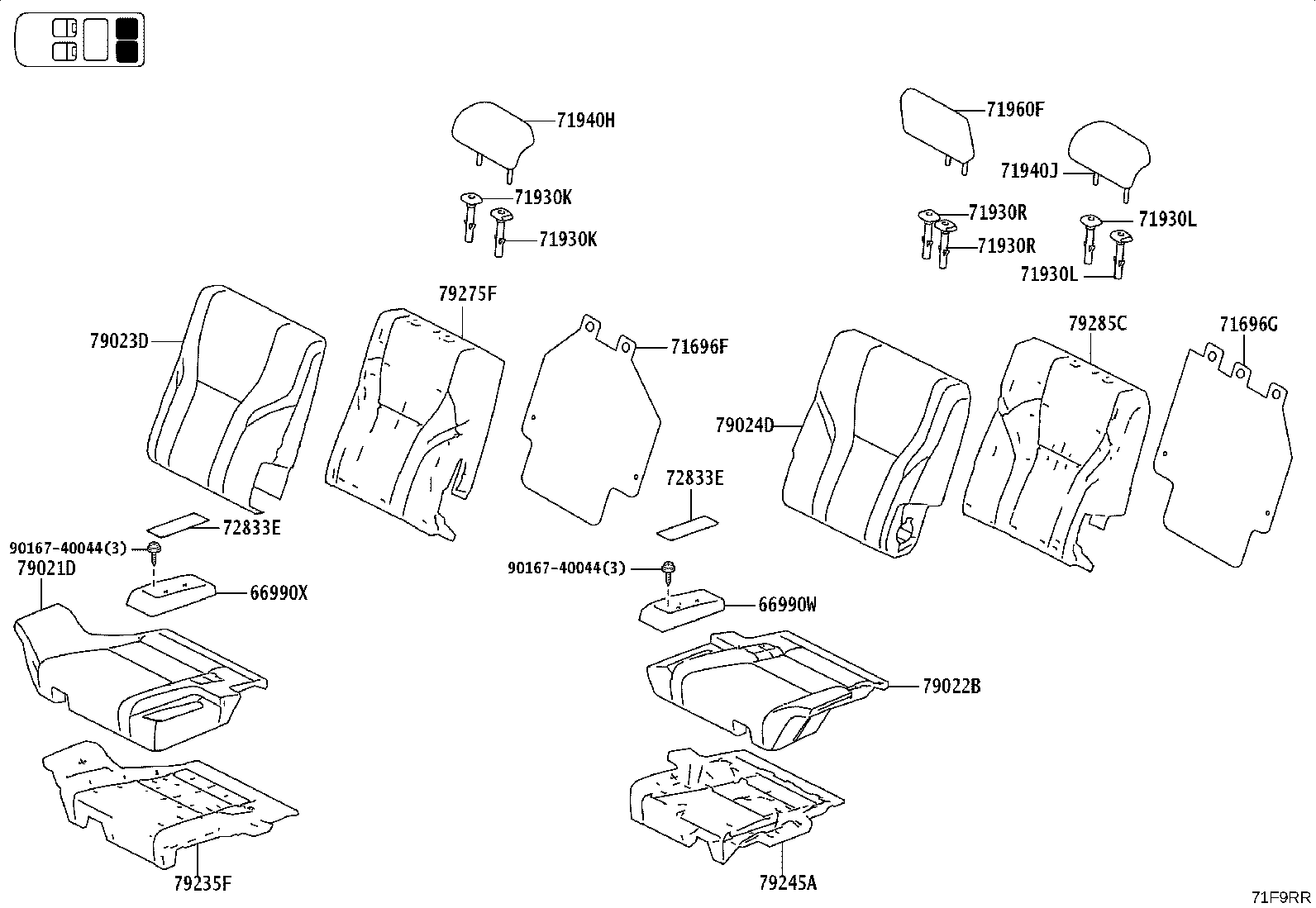

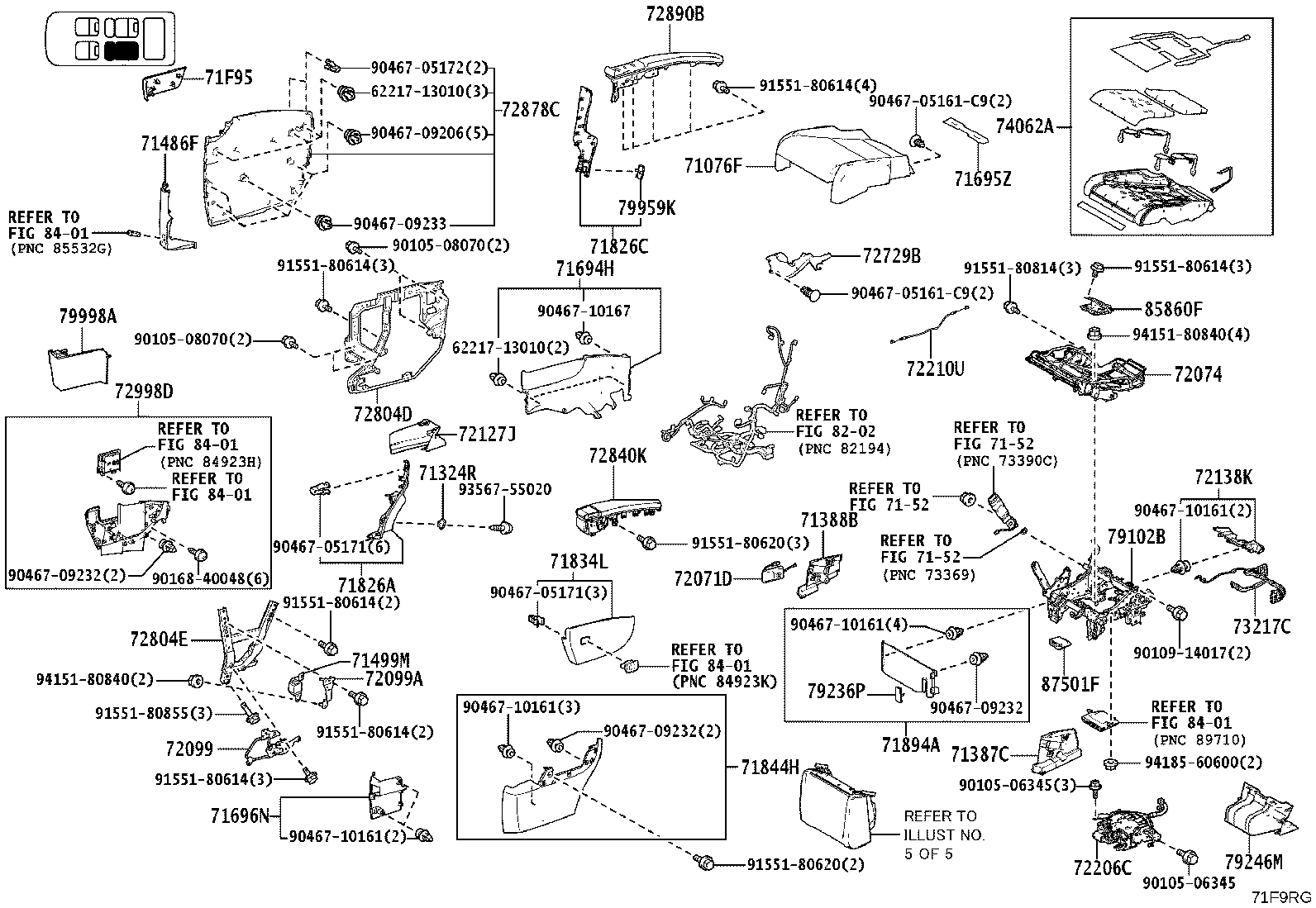

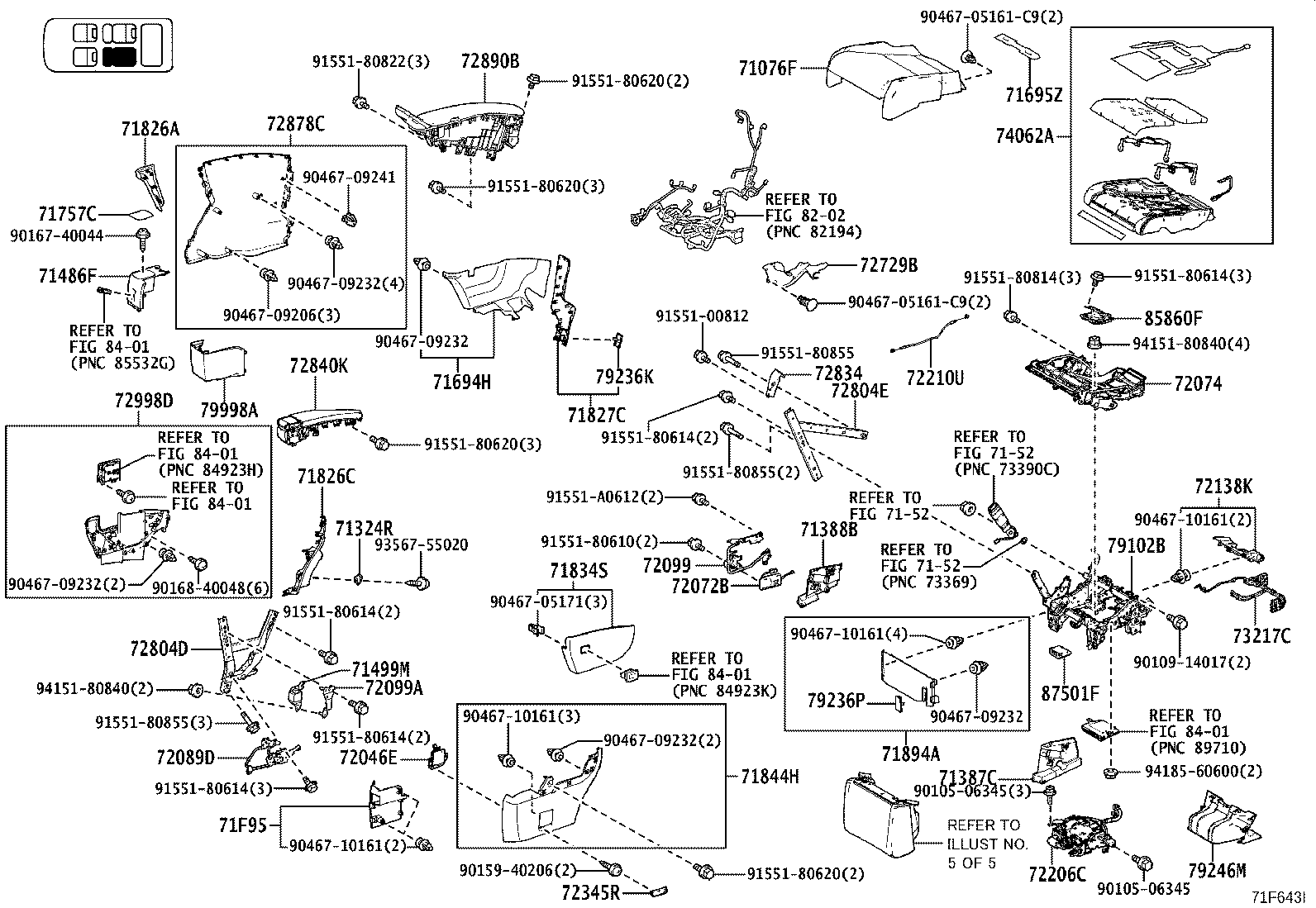

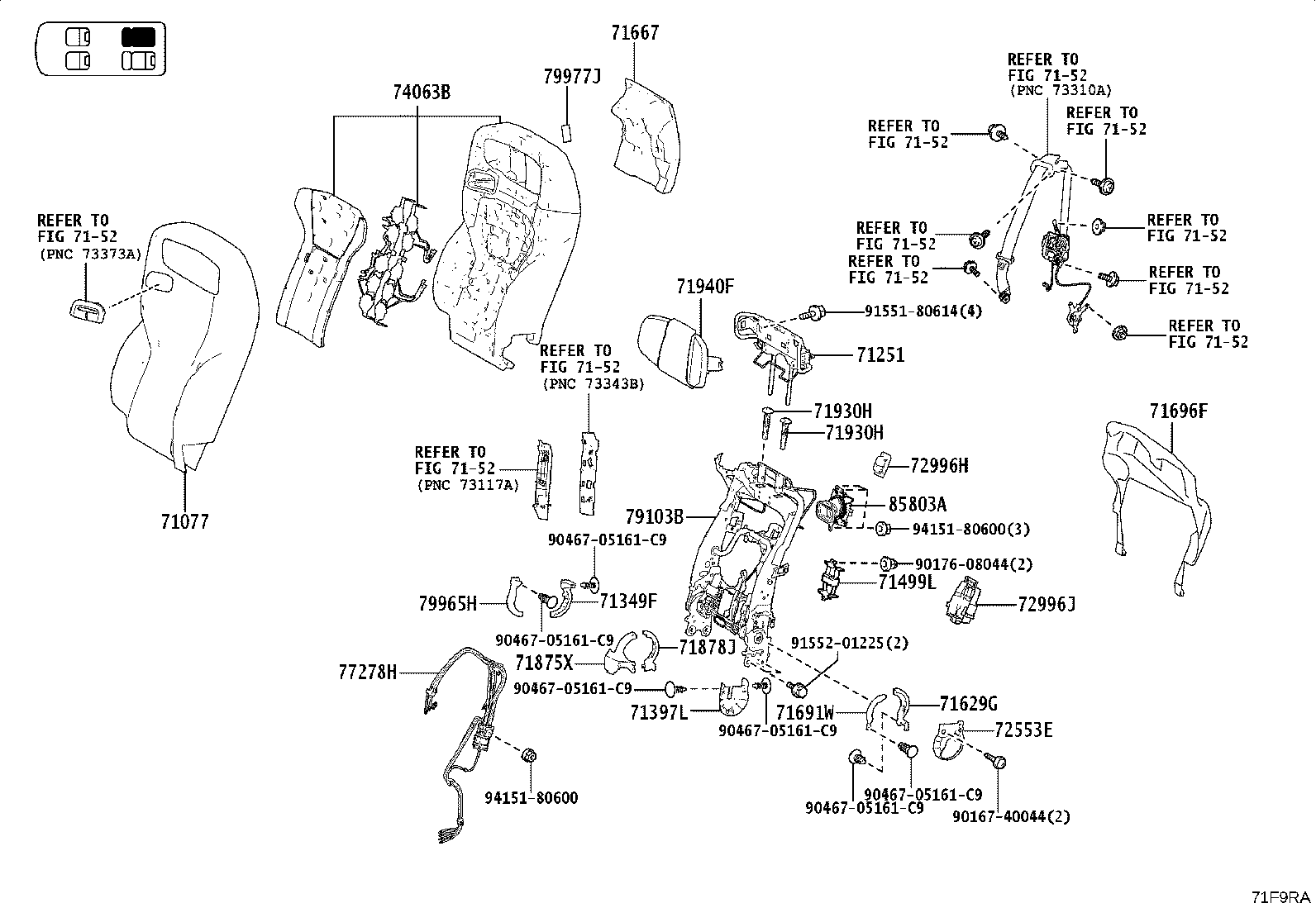

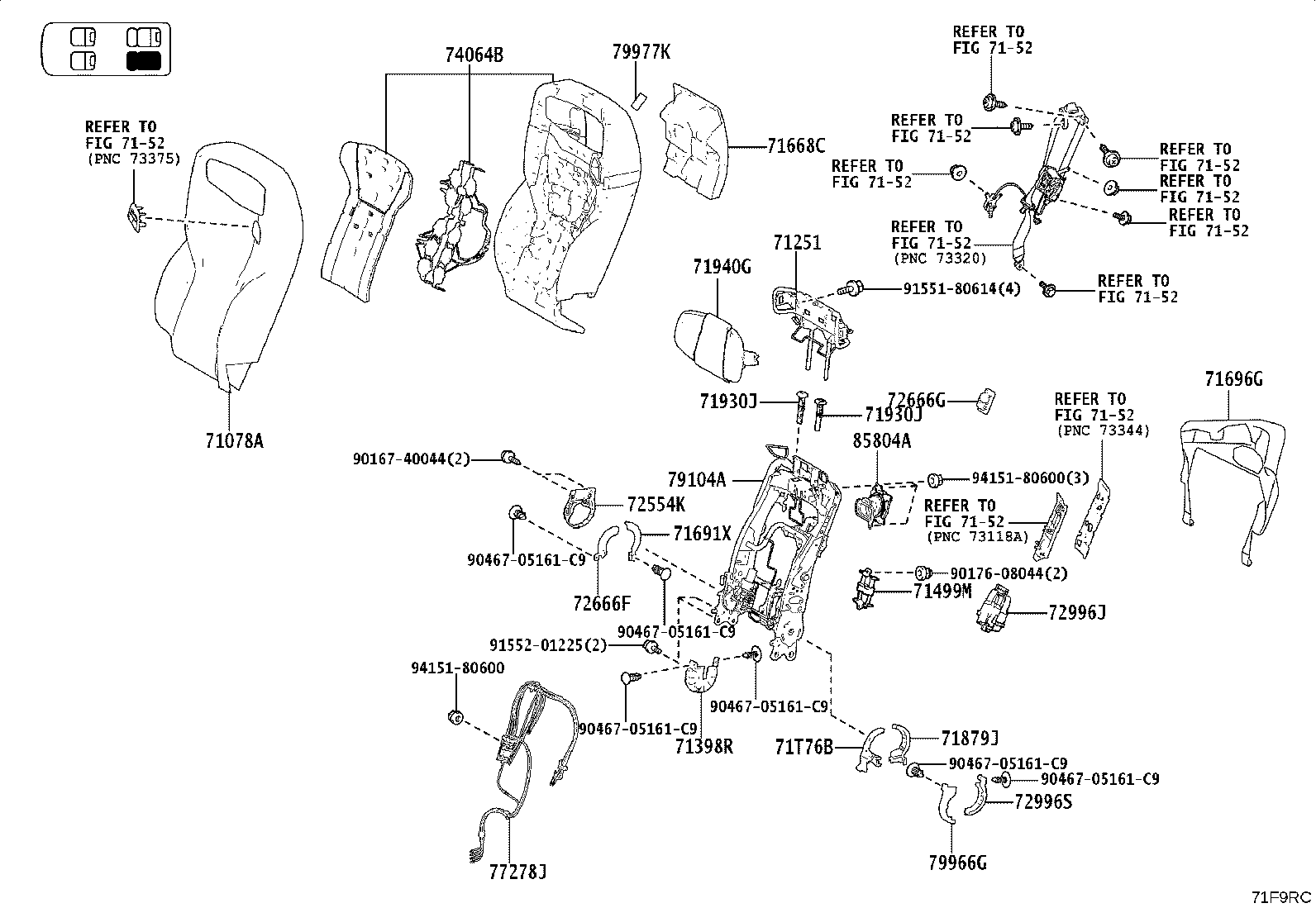

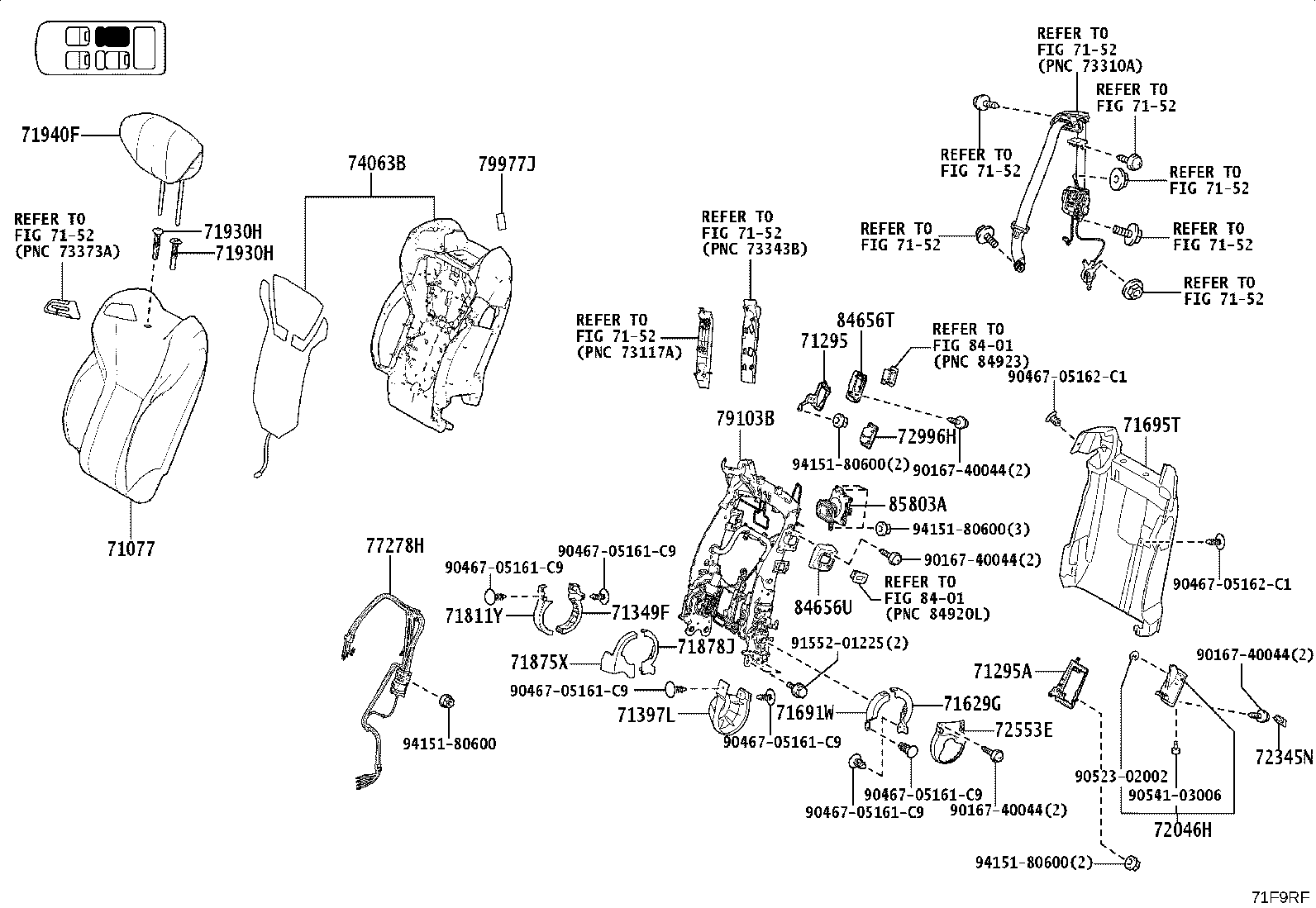

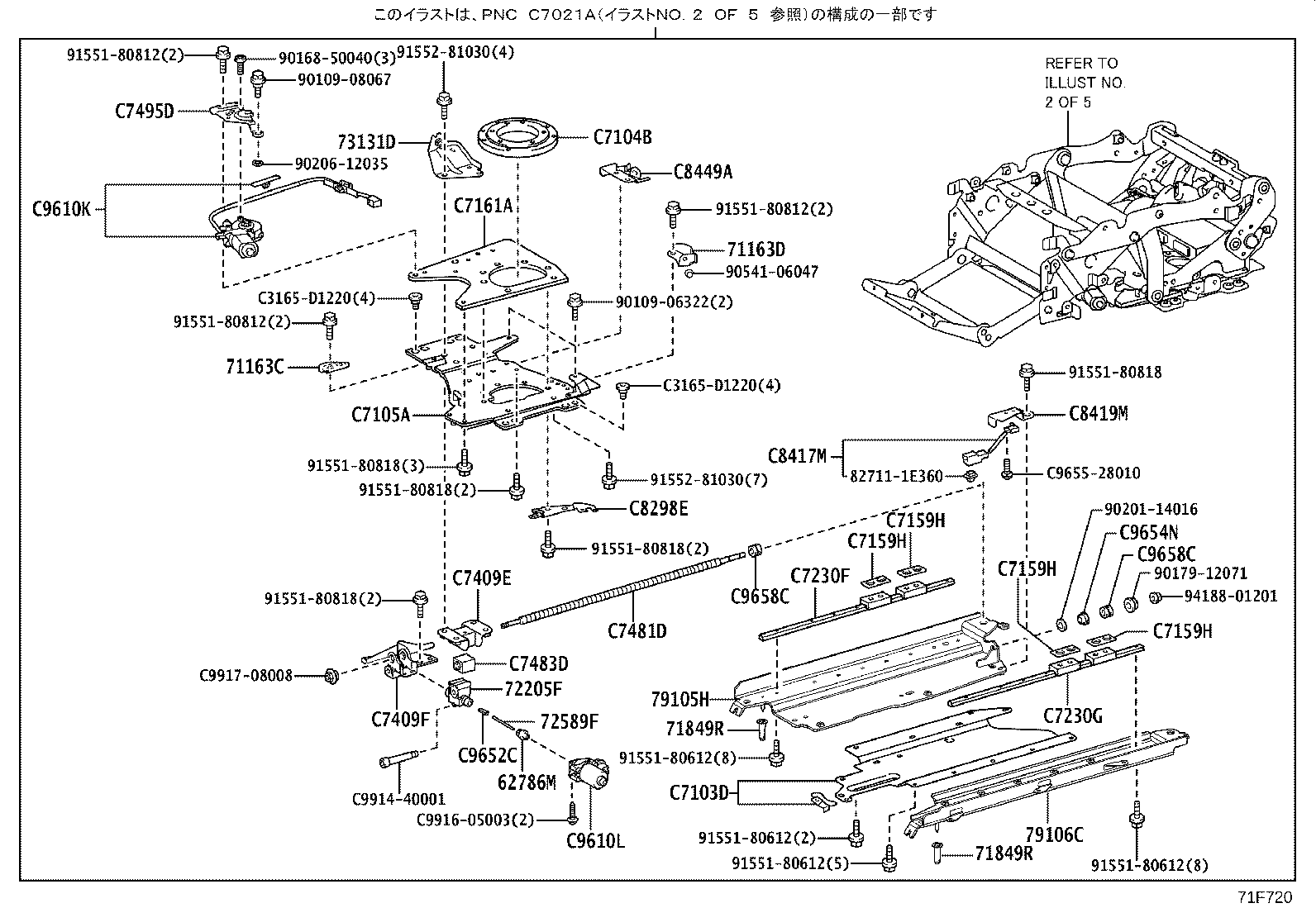

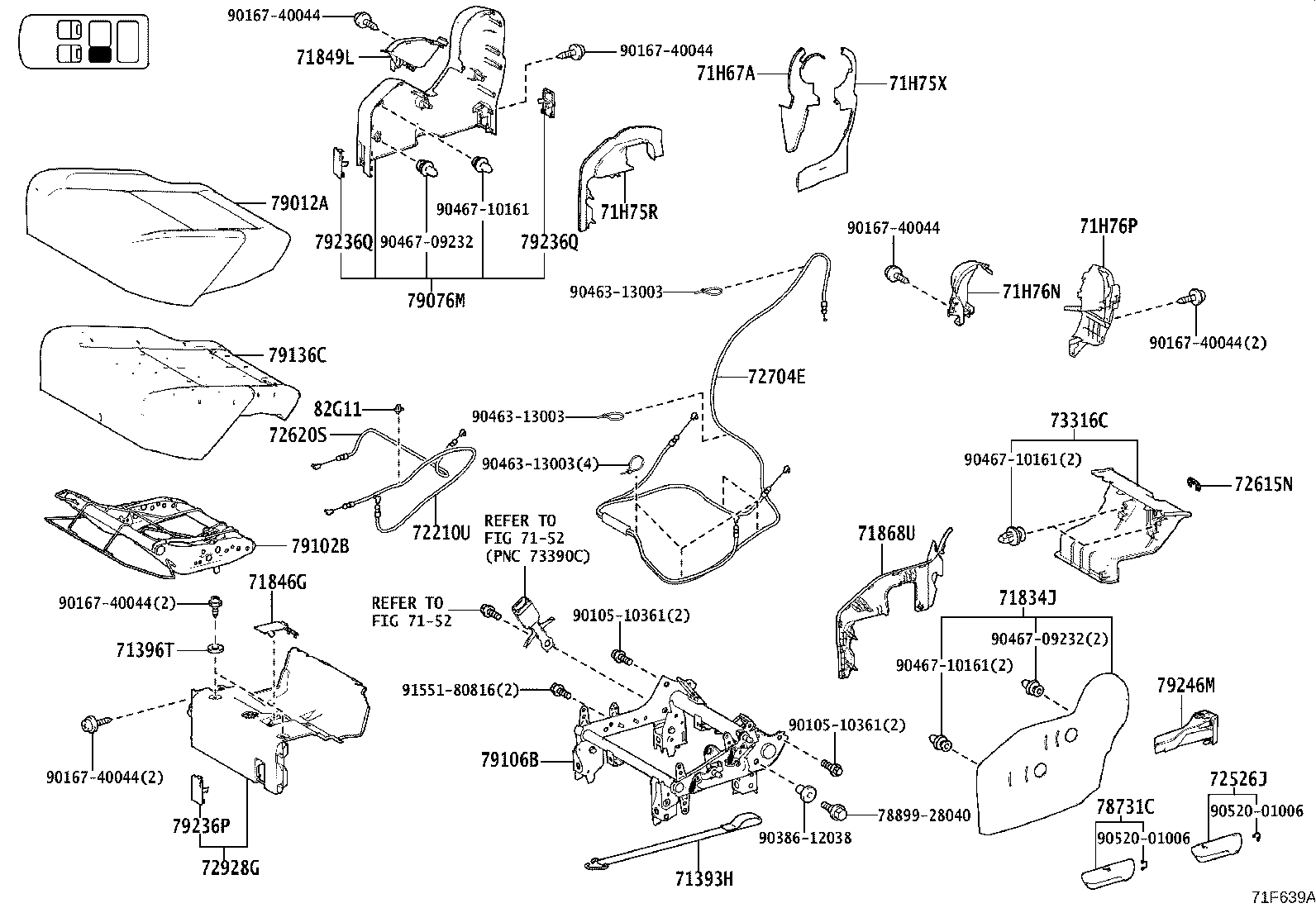

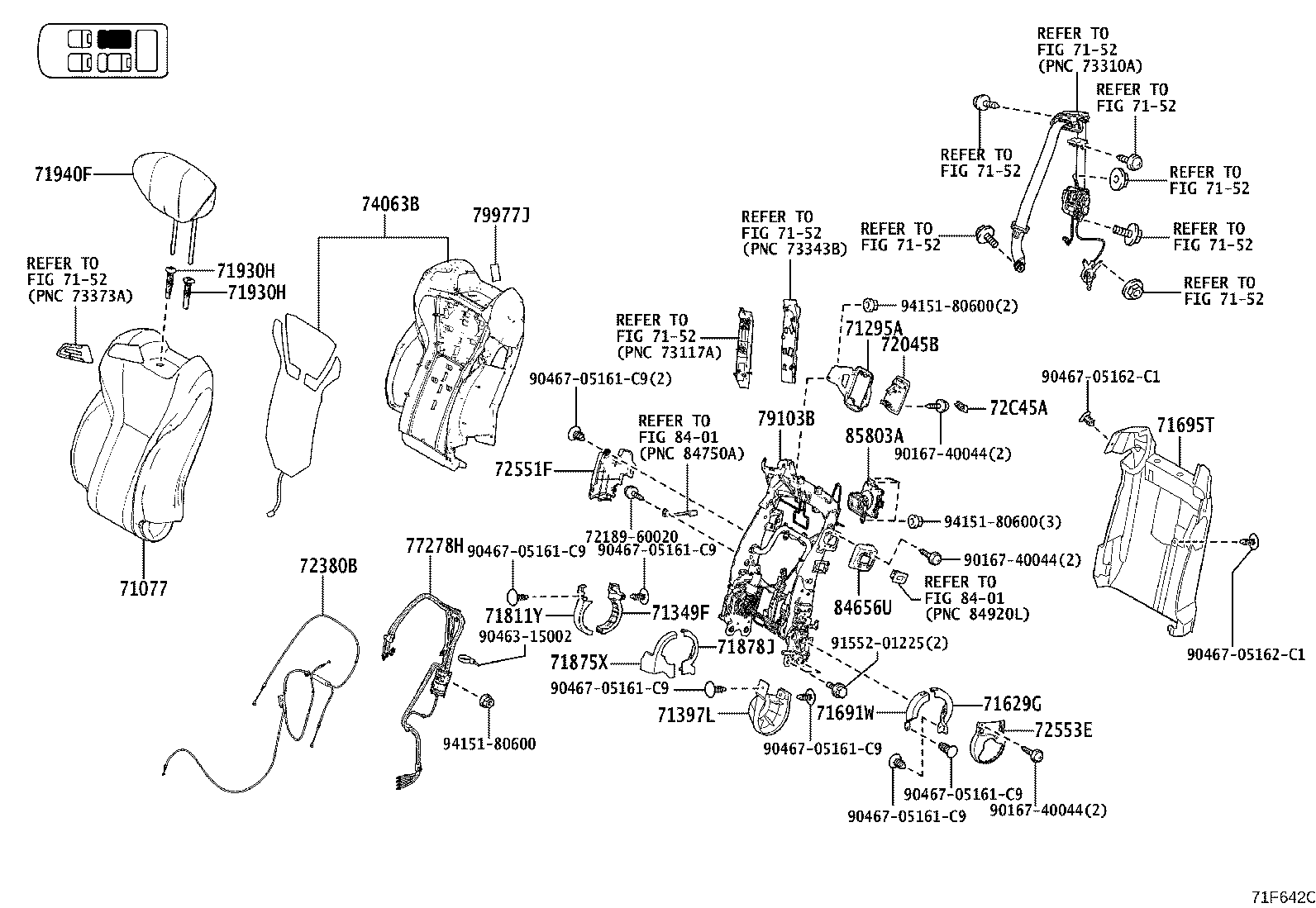

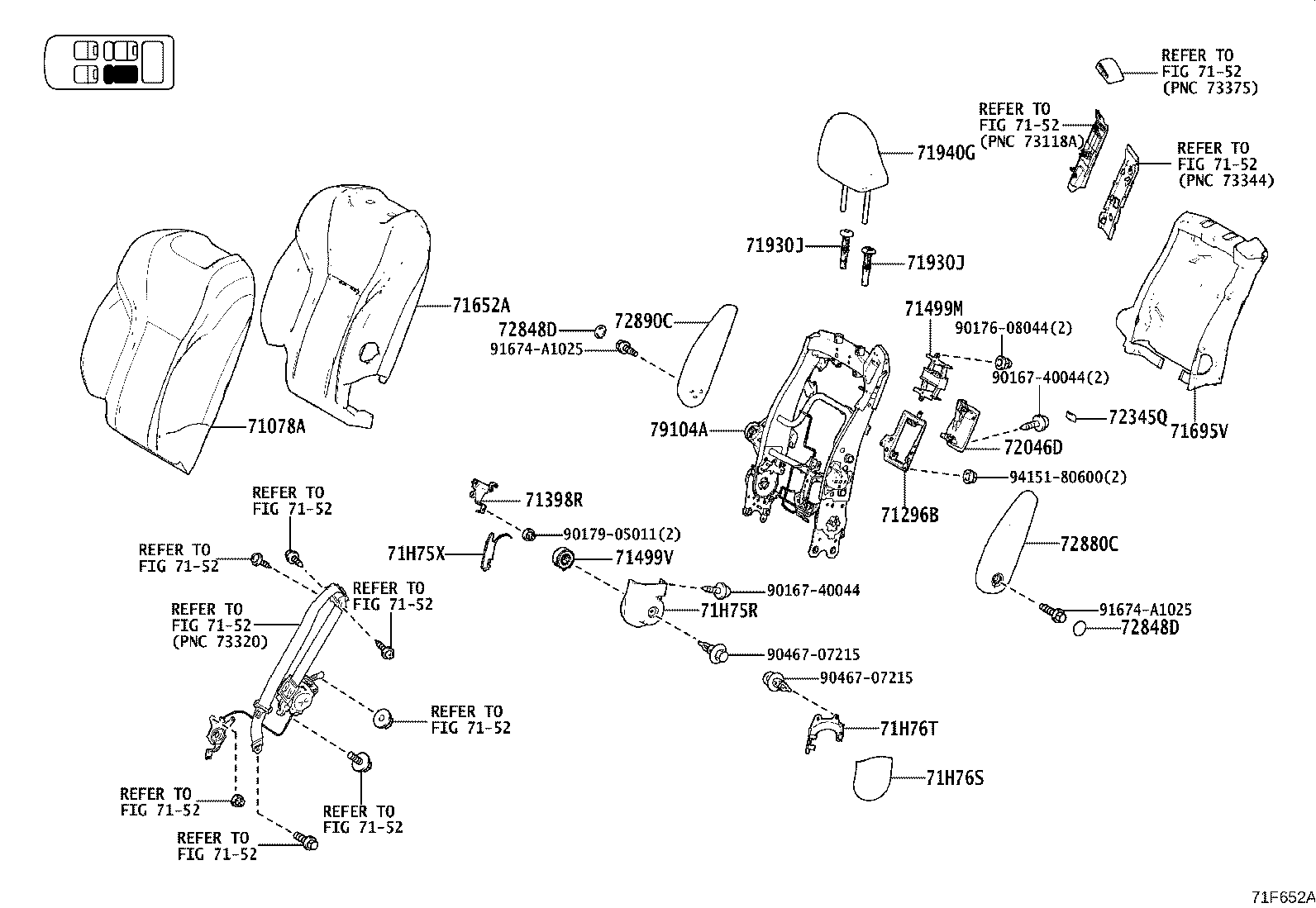

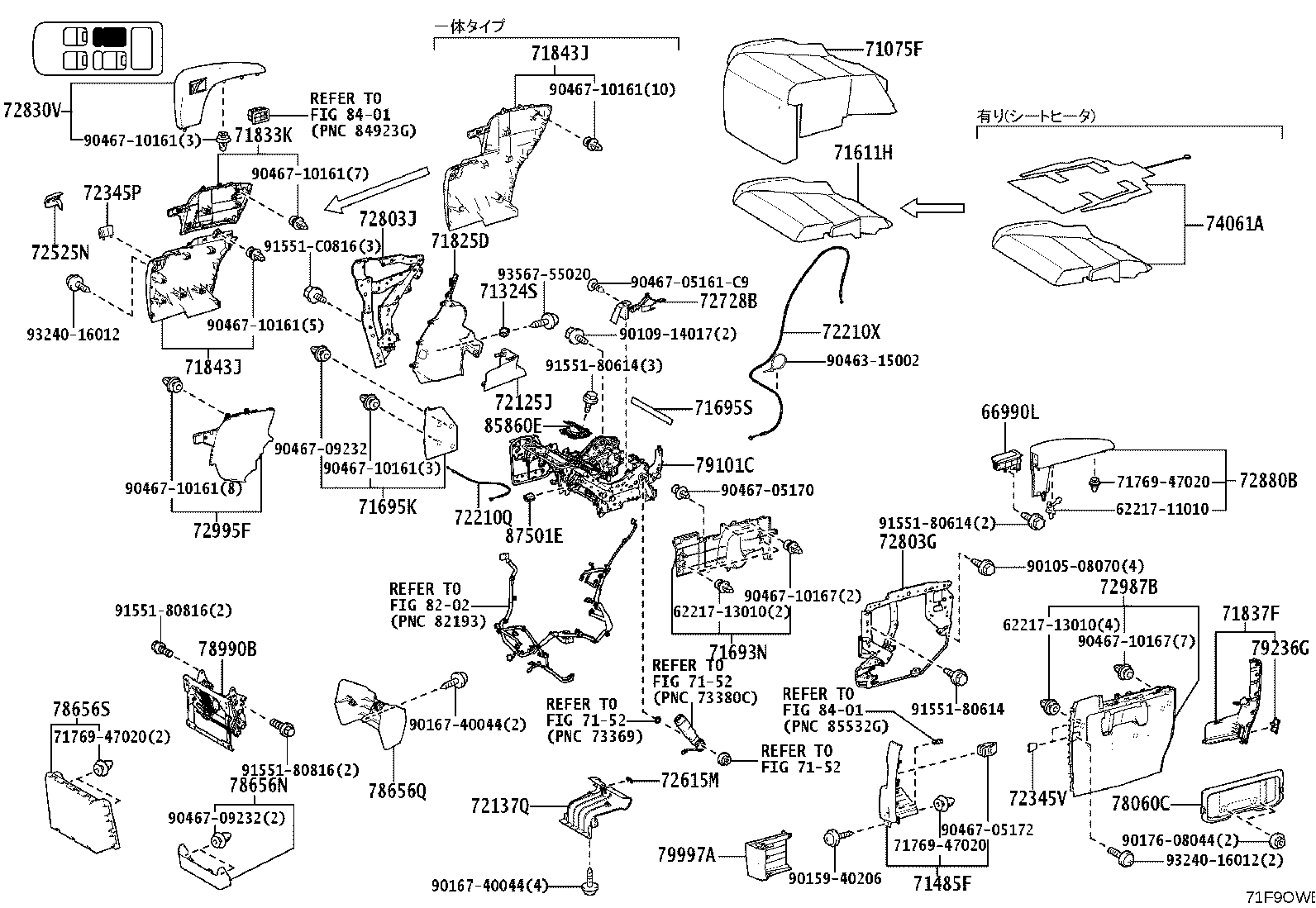

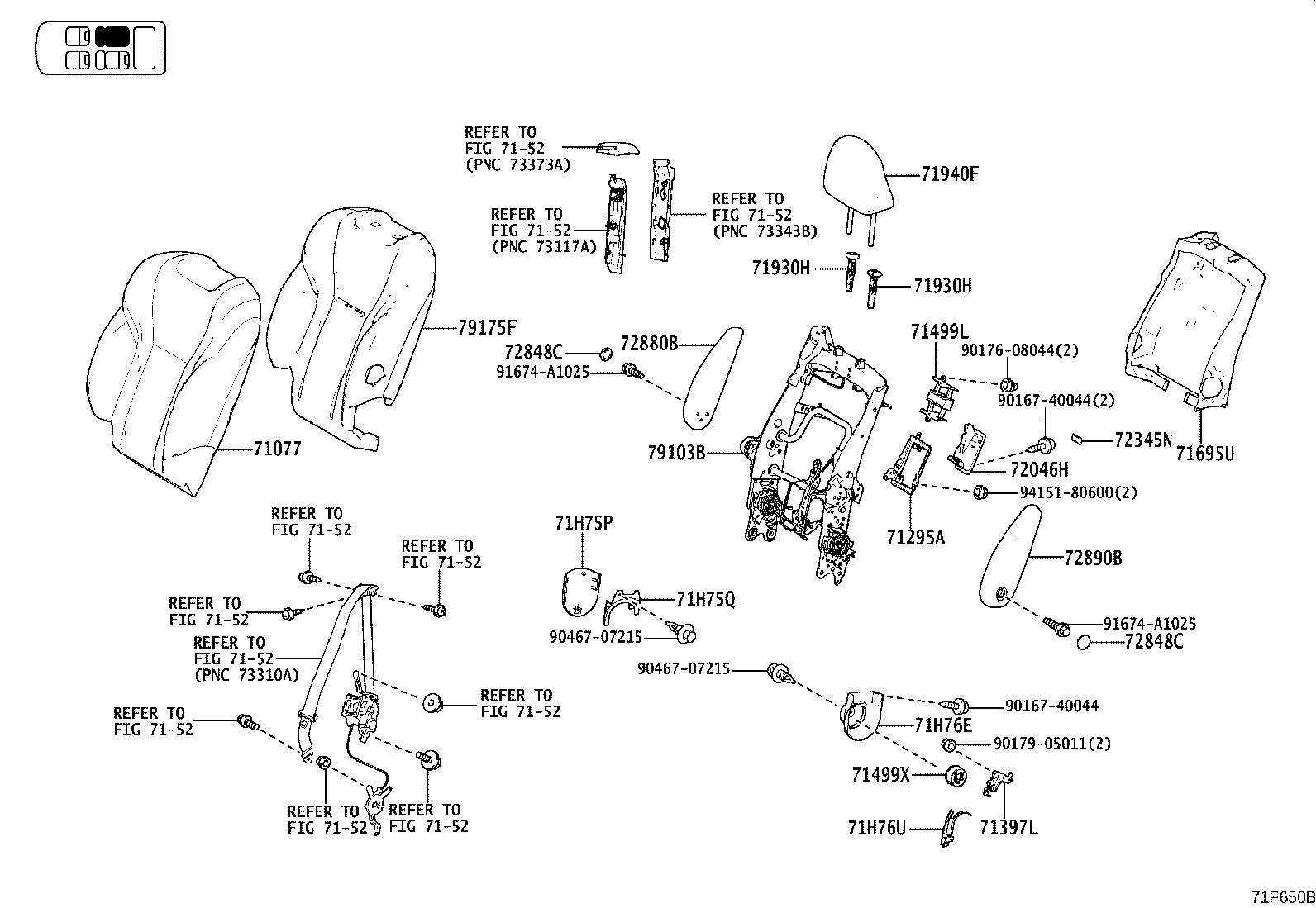

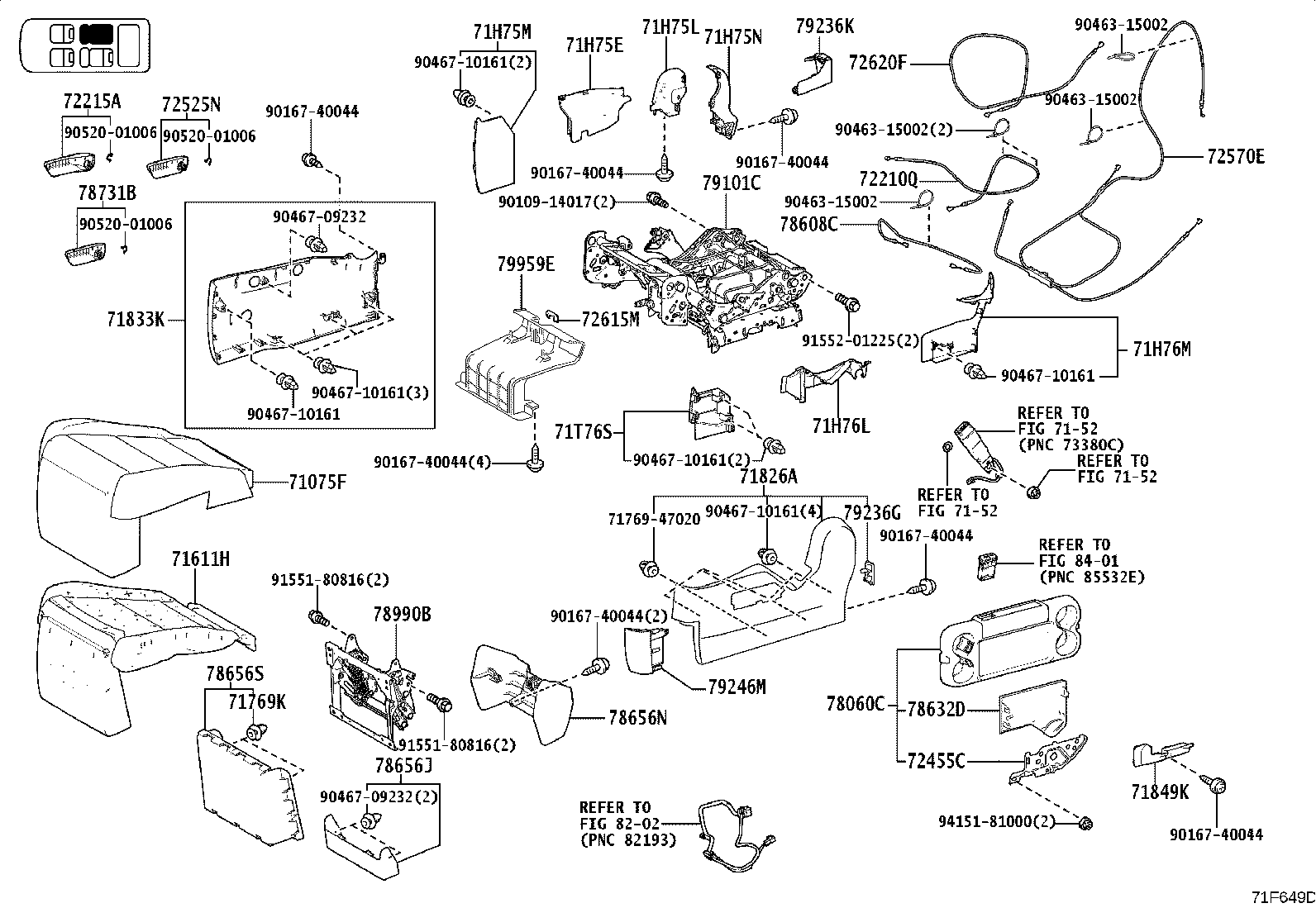

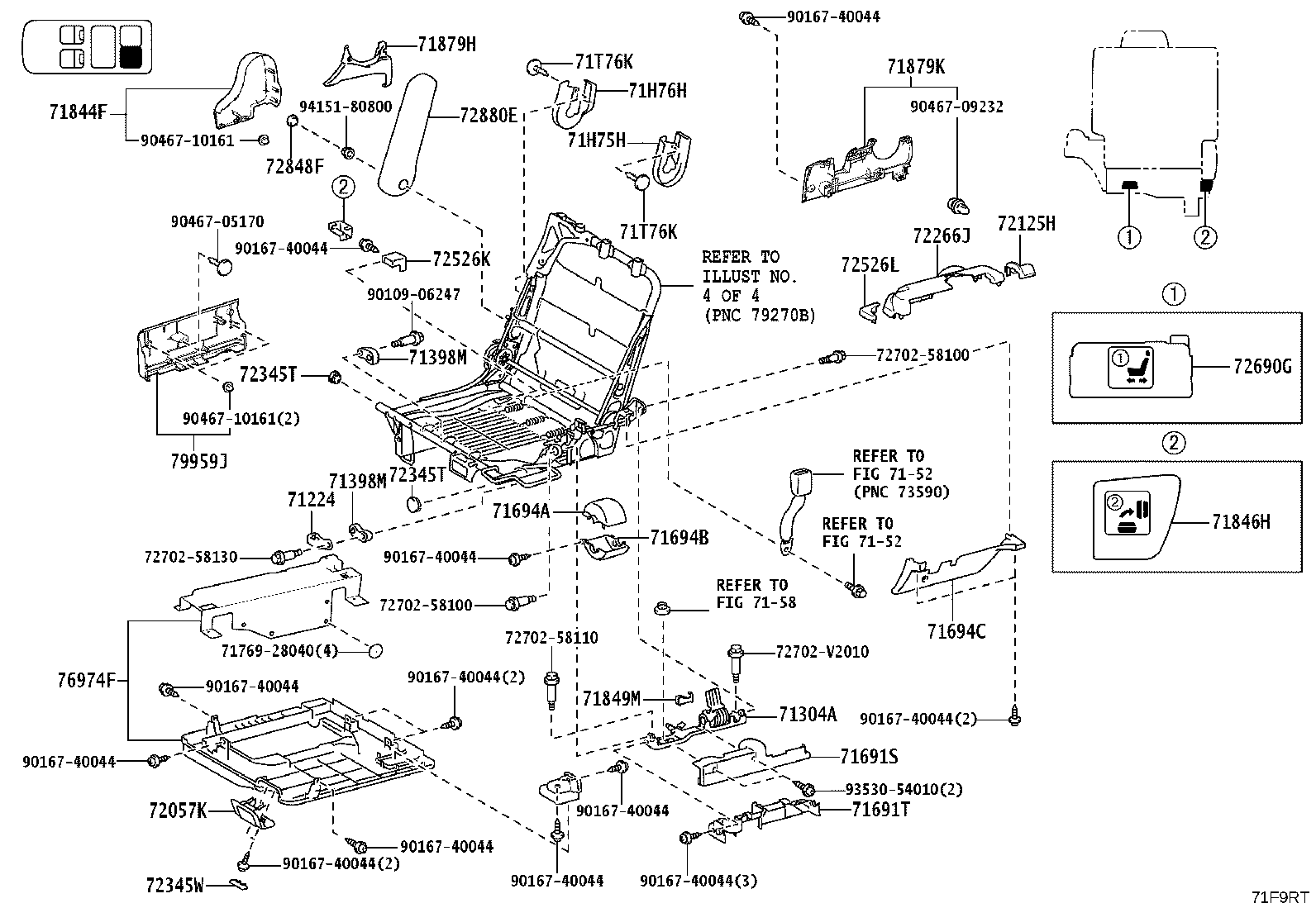

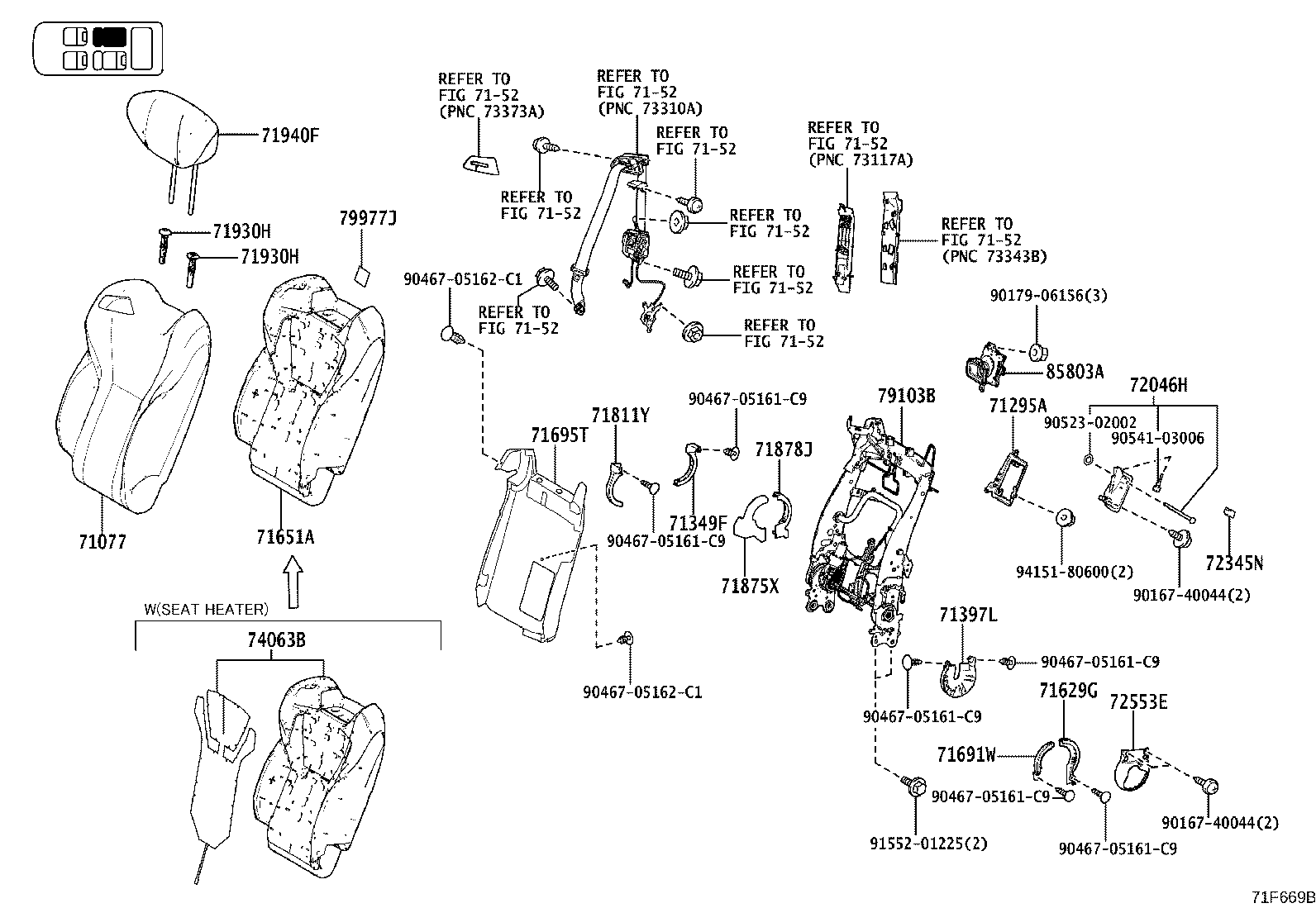

Figure 71F9R9 71F9R9 2024-10 → — Figure 71F9RA 71F9RA 2024-10 → — Figure 71F9RB 71F9RB 2024-10 → — Figure 71F9RC 71F9RC 2024-10 → — Figure 71F637A 71F637A 2023-06 → — Figure 71F638A 71F638A 2023-06 → — Figure 71F639A 71F639A 2023-06 → — Figure 71F640A 71F640A 2023-06 → — Figure 71F641G 71F641G 2023-06 → — Figure 71F642C 71F642C 2023-06 → — Figure 71F643I 71F643I 2023-06 → — Figure 71F644D 71F644D 2023-06 → — Figure 71F685B 71F685B 2023-06 → — Figure 71F649D 71F649D 2023-06 → — Figure 71F650B 71F650B 2023-06 → — Figure 71F651C 71F651C 2023-06 → — Figure 71F652A 71F652A 2023-06 → — Figure 71F9OWB 71F9OWB 2023-06 → — Figure 71F669B 71F669B 2023-06 → — Figure 71F9OX 71F9OX 2023-06 → — Figure 71F671C 71F671C 2023-06 → — Figure 71F9RE 71F9RE 2024-10 → — Figure 71F9RF 71F9RF 2024-10 → — Figure 71F9RG 71F9RG 2024-10 → — Figure 71F9RH 71F9RH 2024-10 → — Figure 71F9RI 71F9RI 2024-10 → — Figure 71F9RR 71F9RR 2024-10 → — Figure 71F681B 71F681B 2023-06 → — Figure 71F9RS 71F9RS 2024-10 → — Figure 71F682D 71F682D 2023-06 → — Figure 71F9RT 71F9RT 2024-10 → — Figure 71F683D 71F683D 2023-06 → — Figure 71F684C 71F684C 2023-06 → — Figure 71F717B 71F717B 2023-06 → — Figure 71F718C 71F718C 2023-06 → — Figure 71F719 71F719 2023-06 → — Figure 71F720 71F720 2023-06 → — Figure 71F721C 71F721C 2023-06 → —

Part groups

PNCDescription
37601B Shaft Sub-assy, Drive, NO.1
51079G Panel Sub-assy, Rear Step
58331N Sheet, Rear Step. NO.1
58331P Sheet, Rear Step. NO.2
58659D Sheet, Step Silencer
62786M Case, Side Window Lock, NO.2
66990E Holder Assy, Rear NO.1 Seat Cup, LH
66990L Holder Assy, Rear NO.1 Seat Cup, RH
66990V Holder Assy, Cup
66990W Holder Assy, Rear NO.2 Seat Cup, LH
66990X Holder Assy, Rear NO.2 Seat Cup, RH
69350V Lock Assy, Rear Seatback
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71077 Cover Sub-assy, Rear NO.1 Seatback, RH
71078A Cover Sub-assy, Rear NO.1 Seatback, LH
71163C Bracket, Welcab Seat Slide Table Panel, NO.1
71163D Bracket, Welcab Seat Slide Table Panel, NO.2
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208C Wire Sub-assy, NO.2 Seat Cushion, RH NO.2
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71209C Wire Sub-assy, NO.2 Seat Cushion, LH NO.2
71223A Bracket, NO.2 Seat Cushion Side, RH
71224 Bracket, NO.2 Seat Cushion Side, LH
71251 Frame, Rear Seatback, RH
71260E Bracket Assy, Seat, Outer LH
71280C Bracket Assy, Seat, Inner LH
71281C Hinge, NO.1 Seat Center Armrest
71295 Plate, Rear Seatback, Upper RH
71295A Plate, Rear Seatback, Upper RH
71296A Plate, Rear Seatback, Upper LH
71296B Plate, Rear Seatback, Upper LH
71303E Hinge Sub-assy, Rear NO.2 Seat, RH
71304A Hinge Sub-assy, Rear NO.2 Seat, LH
71315D Plate, Rear Seat Hinge, Lower
71324R Cushion, Rear NO.1 Seat, LH
71324S Cushion, Rear NO.1 Seat, RH
71347D Bracket, Rear Seat Link
71349F Cover, NO.1 Seatback Hinge, RH
71387B Retainer, Rear Seat Cushion Holder, RH
71387C Retainer, Rear Seat Cushion Holder, RH NO.1
71388A Retainer, Rear Seat Cushion Holder, LH
71388B Retainer, Rear Seat Cushion Holder, LH NO.1
71393C Band, NO.2 Seat Cushion, RH NO.1
71393E Band, NO.2 Seat Cushion, LH NO.1
71393G Band, NO.1 Seat Cushion(FOR RH SEAT)
71393H Band, NO.1 Seat Cushion(FOR LH SEAT)
71396N Cushion, NO.1 Seat Support, Rear(FOR RH SEAT)
71396T Cushion, NO.1 Seat Support, Rear
71397L Holder, Rear Seatback, RH
71398L Guide, NO.2 Seat Cushion Support, RH
71398M Guide, NO.2 Seat Cushion Support, LH
71398R Holder, Rear Seatback, LH
71485F Cover, Rear Seat Hinge, NO.1 RH
71486F Cover, Rear Seat Hinge, LH
71499L Damper, NO.1 Seatback Spring, RH
71499M Damper, NO.1 Seatback Spring, LH
71499V Damper, NO.1 Seatback Spring, LH NO.2
71499X Damper, NO.1 Seatback Spring, RH NO.2
71537W Protector, Rear Step Panel
71587M Protector, Rear Seatback Edge, LH
71611H Pad, Rear NO.1 Seat Cushion, RH
71612G Pad, Rear NO.1 Seat Cushion, LH
71629G Cover, Rear Seat Cushion Hinge
71651A Pad, Rear NO.1 Seatback, RH
71652A Pad, Rear NO.1 Seatback, LH
71660C Spring Assy, Rear NO.1 Seat Cushion, LH
71667 Pad, Rear Seatback, Center(FOR RH SEAT)
71668C Pad, Rear Seatback, Center(FOR LH SEAT)
71680 Spring Assy, Rear NO.1 Seatback, LH
71691Q Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71691R Cover, Rear NO.2 Seat Lock, Upper NO.2 RH
71691S Cover, Rear NO.2 Seat Lock, Upper NO.1 LH
71691T Cover, Rear NO.2 Seat Lock, Upper NO.2 LH
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71693H Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.3
71693N Cover, Rear Seat Cushion Hinge, Lower
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71694C Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.3
71694G Cover, Rear Seat Cushion Hinge, Inner LH
71694H Cover, Rear Seat Cushion Hinge, Lower LH NO.1
71695K Protector, NO.1 Seatback, RH
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695U Protector, NO.1 Seatback Stay(FOR RH SEAT)
71695V Protector, NO.1 Seatback Stay(FOR LH SEAT)
71695Y Protector, Rear Seat, NO.3
71695Z Protector, Rear Seat, NO.1 LH
71696F Protector, NO.2 Seatback, RH
71696G Protector, NO.2 Seatback, LH
71696N Protector, Rear Seat, NO.2
71697M Protector, Rear Seatback
71757 Plate, Seat Under Tray, NO.1
71757C Plate, Seat Under Tray, NO.1 LH
71759G Hook, Rear Seatback, LH
71769K Clip, NO.1 Seat Legrest Cover(FOR RH SEAT)
71769M Clip, NO.1 Seat Legrest Cover(FOR LH SEAT)
71801E Cover Sub-assy, NO.1 Seat Reclining Adjuster, RH
71811Y Cover, Reclining Adjuster, RH
71825A Moulding, NO.1 Seat Cushion, RH Inner
71825D Moulding, Rear NO.1 Seat Cushion, RH
71825E Moulding, Rear NO.2 Seat Cushion, RH
71826A Moulding, NO.1 Seat Cushion, LH Inner
71826C Moulding, Rear Seat Cushion, LH
71827C Moulding, Rear Seat Cushion, Rear LH
71833K Cover, NO.1 Seat Reclining, NO.1 RH Outer
71834J Cover, NO.1 Seat Reclining, NO.1 LH Outer
71834L Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71837F Moulding, Rear Seat Cushion, Rear RH
71843H Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843J Cover, Rear NO.1 Seat Reclining, NO.2 RH
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844H Cover, Rear Seat Reclining, NO.2 LH
71844M Cover, Rear Seat Reclining, NO.2 LH
71845E Cap, Rear NO.2 Seat Cover, RH
71845G Cap, Rear Seat Cover, RH
71846G Cap, Rear Seat Cover, LH
71846H Cap, Rear NO.2 Seat Cover, LH
71848T Cap, NO.1 Seat Adjuster Cover, RH
71848U Cap, NO.2 Seat Adjuster Cover, RH
71849K Cap, Seat Adjuster Cover(FOR SEAT SIDE TABLE)
71849L Cap, NO.1 Seat Adjuster Cover, LH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71849R Cap, Seat Adjuster Cover, LH NO.2
71862P Shield, Rear Seat Cushion, Inner LH
71868T Shield, Rear Seat Cushion, Inner NO.1 LH
71868U Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71875X Cover, Reclining Adjuster Inside, RH
71875Y Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71893A Shield, Power Adjuster, Front RH
71894A Shield, Power Adjuster, Front LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930K Support Assy, NO.2 Seat Headrest, RH
71930L Support Assy, NO.2 Seat Headrest, LH
71930R Support Assy, Rear NO.2 Seat Headrest, Center
71930S Support Assy, Rear NO.1 Seat Headrest, Center
71931H Support, NO.1 Seat Footrest(FOR RH SEAT)
71931J Support, NO.1 Seat Footrest(FOR LH SEAT)
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960F Headrest Assy, Rear NO.2 Seat, Center
71960G Headrest Assy, Rear NO.1 Seat, Center
71F95 Protector, Rear Seat, NO.4
71H12E Cover, Reclining Adjuster, LH
71H67 Shield, Rear Seat Cushion, Inner NO.1 RH
71H67A Shield, NO.1 Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H75G Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT)
71H75H Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT)
71H75L Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75M Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT)
71H75N Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT)
71H75P Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H75Q Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEATBACK)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75X Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76G Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT)
71H76H Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT)
71H76L Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76N Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76P Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT)
71H76R Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT)
71H76S Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
71H76T Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEATBACK)
71H76U Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT)
71T75 Cover, Reclining Adjuster Inside, RH
71T75F Cover, Reclining Adjuster Inside, RH
71T75K Clip, Reclining Adjuster Inside Cover(FOR REAR NO.2 RH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
71T76K Clip, Reclining Adjuster Inside Cover(FOR REAR NO.2 LH SEAT)
71T76S Cover, Reclining Adjuster Outside, NO.1 LH
72045B Cover Sub-assy, NO.1 Seat Track, Outer RH
72046D Cover Sub-assy, Rear Seat Track, Outer LH NO.1
72046E Cover Sub-assy, Rear Seat Track, Outer LH NO.2
72046F Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT)
72046H Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR RH SEAT)
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72063B Hook Sub-assy, Rear Seat, RH
72064B Hook Sub-assy, Rear Seat, LH
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72071C Pump Sub-assy, Lumber Support, RH
72071D Pump Sub-assy, Lumber Support, RH
72072B Pump Sub-assy, Lumber Support, LH
72073 Adjuster Sub-assy, Rear Seat Reclining, RH
72074 Adjuster Sub-assy, Rear Seat Reclining, LH
72089B Bracket Sub-assy, Rear Seat Armrest, RH
72089C Bracket Sub-assy, Rear Seat Armrest, RH NO.2
72089D Bracket Sub-assy, Rear Seat Armrest, RH NO.3
72099 Bracket Sub-assy, Rear Seat Armrest, LH
72099A Bracket Sub-assy, Rear Seat Armrest, LH NO.2
72099B Bracket Sub-assy, Rear Seat Armrest, LH NO.3
72125G Cover, Seat Track Lock Plate, NO.1
72125H Cover, Seat Track Lock Plate, NO.2
72125J Cover, Seat Track Lock Plate, NO.3
72127J Cover, Seat Track Bracket, Inner Front LH
72137Q Cover, Rear Seat Track, NO.2
72138K Cover, Rear Seat Track, LH NO.2
72205F Housing Sub-assy, Power Seat, NO.1
72206C Housing Sub-assy, Power Seat, NO.2
72210Q Cable Assy, NO.1 Seat Slide, RH
72210R Cable Assy, NO.1 Seat Slide, LH
72210U Cable Assy, NO.1 Seat Track Control, LH
72210X Cable Assy, NO.1 Seat Track Control, RH
72215A Lever, NO.1 Seat Track Handle Control, RH
72216B Lever, NO.1 Seat Track Handle Control, LH
72265P Cover, Seat Track Upper Rail, RH
72266J Cover, Seat Track Upper Rail, LH
72345N Cap, Seat Stand Frame, RH NO.1
72345P Cap, Seat Stand Frame, RH NO.2
72345Q Cap, Seat Stand Frame, LH NO.1
72345R Cap, Seat Stand Frame, LH NO.2
72345S Cap, NO.2 Seat Stand Frame, RH
72345T Cap, NO.2 Seat Stand Frame, LH
72345U Cap, Seat Stand Frame, RH NO.3
72345V Cap, Seat Stand Frame, RH NO.4
72345W Cap, Seat Stand Frame, LH NO.3
72345X Cap, Seat Stand Frame, LH NO.4
72345Y Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT)
72380B Cable Assy, Seat Adjuster Control, NO.2 RH
72380C Cable Assy, Seat Adjuster Control, NO.2 LH
72455C Bracket, NO.1 Seat Frame Set, NO.1
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R Handle, Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72526L Handle, Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72552F Cover, Reclining Link, LH NO.1
72553E Protector, Reclining Cover, RH NO.1
72554K Protector, Reclining Cover, LH NO.3
72569B Plate, Seatback Stopper
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72570F Cable Assy, NO.1 Seat Reclining Adjusting, LH
72589F Cable Assy, Reclining Remote Control, NO.2
72590G Cable Assy, Reclining Remote Control, LH
72610B Striker Assy, Rear Seatback Lock
72615M Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620F Cable Assy, Rear Seat Lock, RH
72620G Cable Assy, Rear Seat Lock, LH
72620R Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72666F Cover, Rear Seat Lock, LH
72666G Cover, Rear Seatback Lock, LH
72690F Lever Assy, NO.2 Seat Cushion Lock Release, RH
72690G Lever Assy, NO.2 Seat Cushion Lock Release, LH
72704E Cable, Rear Seat Reclining Control
72728B Protector, NO.1 Seat Reclining, Inner RH
72729B Protector, NO.1 Seat Reclining, Inner LH
72803G Frame Sub-assy, Rear Seat Armrest, RH
72803J Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT)
72804D Frame Sub-assy, Rear Seat Armrest, LH
72804E Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT)
72804F Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT)
72820B Armrest Assy, Seat, LH
72830U Armrest Assy, Rear Seat, RH
72830V Armrest Assy, Rear NO.1 Seat, RH
72830X Armrest Assy, Rear Seat, Center
72833C Panel, Rear Seat Center Armrest, NO.1
72833E Plate, Rear Seat Armrest, NO.2
72834 Panel, Rear Seat Center Armrest, NO.2
72840K Armrest Assy, Rear NO.1 Seat, LH
72848C Cap, NO.1 Seat Armrest, NO.1 RH
72848D Cap, NO.1 Seat Armrest, NO.1 LH
72848E Cap, NO.2 Seat Armrest, NO.1 RH
72848F Cap, NO.2 Seat Armrest, NO.1 LH
72848J Cap, Seat Armrest, NO.1
72878C Cover, NO.1 Seat Armrest, LH
72880B Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72880C Armrest Assy, NO.1 Seat, C RH(FOR LH SEAT)
72880E Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890B Armrest Assy, NO.1 Seat, C LH(FOR RH SEAT)
72890C Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72890D Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72927F Cover, Rear Seat Cushion Under, RH
72928G Cover, Rear NO.1 Seat Cushion Under, LH NO.1
72945C Cover, Rear Seat Turn
72973K Cover, Rear Seat Turn Table, RH
72974B Cover, Rear Seat Turn Table, LH
72987B Cover, Rear Seat Center Armrest
72995F Cover, Rear Seat Cushion, RH
72996H Cover, Rear Seatback
72996J Cover, Rear Seatback, NO.2
72996S Cover, Rear NO.1 Seatback, LH
72998D Cover, Rear Seat Cushion, LH
72B10 Cable Assy, Rear NO.2 Seat Track Control(FOR LH SEAT)
72B10A Cable Assy, Rear NO.2 Seat Track Control(FOR RH SEAT)
72C45A Cap, NO.1 Seat Stand Frame, NO.1(FOR RH SEAT)
72C45B Cap, NO.1 Seat Stand Frame, NO.2(FOR RH SEAT)
73131D Bracket, Seat Belt
73217B Tube, Rear Seat Adjuster
73217C Tube, Adjuster, LH
73315C Cover, NO.1 Seat Belt, Inner RH
73316C Cover, NO.1 Seat Belt, Inner LH
73373U Cover, NO.1 Seat Shoulder Belt, RH NO.1
73705C Bracket Sub-assy, Child Restraint Seat Anchor
74061A Bag Sub-assy, Seat Cushion Pad, RH
74062A Bag Sub-assy, Seat Cushion Pad, LH
74063B Bag Sub-assy, Seatback Pad, RH
74064B Bag Sub-assy, Seatback Pad, LH
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
77278H Valve, Check W/Hose, RH(FOR SEAT CUSHION)
77278J Valve, Check W/Hose, LH(FOR SEAT CUSHION)
78060C Table Assy, NO.1 Seat Side
78093A Frame Sub-aasy, NO.1 Seat Footrest(FOR RH SEAT)
78093B Frame Sub-aasy, NO.1 Seat Footrest(FOR LH SEAT)
78097A Cover Sub-assy, NO.1 Seat Footrest(FOR RH SEAT)
78097B Cover Sub-assy, NO.1 Seat Footrest(FOR LH SEAT)
78608C Cable Sub-assy, Legrest Lock Control(FOR RH SEAT)
78608D Cable Sub-assy, Legrest Lock Control(FOR LH SEAT)
78632D Cover, Rear Seat Side Table, NO.1
78656J Cover, Rear Seat Legrest, RH
78656N Cover, Rear Seat Legrest, RH NO.2
78656P Cover, Rear Seat Legrest, LH NO.2
78656Q Cover, NO.1 Seat Legrest, RH NO.3
78656R Cover, NO.1 Seat Legrest, LH NO.3
78656S Cover, NO.1 Seat Legrest(FOR RH SEAT)
78656T Cover, NO.1 Seat Legrest(FOR LH SEAT)
78731B Lever, Sub Seat Cushion(FOR RH SEAT)
78731C Lever, Sub Seat Cushion(FOR LH SEAT)
78987B Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987F Clip, Rear Seat Footrest Cover
78990B Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79015C Pad Sub-assy, NO.1 Seat Cushion, RH
79016 Pad Sub-assy, NO.1 Seat Cushion, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79076M Cover Sub-assy, NO.1 Seat Leg, RH Inner
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79105G Leg Sub-assy, NO.1 Seat, RH
79105H Leg Sub-assy, Welcab Seat, RH
79106B Leg Sub-assy, NO.1 Seat, LH
79106C Leg Sub-assy, Welcab Seat, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79236G Cover, NO.2 Seat Leg, RH
79236H Cover, NO.3 Seat Leg, RH
79236K Cover, NO.1 Seat Leg, NO.1
79236L Cover, Rear Seat Leg, RH
79236P Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79236Q Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT)
79245A Pad, NO.2 Seat Cushion, LH
79246L Cover, NO.1 Seat Leg, NO.2
79246M Cover, Rear Seat Leg, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79937F Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT)
79959E Cover, NO.1 Seat Leg, RH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959H Cover, NO.2 Seat Leg, RH NO.2
79959J Cover, NO.2 Seat Leg, LH NO.1
79959K Cover, NO.2 Seat Leg, LH NO.2
79959T Cover, Rear Seat Leg, LH
79965H Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79966G Cover, NO.1 Seat Leg Side, NO.3(FOR LH SEAT)
79977J Felt, Seatback
79977K Felt, Seatback, NO.2
79977U Felt, Seatback, NO.3
79977V Felt, Seatback, NO.4
79977W Felt, Seatback, NO.5
79997A Protector, Seat Leg Box, NO.1
79998A Protector, Seat Leg Box, NO.2
82702L Bracket Sub-assy, Wiring Harness
82711K Clamp, Wiring Harness
82711L Clamp, Wiring Harness
82711Q Clamp, Wiring Harness
82711R Clamp, Wiring Harness
82711S Clamp, Wiring Harness
82711Z Clamp, Wiring Harness
82716Q Bracket, Wiring Harness Clamp
82G11 Clamp, Wiring Harness
82G15 Bracket, Wiring Harness Clamp, NO.1
82G15A Bracket, Wiring Harness Clamp, NO.2
84656T Bezel, Switch, NO.1
84656U Bezel, Switch, NO.2
84656V Bezel, Switch, NO.3
84656W Bezel, Switch, NO.4
85803A Blower Sub-assy, Seatback Climate, RH
85804A Blower Sub-assy, Seatback Climate, LH
85860E Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85J99 Bracket, Relay
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
C1721B Bracket, Control, NO.1
C1721C Bracket, Control, NO.2
C2261A Stopper, Rear Step
C4631A Shaft, Shutter
C6625E Bracket, Side Curtain, RH
C6625F Bracket, Side Curtain, LH
C7015A Panel Sub-assy, Turn Table
C7021A Lift Kit, Rear Seat
C7027C Lock Sub-assy, Welcab Seat Turn
C7099A Guard Sub-assy, Rear Seat Turn
C7102 Bracket Sub-assy, Seat Holder, Rear
C7103D Panel Sub-assy, Welcab Seat Leg, NO.1
C7104B Plate Sub-assy, Seat Turn
C7105A Panel Sub-assy, Slide Table
C7159H Cushion, Welcab Seat Leg Stopper
C7161A Panel, Slide Table
C7210D Footrest Assy, Welcab Seat
C7230F Track Assy, Welcab Seat, NO.1
C7230G Track Assy, Welcab Seat, NO.2
C7405E Arm Sub-assy, Welcab Seat Link, NO.1
C7405F Arm Sub-assy, Welcab Seat Link, NO.2
C7405G Arm Sub-assy, Welcab Seat Link, NO.3
C7405H Arm Sub-assy, Welcab Seat Link, NO.4
C7409E Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7409F Bracket Sub-assy, Welcab Seat Rod Support, NO.2
C7451A Arm, Welcab Seat Link, NO.1
C7481D Rod, Welcab Seat, NO.2
C7483D Gear Welcab Seat Leg, NO.2
C7495D Bracket, Welcab Seat Motor, NO.1
C7962B Cover, Rear Seat Footrest, RH
C7962C Cover, Rear Seat Footrest, LH
C8284C Wire, Power Lift Main
C8298E Bracket, Welcab Seat Harness Clamp
C8298F Bracket, Welcab Seat Harness Clamp, NO.2
C8299D Bracket, Welcab Seat Harness Connector, NO.1
C8299E Bracket, Welcab Seat Harness Connector, NO.2
C8340B Computer Assy, Welcab Device Control
C8417L Switch, Limit, NO.1
C8417M Switch, Limit, NO.2
C8417N Switch, Limit, NO.3
C8417P Switch, Limit, NO.4
C8419L Bracket, Limit Switch, NO.1
C8419M Bracket, Limit Switch, NO.2
C8419N Bracket, Limit Switch, NO.3
C8449A Dog, Limit Switch
C8459A Spring, Limit Switch
C9055H Cover Sub-assy, Power Lift, NO.1
C9055J Clip, Power Lift Cover, NO.1
C9055L Cover Sub-assy, Power Lift, NO.2
C9603A Gear Sub-assy, Power Lift
C9610J Motor Assy, Power Lift
C9610K Motor Assy, Lift UP Seat Turn
C9610L Motor Assy, Lift UP Seat Slide
C9652C Cap, Power Lift Cylinder, NO.2
C9654M Collar, Power Lift Cylinder, NO.1
C9654N Collar, Power Lift Cylinder, NO.2
C9654P Collar, Power Lift Cylinder, NO.3
C9654Q Collar, Power Lift Cylinder, NO.4
C9658C Plate, Power Lift Cylinder Rod
G2499A Resistor, Electric Circuit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
