Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01

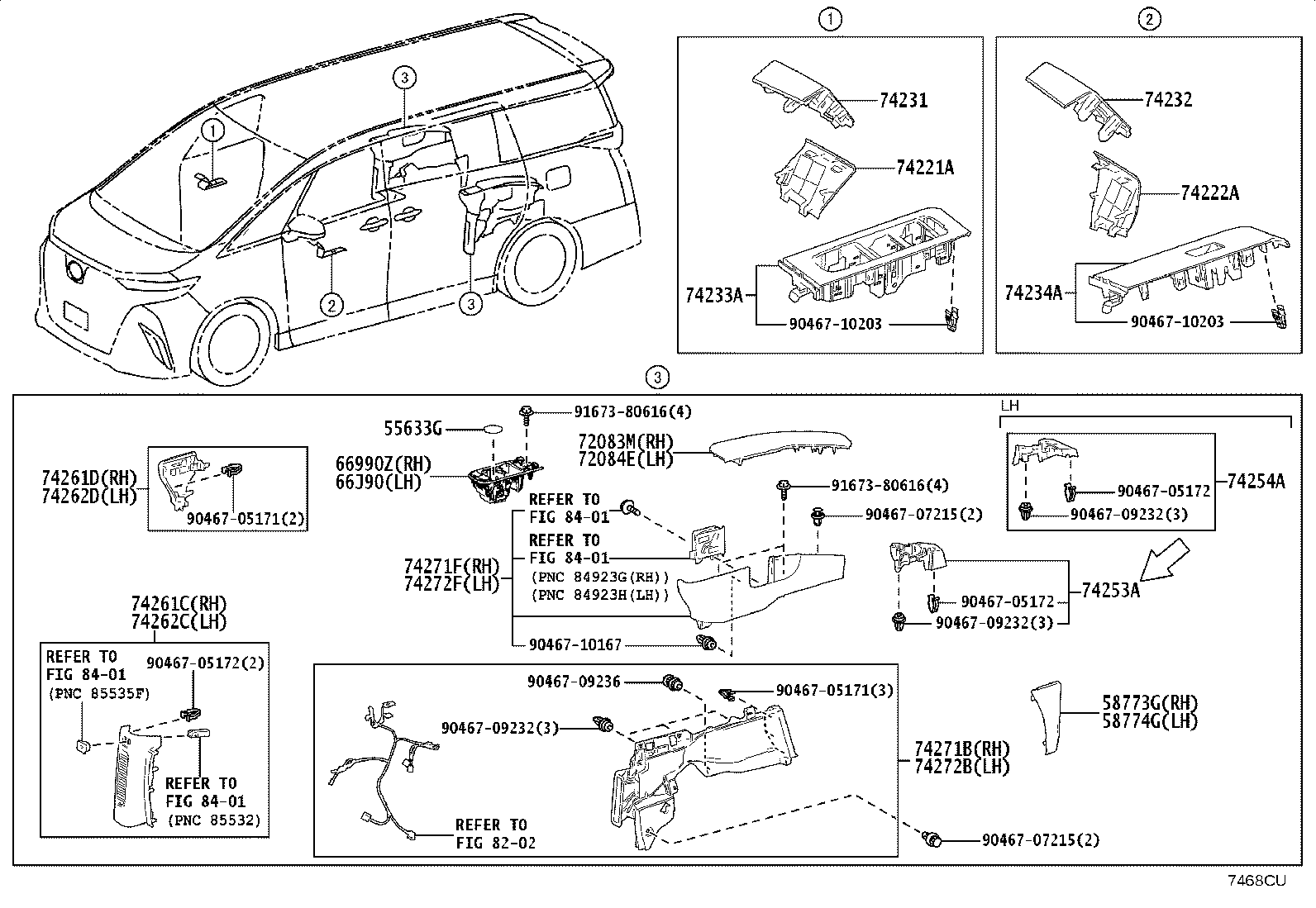

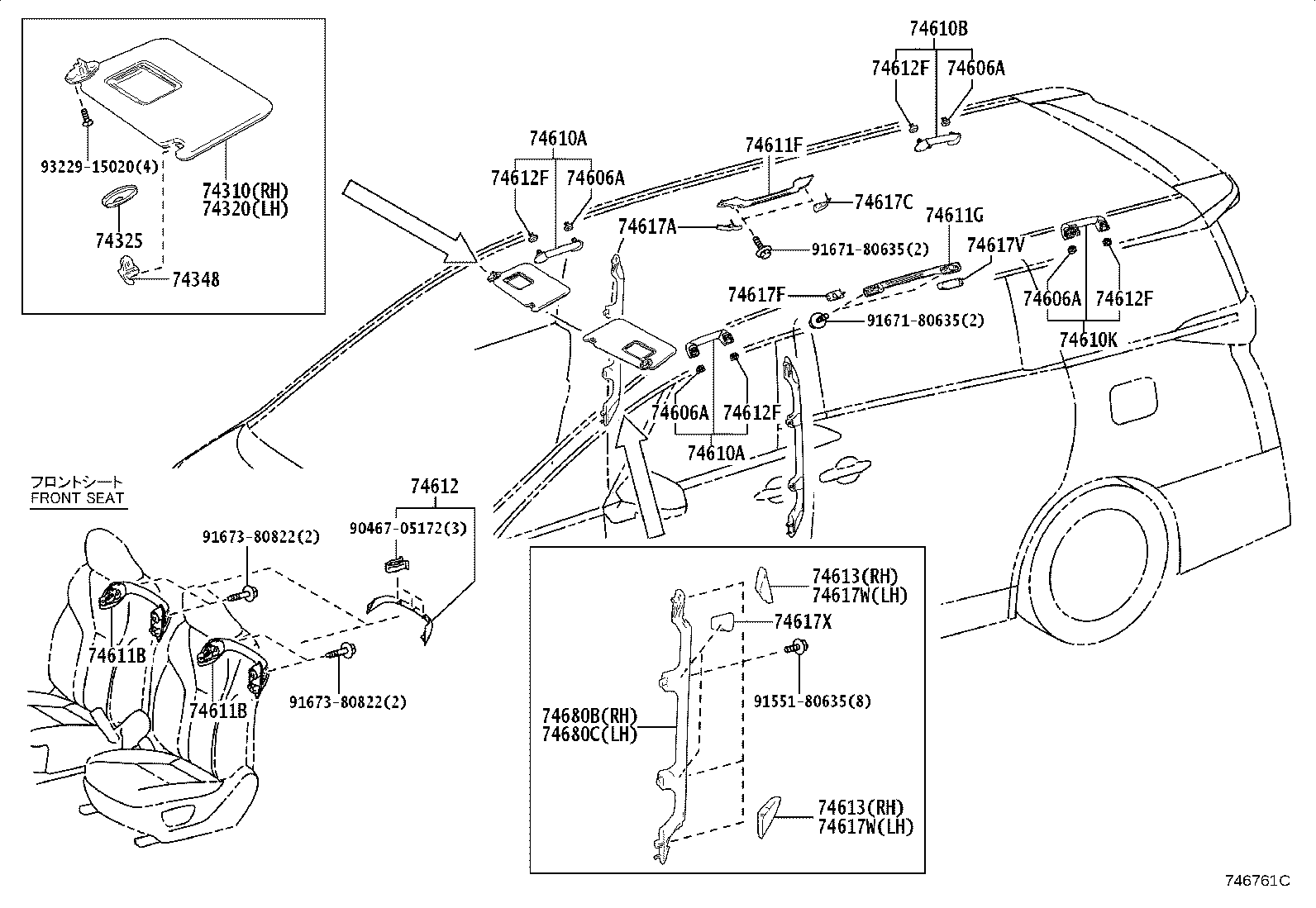

Armrest & Visor
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55633G | Support, Cup Holder, NO.1 |
| 58773G | Cover, Luggage Compartment Side, RH |
| 58774G | Cover, Luggage Compartment Side, LH |
| 66990Z | Holder Assy, Cup, RH |
| 66J90 | Holder Assy, Cup, LH |
| 72083M | Pad Sub-assy, Quarter Armrest, RH |
| 72084E | Pad Sub-assy, Quarter Armrest, LH |
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74233A | Panel, Front Door Armrest Base, Lower RH |
| 74234A | Panel, Front Door Armrest Base, Lower LH |
| 74253A | Base, Quarter Armrest, RH |
| 74254A | Base, Quarter Armrest, LH |
| 74261C | Cover, Quarter Armrest, RH |
| 74261D | Cover, Quarter Armrest, RH |
| 74262C | Cover, Quarter Armrest, LH |
| 74262D | Cover, Quarter Armrest, LH |
| 74271B | Panel, Quarter Armrest Base, RH |
| 74271F | Panel, Quarter Armrest Base, RH |
| 74272B | Panel, Quarter Armrest Base, LH |
| 74272F | Panel, Quarter Armrest Base, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74606A | Cover, Assist Grip |
| 74610A | Grip Sub-assy, Assist |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74610K | Grip Assy, Assist, NO.2 LH |
| 74611B | Grip, Assist |
| 74611F | Grip, Assist, NO.1 |
| 74611G | Grip, Assist, NO.2 |
| 74612 | Cover, Assist Grip |
| 74612F | Cover, Assist Grip |
| 74613 | Plug, Assist Grip |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617V | Plug, Assist Grip |
| 74617W | Plug, Assist Grip |
| 74617X | Plug, Assist Grip |
| 74680B | Grip Assy, Pillar Assist, RH |
| 74680C | Grip Assy, Pillar Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
