Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01

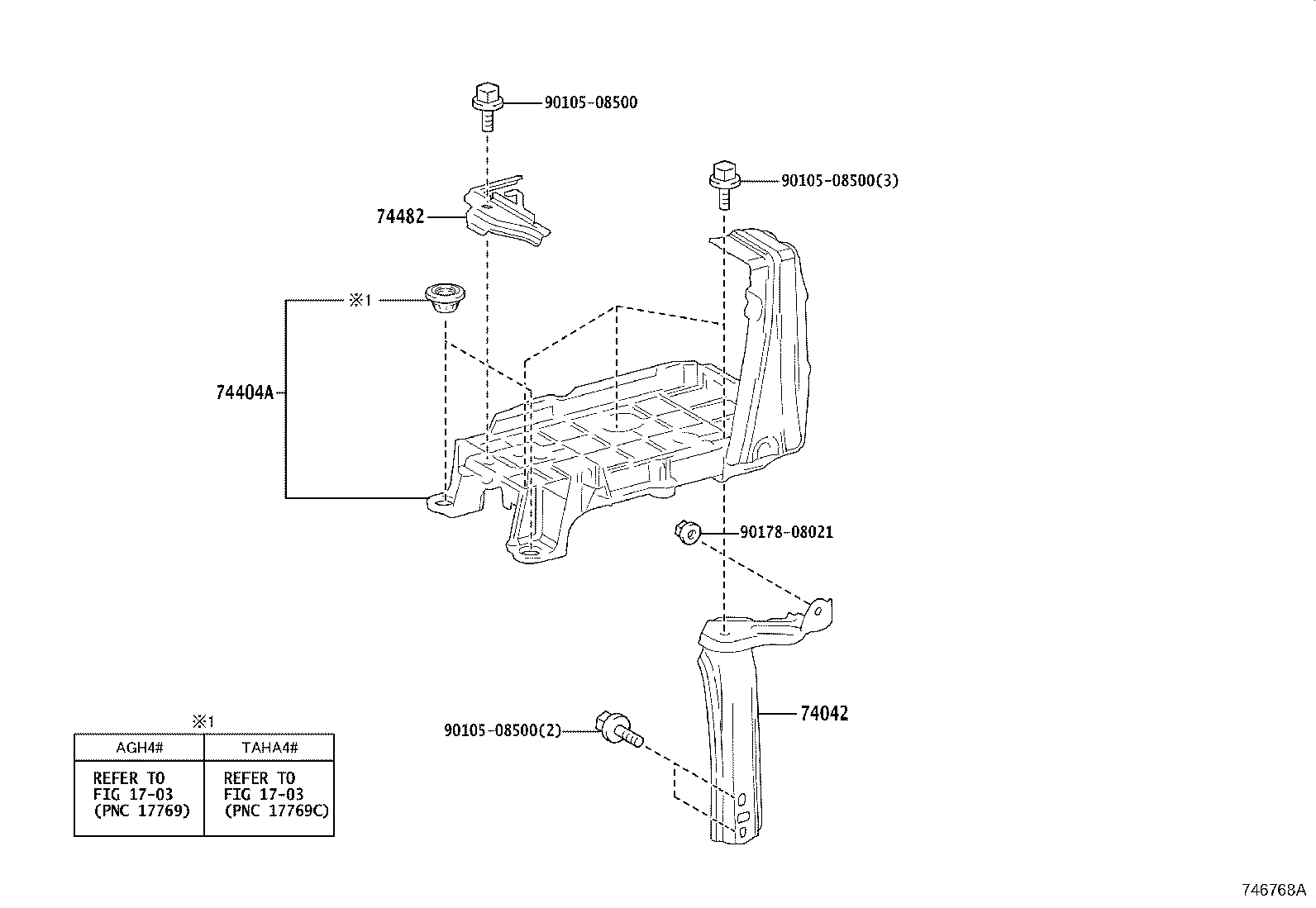

Battery Carrier
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74042 | Bracket Sub-assy, Battery |
| 74403 | Support Sub-assy, Battery Carrier |
| 74404A | Clamp Sub-assy, Battery |
| 74404B | Clamp Sub-assy, Battery |
| 74451B | Bolt, Battery Clamp |
| 74473A | Spacer, Battery, NO.1 |
| 74482 | Clamp, Battery, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
