Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01

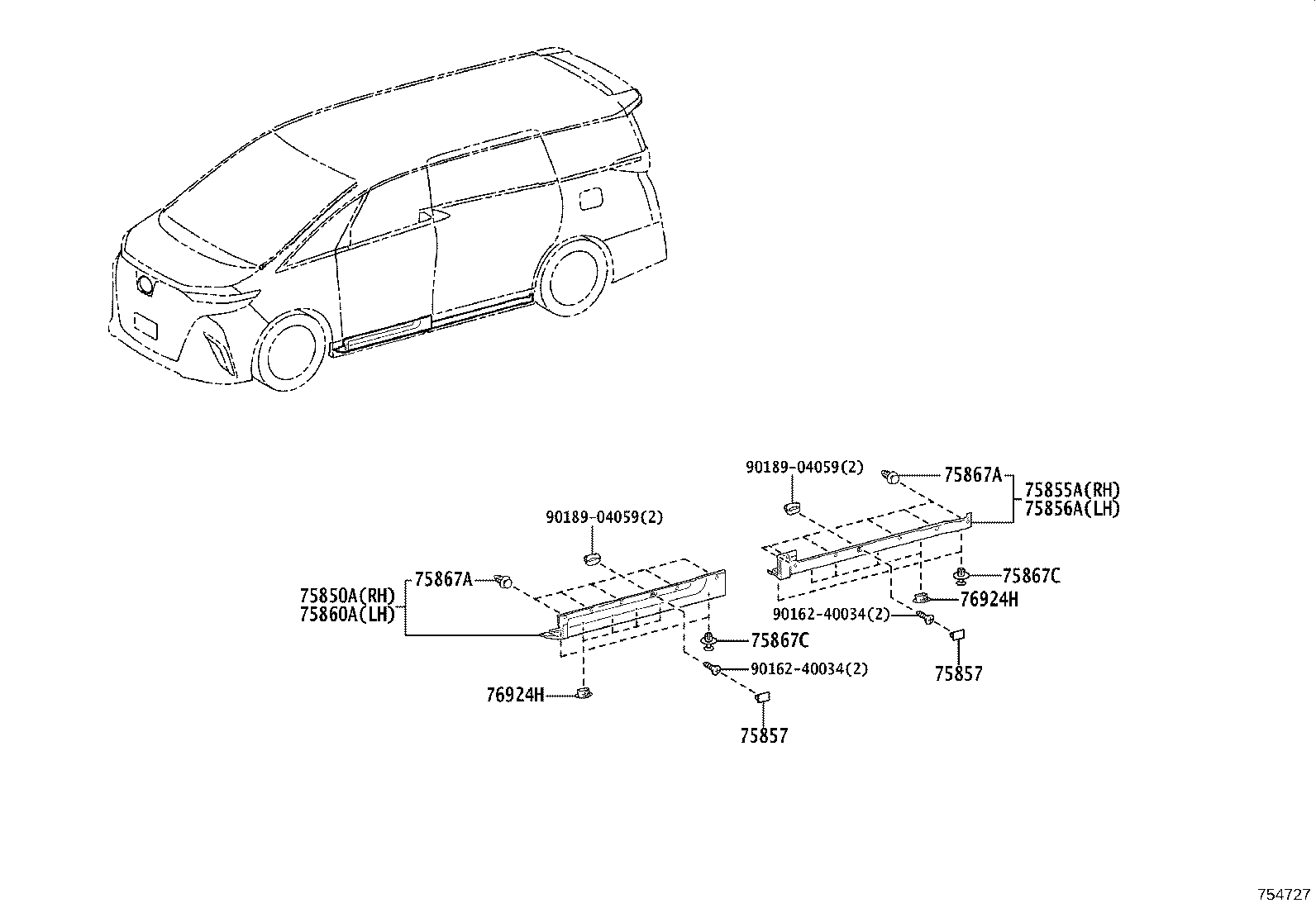

Moulding
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75535F | Moulding, Windshield, Outside Lower RH |
| 75536B | Moulding, Windshield, Outside Lower LH |
| 75545B | Clip, Windshield Outside Moulding, NO.1 |
| 75547B | Clip, Windshield Outside Moulding, NO.3 |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75718 | Cover, Front Door Belt Moulding End, Rear RH |
| 75719 | Cover, Front Door Belt Moulding End, Rear LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75751C | Moulding, Front Door Window Frame, Front RH |
| 75752C | Moulding, Front Door Window Frame, Front LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765A | Moulding, Rear Door Window Frame, Rear RH |
| 75766A | Moulding, Rear Door Window Frame, Rear LH |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75857 | Cover, Rocker Panel Moulding, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75895A | Tape, Moulding, NO.1 |
| 75895C | Tape, Moulding, NO.3 |
| 75896A | Tape, Moulding, NO.2 |
| 76924H | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
