Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01

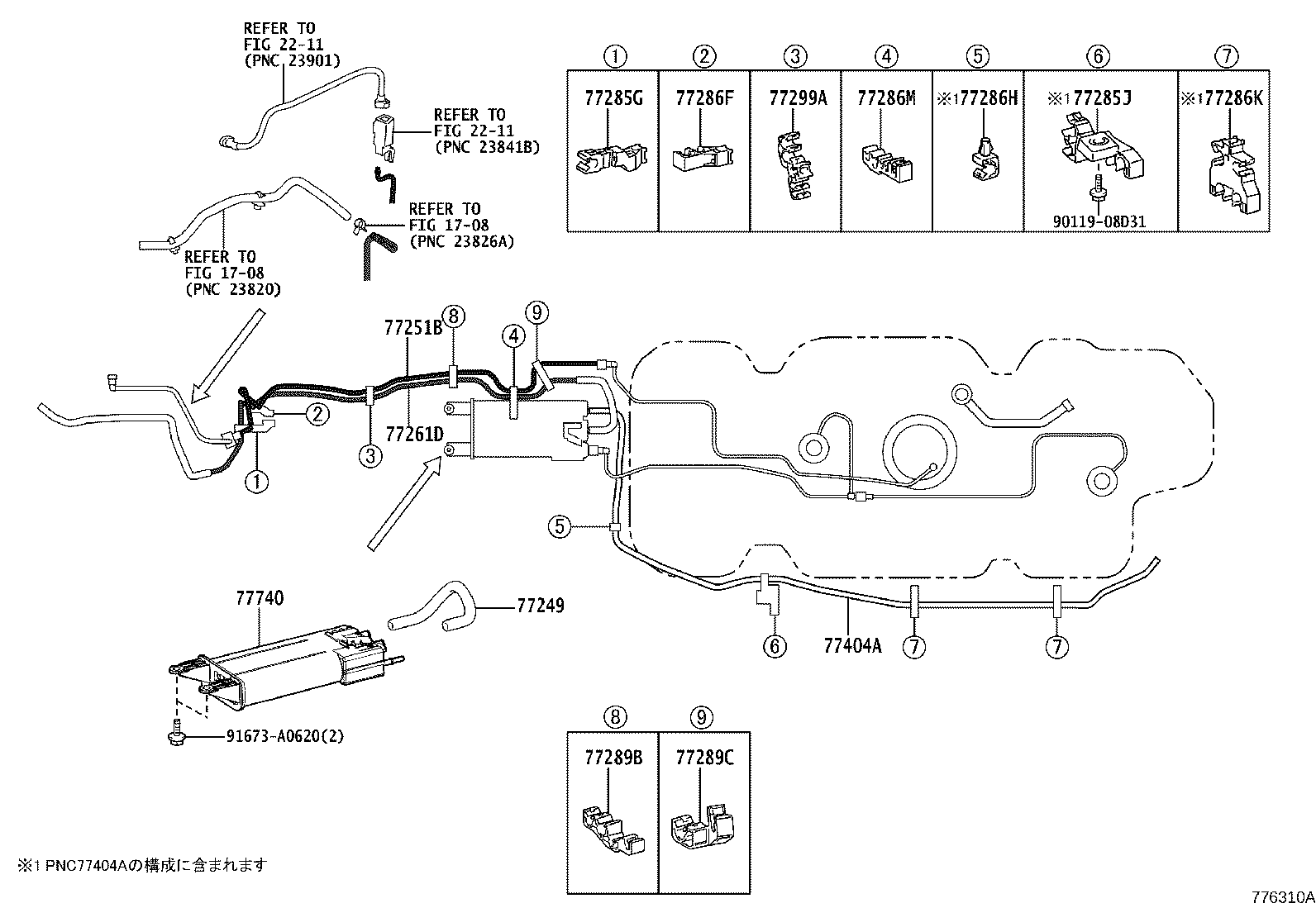

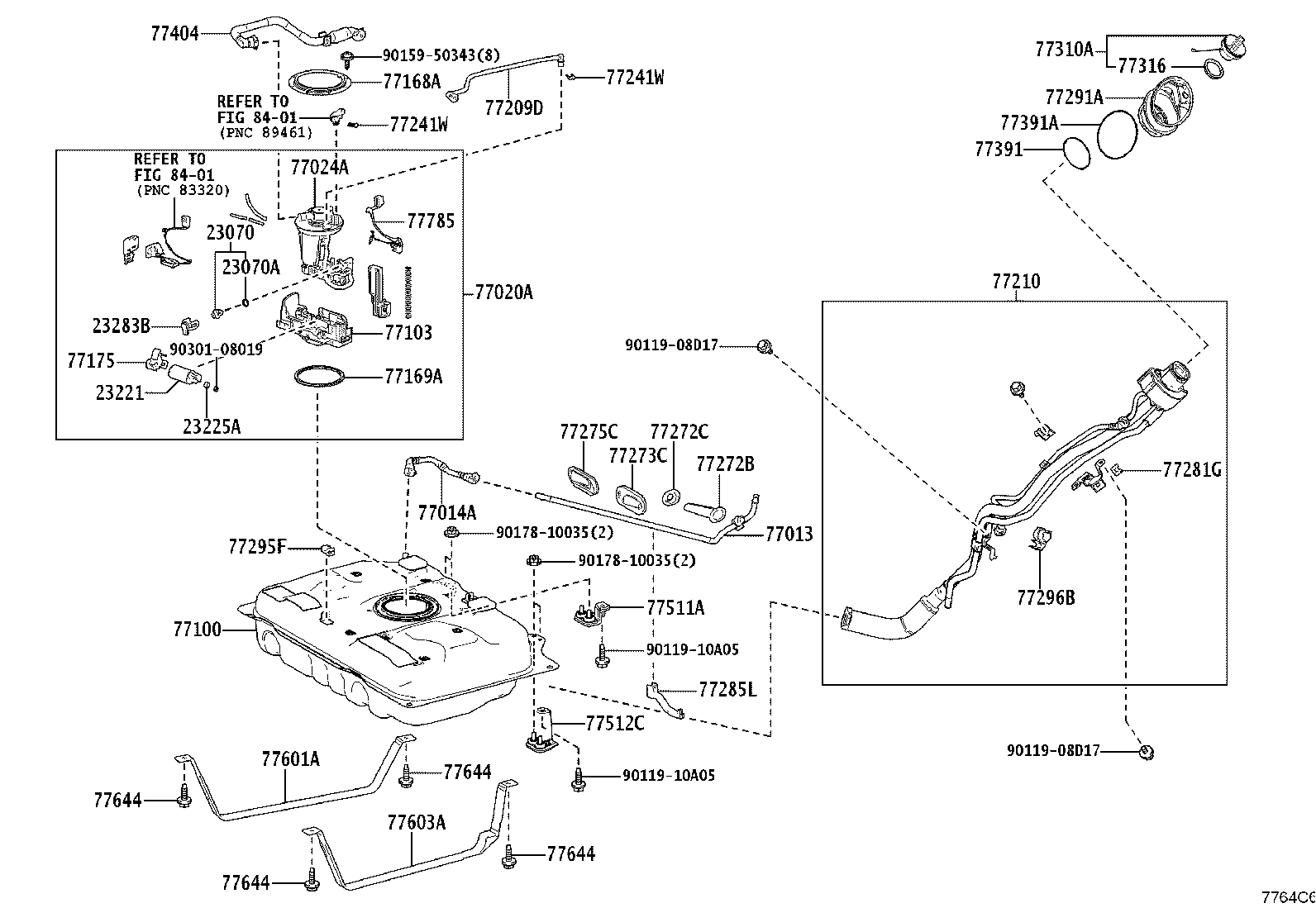

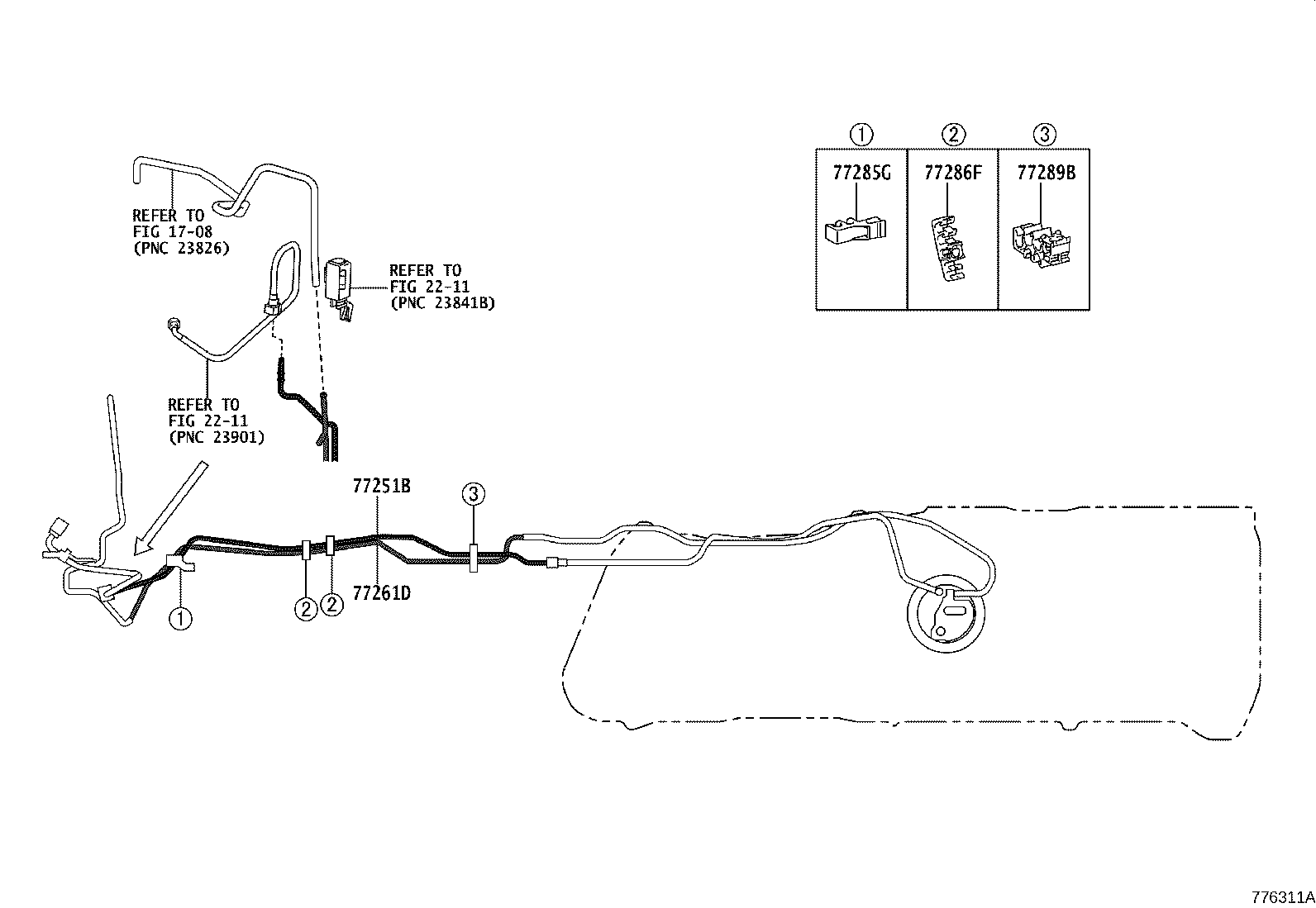

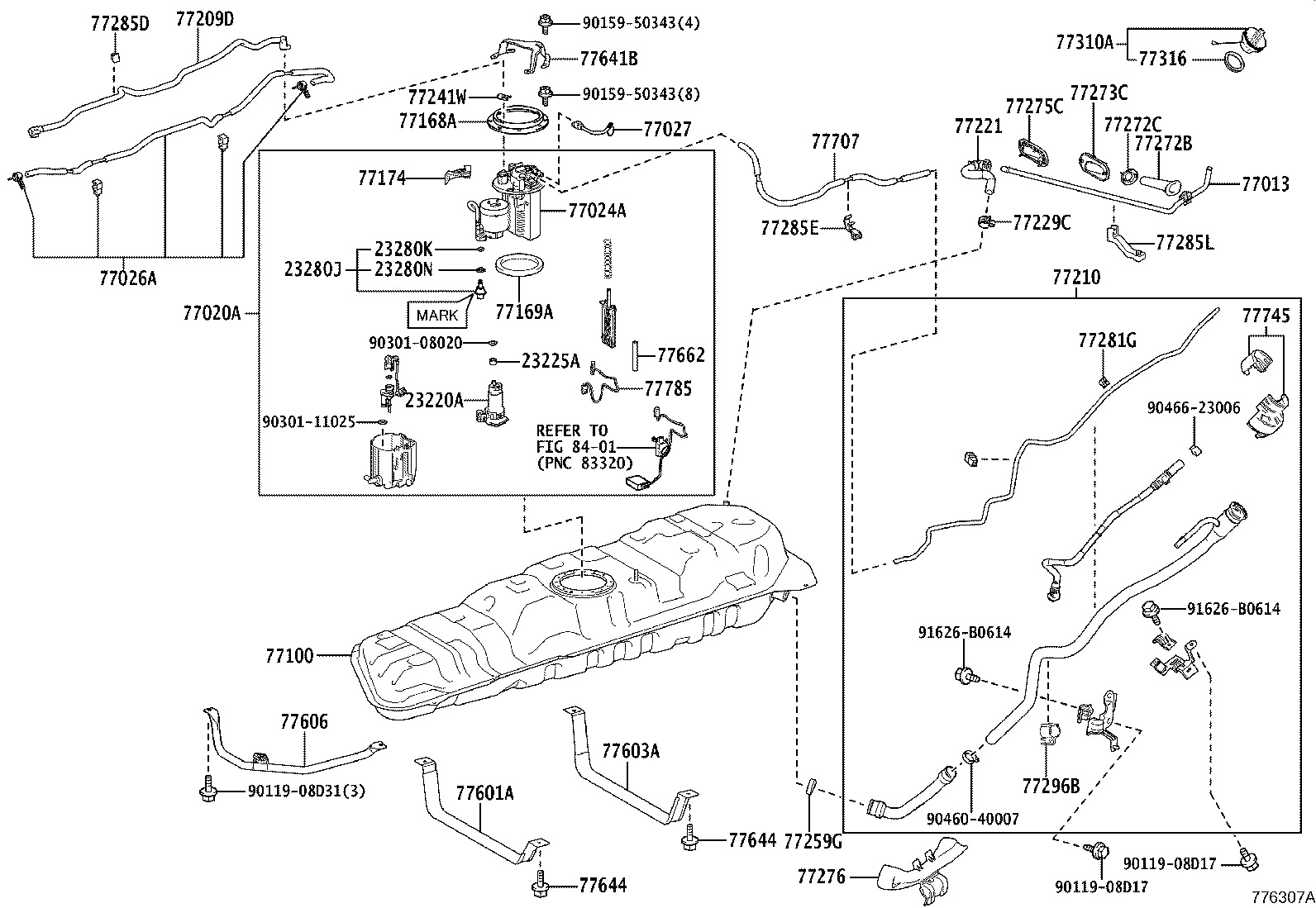

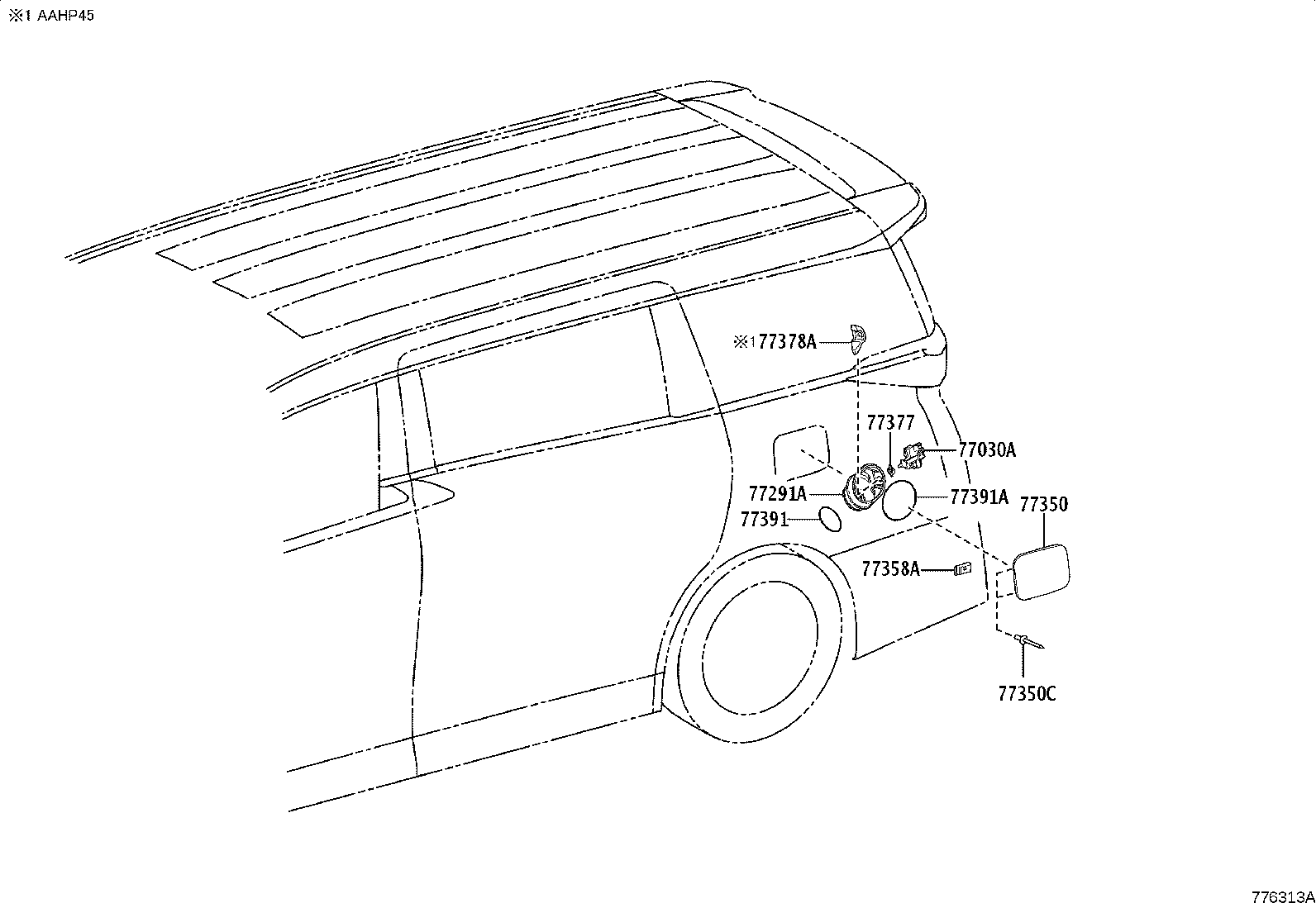

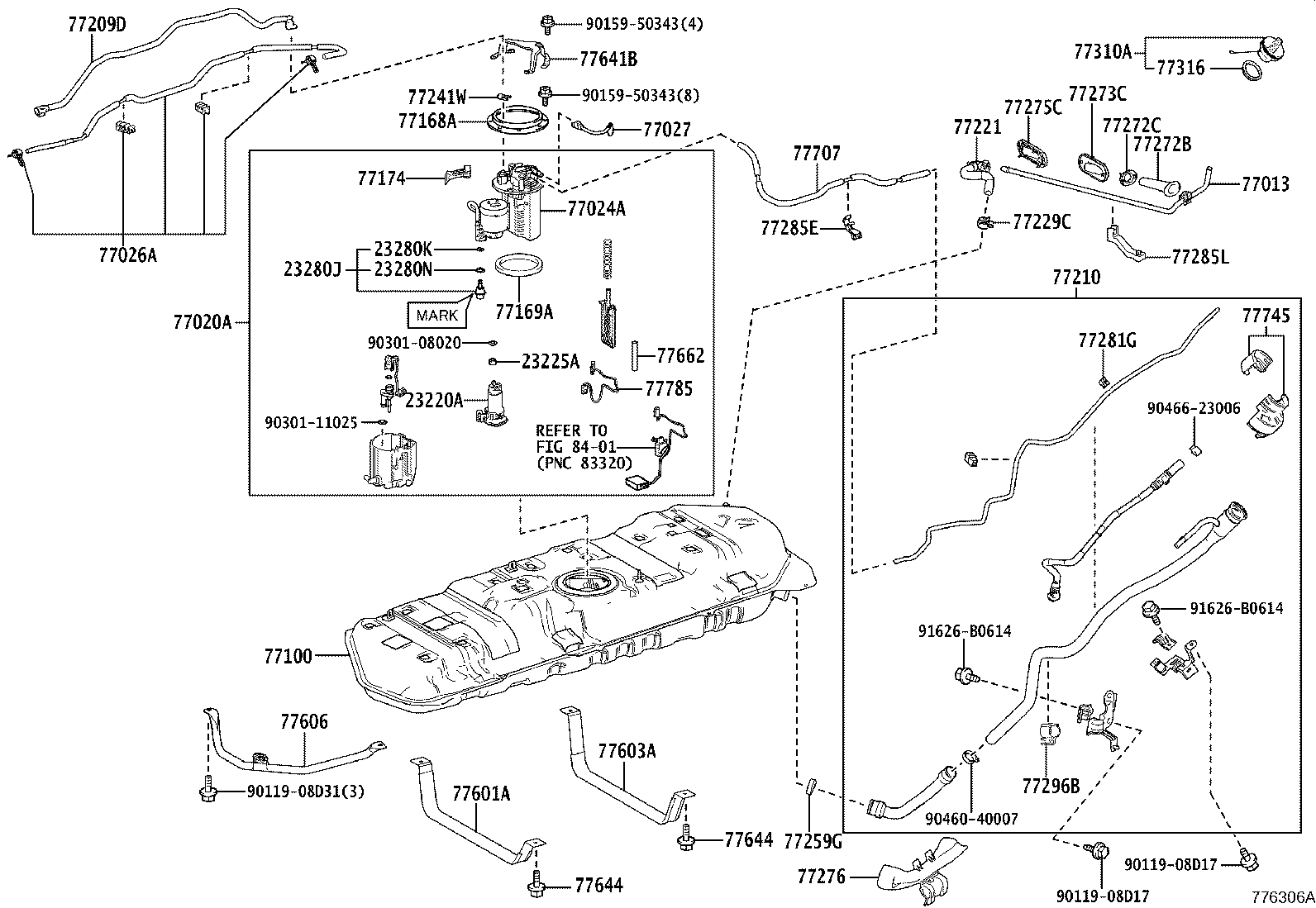

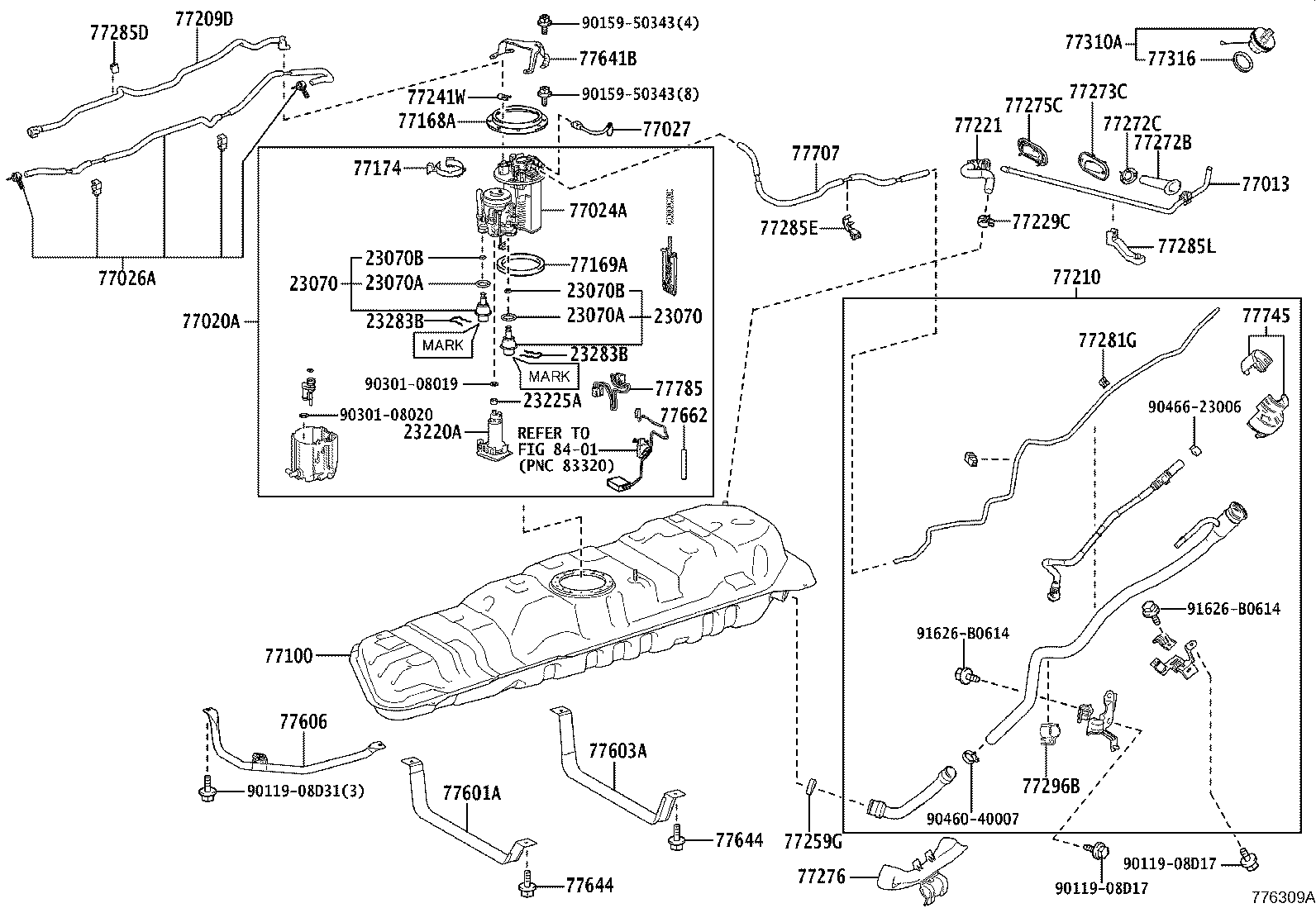

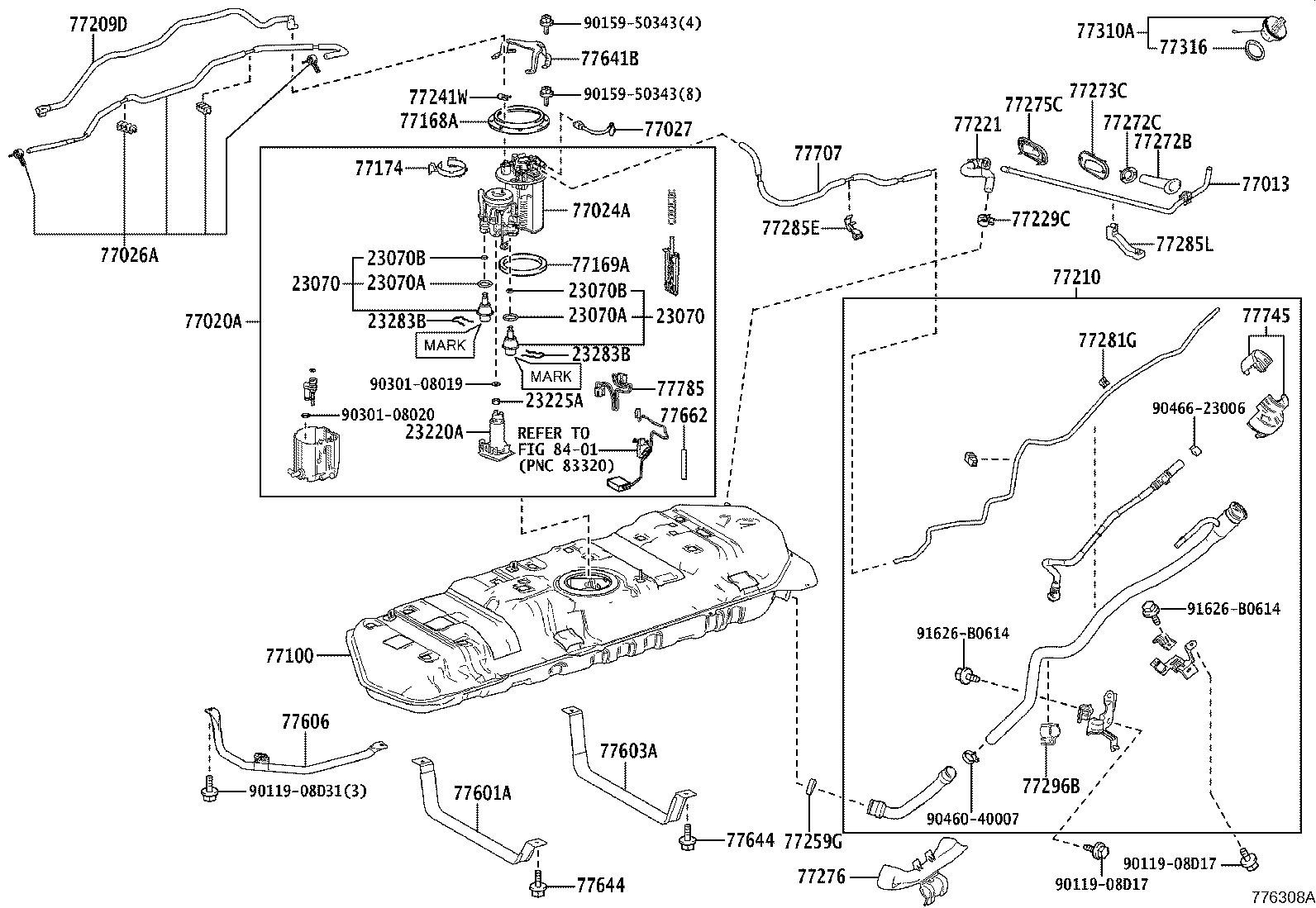

Fuel Tank & Tube

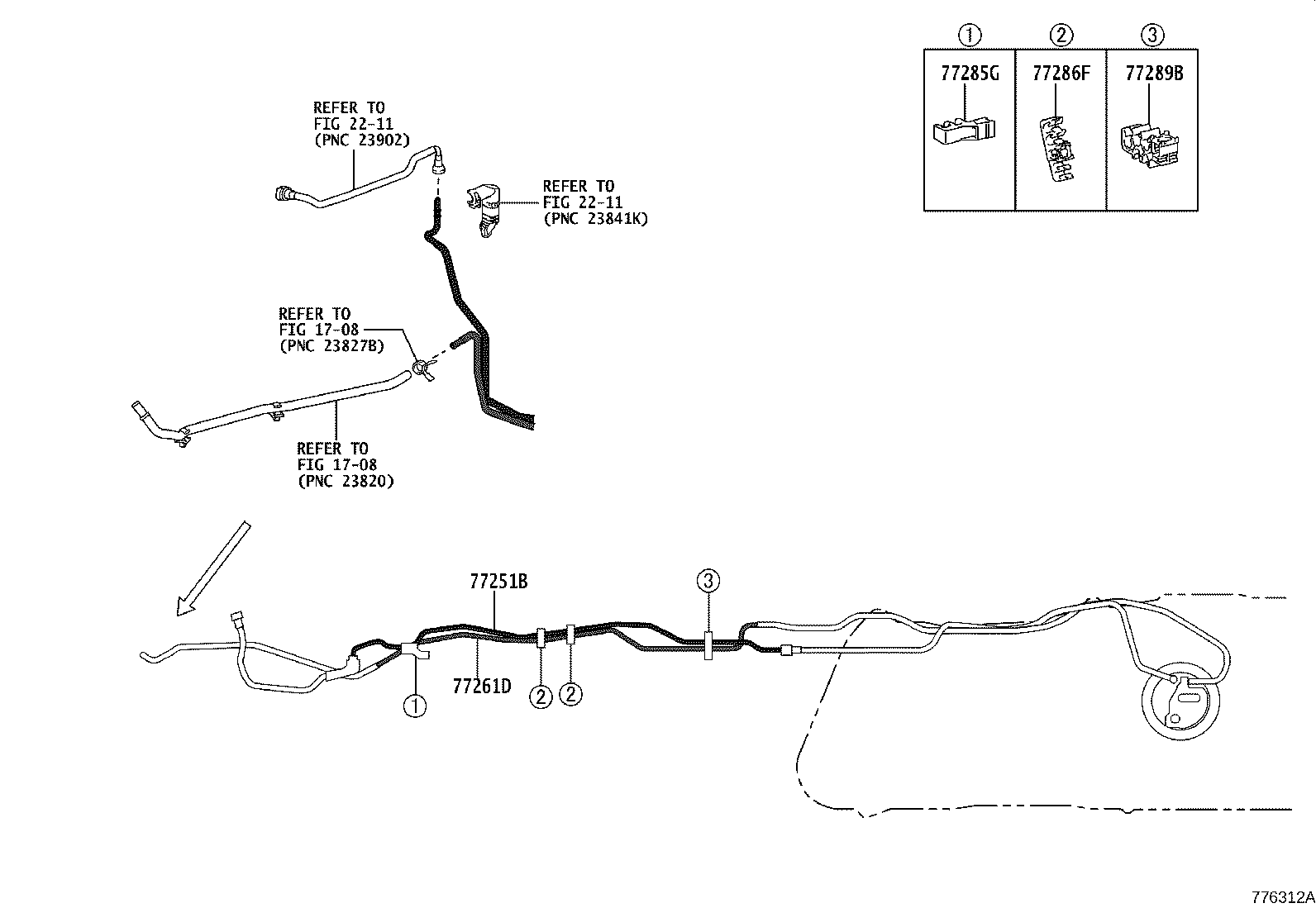

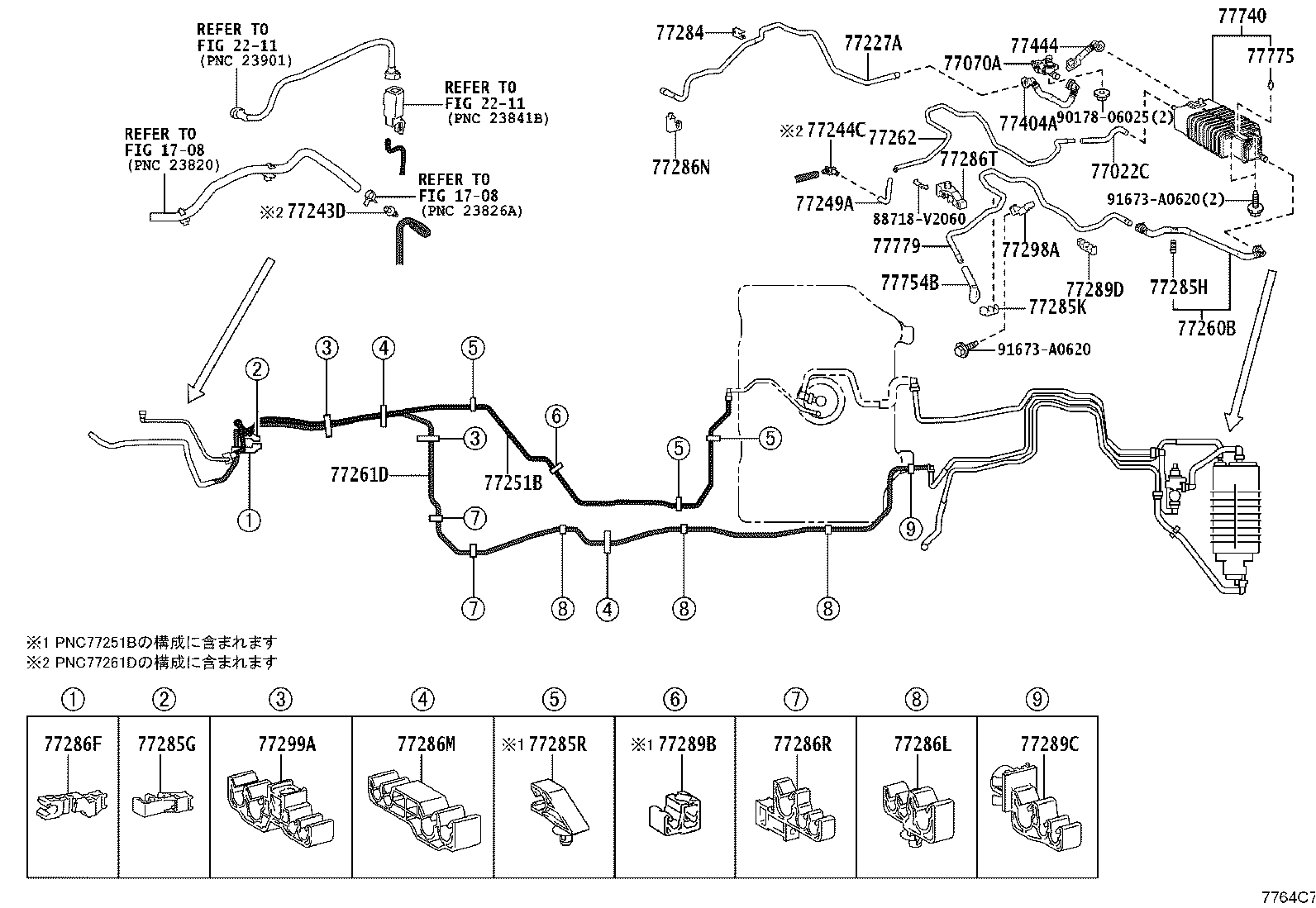

107 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23070B | Ring, O, NO.2(FOR FUEL MAIN VALVE) |
| 23220A | Pump Assy, Fuel W/Filter |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23280N | Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2 |
| 23283B | Holder, Fuel Pressure Regulator |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77014A | Tube Sub-assy, Fuel Tank Breather, NO.3 |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77070A | Valve Assy, Close Tank |
| 77100 | Tank Assy, Fuel |
| 77103 | Sub-tank Sub-assy, Fuel |
| 77142 | Bracket, Fuel Tank Mounting, Rear |
| 77144 | Retainer, Fuel Pump Gauge |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77173 | Bracket, Fuel Gage |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77210 | Pipe Assy, Fuel Tank Filler |
| 77221 | Tube, Fuel Tank Breather, NO.1 |
| 77227A | Tube, Fuel Tank Evaporation Vent |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77243D | Joint, Fuel Tube, NO.1 |
| 77244C | Joint, Fuel Tube, NO.2 |
| 77249 | Hose, Fuel Emission |
| 77249A | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77259G | Clip, Fuel Hose |
| 77260B | Hose Assy, Fuel Tank TO Canister |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77272B | Support, Breather Tube, NO.1 |
| 77272C | Support, Breather Tube, NO.3 |
| 77273C | Support, Breather Tube, NO.2 |
| 77275C | Support, Breather Tube, NO.4 |
| 77276 | Protector, Fuel Hose |
| 77281G | Clamp, Fuel Hose |
| 77284 | Clamp, Fuel Tube |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77285L | Clamp, Fuel Tube, NO.1 |
| 77285R | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286R | Clamp, Fuel Tube, NO.10 |
| 77286T | Clamp, Fuel Tube, NO.11 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77289D | Clamp, Fuel Tube, NO.5 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295F | Grommet, Fuel Hose |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77350C | Rivet |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404A | Hose Sub-assy, Fuel Tank Vent |
| 77444 | Hose, Fuel Tank Vent |
| 77511A | Bracket, Fuel Tank |
| 77512C | Bracket, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77641B | Cover, Fuel Tank |
| 77644 | Bolt, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77655A | Cushion, Fuel Tank, NO.5 |
| 77656B | Cushion, Fuel Tank, NO.6 |
| 77662 | Cover, Fuel Tank Gage |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77740 | Canister Assy, Charcoal |
| 77745 | Filter, Charcoal Canister, NO.1 |
| 77754B | Hose, Charcoal Canister Outlet |
| 77775 | Guide, Charcoal Canister Outlet |
| 77779 | Tube, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
