Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

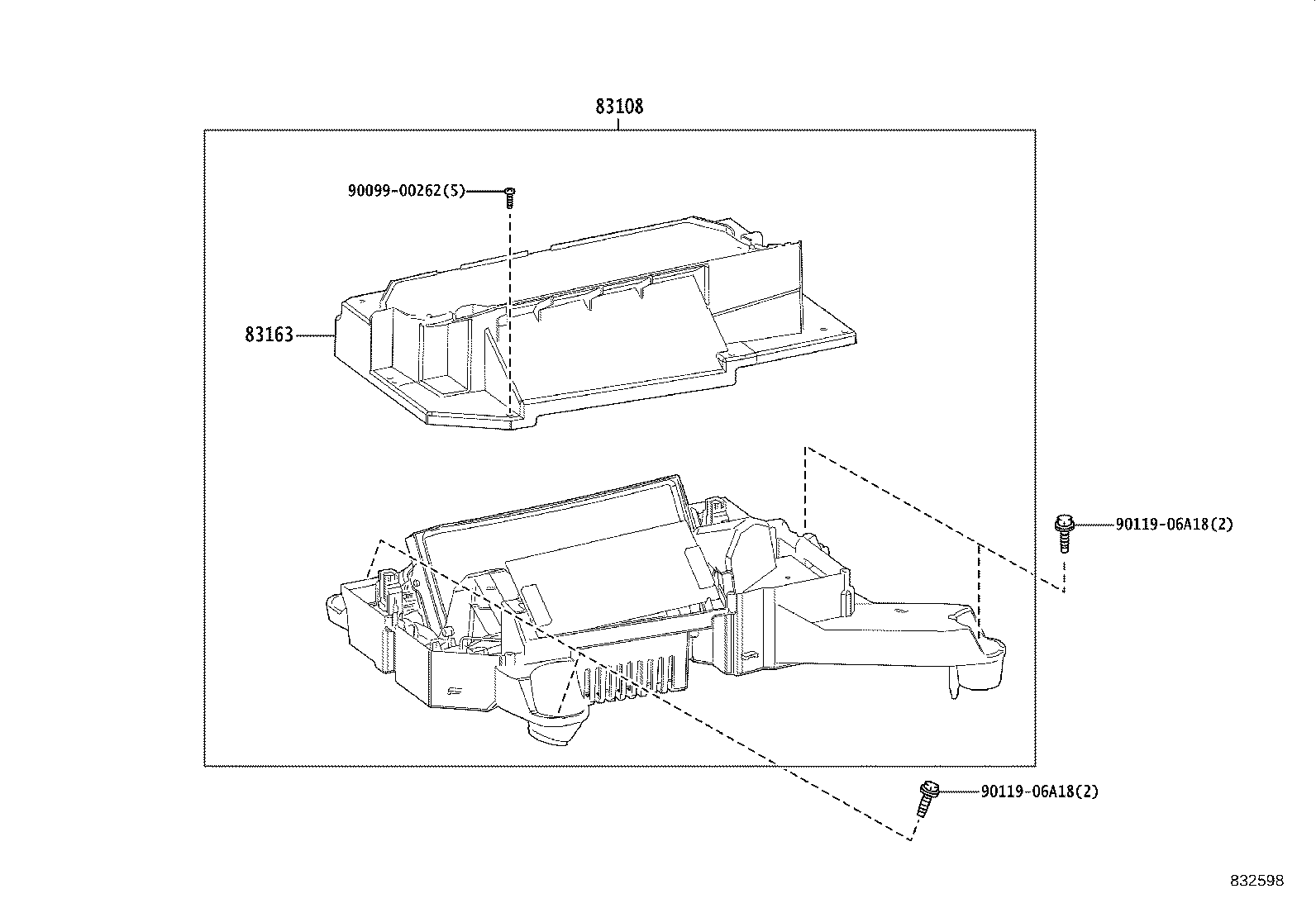

Figure 832596 832596 2023-06 → — Figure 832598 832598 2023-06 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
