Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan
Supported model
Data version 2025-01
Radio Receiver & Amplifier & Condenser
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

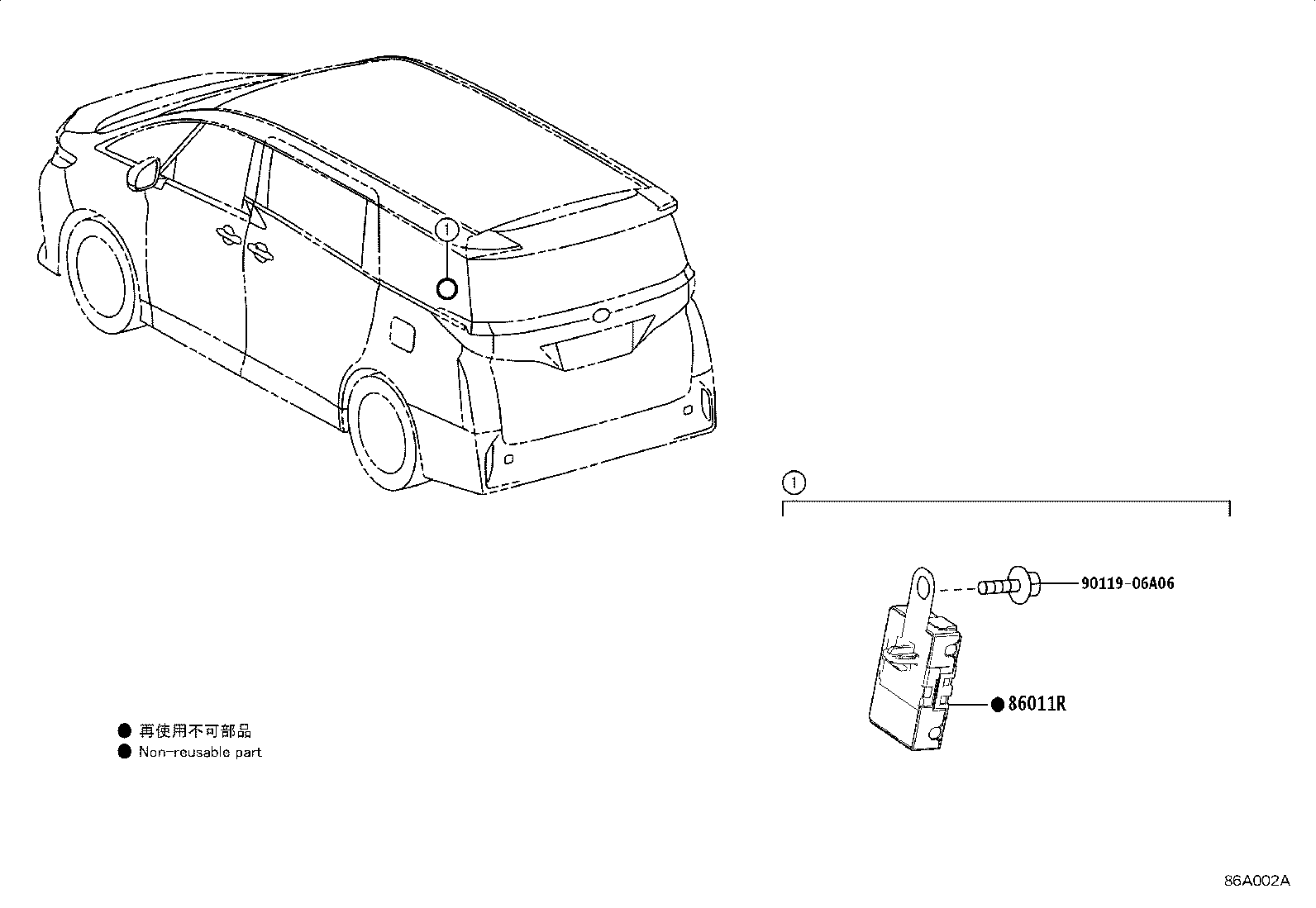

| 86011R | Condenser, Radio Setting |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86270A | Disc Player Assy |
| 86274 | Bracket, Disc Player |
| 86277 | Bracket |
| 86280G | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86734C | Microphone, Active Noise Control |
| G92C0A | Converter Assy, Eco-run Vehicle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
