Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP4#,AGH4#,TAHA4# · catalogue 713150 · Japan

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

13 part groups · 2 illustrations

Illustrations

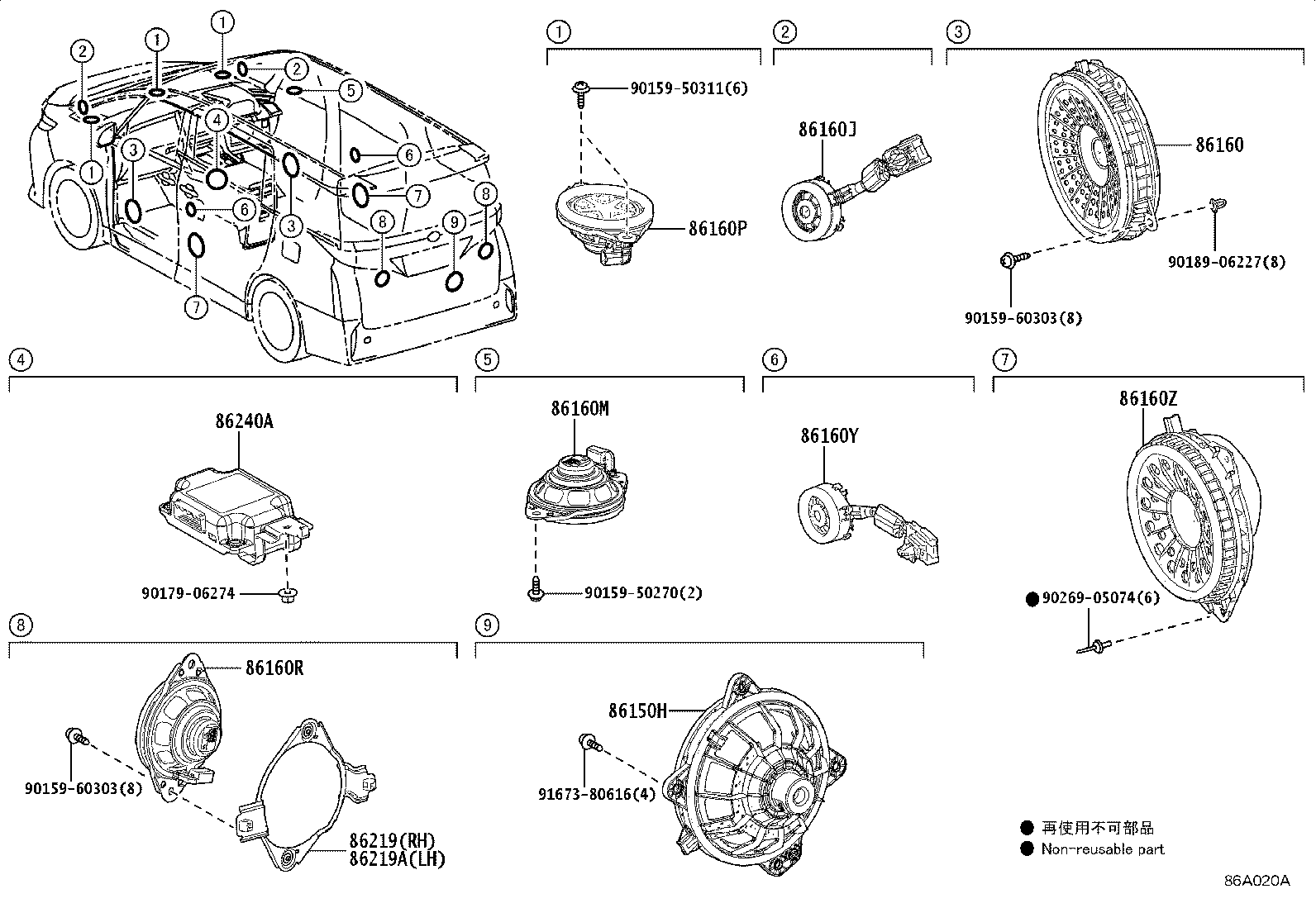

Figure 86A018B 86A018B 2023-06 → — Figure 86A020A 86A020A 2023-06 → —

Part groups

PNCDescription
86150H Speaker Assy, W/Bracket
86160 Speaker Assy, Front NO.1
86160J Speaker Assy, Front NO.3
86160M Speaker Assy, Roof
86160P Speaker Assy, Front NO.2
86160R Speaker Assy, Stereo Component
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86240A Equalizer Assy,Stereo Component
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
