Engine Oil Cooler

3 part groups · 2 illustrations

Illustrations

153787 2023-11 → —

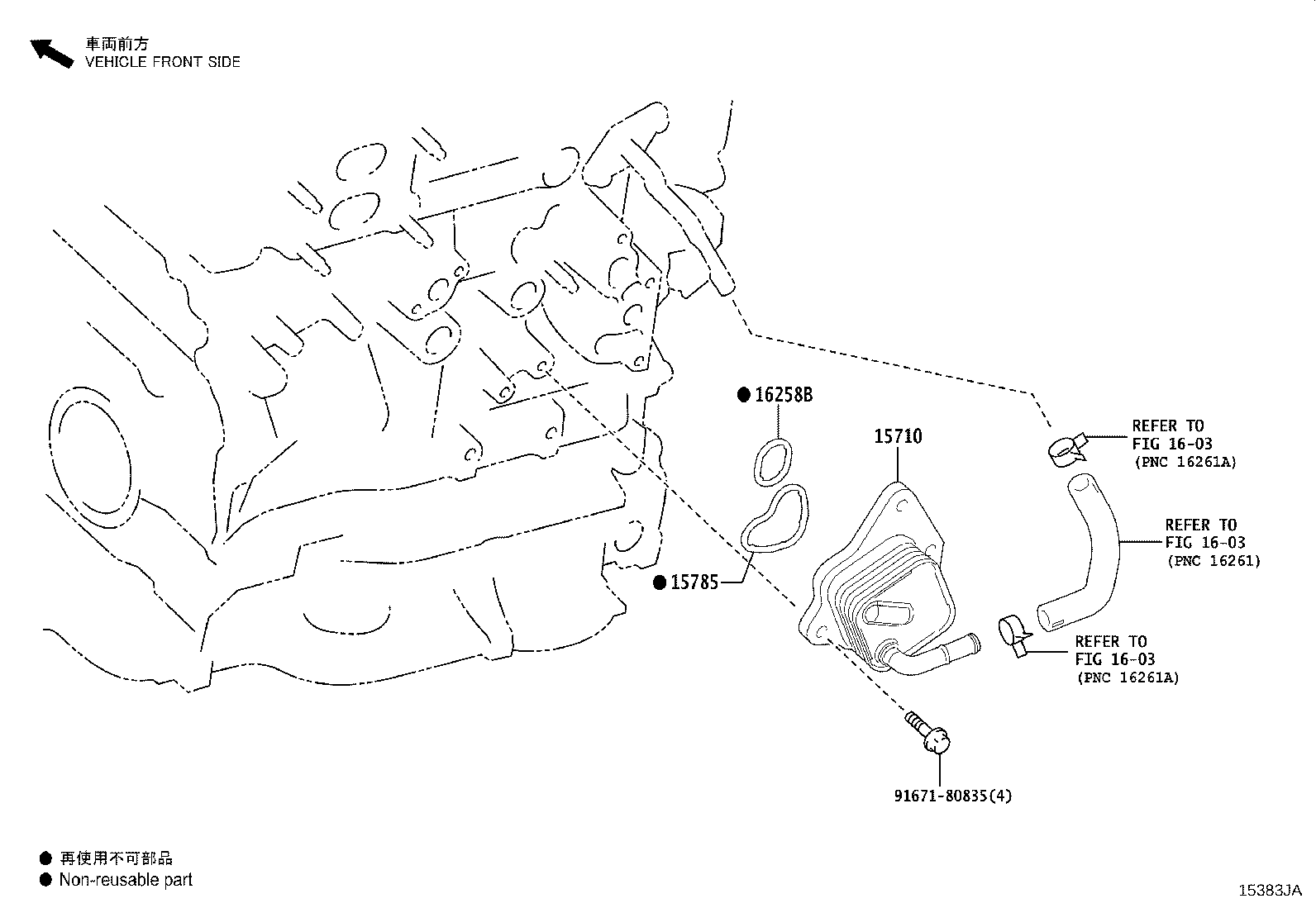

Figure 15383JA

15383JA 2023-11 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15785	Gasket, Oil Cooler
16258B	Gasket, Oil Cooler Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
