Toyota Lexus LM350H/500H
2023-11 → present · chassis AAWH1#,TAWH15 · catalogue 714120 · Japan
Supported model
Data version 2023-11

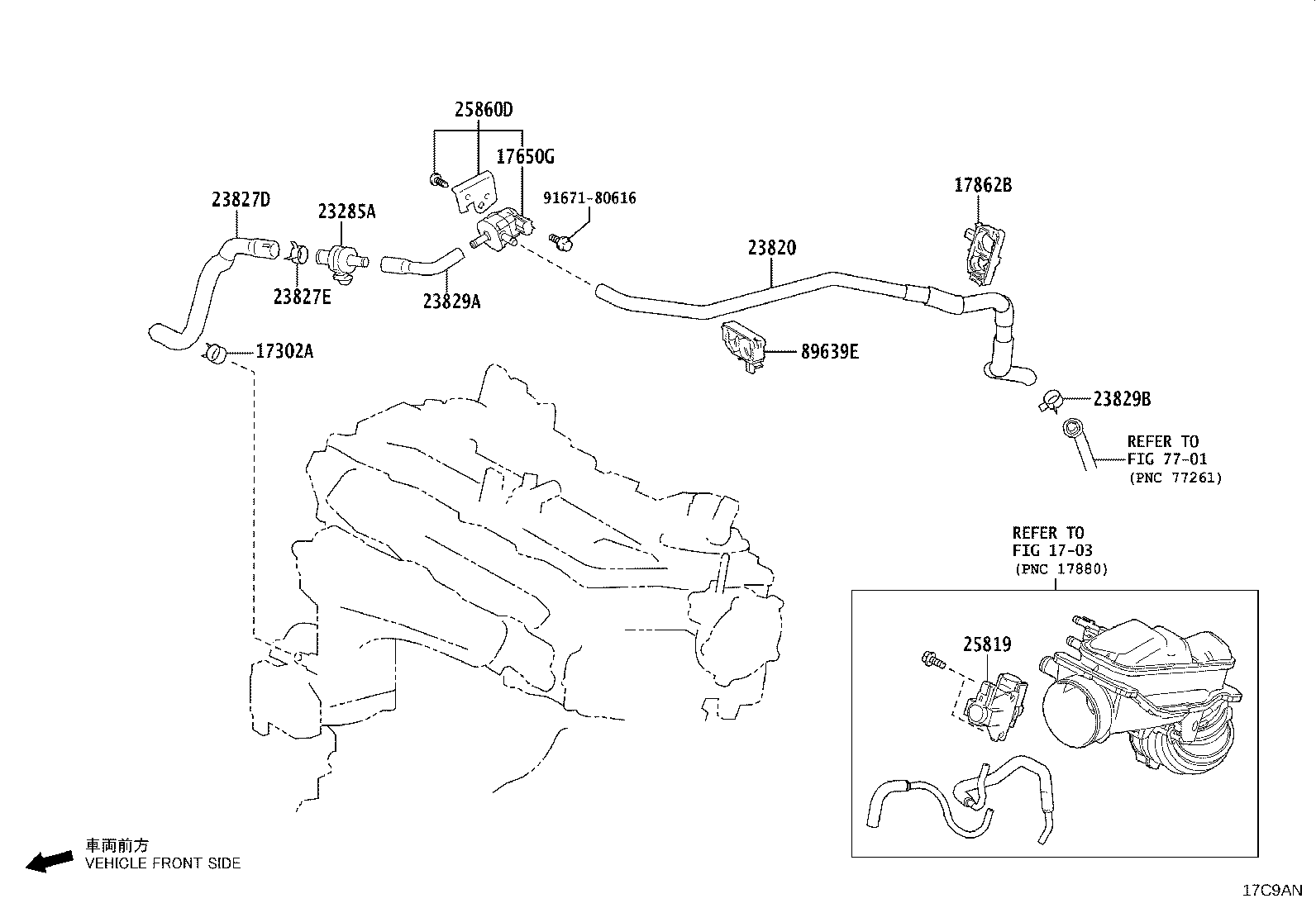

Vacuum Piping
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302A | Clip, Hose |
| 17650G | Valve, Duty Vacuum Switching |
| 17862B | Clamp, Hose |
| 23285A | Valve, Check, NO.1 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827D | Hose, Fuel Vapor Feed, NO.2 |
| 23827E | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 89639E | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
