Toyota Lexus LM350H/500H

2023-11 → present · chassis AAWH1#,TAWH15 · catalogue 714120 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

39 part groups · 8 illustrations

Illustrations

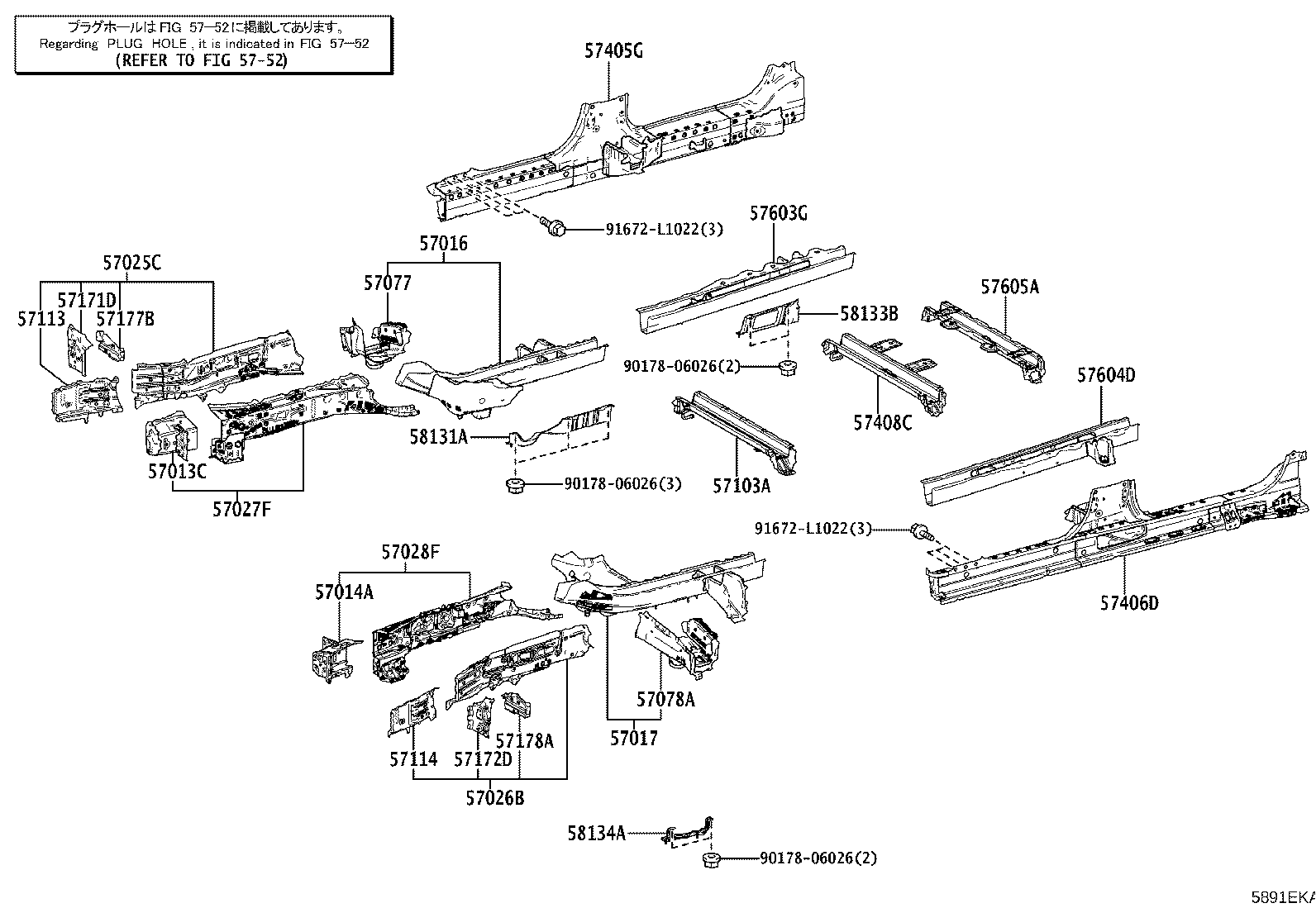

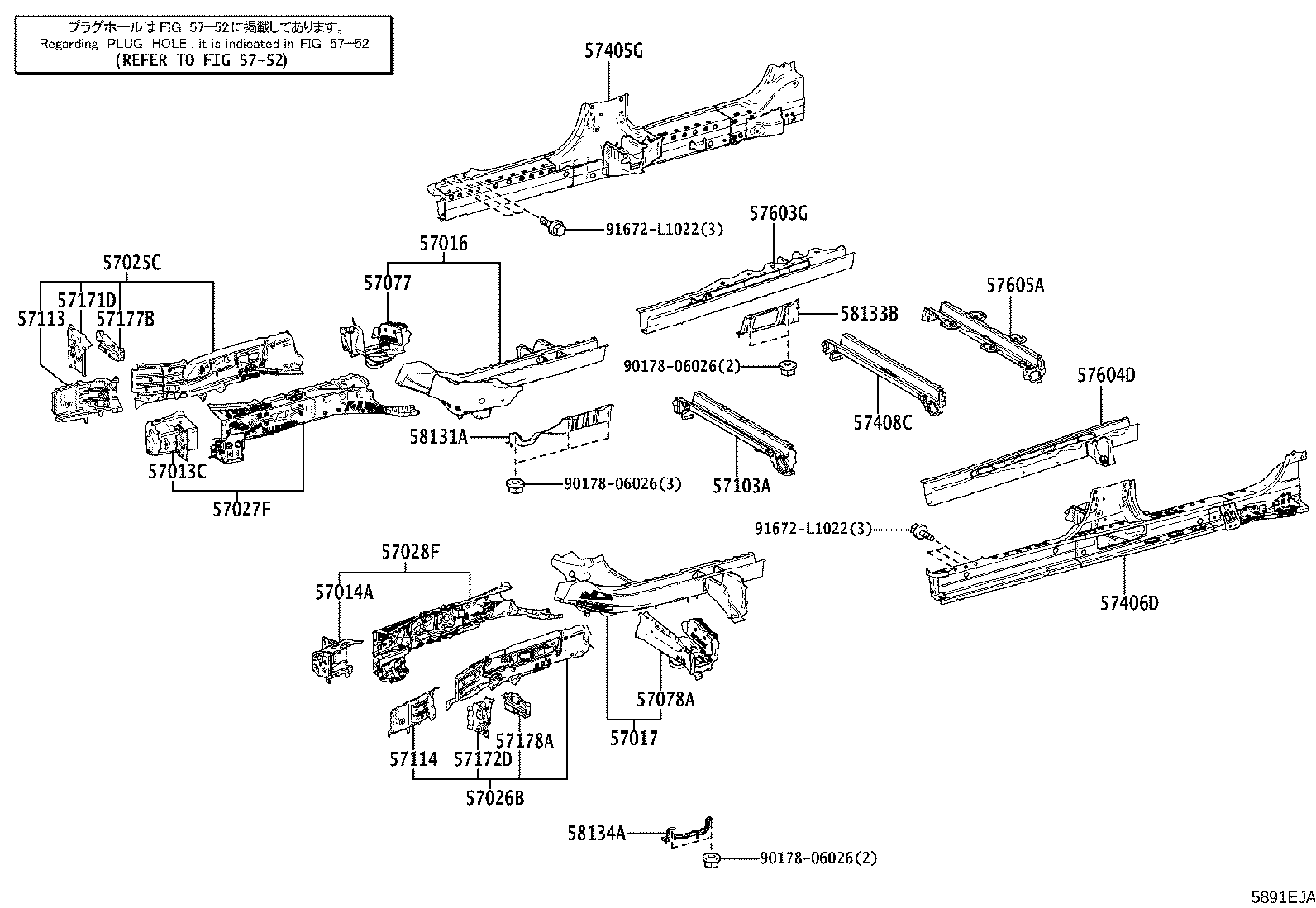

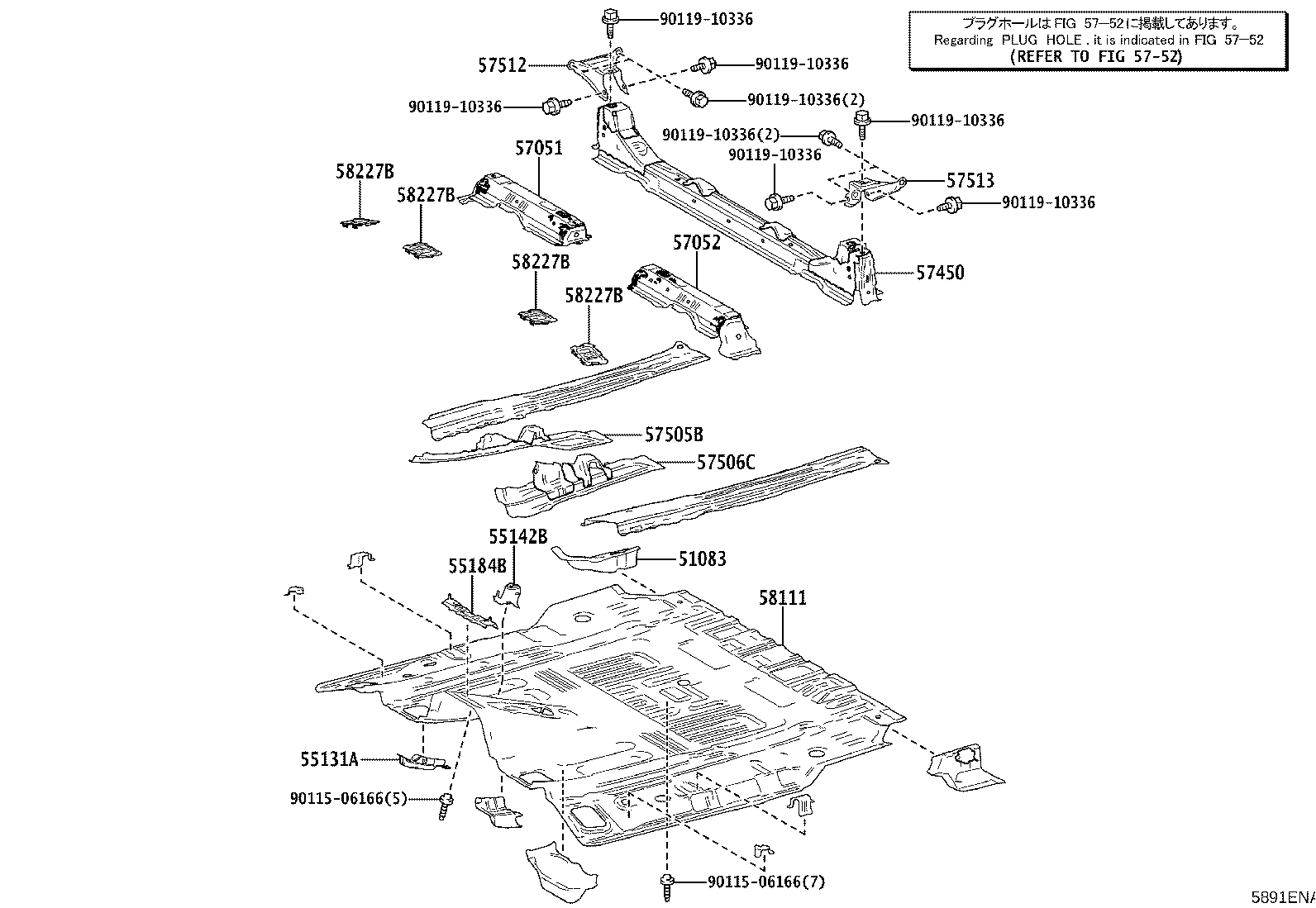

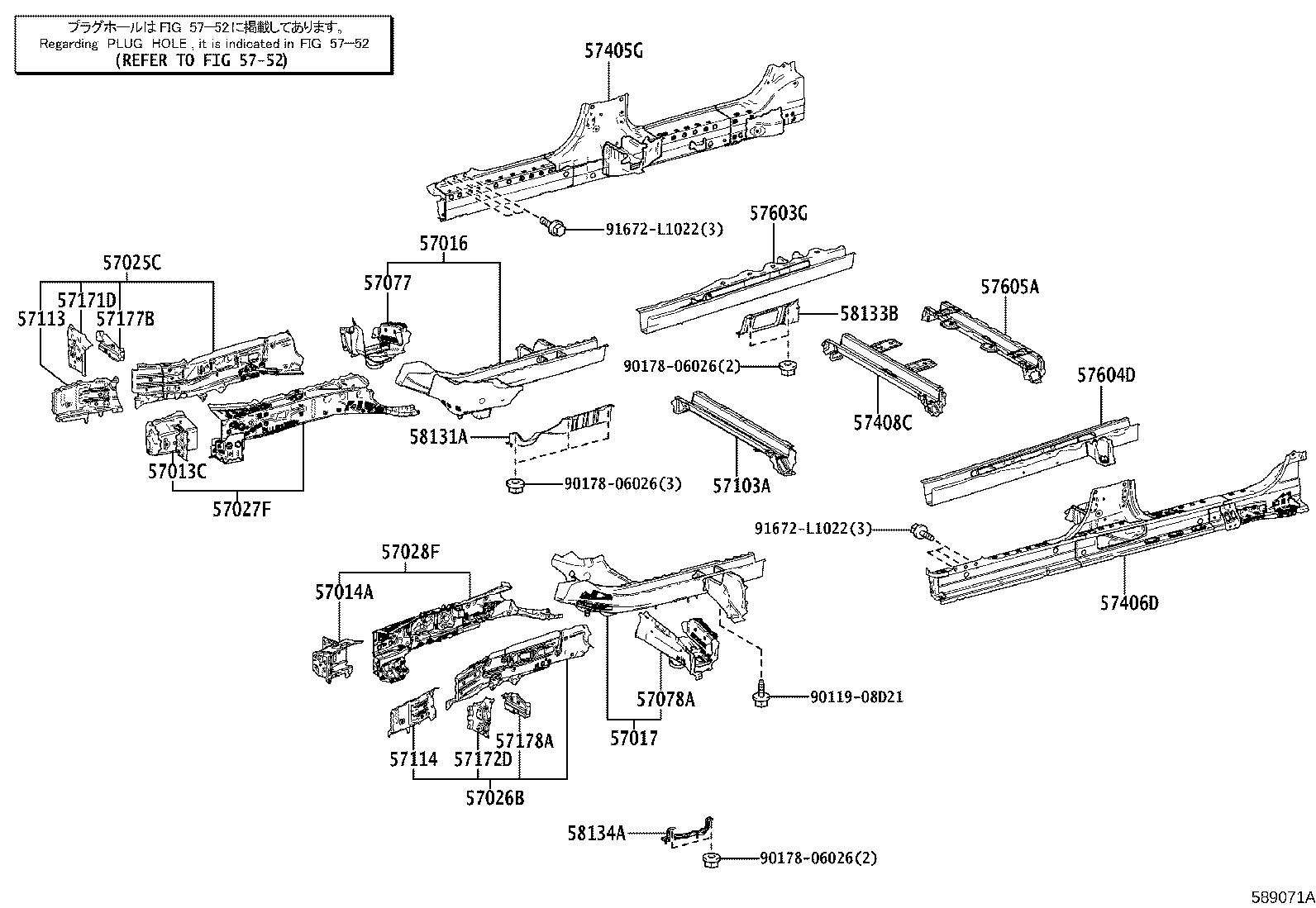

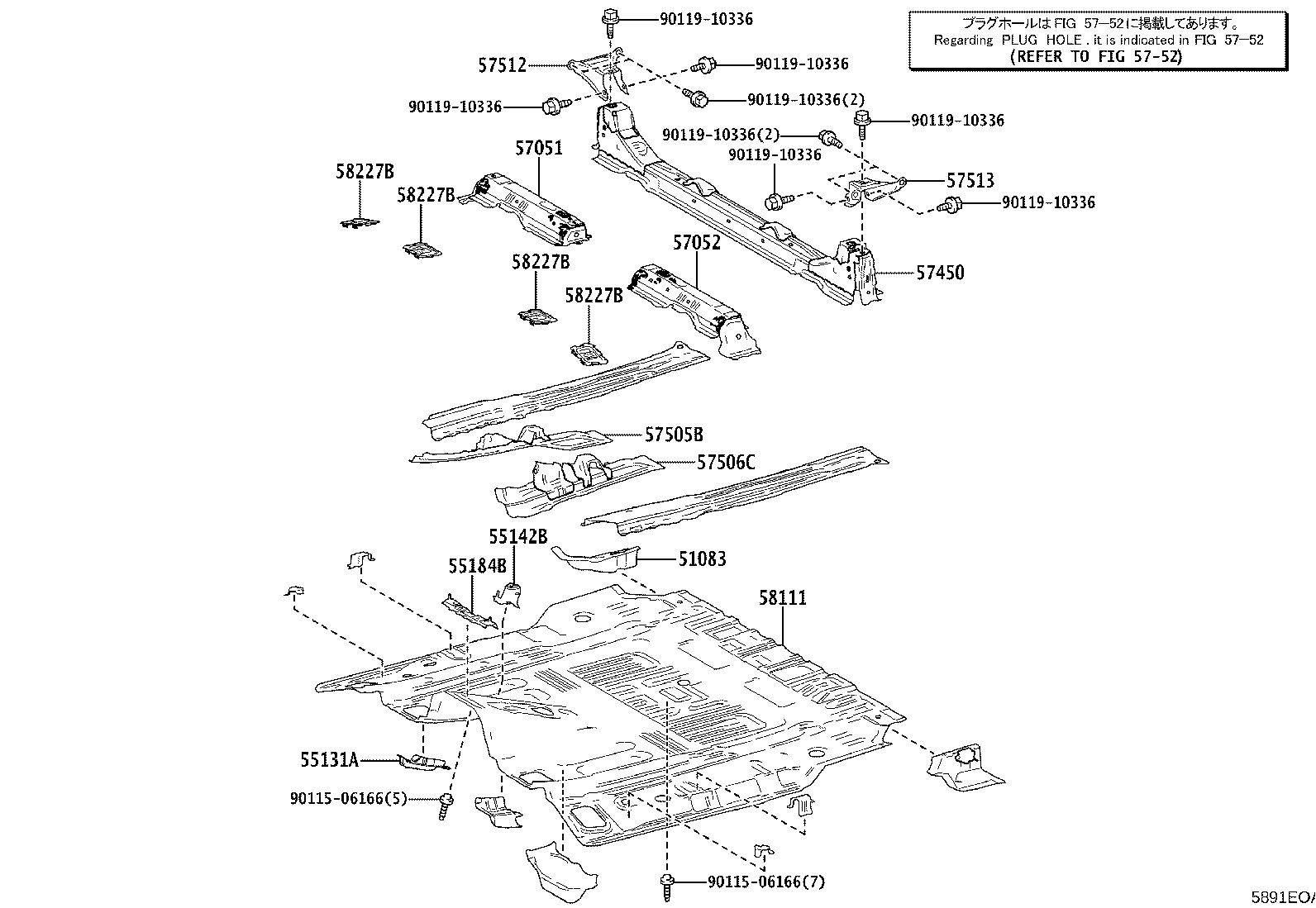

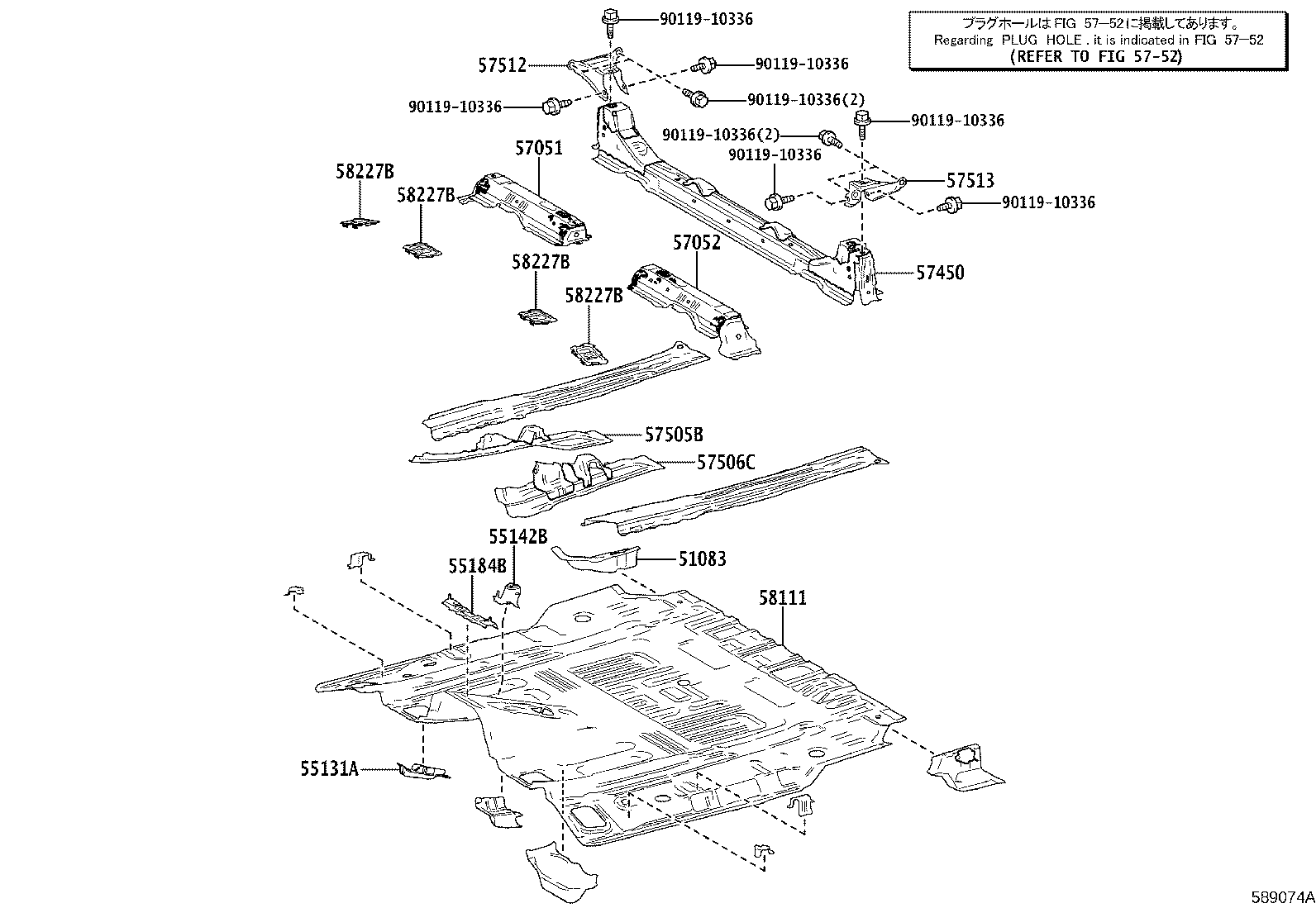

Figure 589070A 589070A 2023-11 → — Figure 589071A 589071A 2023-11 → — Figure 5891EJA 5891EJA 2023-11 → — Figure 5891EKA 5891EKA 2023-11 → — Figure 589074A 589074A 2023-11 → — Figure 589075A 589075A 2023-11 → — Figure 5891ENA 5891ENA 2023-11 → — Figure 5891EOA 5891EOA 2023-11 → —

Part groups

PNCDescription
51083 Step Sub-assy, RH
55131A Reinforcement, Dash Panel
55142B Bracket, Dash 3Way Support
55184B Bracket, Dash Panel
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57025C Member Sub-assy, Front Side, Outer RH
57026B Member Sub-assy, Front Side, Outer LH
57027F Bracket Sub-assy, Converter Support, RH
57028F Bracket Sub-assy, Converter Support, LH
57051 Member Sub-assy, Front Floor Cross, RH
57052 Member Sub-assy, Front Floor Cross, LH
57077 Box Sub-assy, Torque, Front RH
57078A Box Sub-assy, Torque, Front LH
57103A Crossmenber Sub-assy, Floor, NO.3
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57171D Plate, Front Side Member TO Floor, RH
57172D Plate, Front Side Member TO Floor, LH
57177B Seal, Front Side Member, RH
57178A Seal, Front Side Member, LH
57405G Rail Sub-assy, Floor Side, Center RH
57406D Rail Sub-assy, Floor Side, Center LH
57408C Member Sub-assy, Front Floor Cross
57450 Member Assy, Front Floor Cross
57505B Reinforcement Sub-assy, Front Floor Under, RH
57506C Reinforcement Sub-assy, Front Floor Under, LH
57512 Reinforcement, Front Floor, RH
57513 Reinforcement, Front Floor, LH
57603G Extension Sub-assy, Rear Side Member, RH
57604D Extension Sub-assy, Rear Side Member, LH
57605A Member Sub-assy, Rear Floor Cross, NO.1
58111 Pan, Front Floor
58131A Bracket, Front Floor Heat Insulator, NO.1
58133B Bracket, Front Floor Heat Insulator, NO.3
58134A Bracket, Front Floor Heat Insulator, NO.4
58227B Plate, Front Floor Panel Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
