Toyota Lexus LM350H/500H

2023-11 → present · chassis AAWH1#,TAWH15 · catalogue 714120 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

19 part groups · 3 illustrations

Illustrations

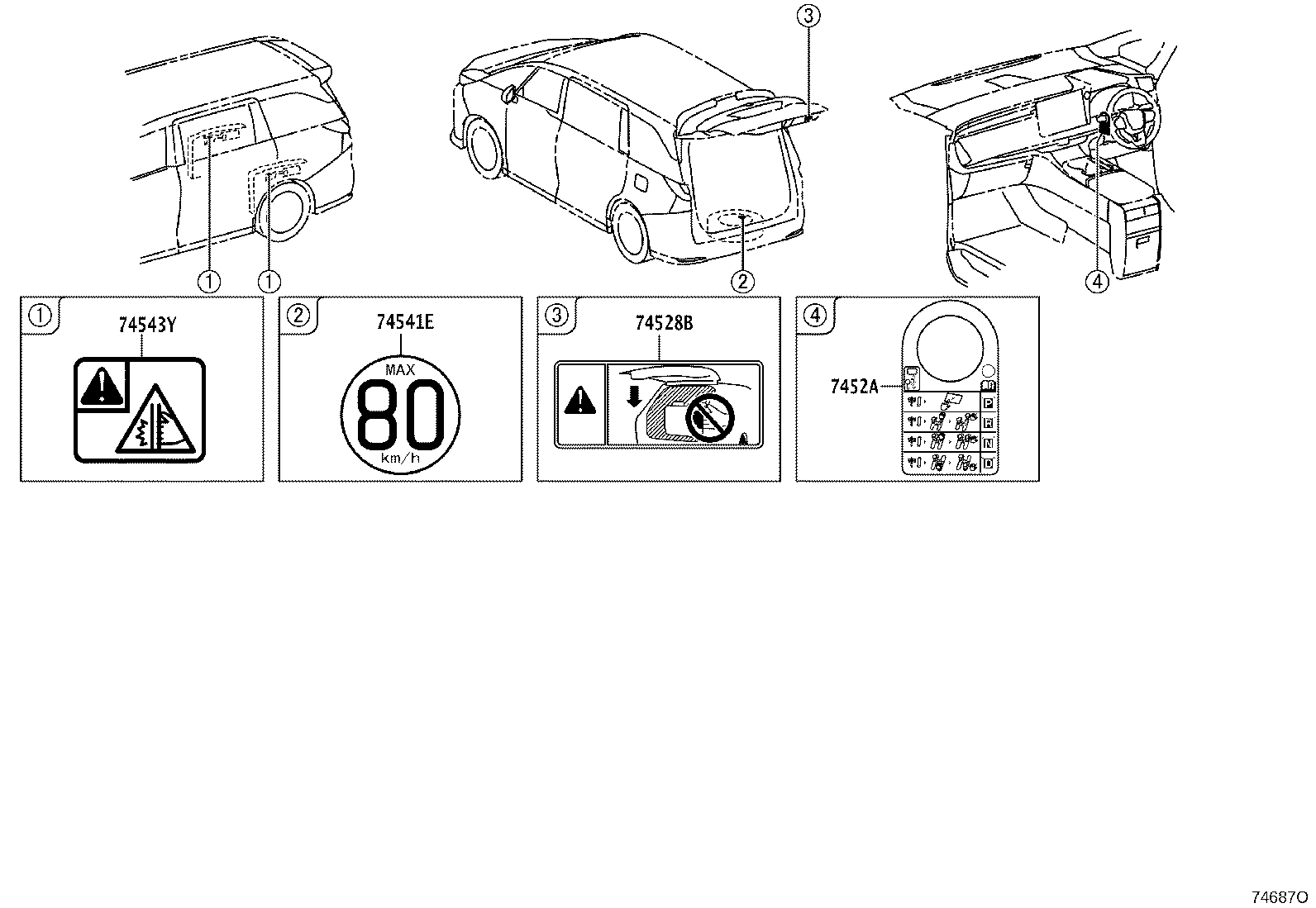

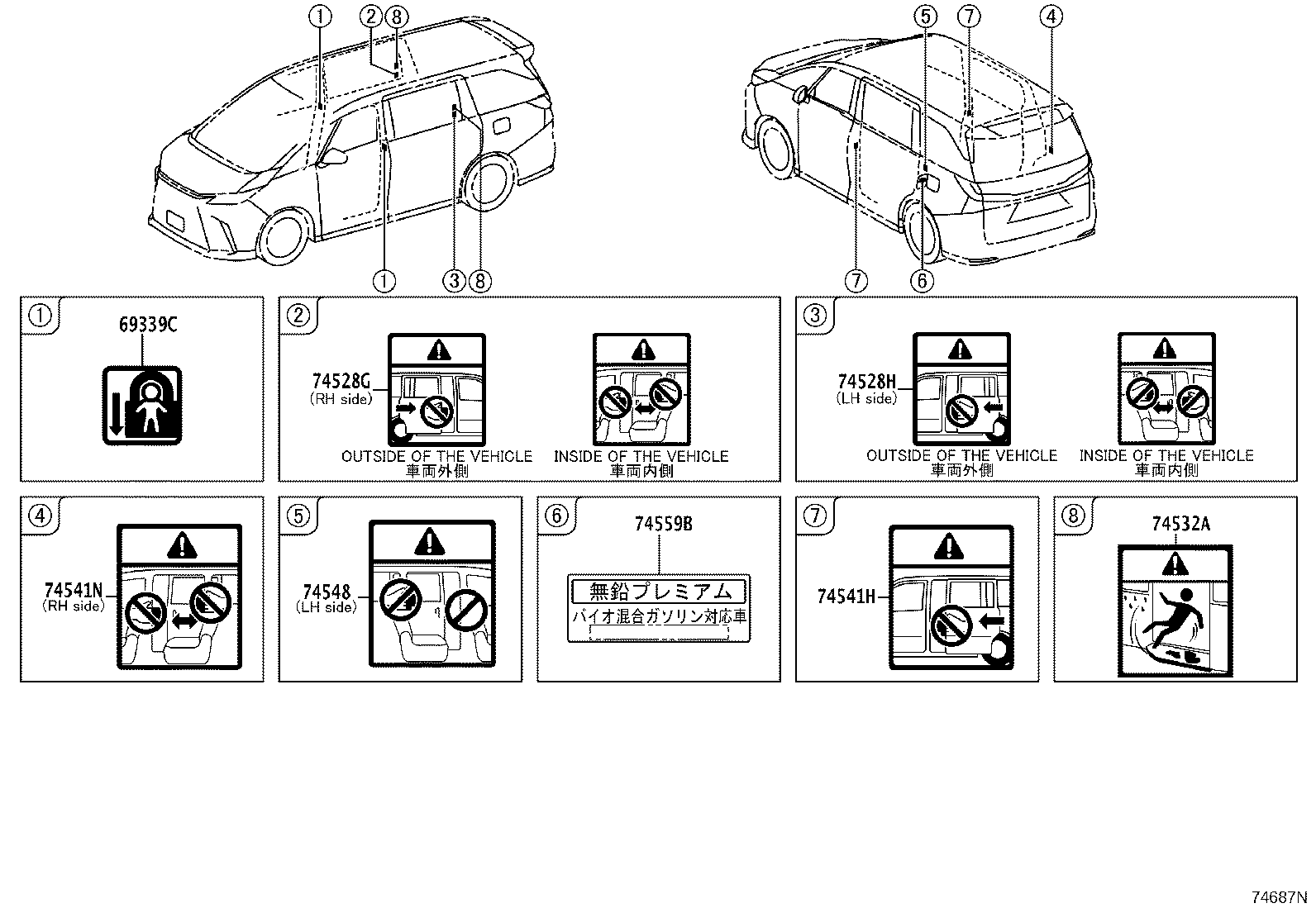

Figure 74687MA 74687MA 2023-11 → — Figure 74687N 74687N 2023-11 → — Figure 74687O 74687O 2023-11 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
288A2 Label, Battery Location
288A2A Label, Battery Location, NO.2
42661 Label, Tire Pressure Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528B Label, Back Door Caution
74528G Label, Power Slide Door Caution
74528H Label, Power Slide Door Caution
74528K Label, Door Closer Caution
7452A Label, Shift Control Information
74532A Plate, Caution
74541E Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74541N Label, Body Caution
74543Y Label, Hand Safety Caution
74548 Plate, Body Caution
74559B Label, Fuel Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
