Toyota Lexus LM350H/500H
2023-11 → present · chassis AAWH1#,TAWH15 · catalogue 714120 · Japan
Supported model
Data version 2023-11
Hev Inverter
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

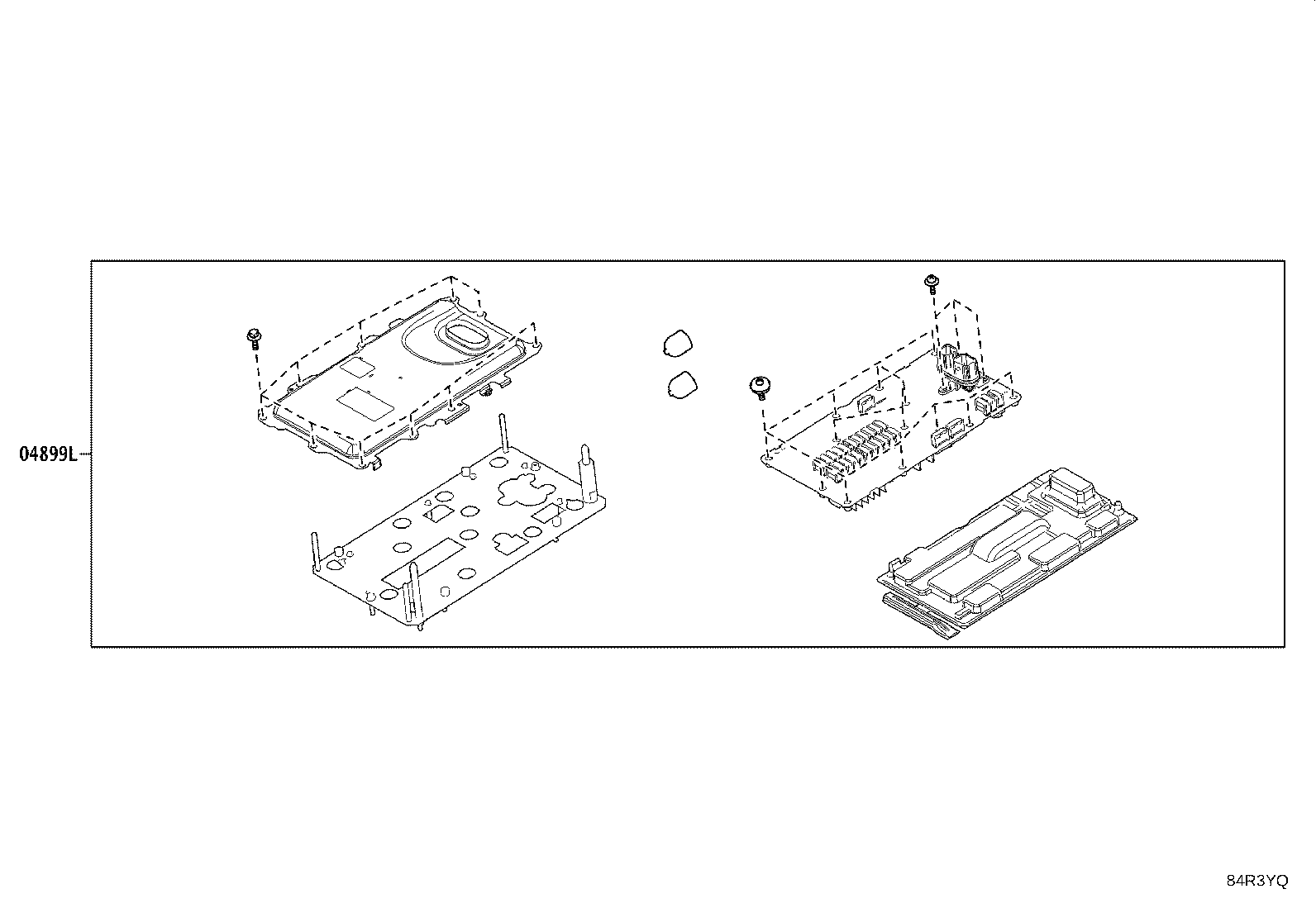

| 04899L | Computer Kit, Motor Generator Control |
| G9022A | Cover Sub-assy, Inverter, Upper |
| G9118A | Label, HV Motor Control Inverter Caution |
| G9200 | Inverter Assy, W/Converter |
| G9210 | Inverter Assy, EV Motor Control |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9216 | Bracket, Inverter, NO.3 |
| G9221 | Cover, Inverter |
| G9221G | Cover, Inverter, Upper |
| G9223 | Cover, Inverter Terminal |
| G922A | Hose, Inverter Cooling Inlet, NO.1 |
| G9231 | Gasket, Inverter Cover |
| G9233 | Gasket, Inverter Terminal |

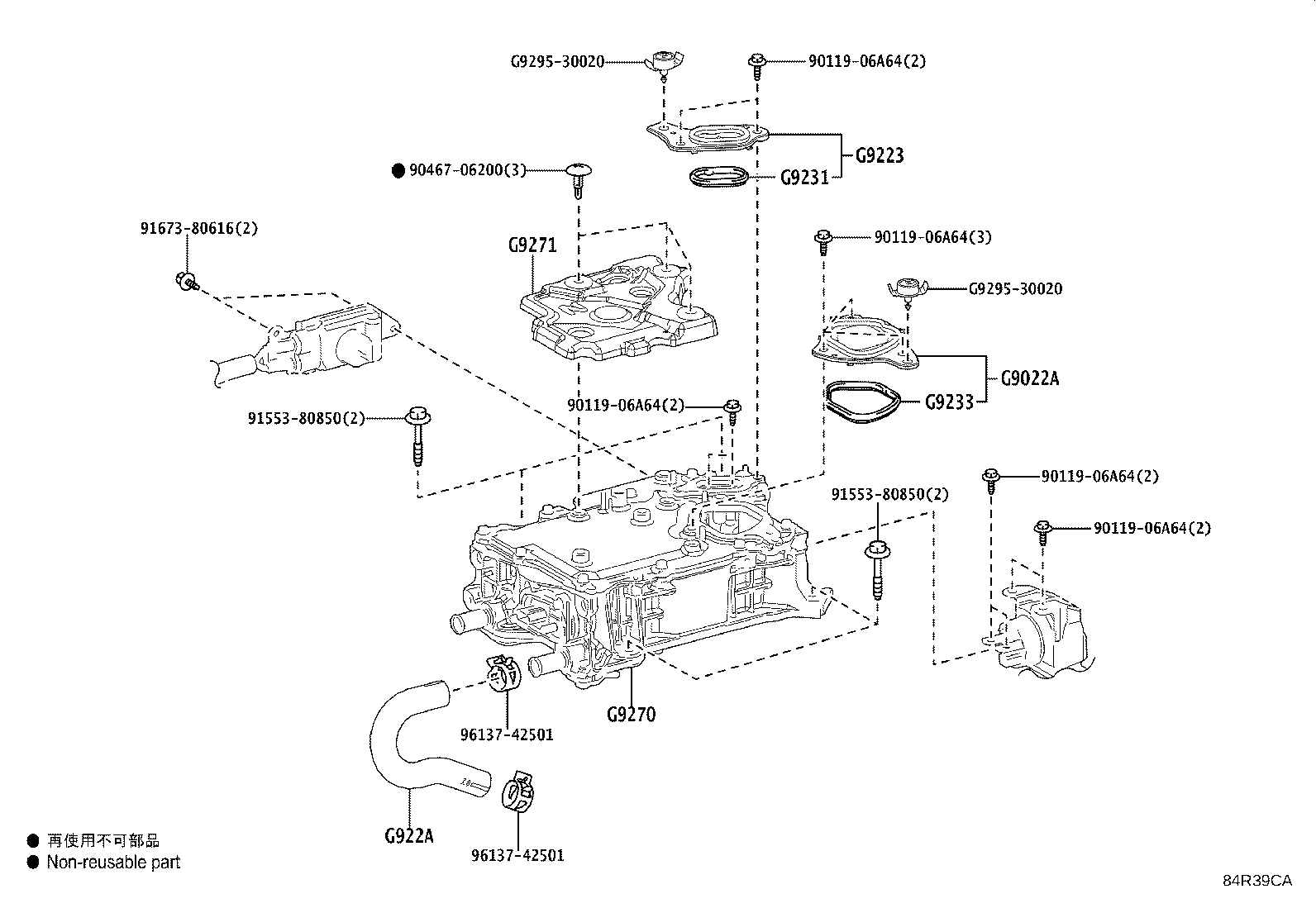

| G9270 | Converter Assy, EV |
| G9271 | Cover, Converter |

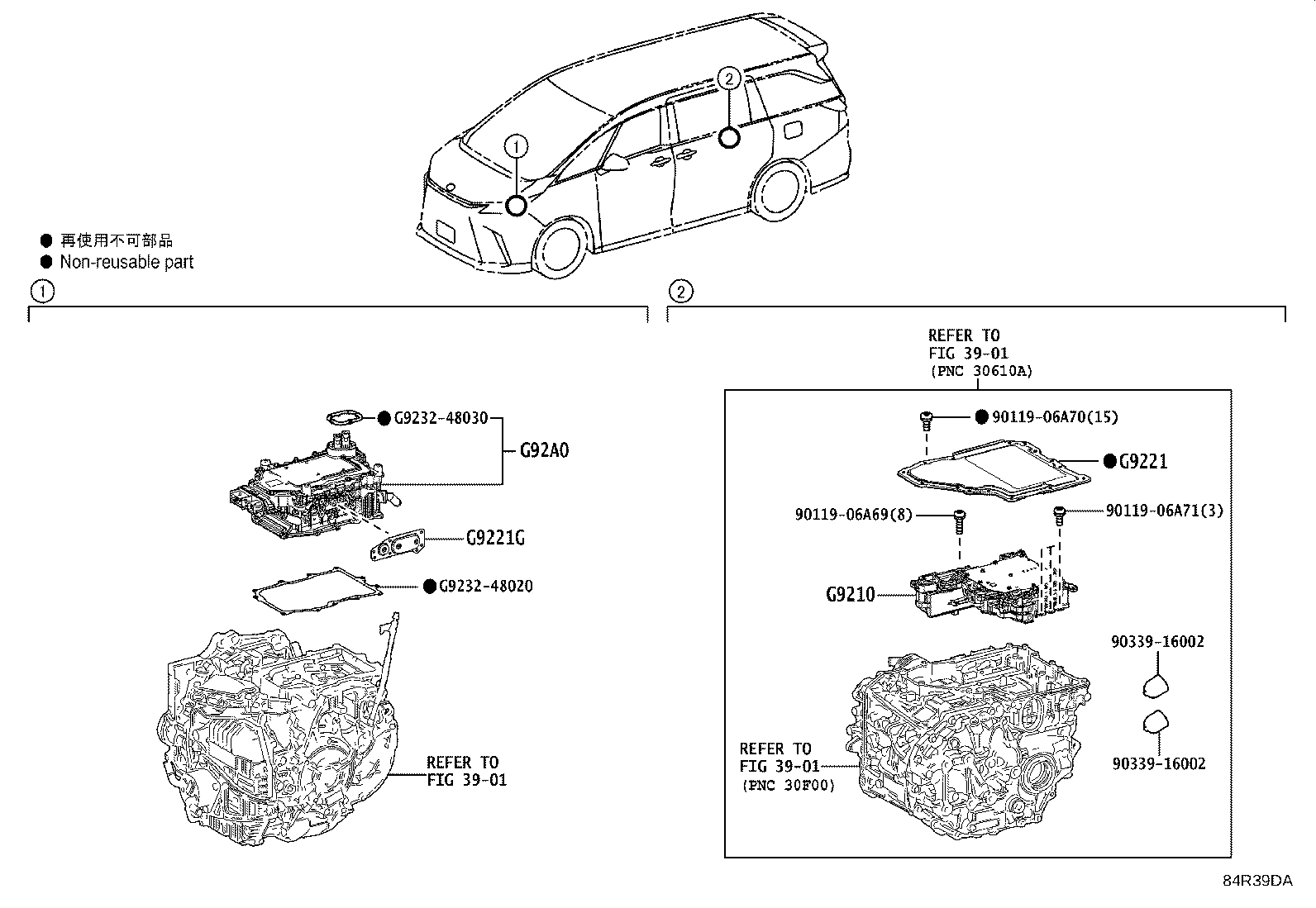

| G92A0 | Inverter Assy, Hybrid Motor Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
