Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 2 illustrations

Illustrations

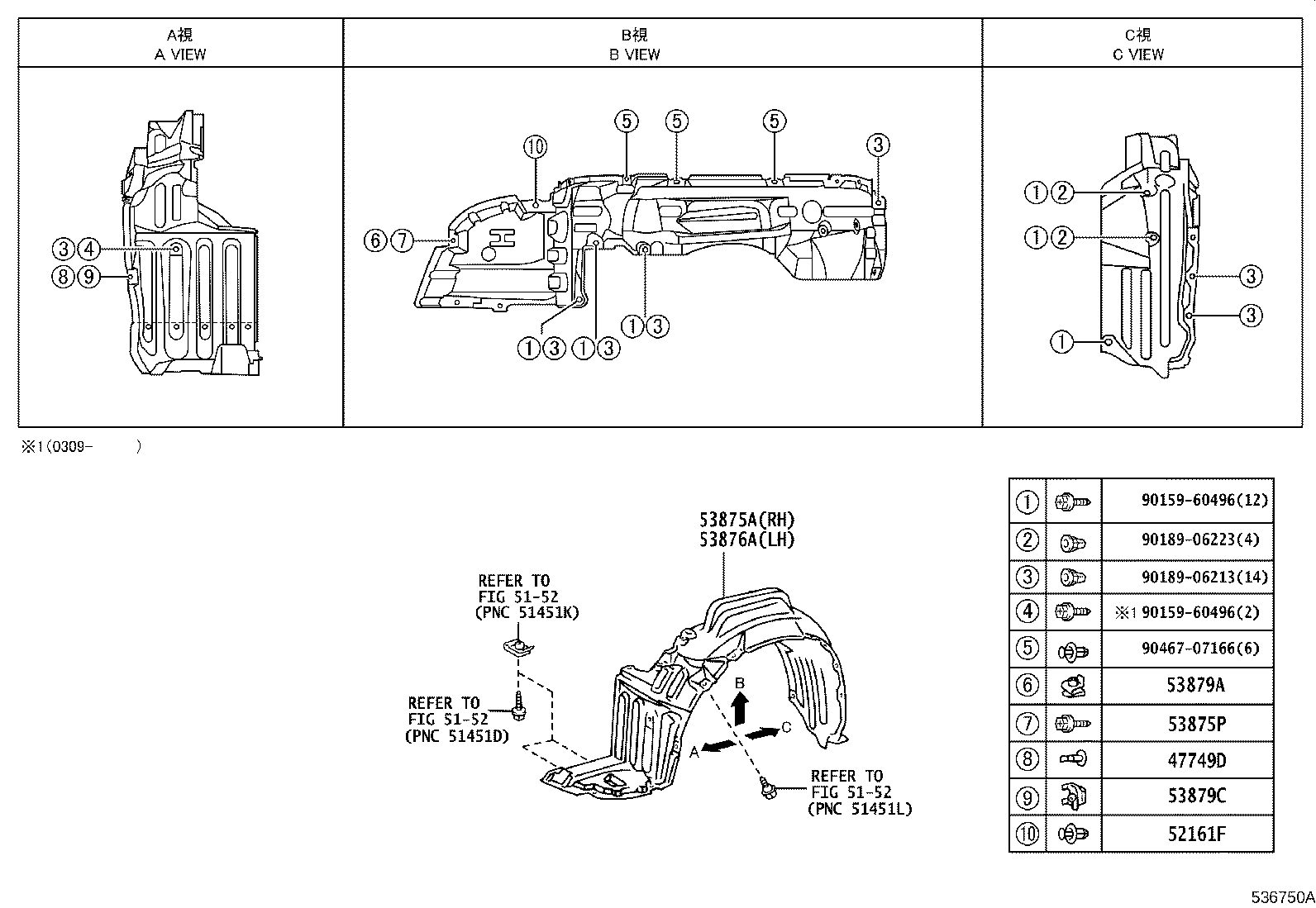

Figure 536839A 536839A 2003-07 → — Figure 536750A 536750A 2003-07 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
52161F Piece, Front Bumper
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381B Seal, Hood TO Radiator Support, RH
53382G Seal, Hood TO Radiator Support, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53867C Retainer, Front Side Panel, RH
53868D Retainer, Front Side Panel, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879C Retainer, Front Fender Liner
53882K Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
