Toyota Alphard HV
2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan
Supported model
Data version 2008-10

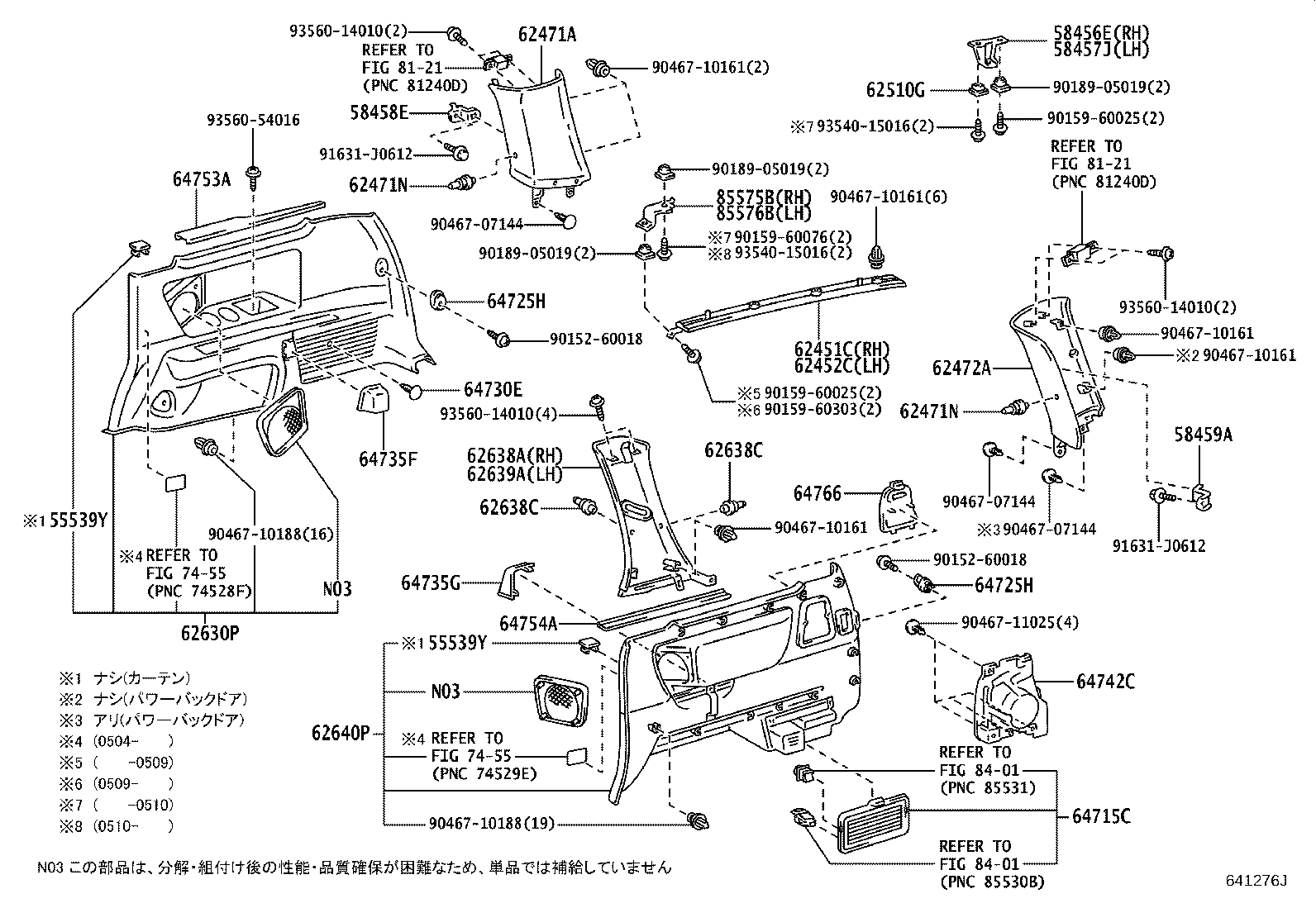

Inside Trim Board
50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539Y | Cover, Spare Switch Hole |
| 58456E | Bracket, Rear Garnish, NO.1 RH |
| 58457J | Bracket, Rear Garnish, NO.1 LH |
| 58458E | Bracket, Rear Garnish, NO.2 RH |
| 58459A | Bracket, Rear Garnish, NO.2 LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411J | Fastener(FOR CENTER PILLAR GARNISH) |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471N | Fastener(FOR REAR PILLAR GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638C | Fastener(FOR QUARTER PILLAR GARNISH) |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 64715C | Cover, Deck Side Trim, LH |
| 64725H | Hook, Quarter Trim, |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64735F | Cover, Deck Trim Side Service Hole, RH |
| 64735G | Cover, Deck Trim Side Service Hole, LH |
| 64742C | Box, Deck Side Trim, LH |
| 64753A | Garnish, Deck Side, Rear, RH |
| 64754A | Garnish, Deck Side, Rear, LH |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 73135B | Cover, Shoulder Belt Anchor, RH |
| 73136C | Cover, Shoulder Belt Anchor, LH |
| 85575B | Bracket, Auto Curtain Rail, NO.3 RH |
| 85576B | Bracket, Auto Curtain Rail, NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
