Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

49 part groups · 8 illustrations

Illustrations

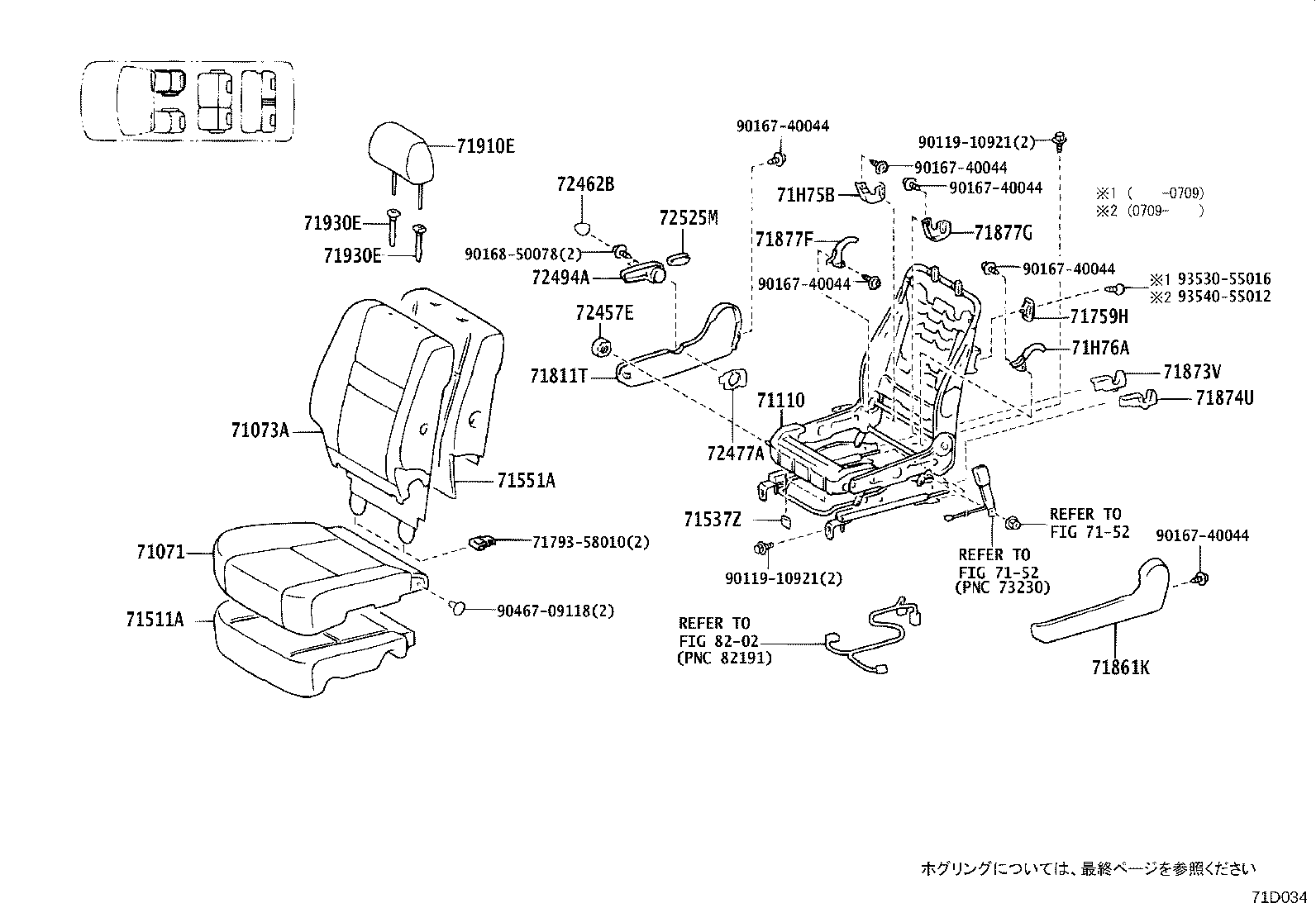

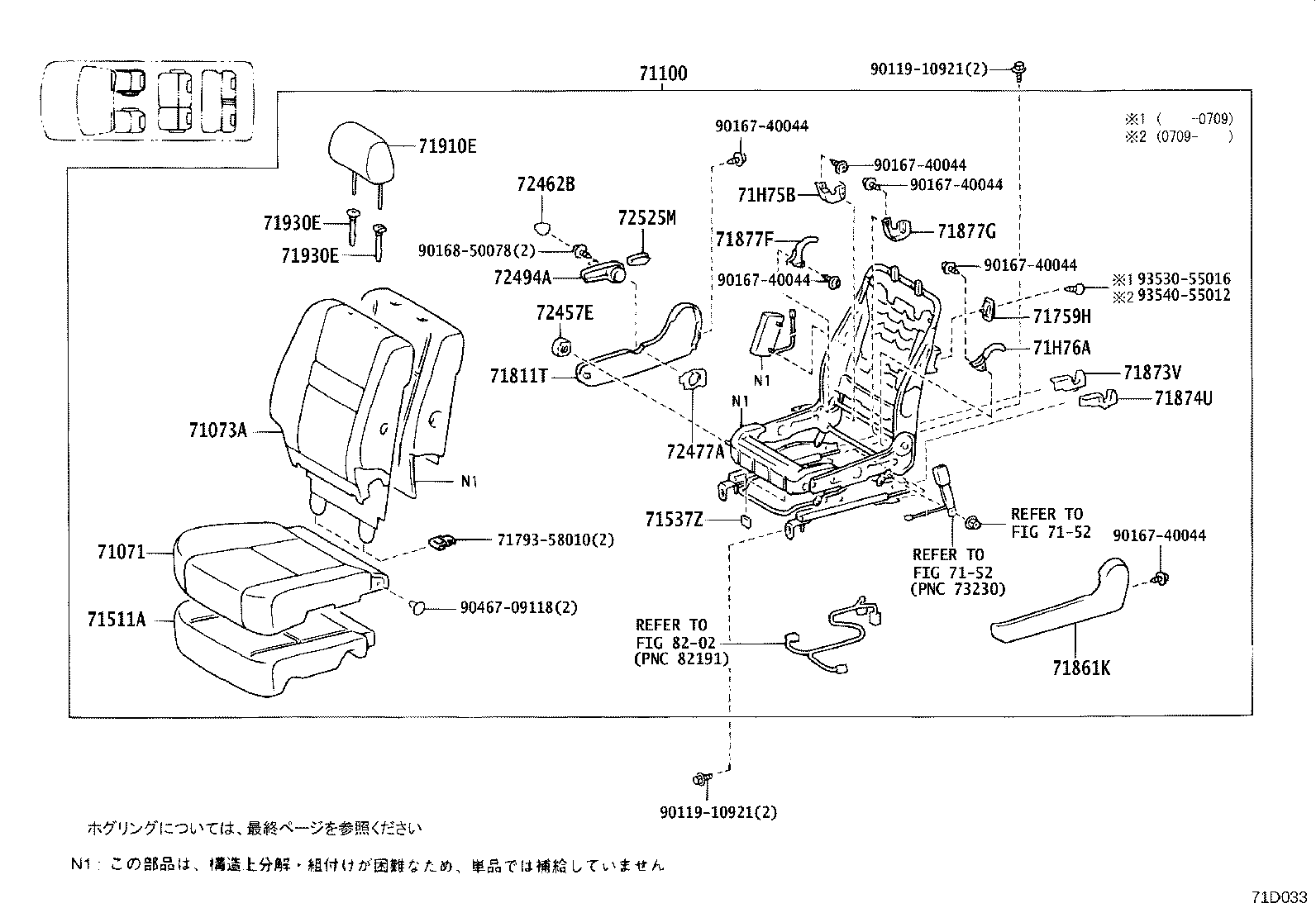

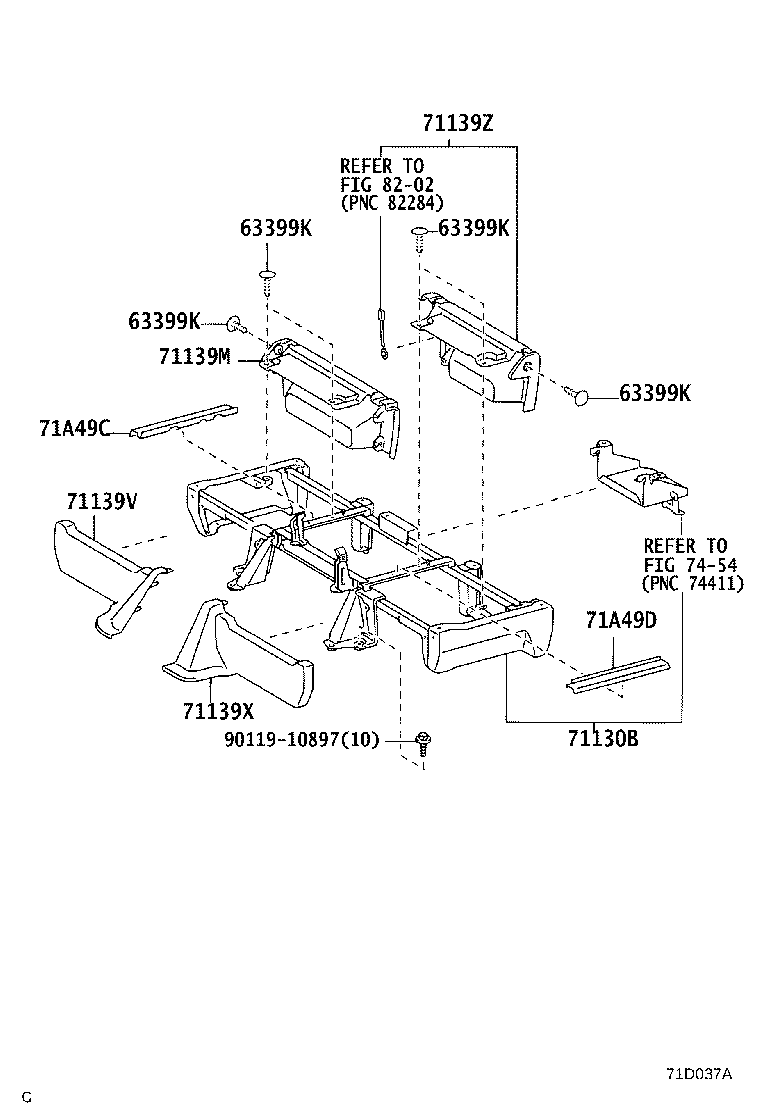

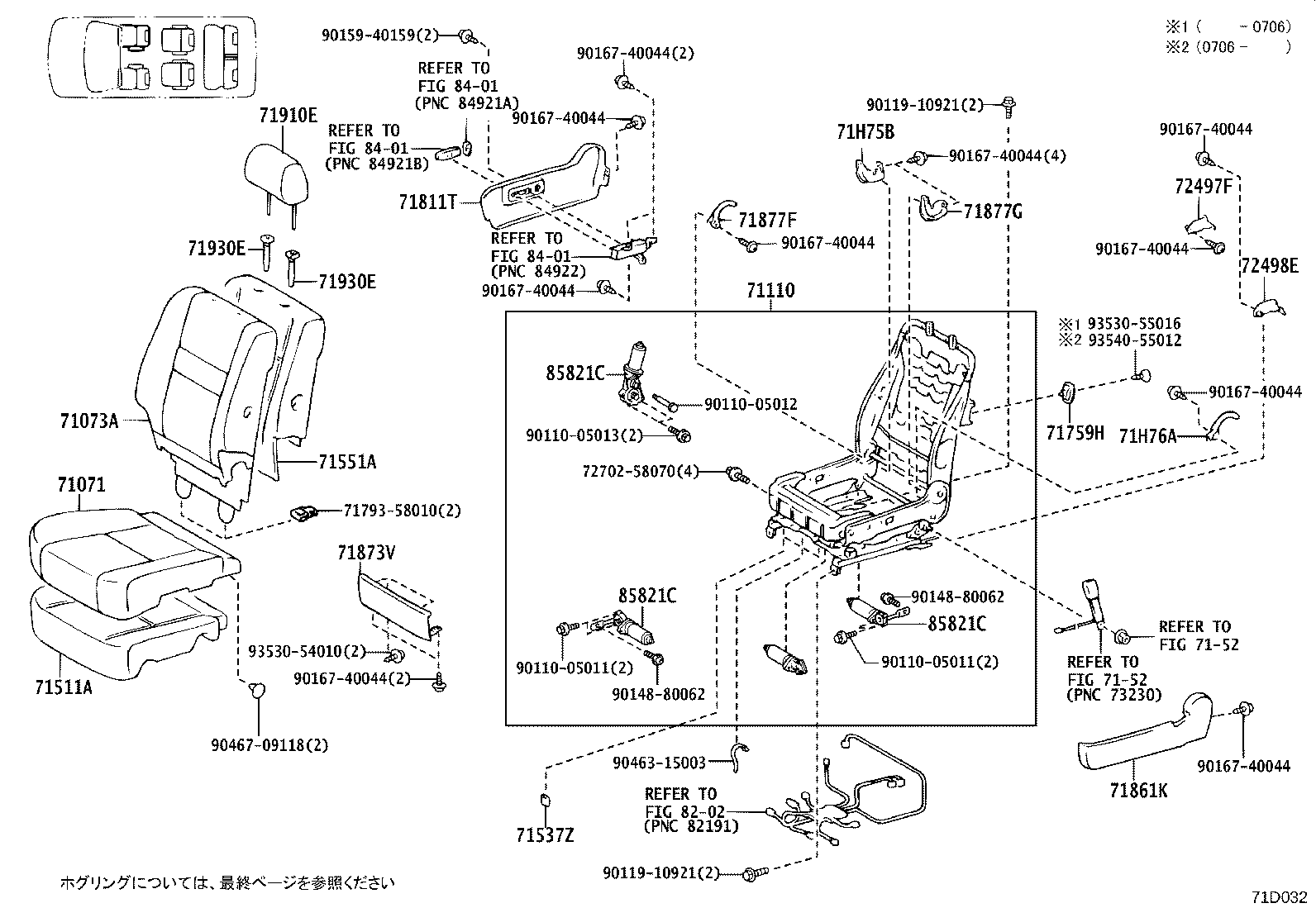

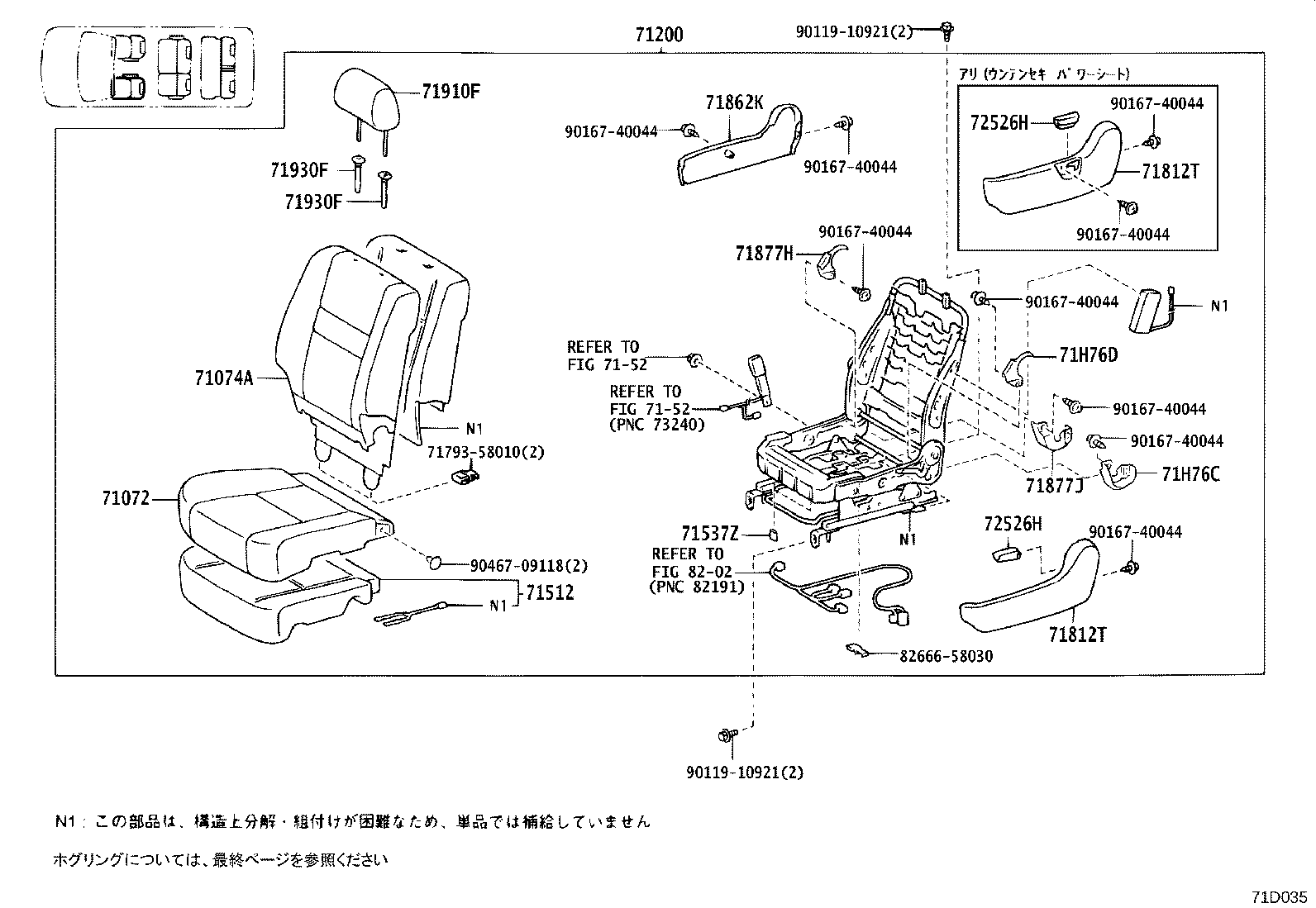

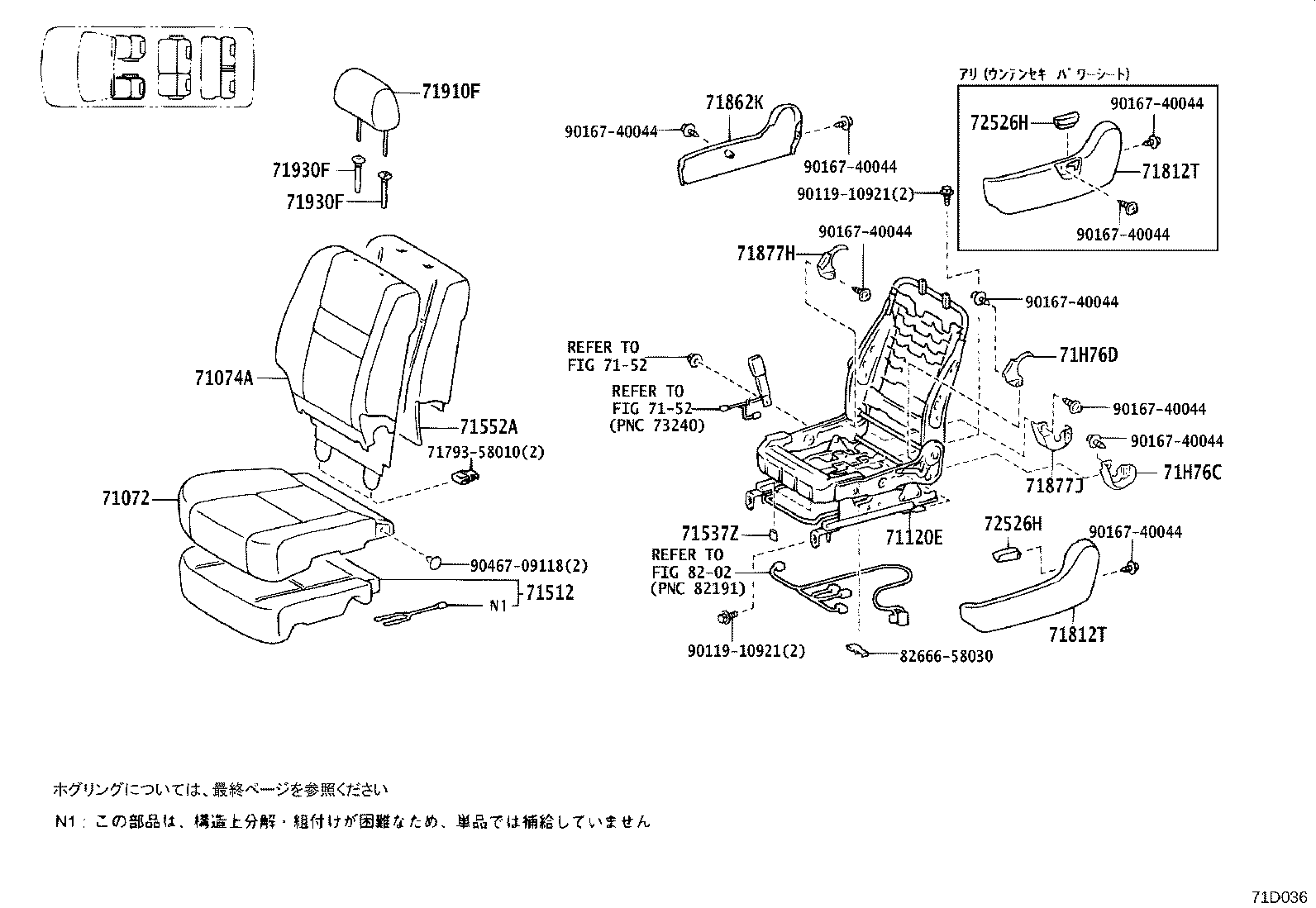

Figure 71D031 71D031 2003-07 → — Figure 71D032 71D032 2003-07 → — Figure 71D033 71D033 2003-07 → — Figure 71D034 71D034 2003-07 → — Figure 71D035 71D035 2003-07 → — Figure 71D036 71D036 2003-07 → — Figure 71D037A 71D037A 2003-07 → — Figure 71D041 71D041 2003-07 → —

Part groups

PNCDescription
63399K Clip, Front Seat Leg Cover
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71100 Seat Assy, Front RH
71110 Frame Assy, Front Seat W/Adjuster, RH
71120E Frame Assy, Front Seat W/Adjuster, LH
71130B Leg Assy, Front Seat, RH
71139M Cover, Front Seat Leg, RH Outer
71139V Cover, Front Seat Leg NO.1
71139X Cover, Front Seat Leg NO.2
71139Z Cover, Front Seat Leg, LH
71200 Seat Assy, Front LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71537Z Protector, Front Seat Cushion
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71759H Hook, Front Seatback
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71873V Shield, Front Seat Cushion, Lower RH
71874U Shield, Front Seat Cushion, Lower LH
71877F Cover, Reclining Adjuster Inside, RH(FOR RH SEAT)
71877G Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71877H Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71877J Cover, Reclining Adjuster Inside, LH(FOR LH SEAT)
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49C Cover, Front Seat Leg, Inner NO.1(FOR RH SEAT)
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71H75B Cover, Reclining Adjuster Inside, RH(FOR RH SEATBACK FRAME)
71H76A Cover, Reclining Adjuster Inside, LH(FOR RH SEATBACK FRAME)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
71H76D Cover, Reclining Adjuster Inside, LH(FOR LH SEATBACK FRAME)
72457E Knob, Vertical Seat Adjuster, RH
72462B Cover, Vertical Adjuster RH
72477A Spacer, Vertical Adjuster
72494A Handle, Front Seat Vertical Adjuster, RH
72497F Cover, Vertical Adjuster Bracket, Outer
72498E Cover, Vertical Adjuster Bracket
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
85821C Motor Assy, Power Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
