Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

197 part groups · 10 illustrations

Illustrations

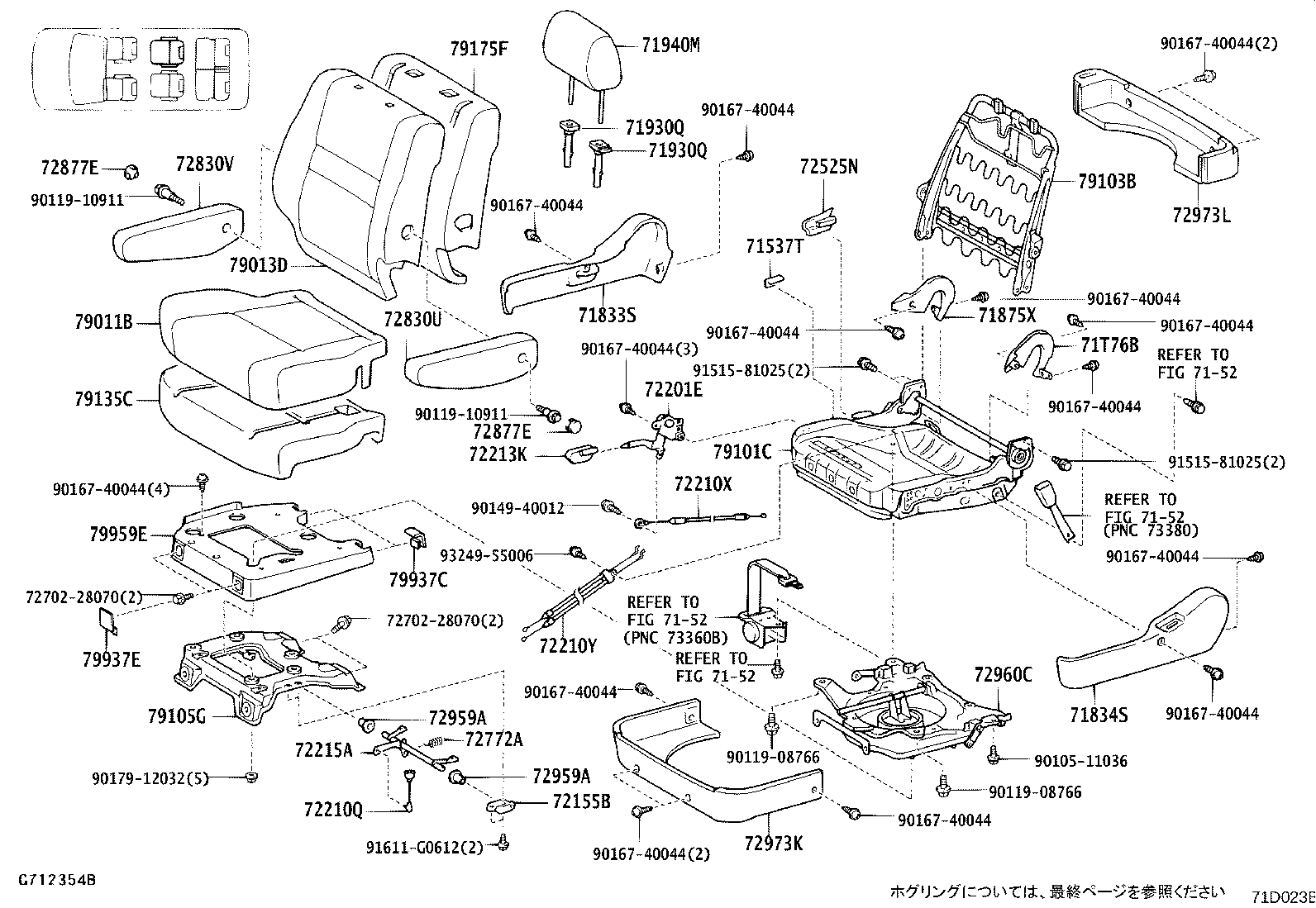

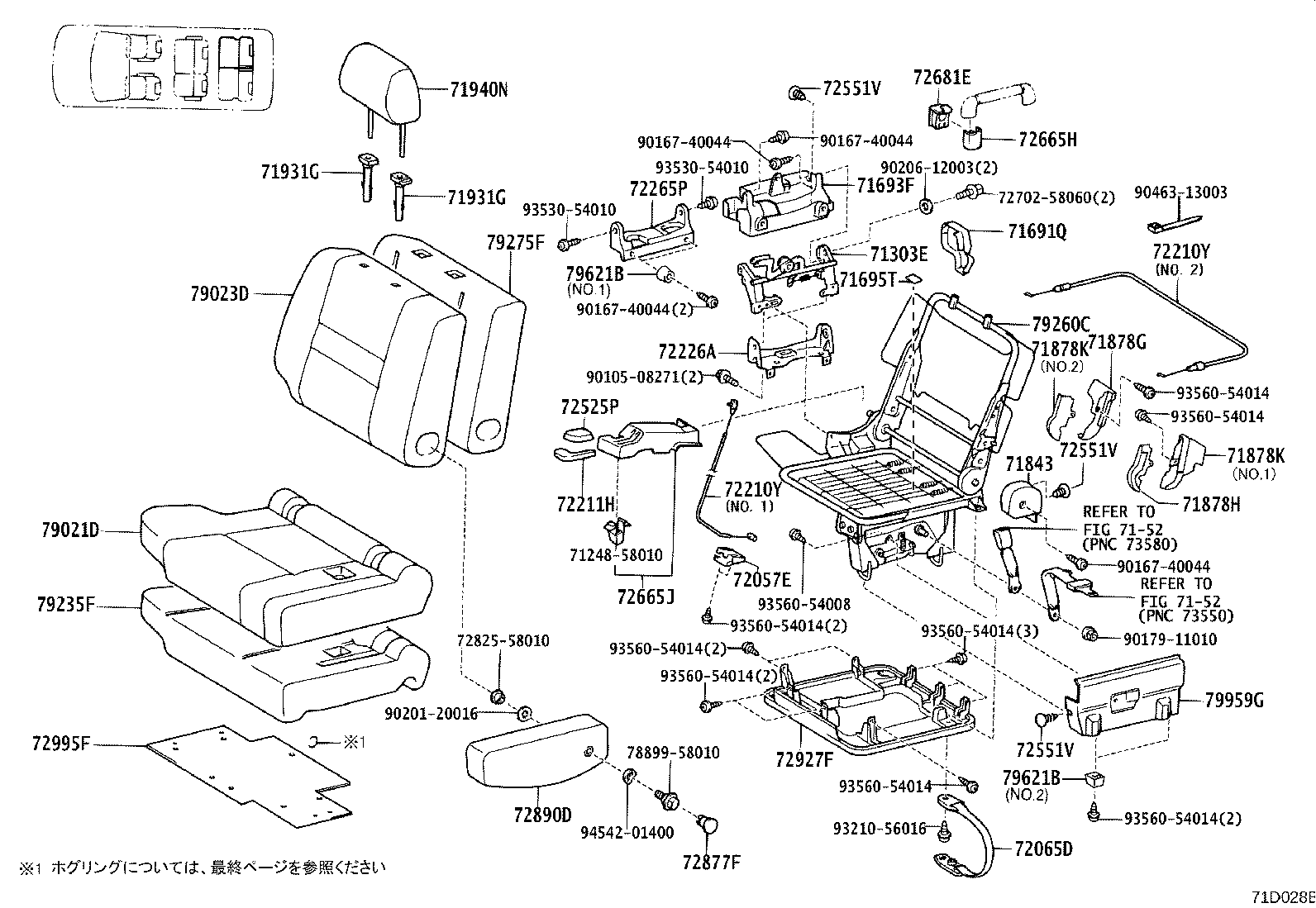

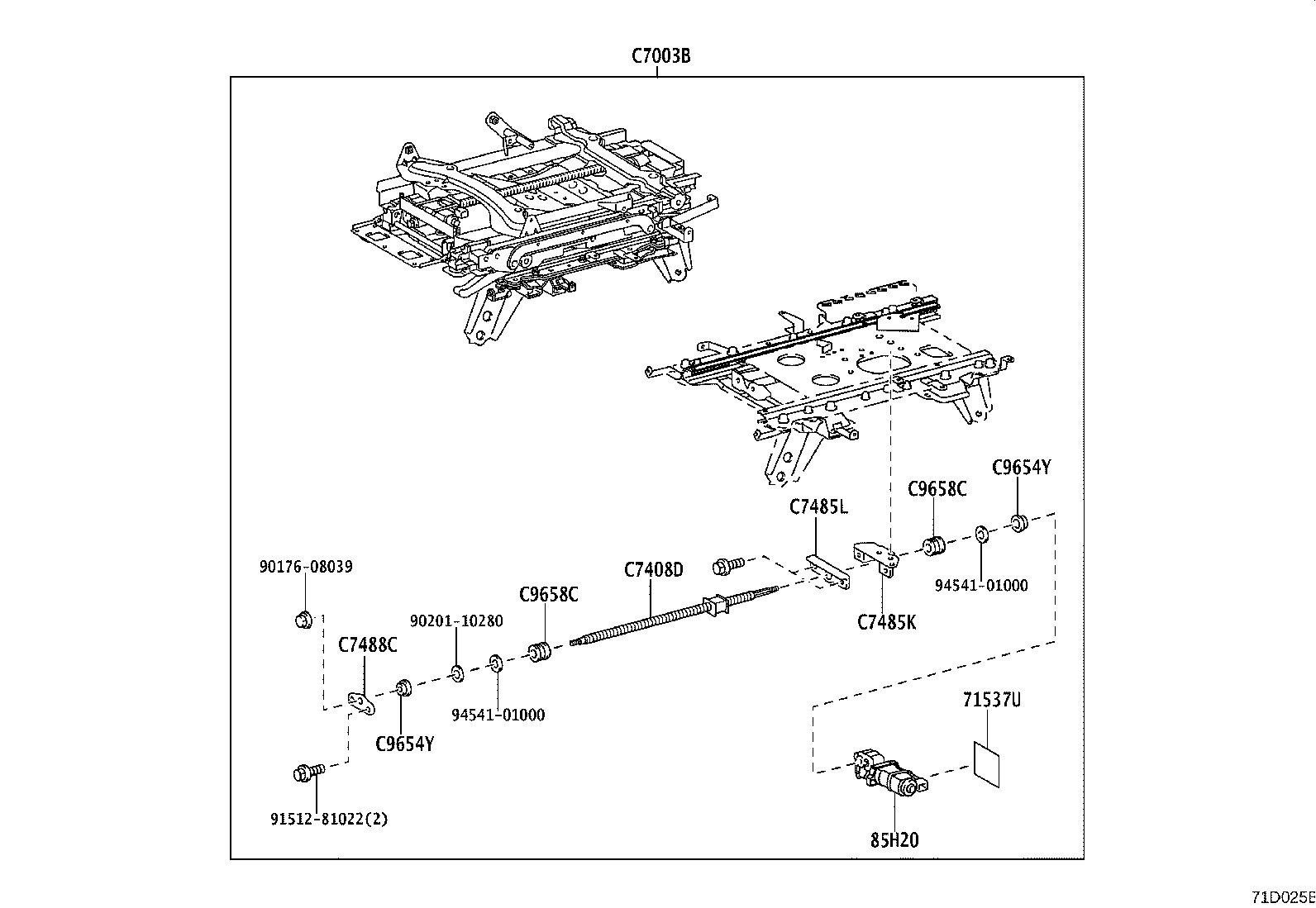

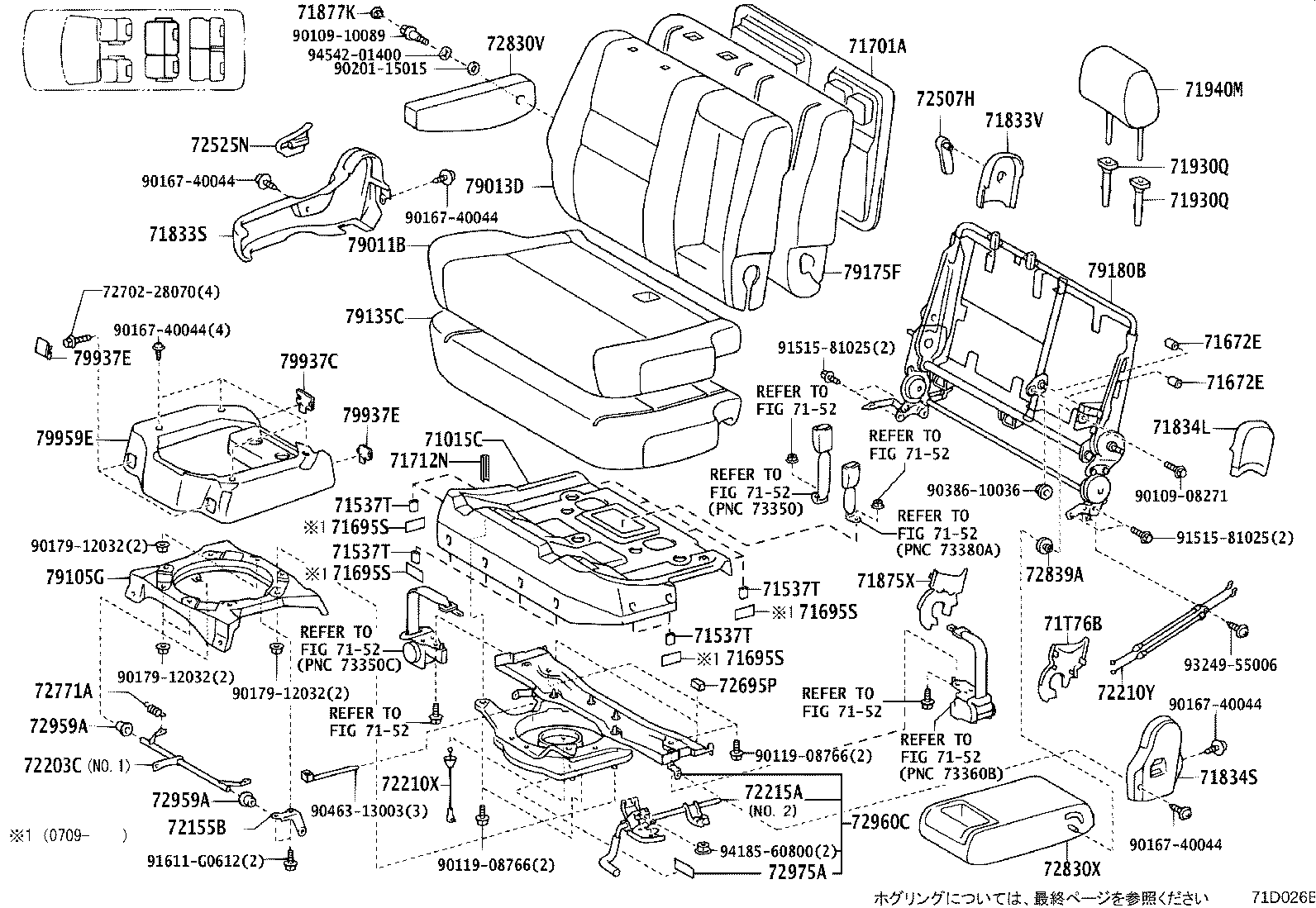

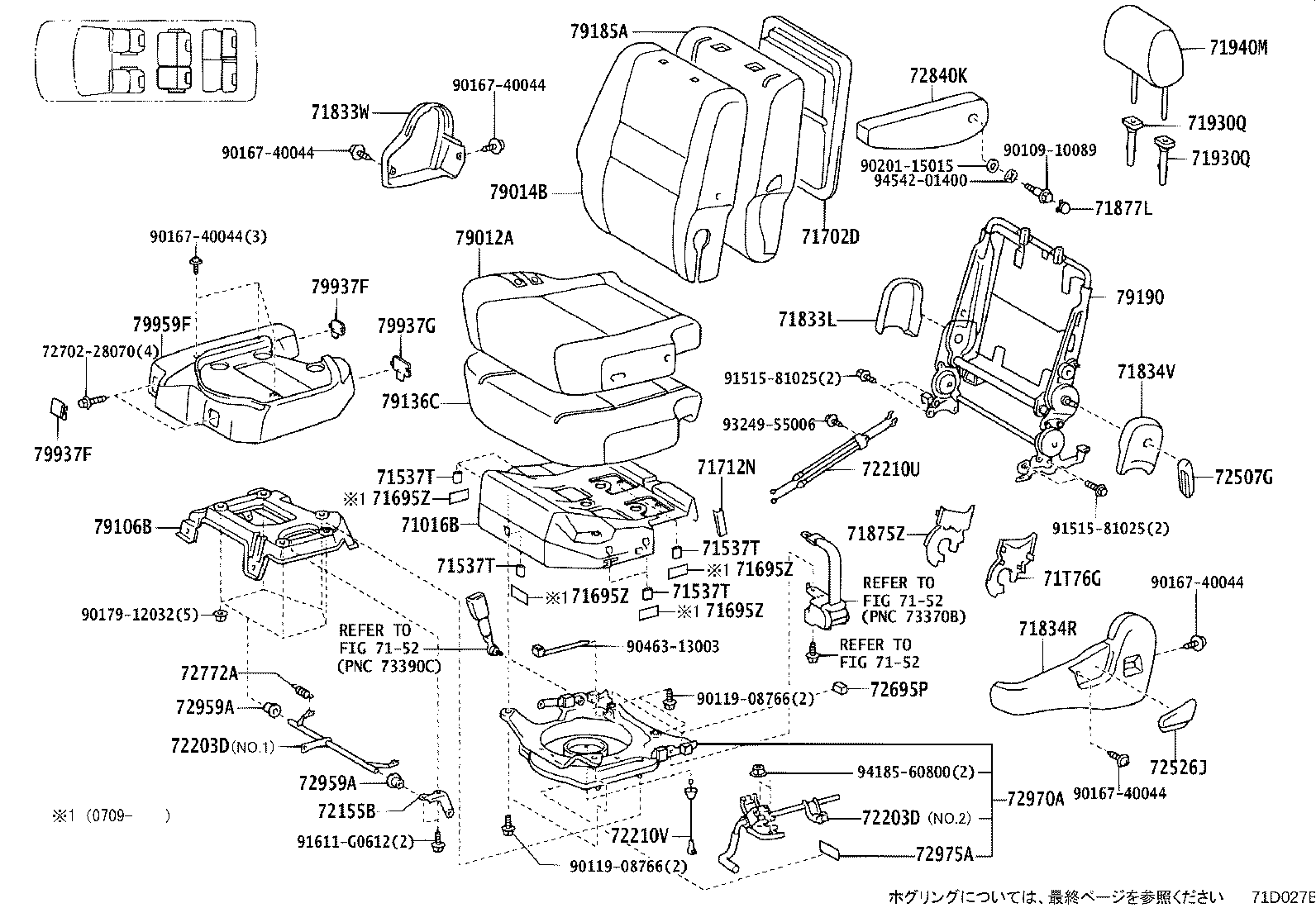

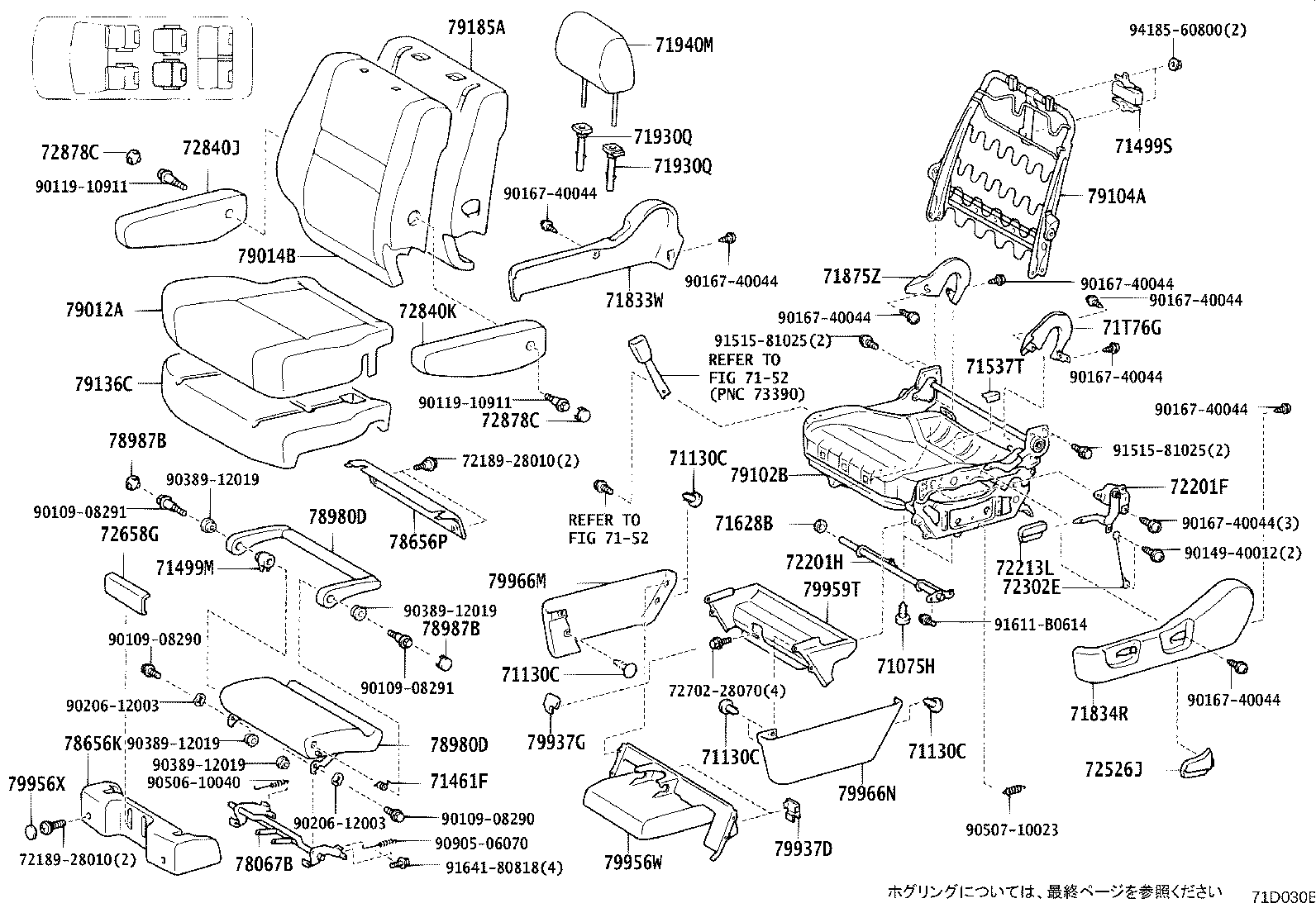

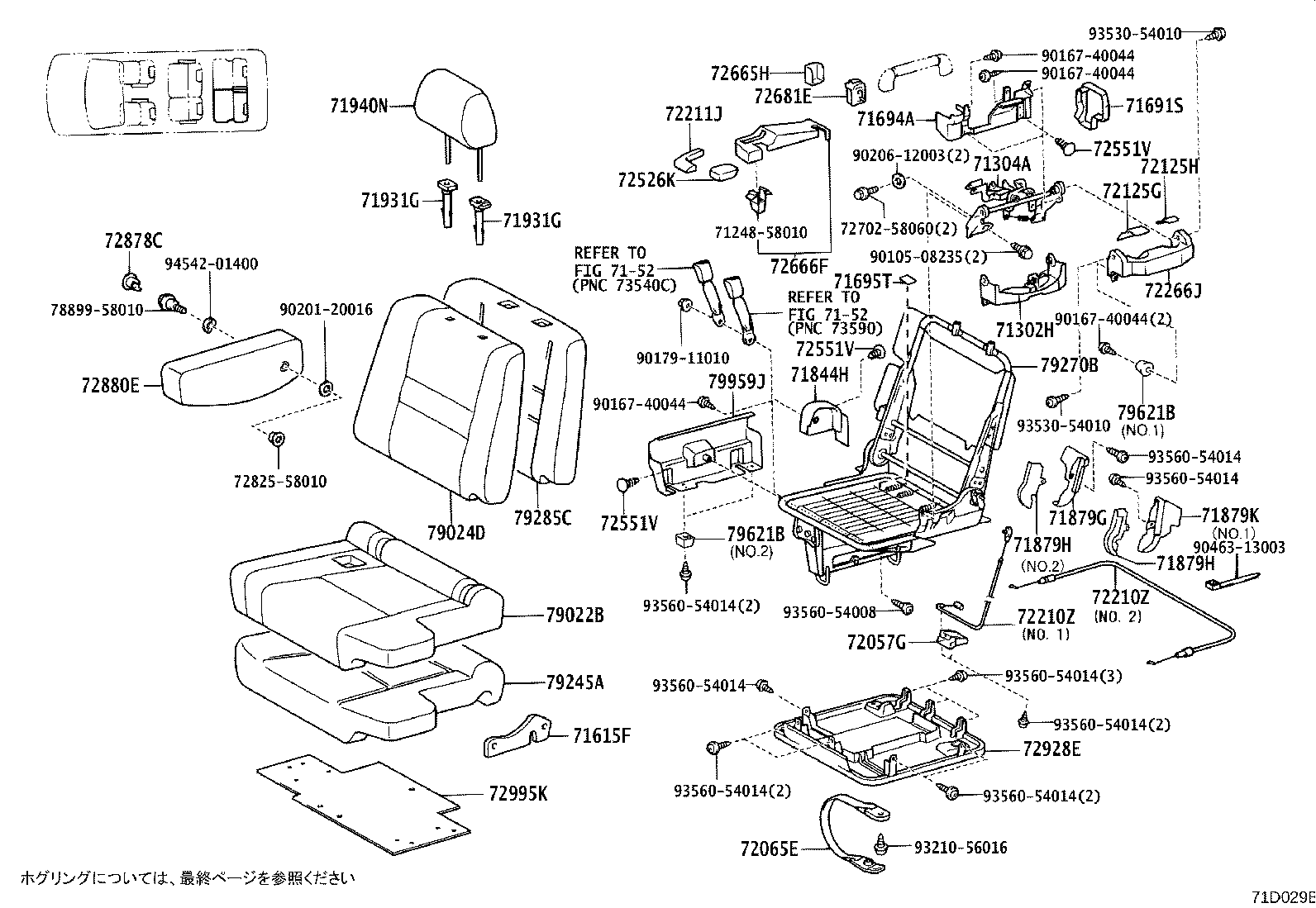

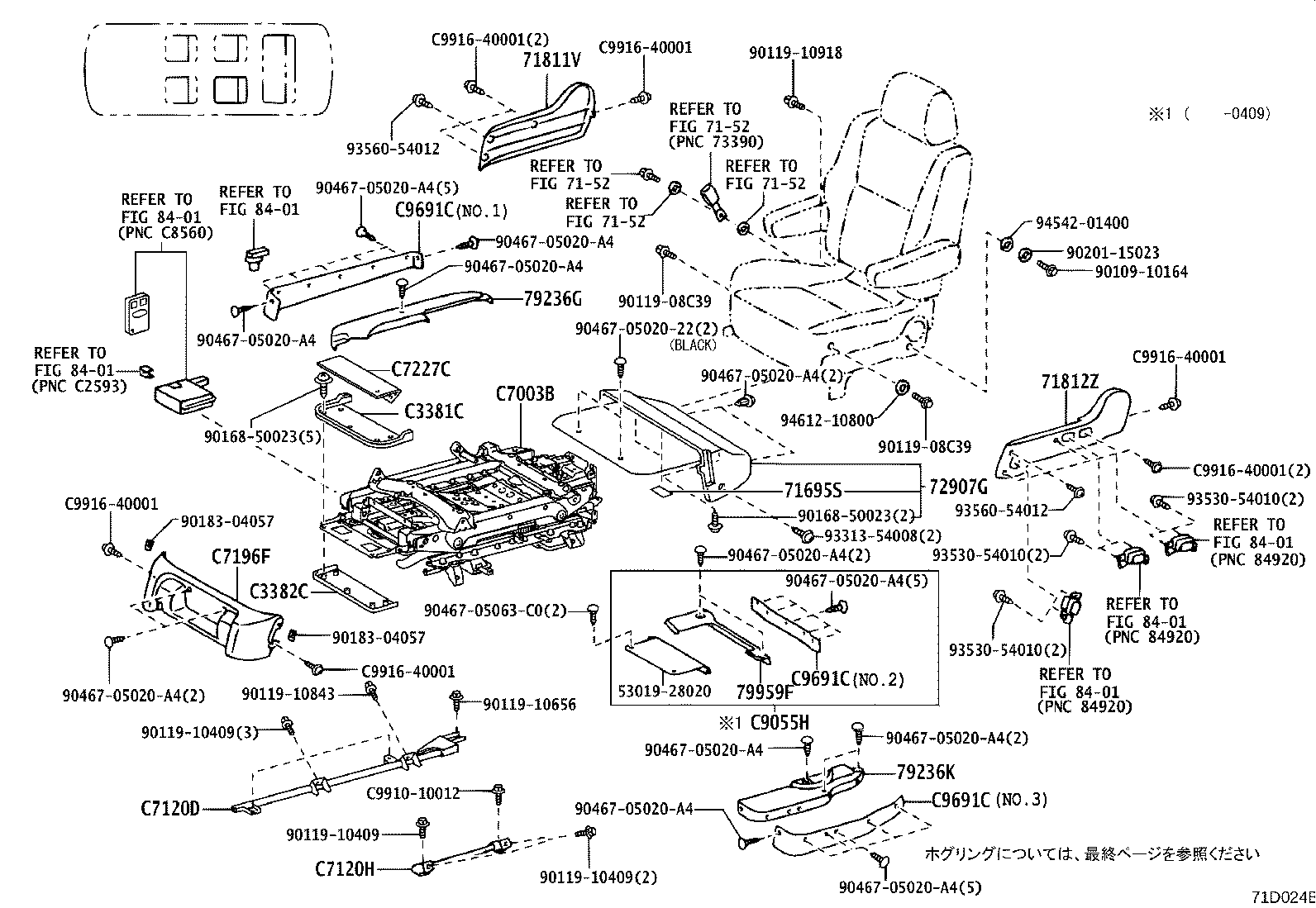

Figure 71D021B 71D021B 2003-07 → — Figure 71D030B 71D030B 2003-07 → — Figure 71D023B 71D023B 2003-07 → — Figure 71D024B 71D024B 2003-07 → — Figure 71D025B 71D025B 2003-07 → 2007-06 Figure 71D026B 71D026B 2003-07 → — Figure 71D027B 71D027B 2003-07 → — Figure 71D028B 71D028B 2003-07 → — Figure 71D029B 71D029B 2003-07 → — Figure 71D041A 71D041A 2003-07 → —

Part groups

PNCDescription
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71075H Clip(FOR REAR SEAT)
71130C Clip, Rear Seat Leg
71302H Stopper Sub-assy, Rear Seat Leg
71303E Hinge Sub-assy, Rear NO.2 Seat, RH
71304A Hinge Sub-assy, Rear NO.2 Seat, LH
71461D Spring, NO.1 Seat Cushion, NO.1(FOR RH SEAT)
71461F Spring, NO.1 Seat Cushion, NO.1(FOR LH SEAT)
71499L Damper, NO.1 Seatback Spring, RH
71499M Damper, NO.1 Seatback Spring, LH
71499S Damper, Seat Cushion Spring
71537T Protector, Rear Seat Cushion, NO.1
71537U Protector, Rear Seat Cushion, NO.2
71615F Pad, Rear Seat Cushion, E
71628B Spacer, Rear Seat Cushion, RH
71672E Silencer, Rear Seatback, RH
71691Q Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71691S Cover, Rear NO.2 Seat Lock, Upper NO.1 LH
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695Z Protector, Rear Seat, NO.1 LH
71701A Board Sub-assy, Rear Seatback, RH
71702D Board Sub-assy, Rear Seatback, LH
71712N Cover, Side Seat Cushion, Rear
71811V Cover, NO.1 Seat Reclining Adjuster, Inner(FOR LH SEAT)
71812Z Cover, Reclining Adjuster, LH
71833L Cover, Rear Seat Reclining, RH
71833S Cover, Rear Seat Reclining, NO.1 RH
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71833W Cover, NO.2 Seat Reclining, NO.2 RH
71834L Cover, Rear Seat Reclining, LH
71834R Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71834V Cover, Rear Seat Reclining, NO.3 LH
71843 Cover, Rear Seat Reclining, NO.2 RH
71844H Cover, Rear Seat Reclining, NO.2 LH
71875X Cover, Reclining Adjuster Inside, RH
71875Z Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEATBACK)
71877K Cover, Rear Seat Armrest Hole RH
71877L Cover, Rear Seat Armrest Hole LH
71878G Cover, NO.3 Seat Reclining, Inner RH
71878H Cover, Rear Seat Reclining, Inner RH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71879G Cover, NO.3 Seat Reclining, Inner LH
71879H Cover, Rear Seat Reclining, Inner LH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71930Q Support Assy, Rear Seat Headrest
71931G Support Assy, Rear Seat Headrest
71940M Headrest Assy, Rear Seat
71940N Headrest Assy, Rear Seat, NO.2
71T76B Cover, Reclining Adjuster Inside, LH
71T76G Cover, Reclining Adjuster Inside, LH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057G Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72125G Cover, Seat Track Lock Plate, NO.1
72125H Cover, Seat Track Lock Plate, NO.2
72155B Bracket, Seat Track Handle Support
72201E Handle Sub-assy, Seat Track RH
72201F Handle Sub-assy, Seat Track LH
72201G Handle Sub-assy, Seat Track, RH
72201H Handle Sub-assy, Seat Track, LH
72203C Handle Sub-assy, Rear Seat Track, RH
72203D Handle Sub-assy, Rear Seat Track, LH
72210Q Cable Assy, NO.1 Seat Slide, RH
72210U Cable Assy, NO.1 Seat Track Control, LH
72210V Cable Assy, NO.1 Seat Track Control, LH NO.1
72210X Cable Assy, NO.1 Seat Track Control, RH
72210Y Cable Assy, NO.1 Seat Track Control, RH NO.1
72210Z Cable Assy, NO.1 Seat Track Control, RH NO.2
72211H Handle, Seat Track Adjusting, RH
72211J Handle, Seat Track Adjusting, LH
72213K Knob, Seat Track Adjusting Handle, RH
72213L Knob, Seat Track Adjusting Handle, LH
72215A Lever, NO.1 Seat Track Handle Control, RH
72226A Bracket, Seat Track, NO.1
72265P Cover, Seat Track Upper Rail, RH
72266J Cover, Seat Track Upper Rail, LH
72302E Wire Sub-assy, Rear Seat Track Equalizing
72507G Handle Sub-assy, Reclining Release, LH
72507H Handle Sub-assy, Reclining Release, RH
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72551V Clip(FOR RECLINING HINGE)
72658G Knob, Rear Seat Lock Handle, RH
72665H Cover, Rear Seatback Lock
72665J Cover, Rear Seat Lock, RH
72666F Cover, Rear Seat Lock, LH
72681E Hook, Rear Seat
72695P Silencer, Rear Seatback Lock Control Rod
72771A Spring, Rear Seat Turn NO.1
72772A Spring, Rear Seat Turn NO.2
72830U Armrest Assy, Rear Seat, RH
72830V Armrest Assy, Rear NO.1 Seat, RH
72830X Armrest Assy, Rear Seat, Center
72839A Shim, Rear Seat Armrest Hinge
72840J Armrest Assy, Rear Seat, LH
72840K Armrest Assy, Rear NO.1 Seat, LH
72877E Cover, NO.1 Seat Armrest, RH
72877F Cover, Seat Armrest
72878C Cover, NO.1 Seat Armrest, LH
72880E Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890D Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72907G Cover Sub-assy, Rear Seat Turn
72927F Cover, Rear Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72959A Spacer, Rear Seat Turn Side
72960C Table Assy, NO.1 Seat Turn, RH
72970A Table Assy, NO.1 Seat Turn, LH
72973K Cover, Rear Seat Turn Table, RH
72973L Cover, Rear Seat Turn Table, NO.1
72975A Protector, Rear Seat Turn Plate
72995F Cover, Rear Seat Cushion, RH
72995K Cover, Rear NO.2 Seat Cushion
78067A Bracket Sub-assy, Rear Seat Legrest, Outer(FOR RH SEAT)
78067B Bracket Sub-assy, Rear Seat Legrest, Outer(FOR LH SEAT)
78630A Adjuster Assy, FR0NT Seat Side Table
78631B Table, Rear Seat Side
78632D Cover, Rear Seat Side Table, NO.1
78639B Clip, Rear Seat Side Table
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78656N Cover, Rear Seat Legrest, RH NO.2
78656P Cover, Rear Seat Legrest, LH NO.2
78980D Footrest Assy, Rear Seat, NO.1
78980E Footrest Assy, Rear Seat, NO.2
78987B Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C Cover, Rear NO.1 Seat Footrest, NO.1 RH
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79105G Leg Sub-assy, NO.1 Seat, RH
79106B Leg Sub-assy, NO.1 Seat, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79180B Spring Assy, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79190 Spring Assy, NO.1 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79236G Cover, NO.2 Seat Leg, RH
79236K Cover, NO.1 Seat Leg, NO.1
79245A Pad, NO.2 Seat Cushion, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79621B Stopper, NO.2 Seat Cushion
79937C Cover, NO.1 Seat Leg, NO.1(FOR RH SEAT)
79937D Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79937E Cover, NO.1 Seat Leg, NO.2(FOR RH SEAT)
79937F Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT)
79937G Cover, Rear Seat Leg, NO.2
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79956X Cap(FOR REAR SEAT LEG SIDE COVER)
79959E Cover, NO.1 Seat Leg, RH
79959F Cover, NO.1 Seat Leg, LH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79959S Cover, Rear Seat Leg, RH
79959T Cover, Rear Seat Leg, LH
79966K Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966L Cover, Rear Seat Leg, LH(FOR RH SEAT)
79966M Cover, Rear Seat Leg, RH(FOR LH SEAT)
79966N Cover, Rear Seat Leg, LH(FOR LH SEAT)
85H20 Motor Assy, Power Seat
C3381C Cover, Slide Step, NO.1
C3382C Cover, Slide Step, NO.2
C7003B Lift Unit, Rear Seat
C7120D Leg Assy, Welcab Seat
C7120H Leg Assy, Welcab Seat, NO.2
C7196F Cover, Turn Table, NO.1
C7227C Carpet, Welcab Seat Footrest Step
C7408D Rod Sub-assy, Welcab Seat, NO.1
C7485K Bracket, Welcab Seat Rod Support, NO.1
C7485L Bracket, Welcab Seat Rod Support, NO.2
C7488C Plate, Welcab Seat Rod Support, NO.2
C9055H Cover Sub-assy, Power Lift, NO.1
C9654Y Collar, Power Lift Cylinder, NO.8
C9658C Plate, Power Lift Cylinder Rod
C9691C Cover, Power Lift Motor
