Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

18 part groups · 2 illustrations

Illustrations

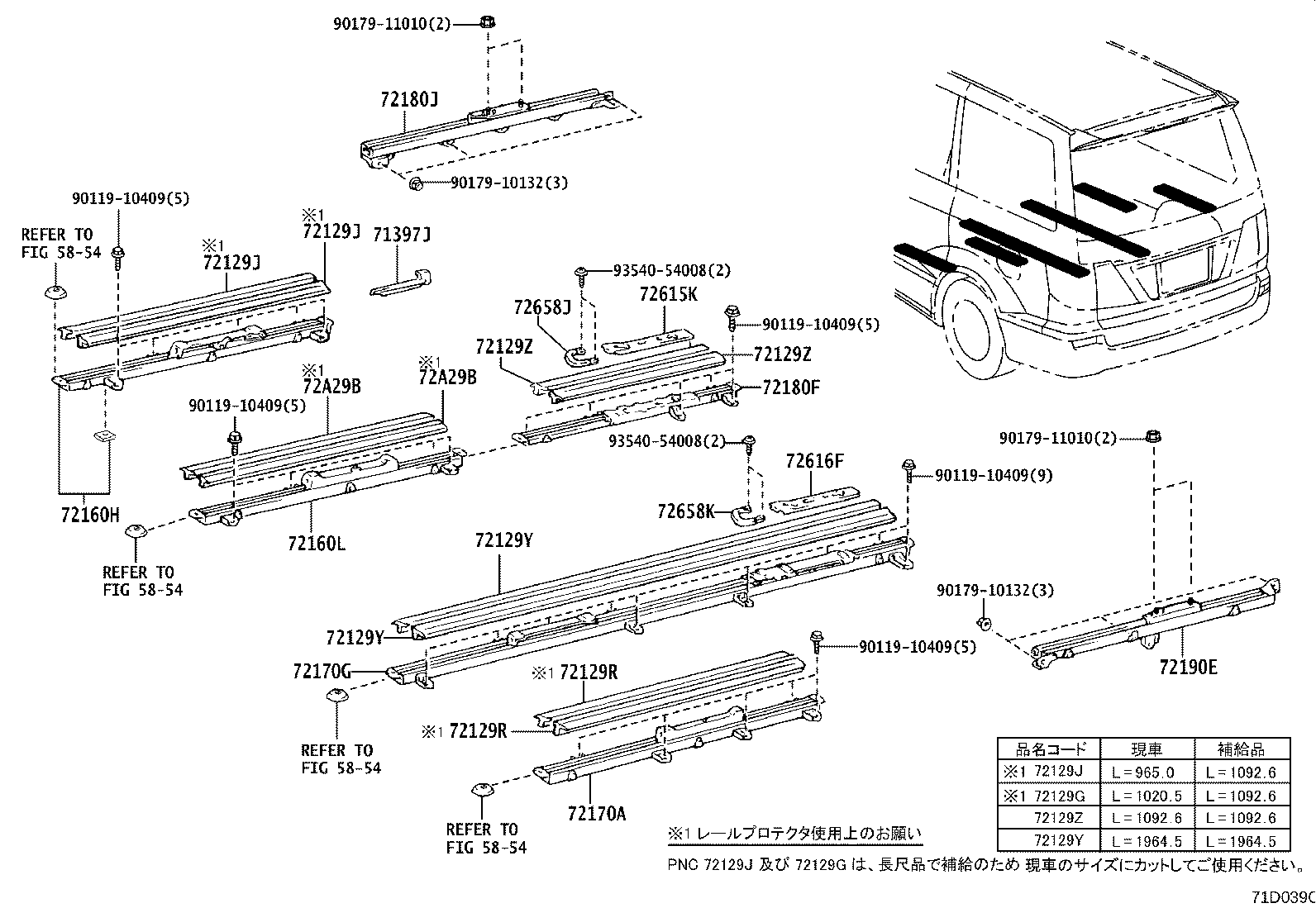

Figure 71D038C 71D038C 2003-07 → — Figure 71D039C 71D039C 2003-07 → —

Part groups

PNCDescription
71397J Stopper, Rear Seat
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129Y Protector, Seat Track Lower Rail, NO.3
72129Z Protector, Seat Track Lower Rail
72160H Track Assy, Rear Seat, Outer RH
72160L Track Assy, Rear NO.1 Seat, RH
72170A Track Assy, Rear Seat, Outer LH
72170G Track Assy, Rear NO.1 Seat, LH
72180F Track Assy, Rear Seat, Inner RH
72180J Track Assy, Rear NO.2 Seat, RH
72190E Track Assy, Rear Seat, Inner LH
72190G Track Assy, Rear NO.2 Seat, LH
72615K Cover, Rear Seat Lock Striker, RH
72616F Cover, Rear Seatback Lock Striker, LH
72658J Knob, Rear Seat Lock Handle, RH
72658K Knob, Rear Seat Lock Handle, LH
72A29B Protector, Seat Track Lower Rail, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
