Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

28 part groups · 2 illustrations

Illustrations

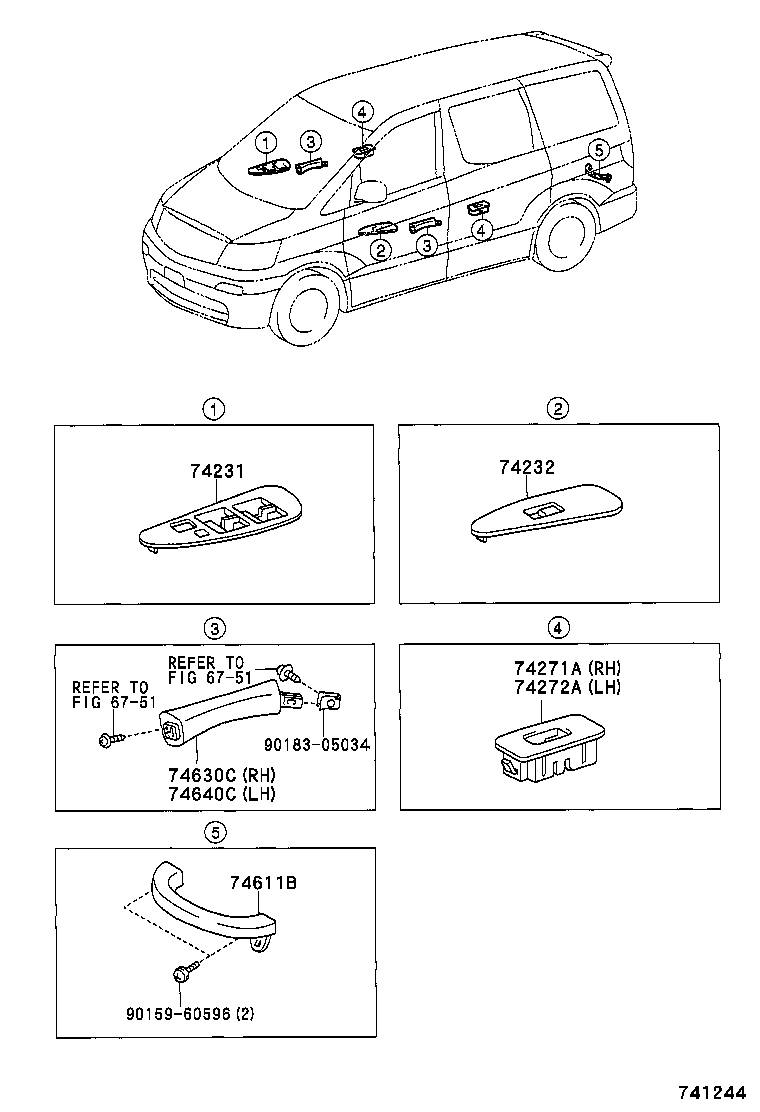

Figure 741243D 741243D 2003-07 → — Figure 741244 741244 2003-07 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74603C Grip Sub-assy, Assist
74610A Grip Sub-assy, Assist
74611B Grip, Assist
74611F Grip, Assist, NO.1
74611K Cover, Assist Grip, RH Front Side
74611L Cover, Assist Grip, RH Rear Side
74612G Cover, Assist Grip, LH Front Side
74612H Cover, Assist Grip, LH Rear Side
74617G Plug, Assist Grip, NO.3 RH
74617H Plug, Assist Grip, NO.4 RH
74617K Plug, Assist Grip, NO.6 RH
74617L Plug, Assist Grip, NO.7 RH
74617P Plug, Assist Grip, NO.3 LH
74617Q Plug, Assist Grip, NO.4 LH
74617S Plug, Assist Grip, NO.6 LH
74617T Plug, Assist Grip, NO.7 LH
74620B Grip Assy, Assist, Rear
74630C Grip Assy, Door Assist, RH
74640C Grip Assy, Door Assist, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
