Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

28 part groups · 3 illustrations

Illustrations

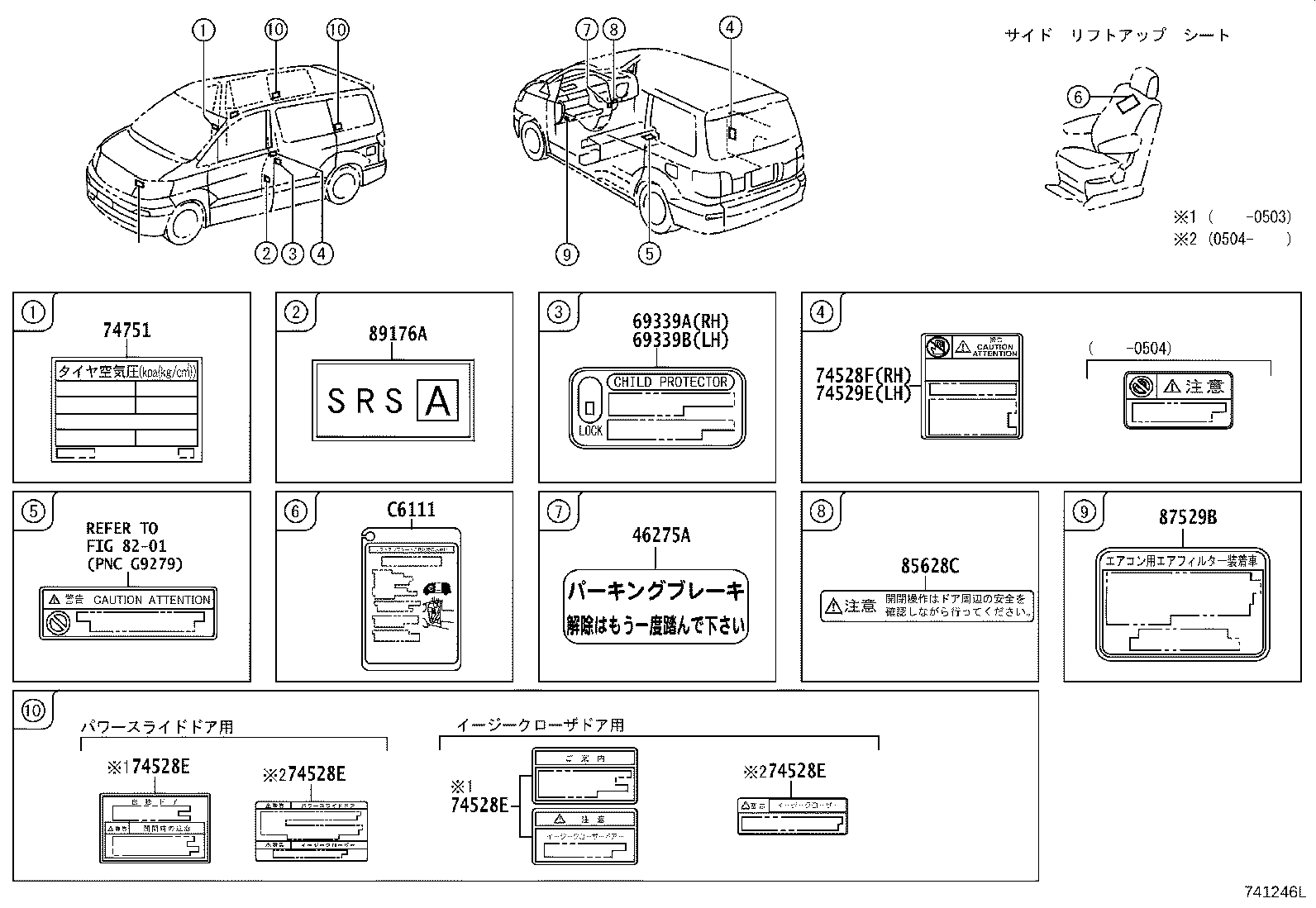

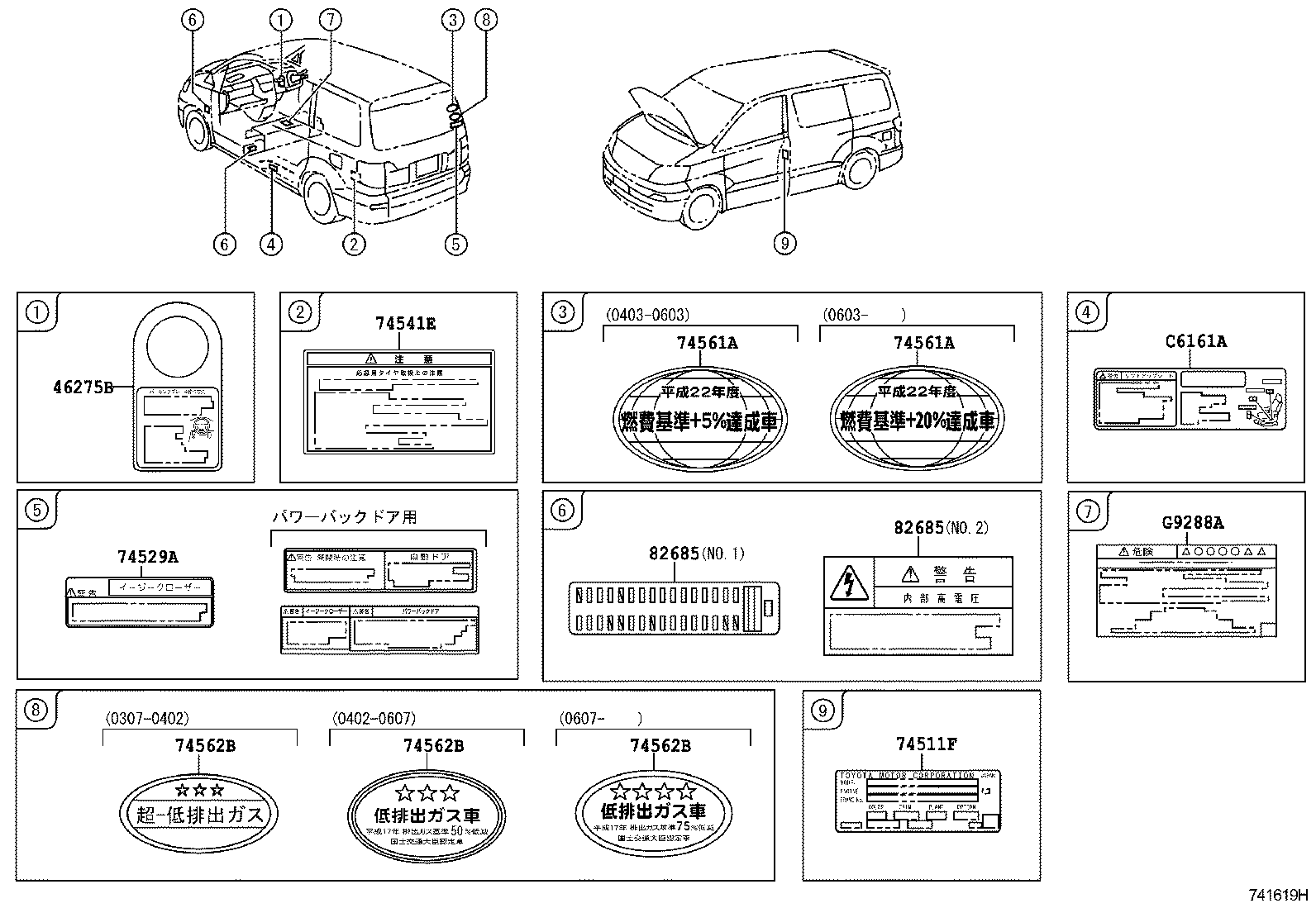

Figure 746075 746075 2003-07 → — Figure 741246L 741246L 2003-07 → — Figure 741619H 741619H 2003-07 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
11293D Label, Engine Caution
11296C Label, Engine Service Information
16448A Plate, Radiator Caution
17791A Label, Maintenance Information
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339A Plate, Child Protector Lock Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528E Label, Power Slide Door Notice
74528F Label, Door Closer Caution, RH
74529A Plate, Back Door Caution
74529E Label, Door Closer Caution, LH
74532A Plate, Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
82685 Plate, Caution
85628C Label, Automatic Door
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
C6111 Plate, Safety Caution
C6161A Label, Power Lift Caution
G9285E Label, HV Battery Caution, NO.1
G9288A Label, Battery Carging Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
