Toyota Alphard HV
2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan
Supported model
Data version 2008-10

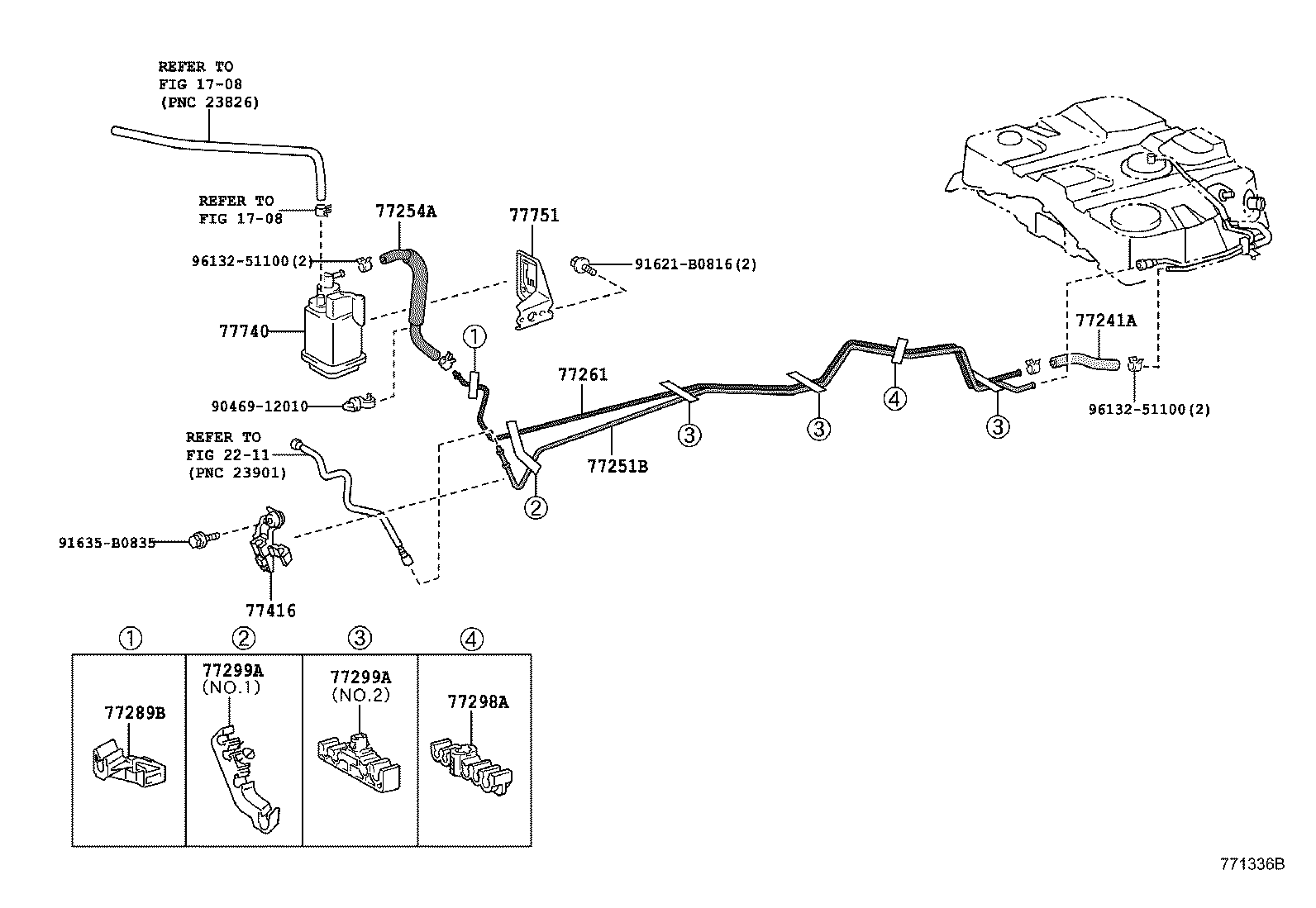

Fuel Tank & Tube
60 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23020 | Regulator Assy, Fuel Pressure W/Jet Pump |
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23300J | Filter Assy, Fuel |
| 64169B | Protector, Fuel Inlet |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77165A | Bracket, Fuel Tank Mounting, Rear NO.2 RH |
| 77166A | Bracket, Fuel Tank Mounting, Rear NO.2 LH |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77222B | Tube, Fuel Tank Breather, NO.2 |
| 77229D | Support, Fuel Tank Filler Pipe, NO.4 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77269A | Hose, Fuel Tank Breather |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77416 | Support, Fuel Tube Grommet, NO.6 |
| 77419 | Hose, Fuel, NO.3 |
| 77452 | Support, Fuel Inlet Hose Protector, NO.1 |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
