Toyota Alphard HV
2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan
Supported model
Data version 2008-10
Interior Lamp
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81206G | Lamp Sub-assy, Console Box |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250D | Lamp Assy, Rear Room, RH |
| 81250E | Lamp Assy, Rear Room, RH NO.2 |
| 81250F | Bulb, Rear Room Lamp RH NO.2 |
| 81250G | Bulb, Rear Room Lamp, RH |
| 81251B | Lens, Rear Room Lamp, RH |
| 81251C | Lens, Rear Room Lamp, RH NO.2 |
| 81260 | Lamp Assy, Glove Box |

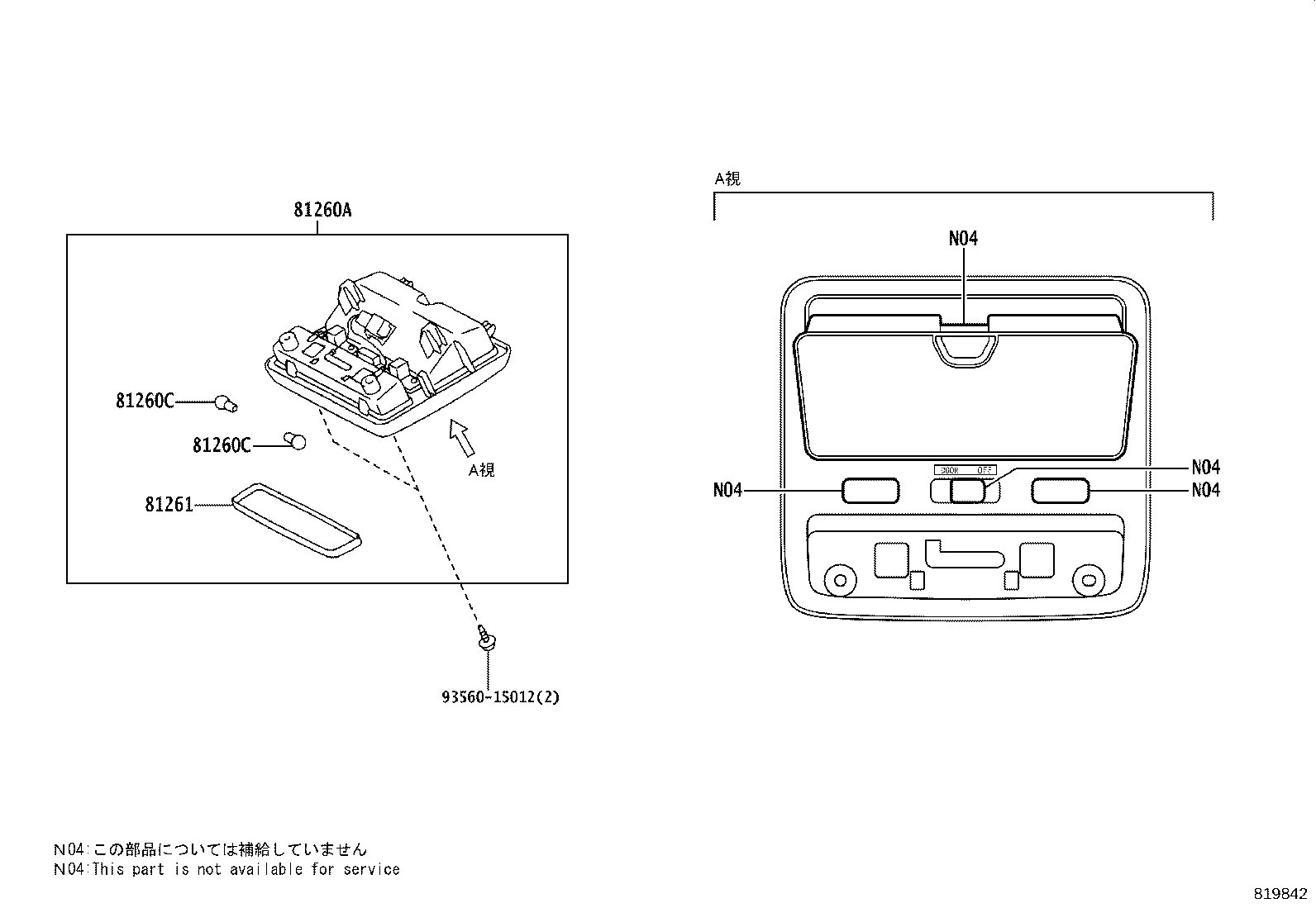

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290D | Lamp Assy, Rear Room, LH |
| 81290E | Lamp Assy, Rear Room, LH NO.2 |
| 81290F | Bulb, Rear Room Lamp LH NO.2 |
| 81290G | Bulb, Rear Room Lamp, LH |
| 81291A | Lens, Rear Room Lamp, LH |
| 81291B | Lens, Rear Room Lamp, LH NO.2 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81490 | Lamp Assy, Foot |
| 81490B | Bulb (FOR FOOT LAMP) |
| 81491 | Lens, Foot Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
