Toyota Alphard HV
2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan
Supported model
Data version 2008-10
Battery & Battery Cable

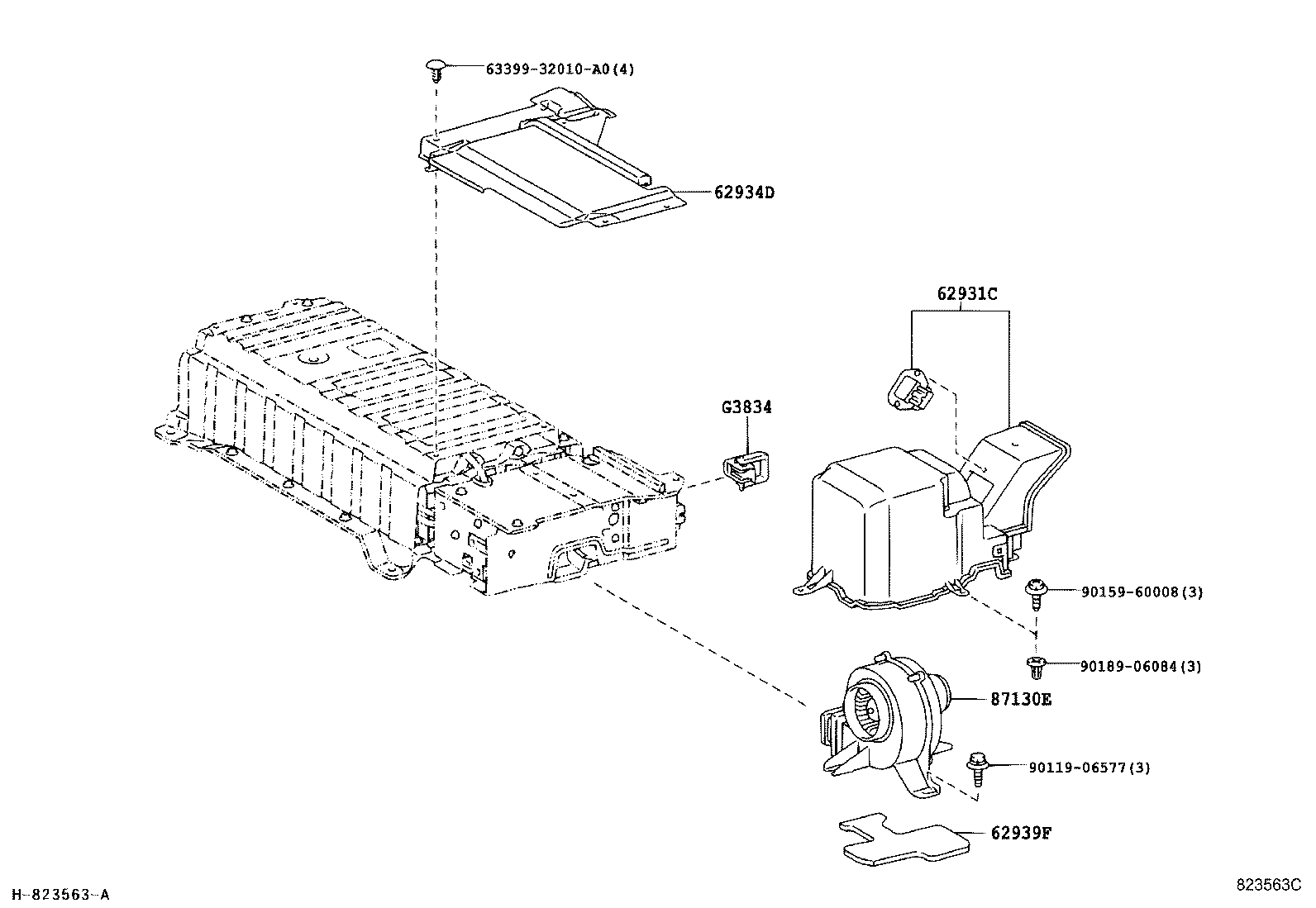

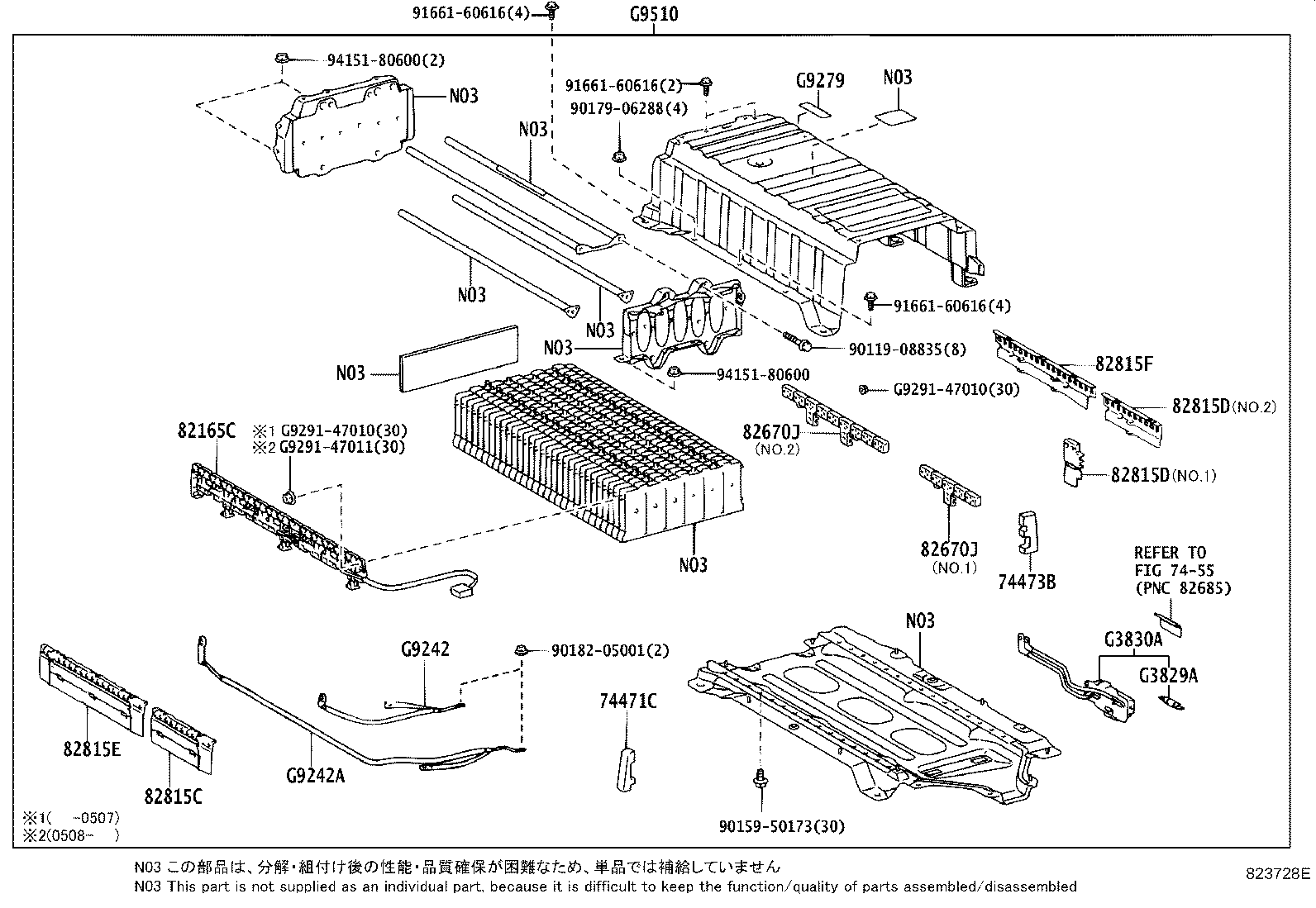

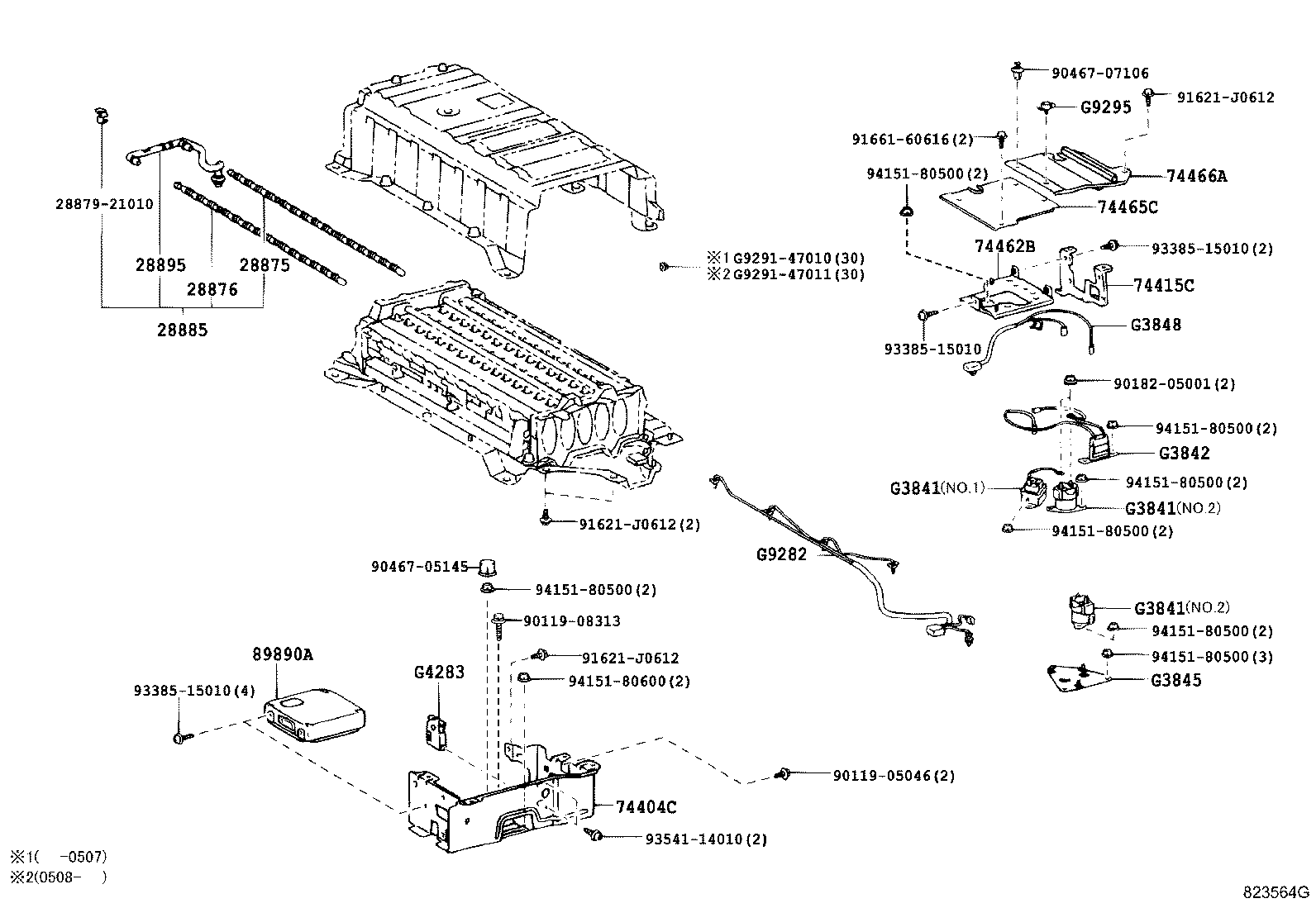

38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28875 | Duct, Battery Insulator, NO.1 |
| 28876 | Duct, Battery Insulator, NO.2 |
| 28885 | Hose, Battery Room Ventilation |
| 28885A | Hose, Battery Room Ventilation |
| 28895 | Rubber, Battery Insulator |
| 62931C | Duct, Quarter Vent |
| 62934D | Duct, Quarter Vent, Inner NO.2 |
| 62939F | Silencer, Quarter Vent |
| 74404C | Carrier Sub-assy, Battery, Upr |
| 74415C | Bracket, Battery Ecu |
| 74462B | Panel, Battery Carrier, NO.2 |
| 74465C | Panel, Battery Carrier, NO.5 |
| 74466A | Panel, Battery Carrier, NO.6 |
| 74471C | Pad, Battery Clamp |
| 74473B | Cushion, Battery Carrier, NO.3 |
| 82165C | Wire, Frame, NO.2 |
| 82670J | Block Assy, Junction |
| 82815C | Cover, Wiring Harness Protector, NO.1 |
| 82815D | Cover, Wiring Harness Protector, NO.2 |
| 82815E | Cover, Wiring Harness Protector, NO.3 |
| 82815F | Cover, Wiring Harness Protector, NO.4 |
| 87130E | Blower Assy, Battery |
| 89890A | Computer Assy, Battery |
| G3829A | Fuse, Electric Vehicle |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G3841 | Relay, System Vehicle |
| G3842 | Resistor, System Main |
| G3845 | Bracket, System Main Relay |
| G3848 | Wire, System Main Relay |
| G4283 | Sensor, Battery Current |
| G9242 | Cable, Main Battery |
| G9242A | Cable, Main Battery, NO.2 |
| G9279 | Label, Battery Caution, NO.4 |
| G9282 | Thermistor, Hybrid Battery |
| G9295 | Bracket, EV Battery Water Tank |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
