Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

14 part groups · 3 illustrations

Illustrations

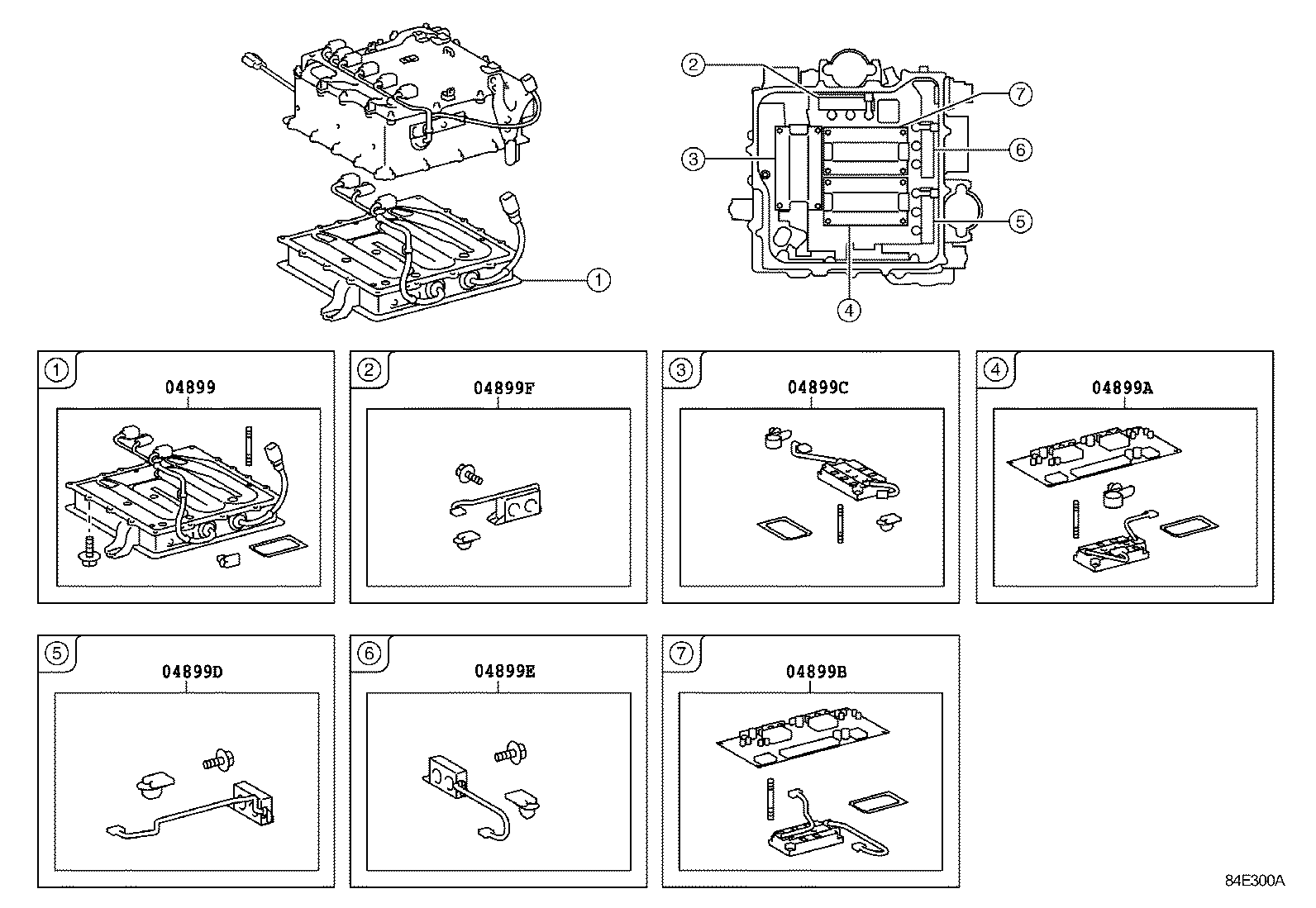

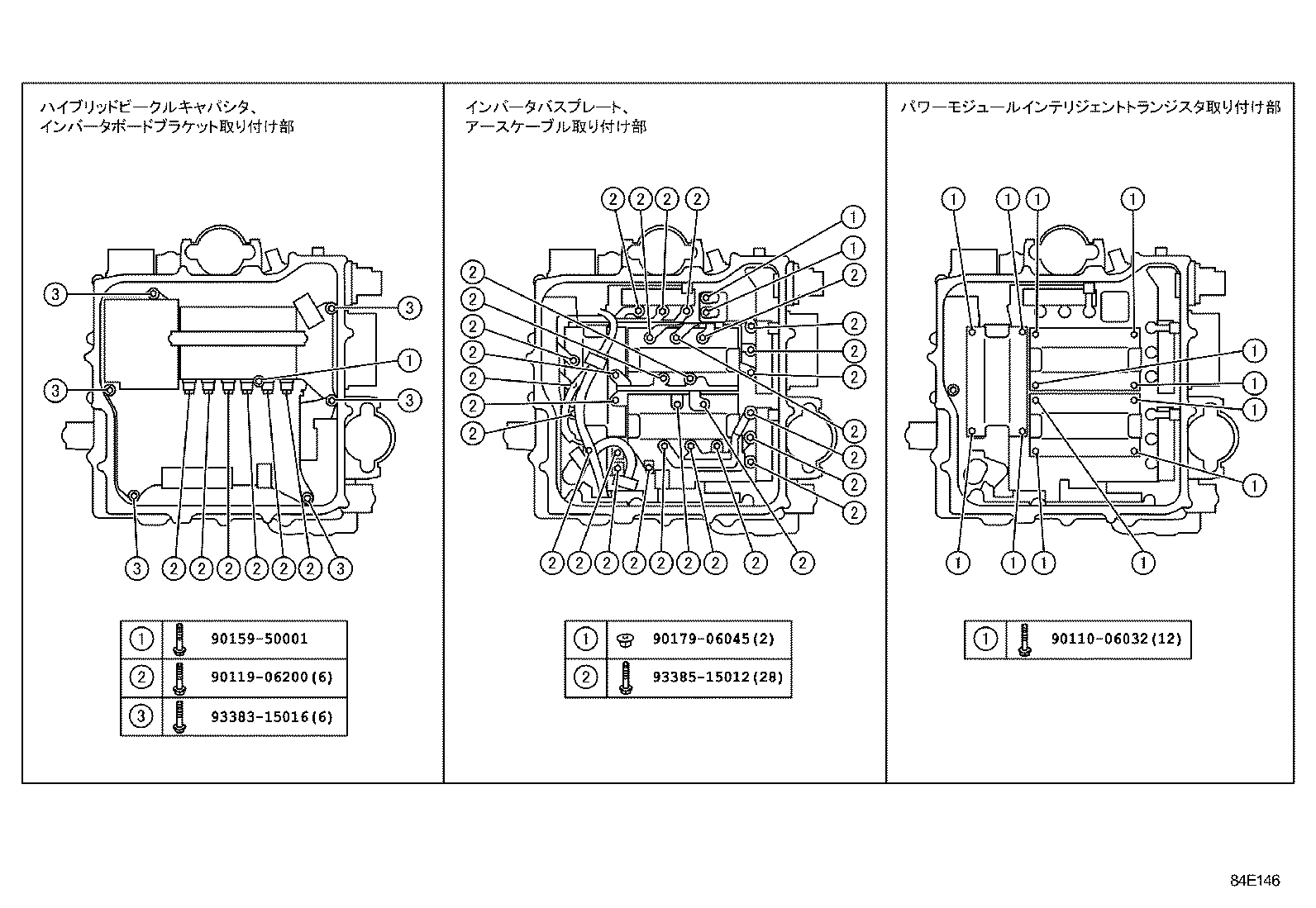

Figure 845746G 845746G 2003-07 → — Figure 84E300A 84E300A 2003-07 → — Figure 84E146 84E146 2003-07 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899A Transistor Kit, Power Module Intelligent(FRONT IPM)
04899B Transistor Kit, Power Module Intelligent(REAR IPM)
04899C Transistor Kit, Power Module Intelligent(STARTER IPM)
04899D Sensor Kit, Inverter Current(FRONT IPM)
04899E Sensor Kit, Inverter Current(REAR IPM)
04899F Sensor Kit, Inverter Current(STARTER IPM)
G4845 Sensor, Circuit Breaker, NO.1
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9215 Bracket, Inverter, NO.2
G9221 Cover, Inverter
G9231 Gasket, Inverter Cover
G9251 Seat, Inverter Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
