Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 3 illustrations

Illustrations

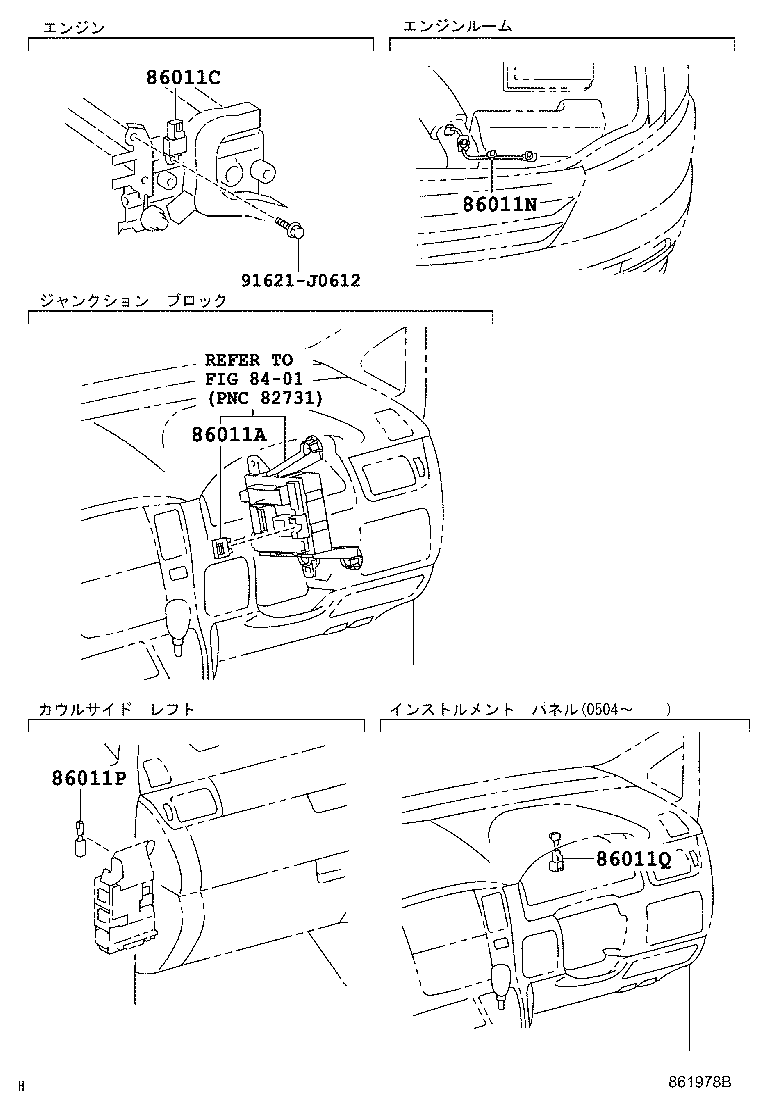

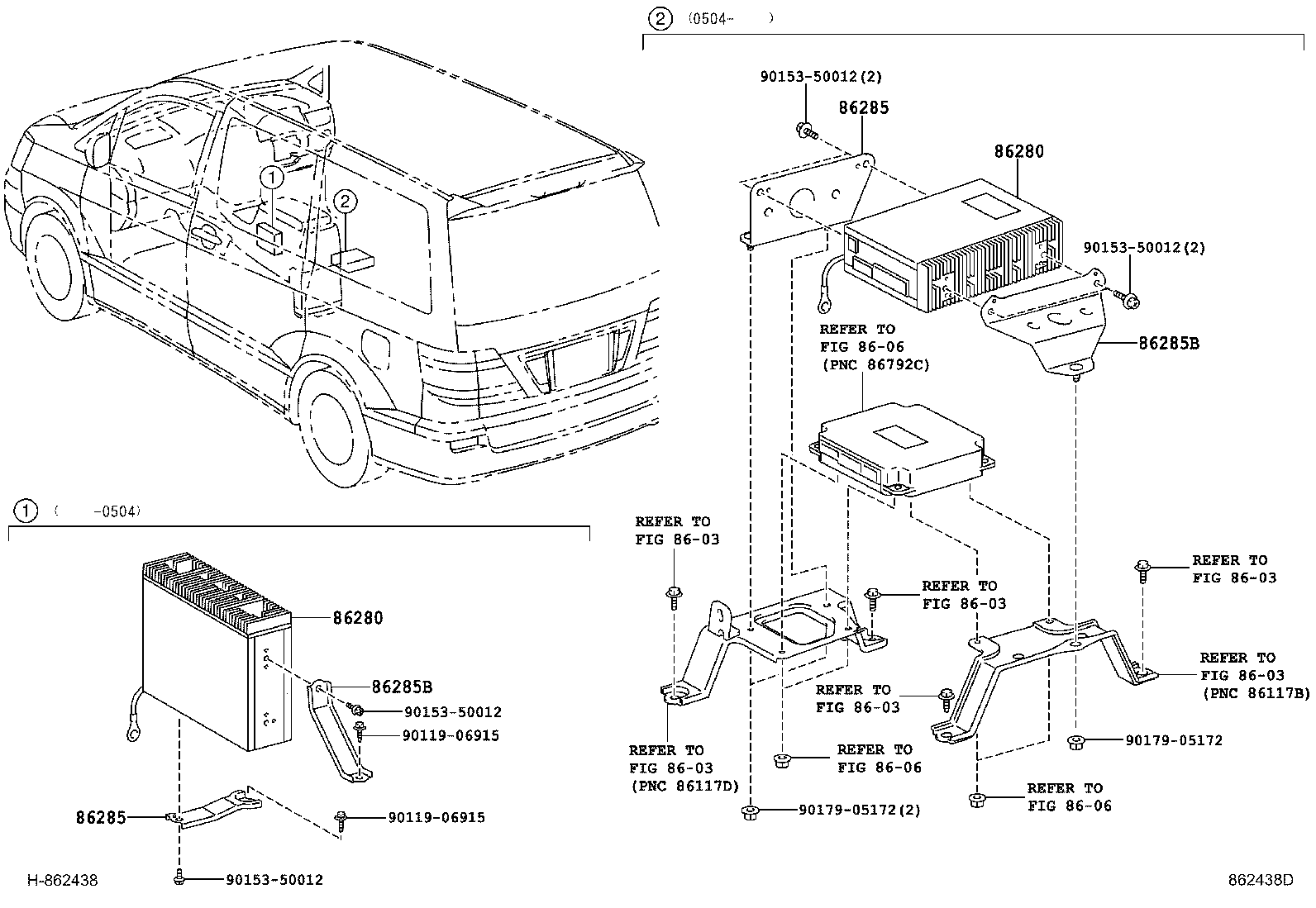

Figure 861977D 861977D 2003-07 → — Figure 862438D 862438D 2003-07 → — Figure 861978B 861978B 2003-07 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011N Filter, Noise
86011P Filter, Noise
86011Q Condenser, Radio Setting
86251 Wiring, Amplifier Microphone
86272 Controller, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
