Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

19 part groups · 4 illustrations

Illustrations

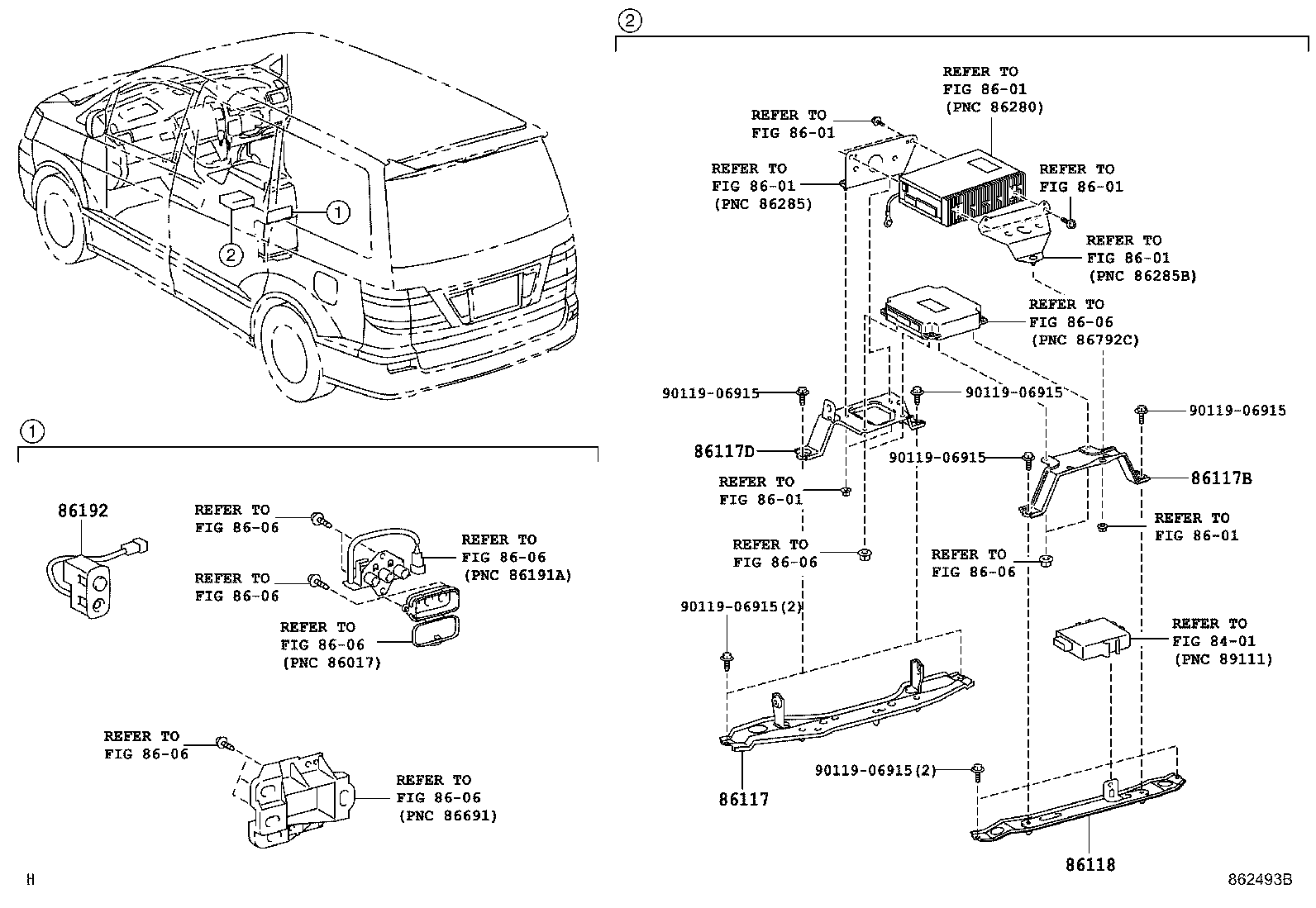

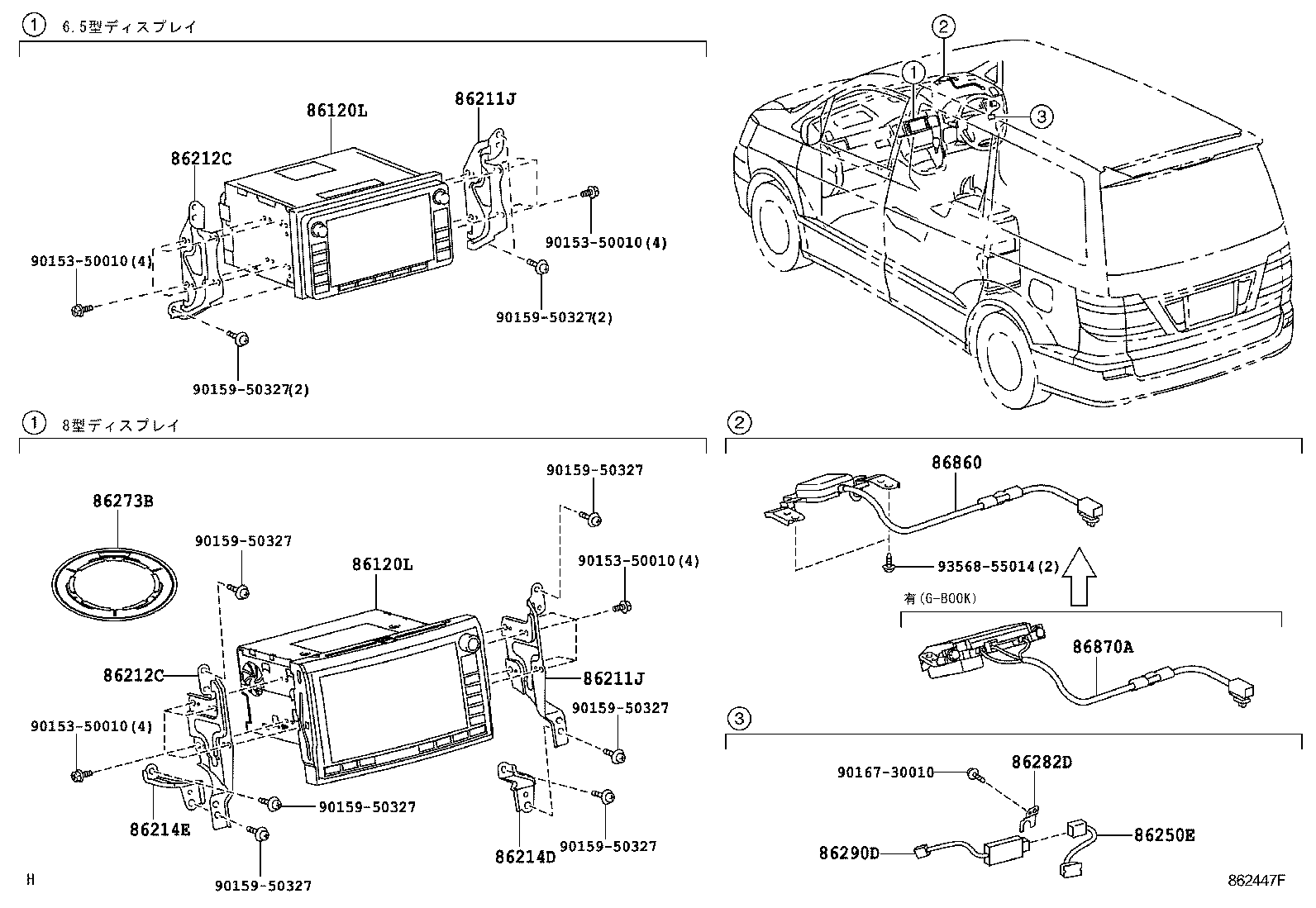

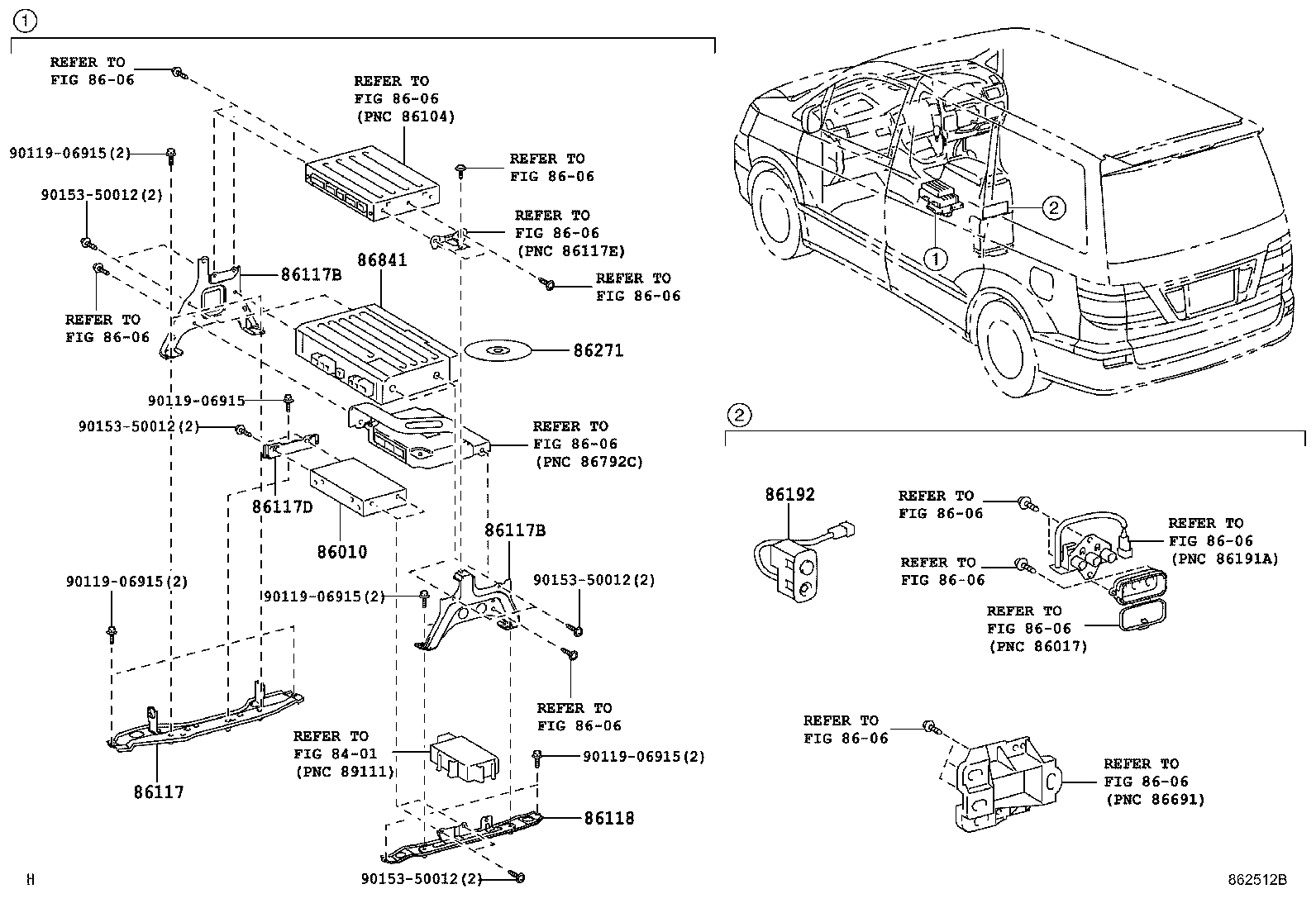

Figure 861979D 861979D 2003-07 → 2005-04 Figure 862512B 862512B 2003-07 → 2005-04 Figure 862447F 862447F 2005-04 → — Figure 862493B 862493B 2005-04 → —

Part groups

PNCDescription
86010 Tuner Assy, Television
86117 Bracket, Multi-display Controller, A
86117B Bracket, Television Display, B
86117D Bracket, Multi-display Computer
86118 Bracket, Multi-display Controler, B
86120L Receiver Assy, Navigation
86192 Terminal, Headphone
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86214D Bracket, Radio Earth, NO.1
86214E Bracket, Radio Earth, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86273B Adapter, Disc Player
86282D Bracket, Microphone
86290D Amplifier Assy, Microphone
86841 Computer, Navigation
86860 Antenna Assy, Navigation
86870A Antenna Assy, Gps & Vics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
