Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 2 illustrations

Illustrations

Figure 861982E

861982E 2003-07 → 2005-04

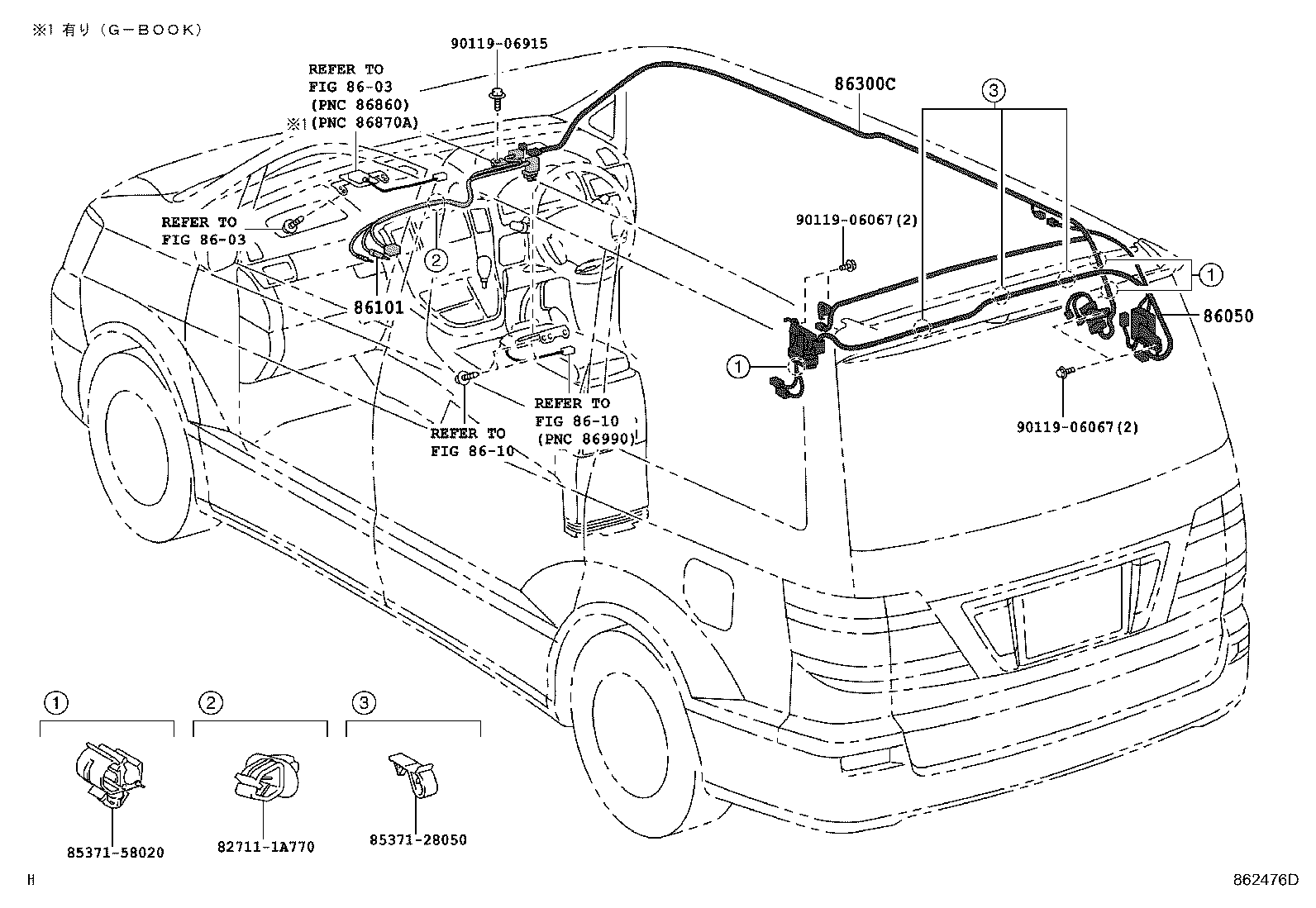

Figure 862476D

862476D 2005-04 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86300C	Antenna Assy, Amplifier, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
