Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

13 part groups · 3 illustrations

Illustrations

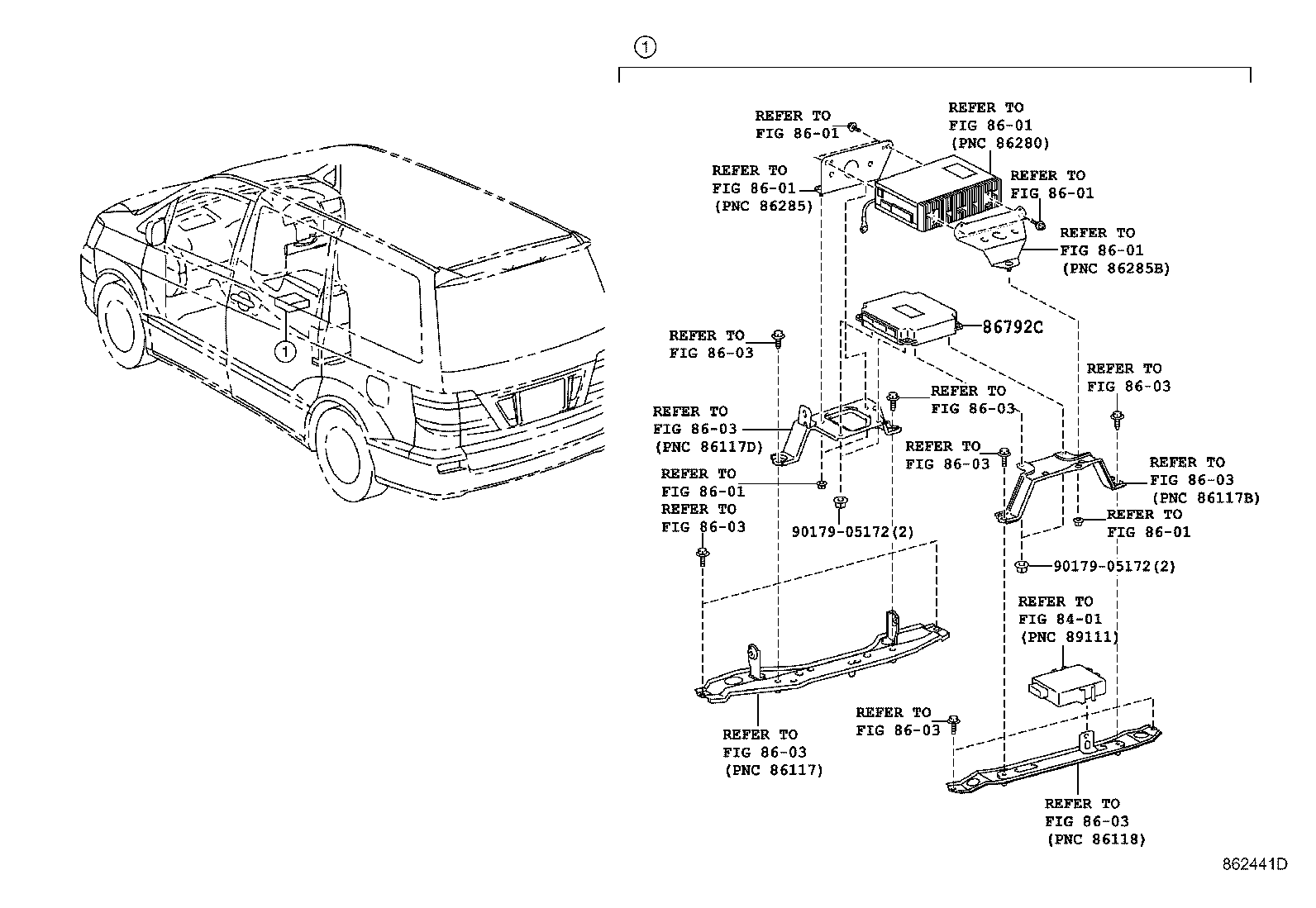

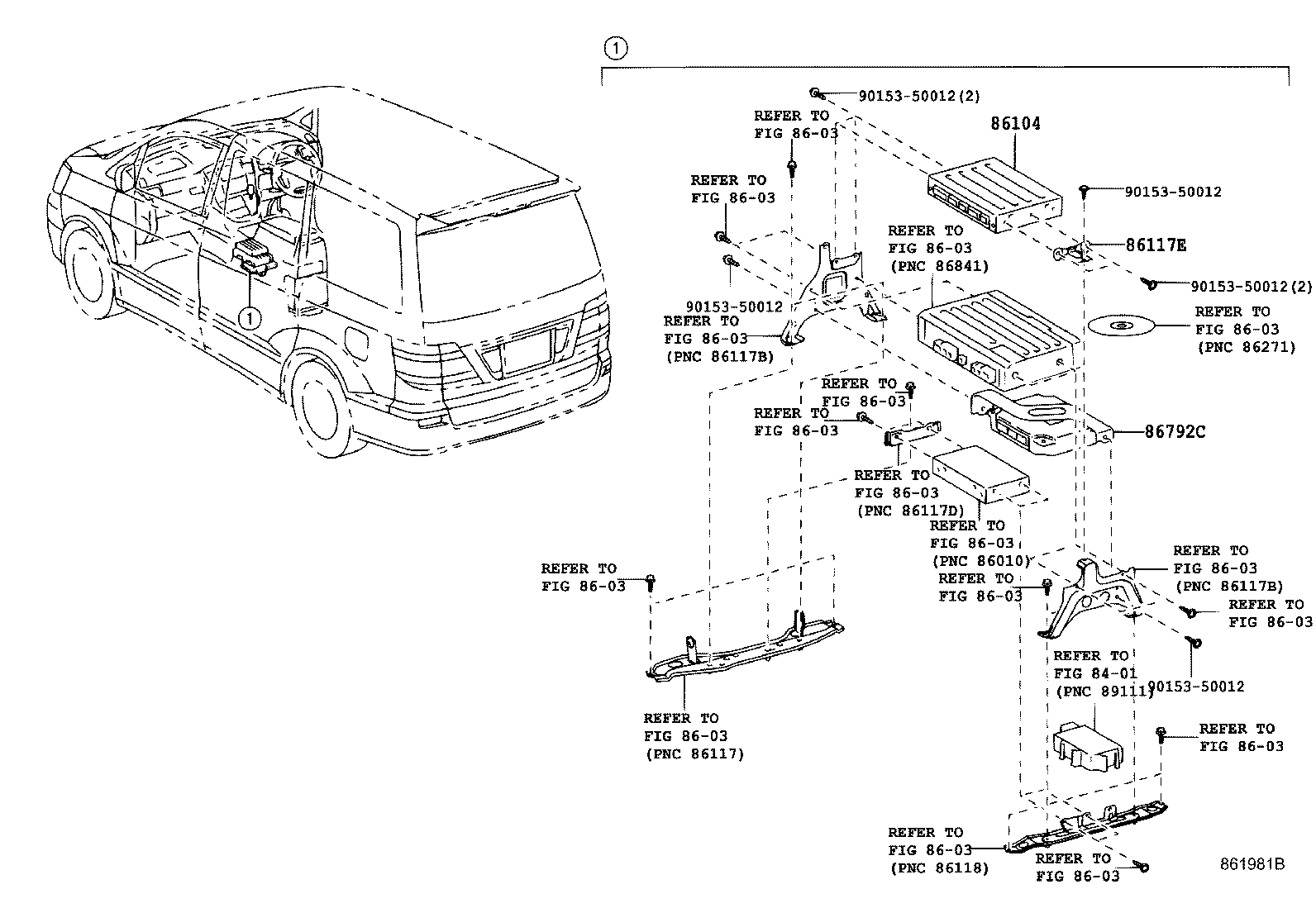

Figure 861980C 861980C 2003-07 → — Figure 861981B 861981B 2003-07 → 2005-04 Figure 862441D 862441D 2005-04 → —

Part groups

PNCDescription
86017 Parts Set, Video
86104 Controller Sub-assy, Multi-display
86117A Bracket, Television Display, A
86117C Bracket, Multi-display Controller, NO.2
86117E Bracket, Multi-display Controller, NO.3
86170B Switch & Volume Assy, Television
86174B Case, Switch & Volume
86191A Terminal, Video(VIDEO ADAPTER)
86295 Base, Television
86680A Display Assy, Television
86691 Holder, Video
86790 Camera Assy, Television
86792C Computer, Parking Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
