Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

31 part groups · 3 illustrations

Illustrations

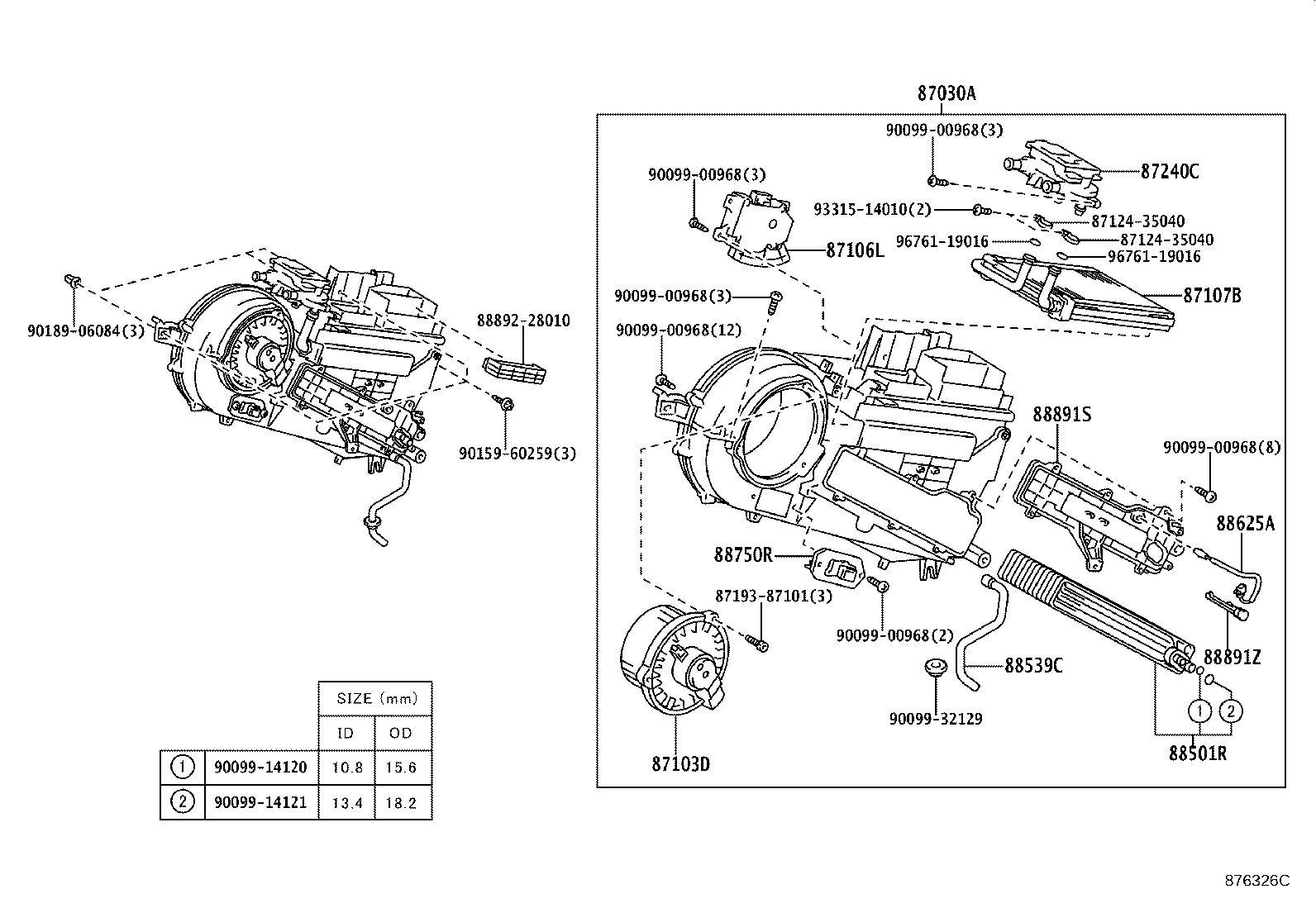

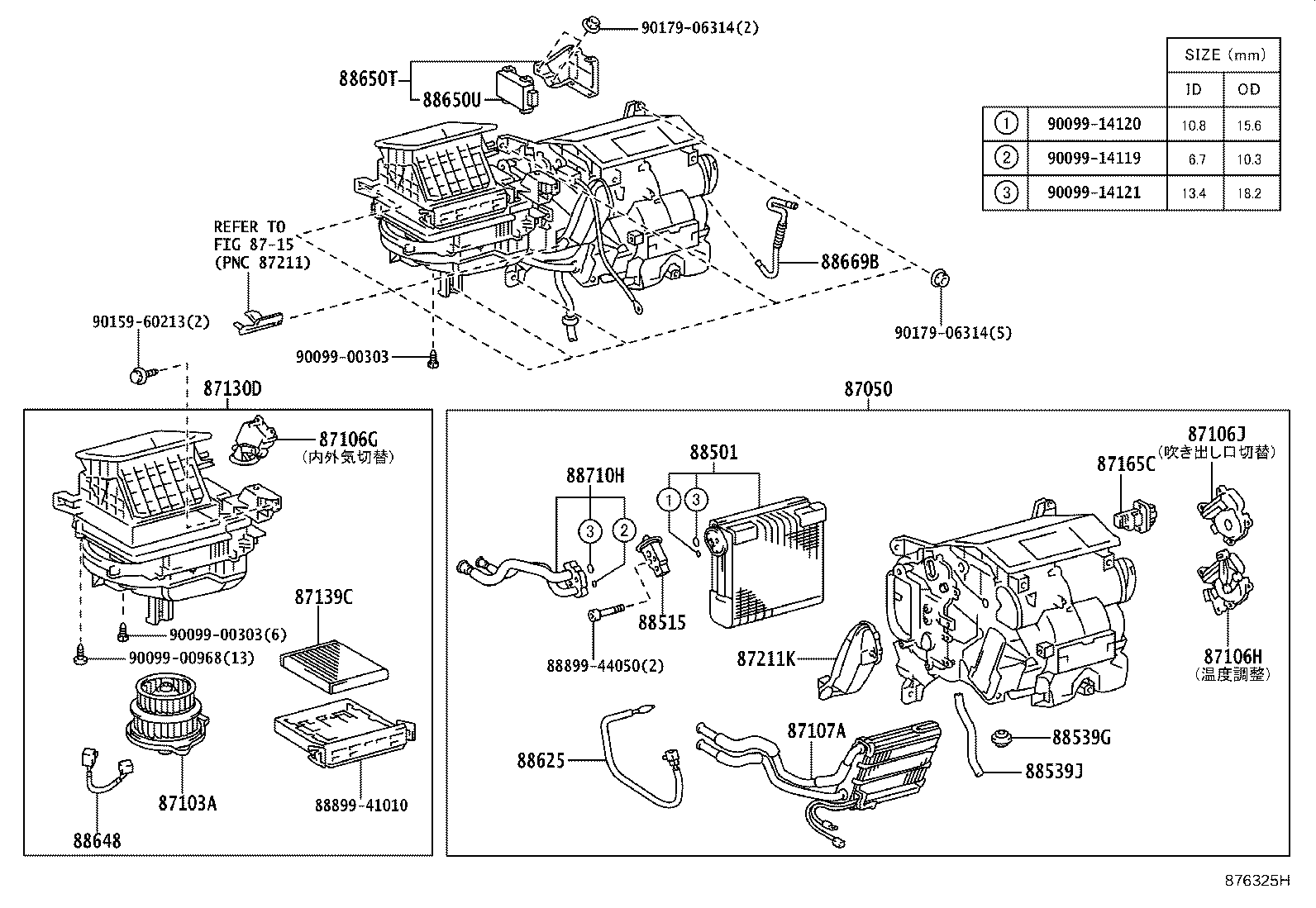

Figure 876324H 876324H 2003-07 → — Figure 876325H 876325H 2003-07 → — Figure 876326C 876326C 2003-07 → —

Part groups

PNCDescription
87030A Unit Assy, Cooling, Rear
87050 Radiator Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106G Servo Sub-assy, Damper(FOR BLOWER)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106L Servo Sub-assy, Damper
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139C Filter, Clean Air
87165C Control, Blower Motor
87211K Duct, Air
87240C Valve Assy, Heater Water
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88515 Valve, Cooler Expansion
88539C Hose, Cooler Unit Drain, NO.2
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88648 Wiring, Cooler, NO.1
88650T Amplifier Assy, Air Conditioner (FOR 2-WAY COMPRESSOR)
88650U Inverter Assy, Air Conditioner
88669B Hose, Cooler Air
88710H Tube & Accessory Assy, Air Conditioner
88750R Transistor Assy, Blower Resistor(REAR)
88891S Cover, Cooler, NO.1
88891Z Bracket, Cooler Thermistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
