Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

36 part groups · 6 illustrations

Illustrations

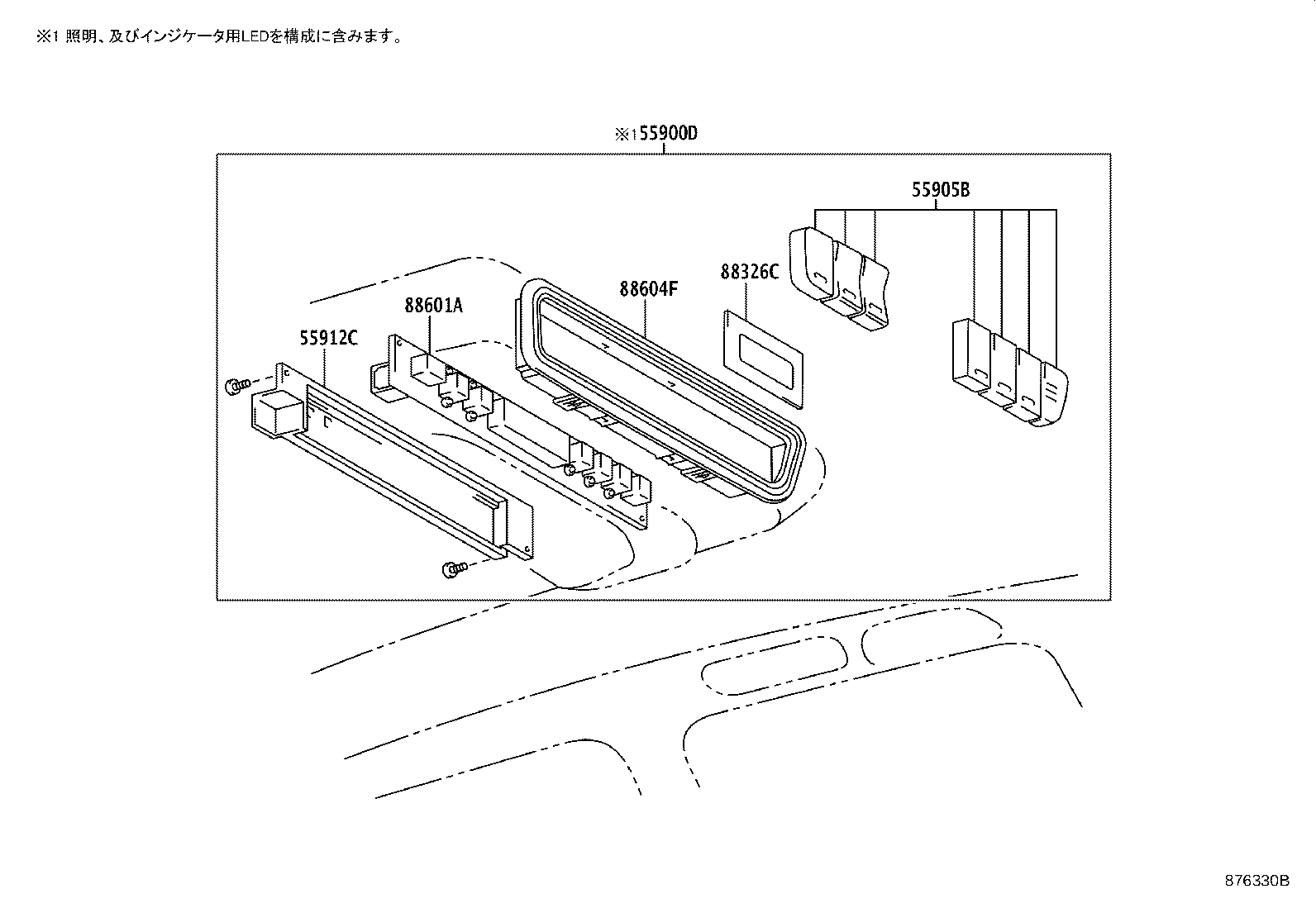

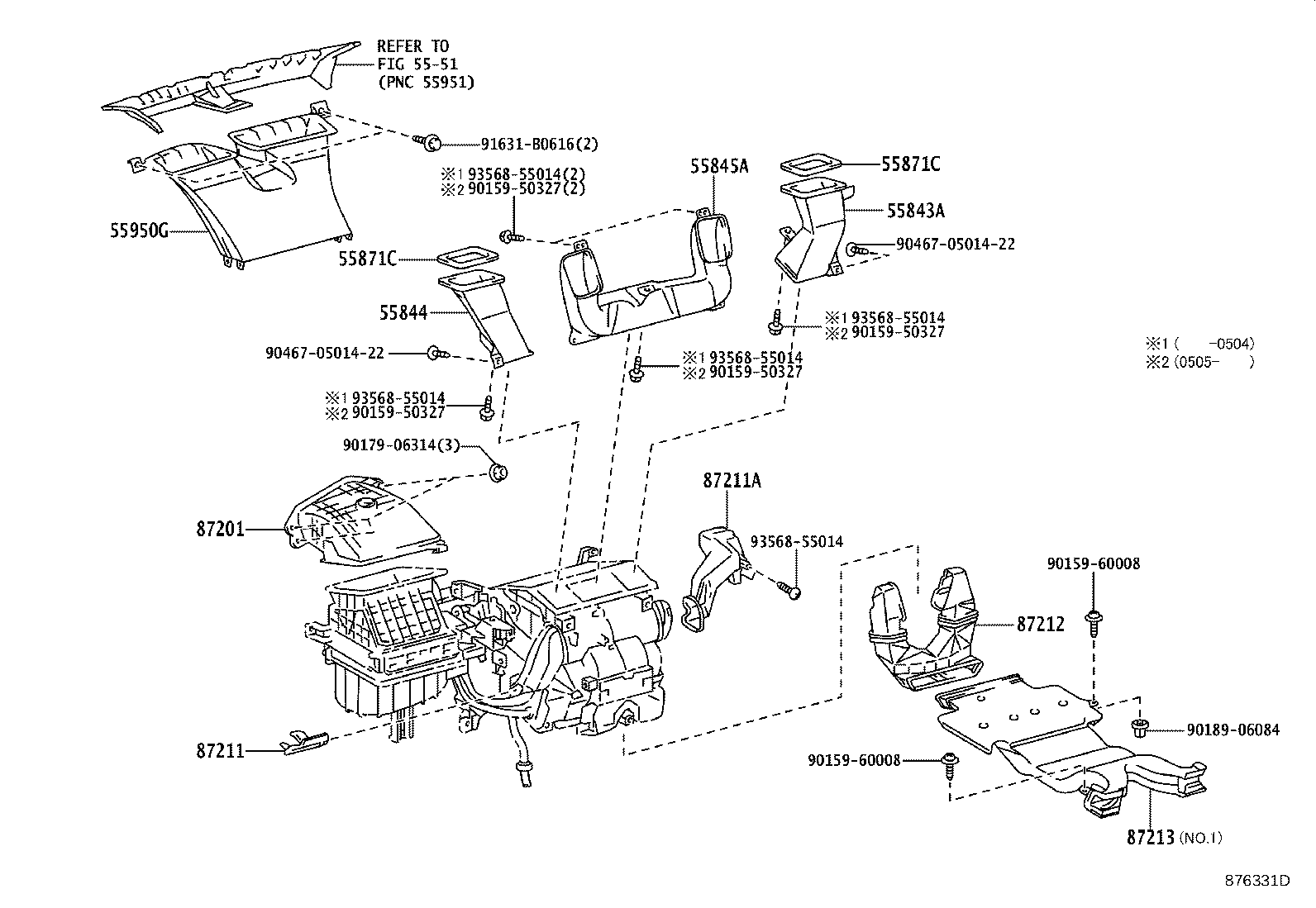

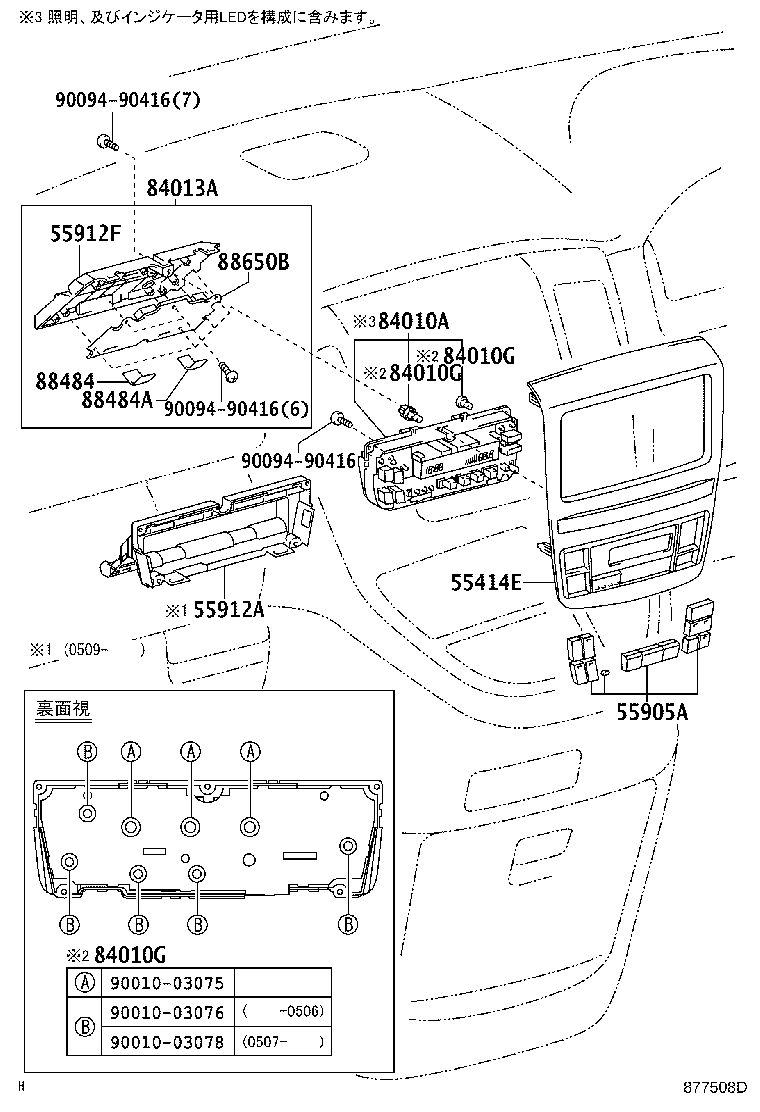

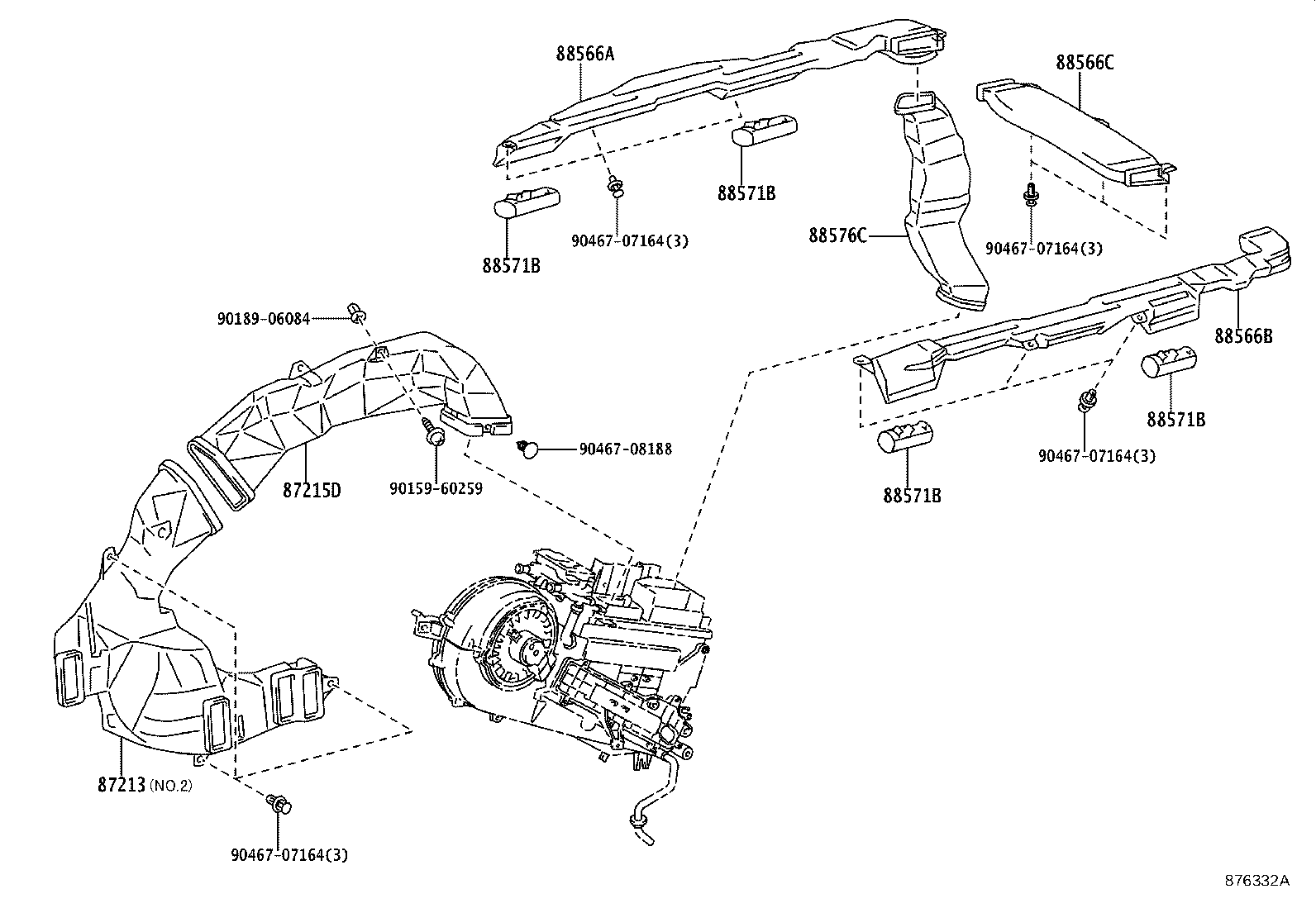

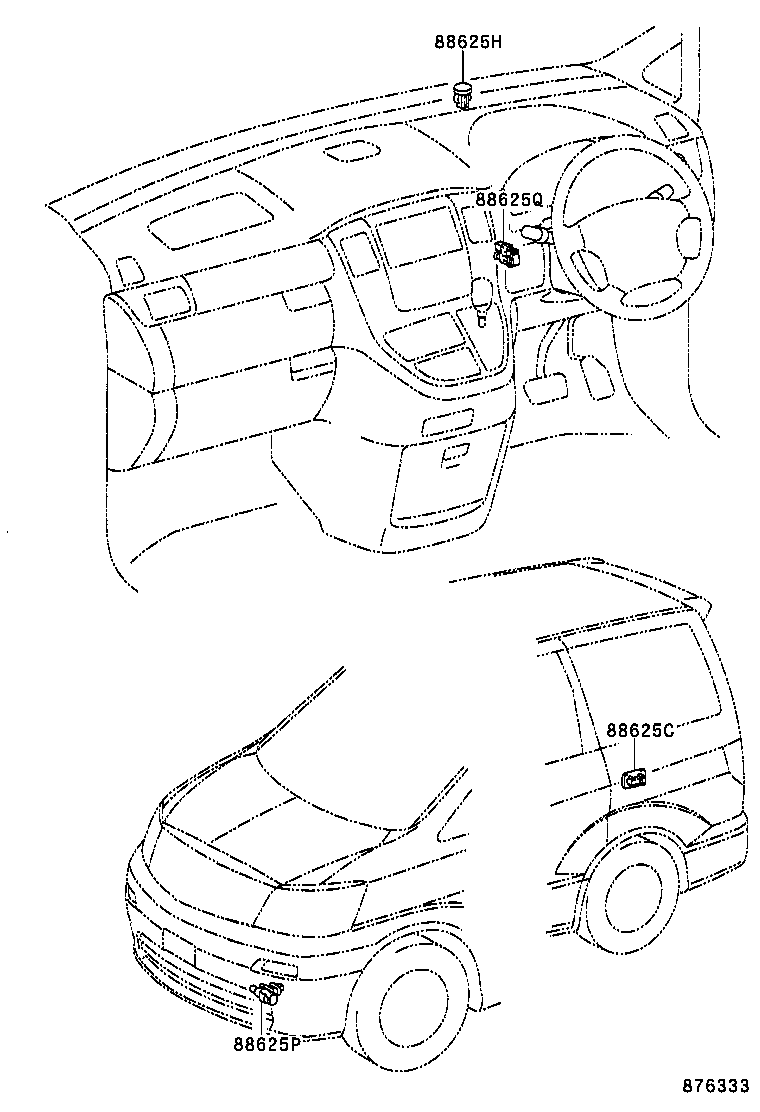

Figure 876329C 876329C 2003-07 → 2005-04 Figure 877508D 877508D 2005-04 → — Figure 876330B 876330B 2003-07 → — Figure 876331D 876331D 2003-07 → — Figure 876332A 876332A 2003-07 → — Figure 876333 876333 2003-07 → —

Part groups

PNCDescription
55414E Panel, Instrument Cluster Finish, End
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55871C Seal, Air Duct
55900D Control Assy, Air Conditioner, NO.2
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55912A Housing, Heater Control
55912C Housing, Heater Control
55912F Housing, Heater Control
55950G Nozzle Assy, Defroster
84010A Control & Panel Assy, Integration
84010G Bulb, Integration Control & Panel
84013A Panel Sub-assy, Integration
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215D Duct, Air, Rear NO.4
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88484A Wire, Cooler, NO.1
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88571B Grille, Air Outlet
88576C Duct, Cooler Air, NO.1
88601A Switch Sub-assy, Cooler Control
88604F Panel Sub-assy, Cooler Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
