Toyota Alphard HV

2003-07 → 2008-04 · chassis ATH10 · catalogue 715110 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 2 illustrations

Illustrations

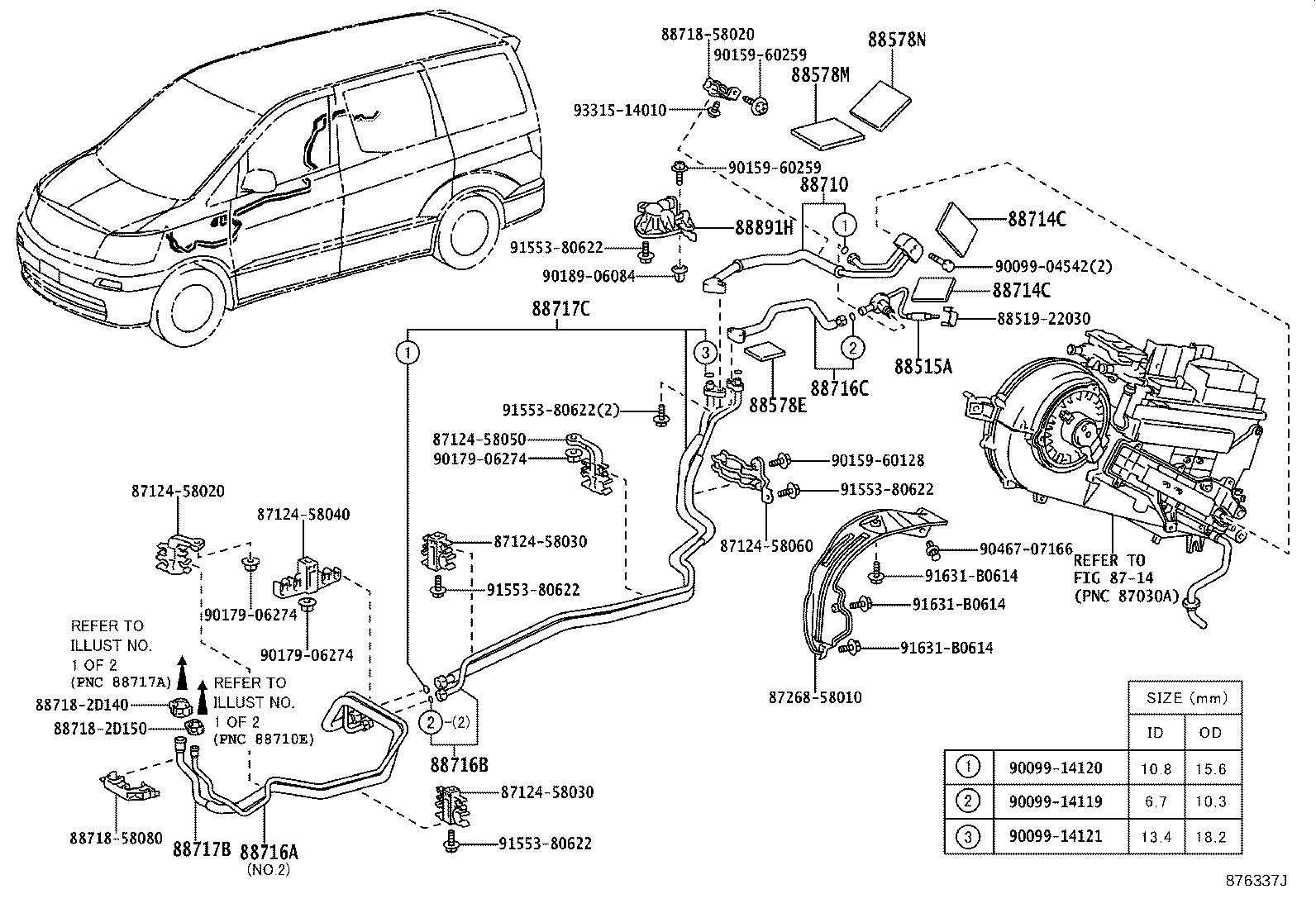

Figure 876336F 876336F 2003-07 → — Figure 876337J 876337J 2003-07 → —

Part groups

PNCDescription
88450 Condenser Assy, W/Receiver
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88578N Packing, Cooling Pipe, NO.4
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88714C Insulator, Cooler Refrigerant Hose, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
