Toyota Hiace Quick Delivery
1982-05 → 1985-07 · chassis LH24 · catalogue 721110 · Japan
Discontinued model
Data version 1986-05

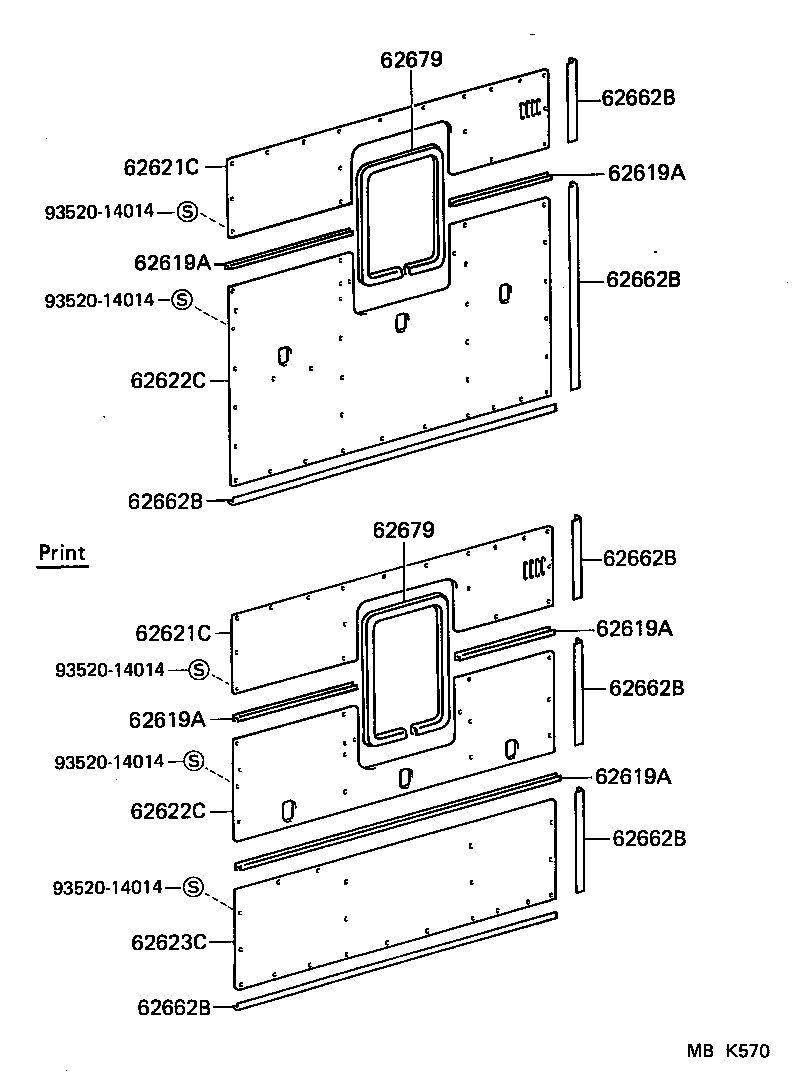

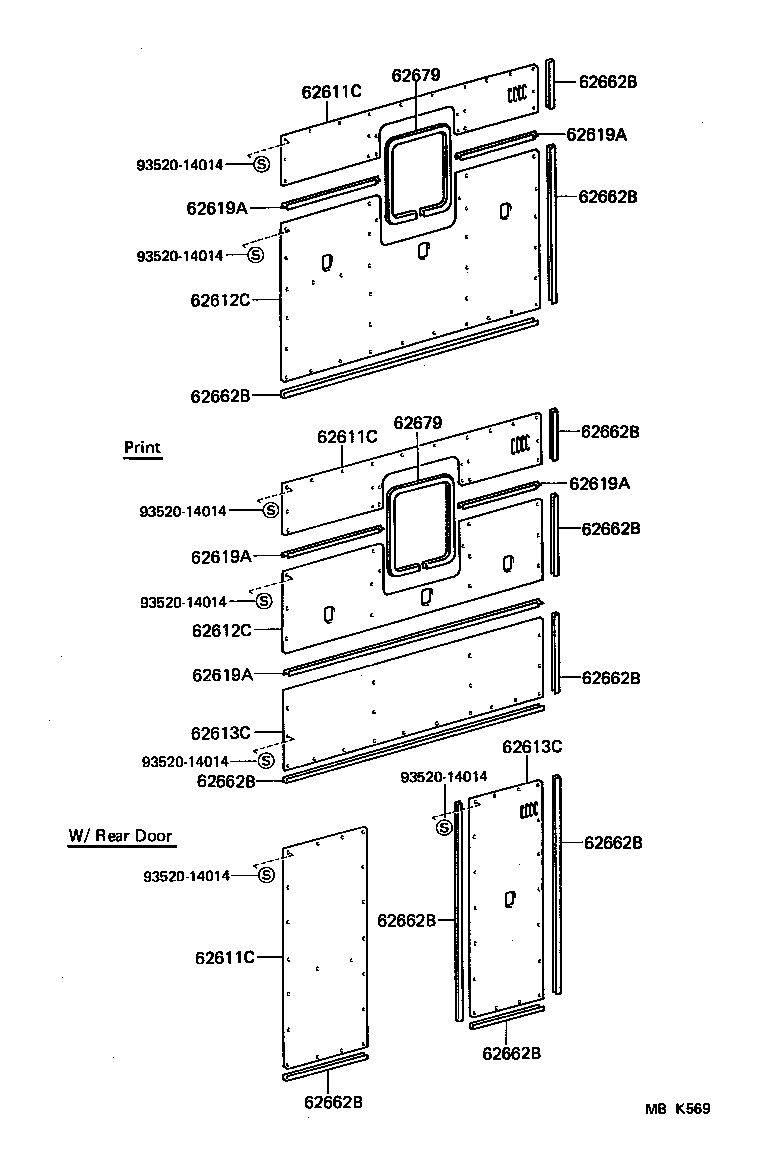

Inside Trim Board
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62611C | Board, Side Trim NO.1, RH |
| 62612C | Board, Side Trim NO.2, RH |
| 62613C | Board, Side Trim NO.3, RH |
| 62619A | Plate, Side Trim Set |
| 62621C | Board, Side Trim NO.1, LH |
| 62622C | Board, Side Trim NO.2, LH |
| 62623C | Board, Side Trim NO.3, LH |
| 62662B | Trim, Side Board, NO.2 |
| 62664B | Protector, Side Trim, NO.1 |
| 62679 | Moulding, Side Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
