Toyota Hiace Quick Delivery

1982-05 → 1985-07 · chassis LH24 · catalogue 721110 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 2 illustrations

Illustrations

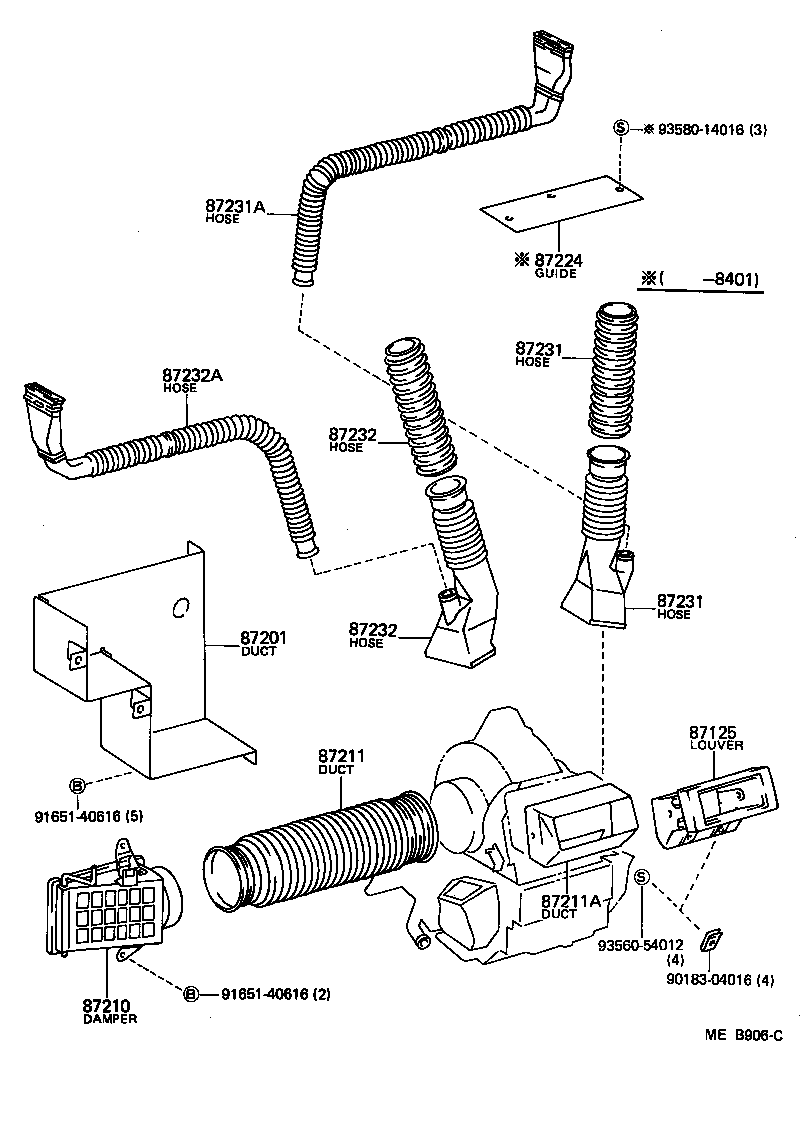

Figure MEB905A MEB905A 1982-05 → — Figure MEB906C MEB906C 1982-05 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55913 Cable Sub-assy, Boost Vent Control
55939 Ornament, Heater Control
55941 Bracket, Heater Control
55941A Guide, Heater Control
87125 Louver, Ventilation
87201 Duct Sub-assy, Air, NO.1
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87224 Guide, Air Duct, RH
87231 Hose, Heater Defroster, RH
87231A Duct, Heater Defroster, Side NO.1 RH
87232 Hose, Heater Defroster, LH
87232A Duct, Heater Defroster, Side NO.1 LH
88600B Panel Assy, Control
88610C Switch Assy, Cooler Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
