Toyota Hiace Quick Delivery
1982-05 → 1985-07 · chassis LH24 · catalogue 721110 · Japan
Discontinued model
Data version 1986-05

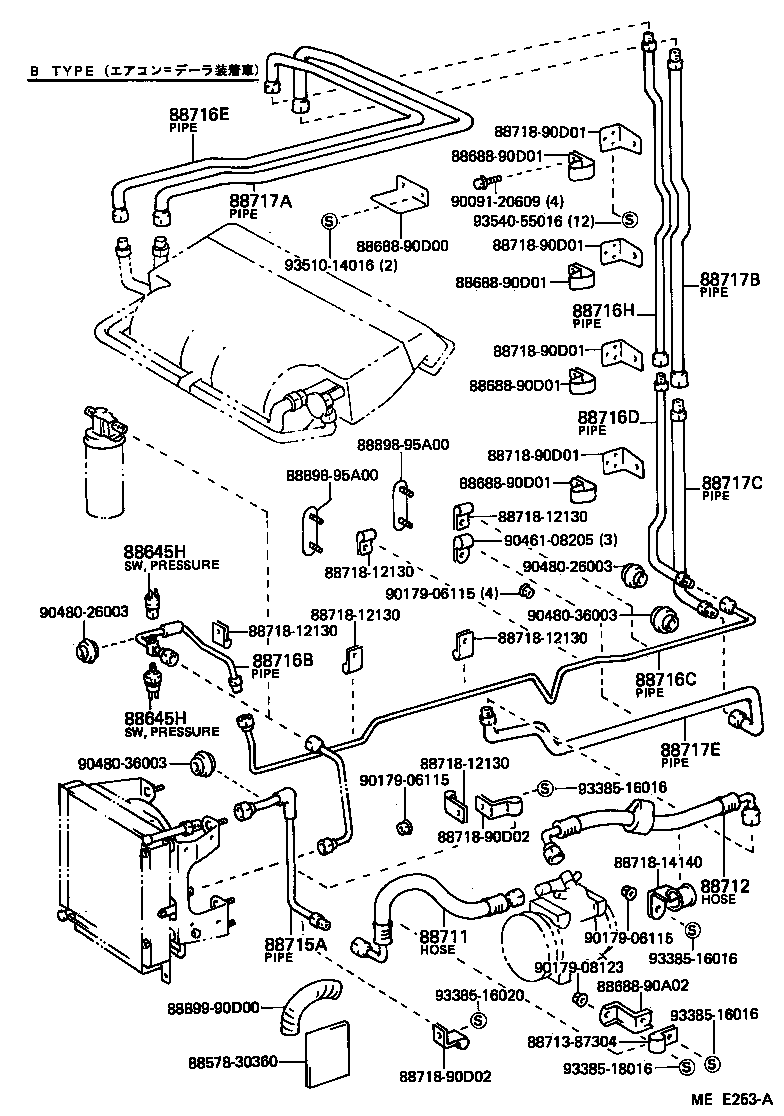

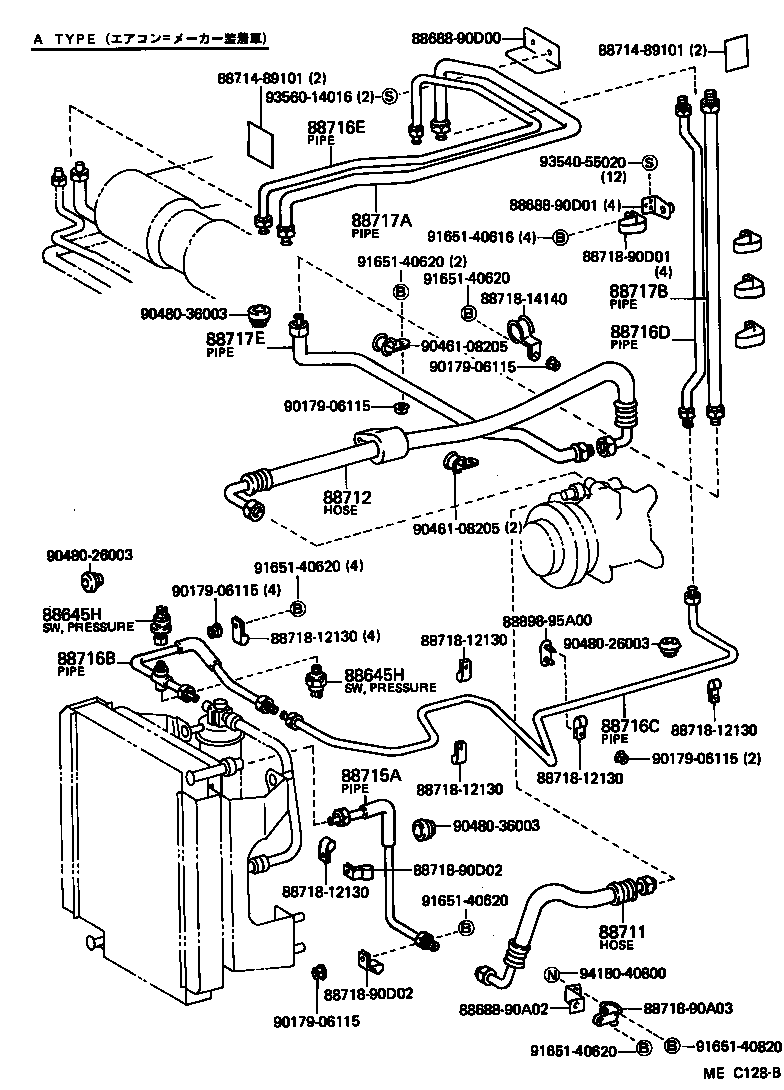

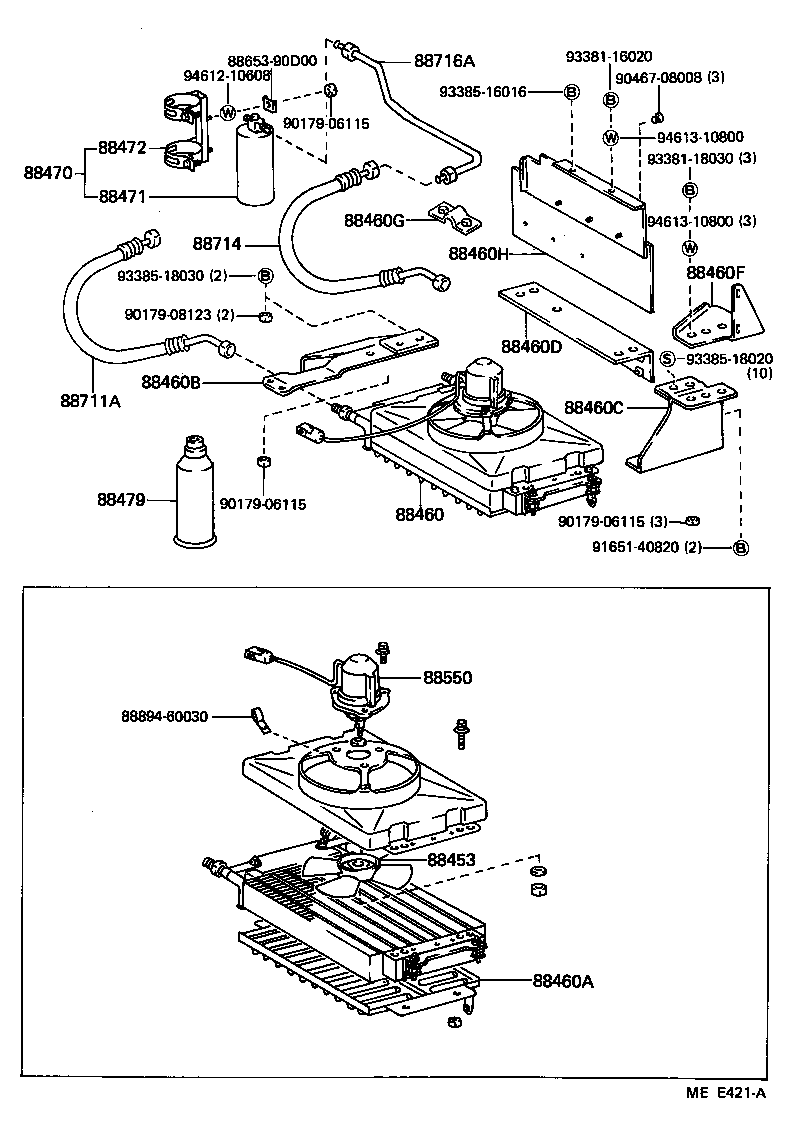

Heating & Air Conditioning - Cooler Piping
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88415C | Cover, Dust, NO.1 |
| 88415D | Cover, Dust, NO.2 |
| 88415E | Cover, Dust, NO.3 |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88460A | Cover, Cooler Condenser |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88460D | Bracket, Cooler Condenser, NO.3 |
| 88460F | Bracket, Cooler Condenser, NO.4 |
| 88460G | Bracket, Cooler Condenser, NO.5 |
| 88460H | Bracket, Cooler Condenser, NO.6 |
| 88461A | Core, Cooler Condenser |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88645H | Switch, Pressure NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711A | Hose, Cooler Refrigerant Discharge, NO.2 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88716H | Pipe, Cooler Refrigerant Liquid, H |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88717E | Pipe, Cooler Refrigerant Suction, E |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
