Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

10 part groups · 4 illustrations

Illustrations

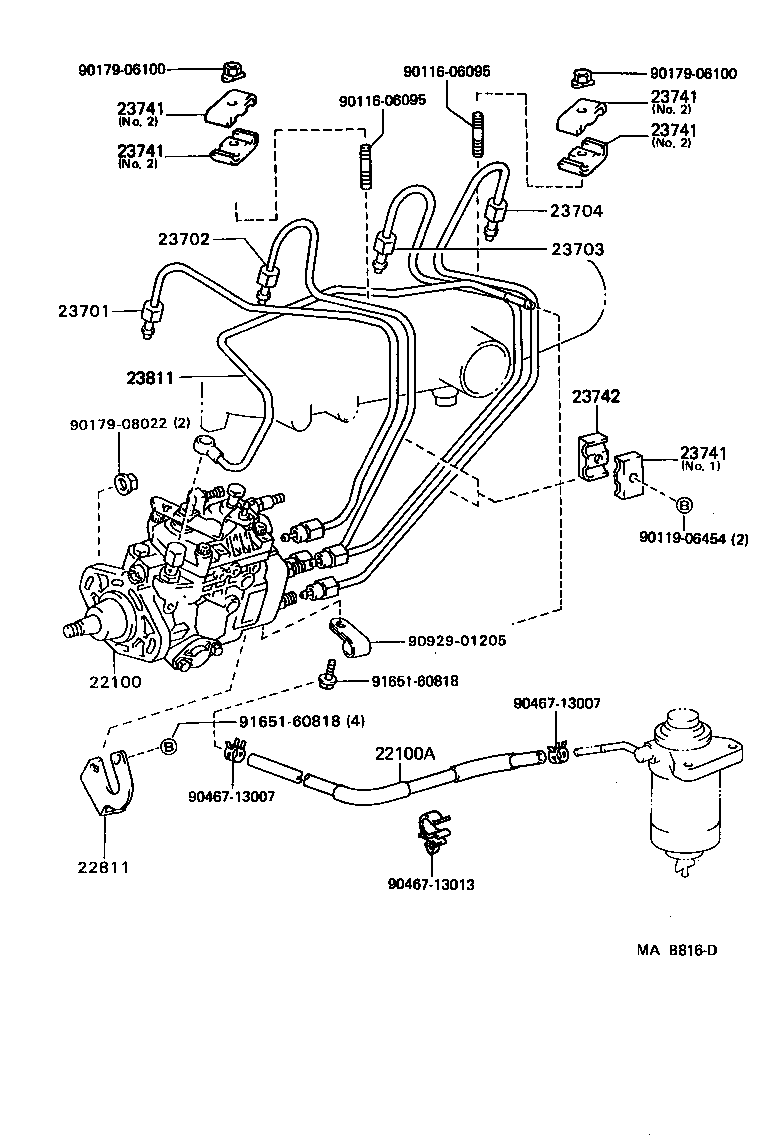

Figure MF3686C MF3686C 1985-08 → 1988-08 Figure MF3686C MF3686C 1988-08 → 1989-10 Figure MAB816D MAB816D 1988-08 → — Figure MAB816D MAB816D 1989-10 → —

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
