Toyota Hiace Quick Delivery
1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan
Discontinued model
Data version 1995-11

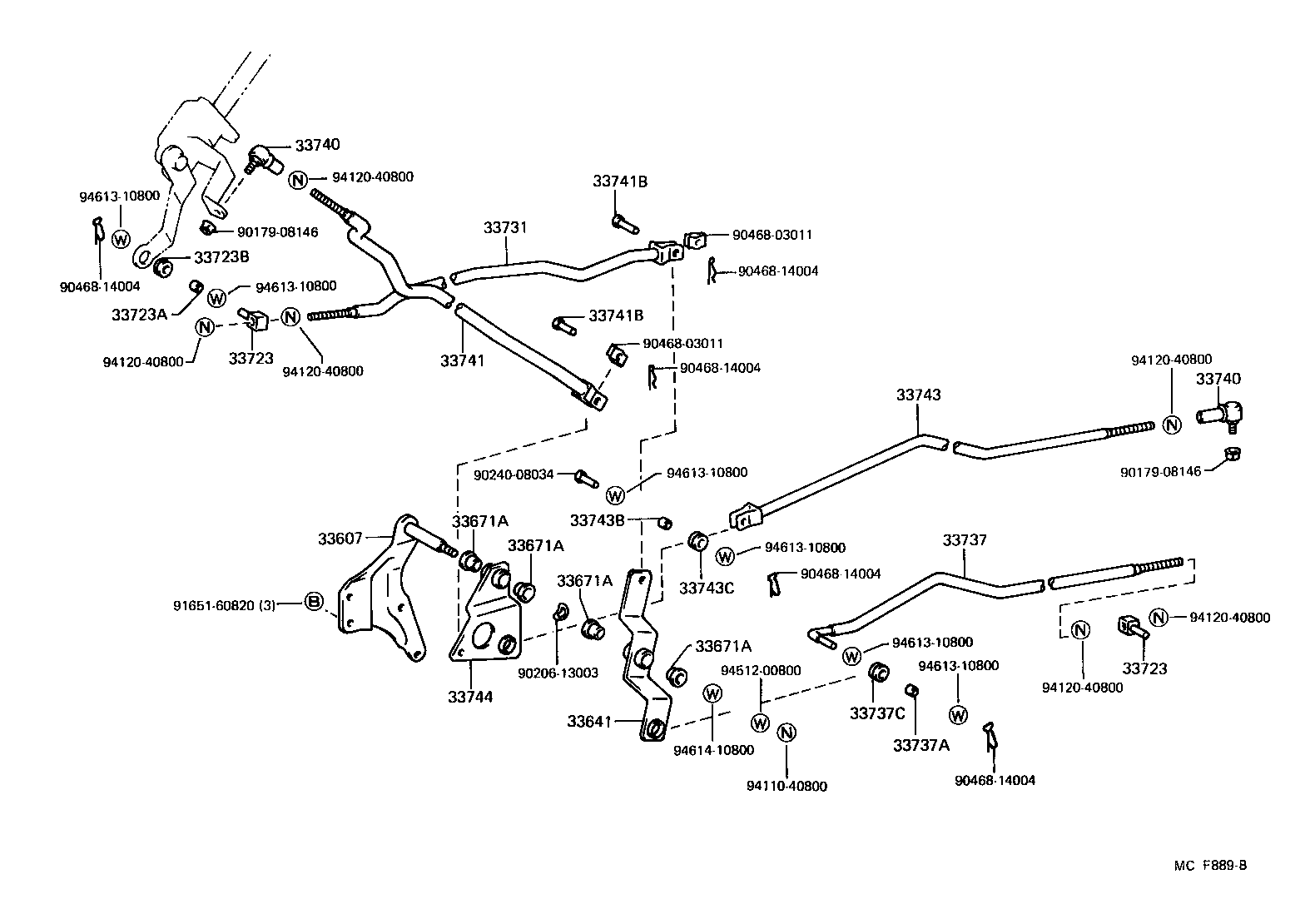

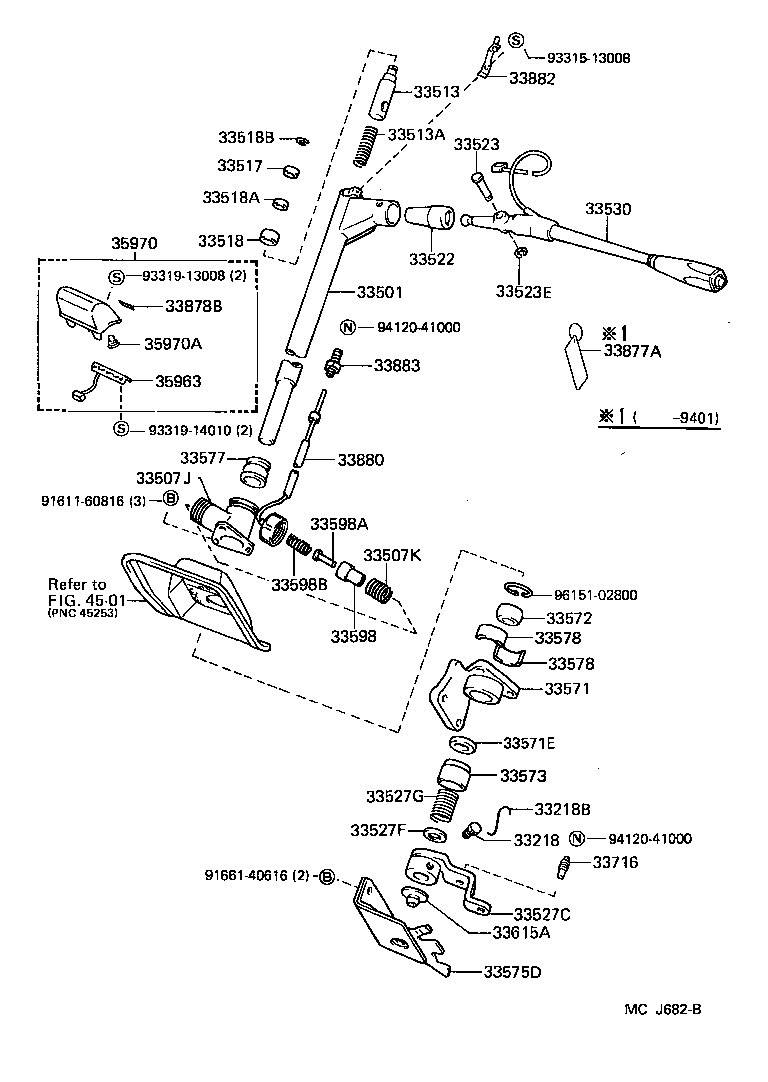

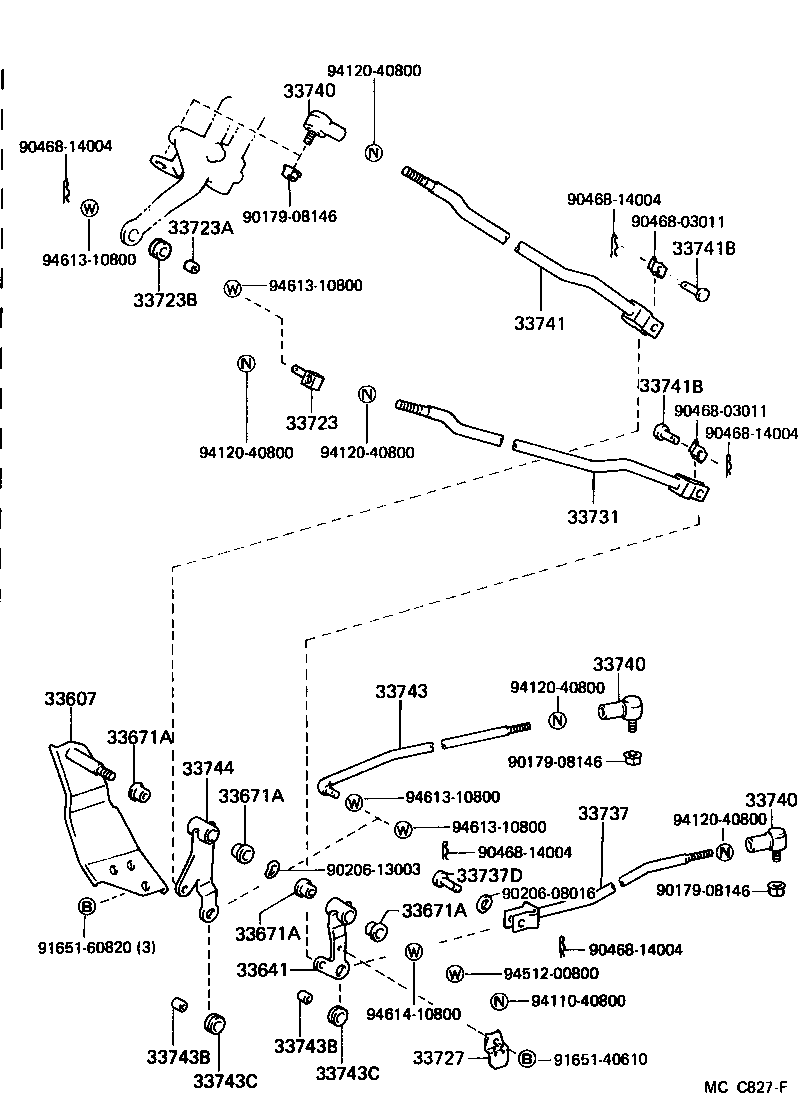

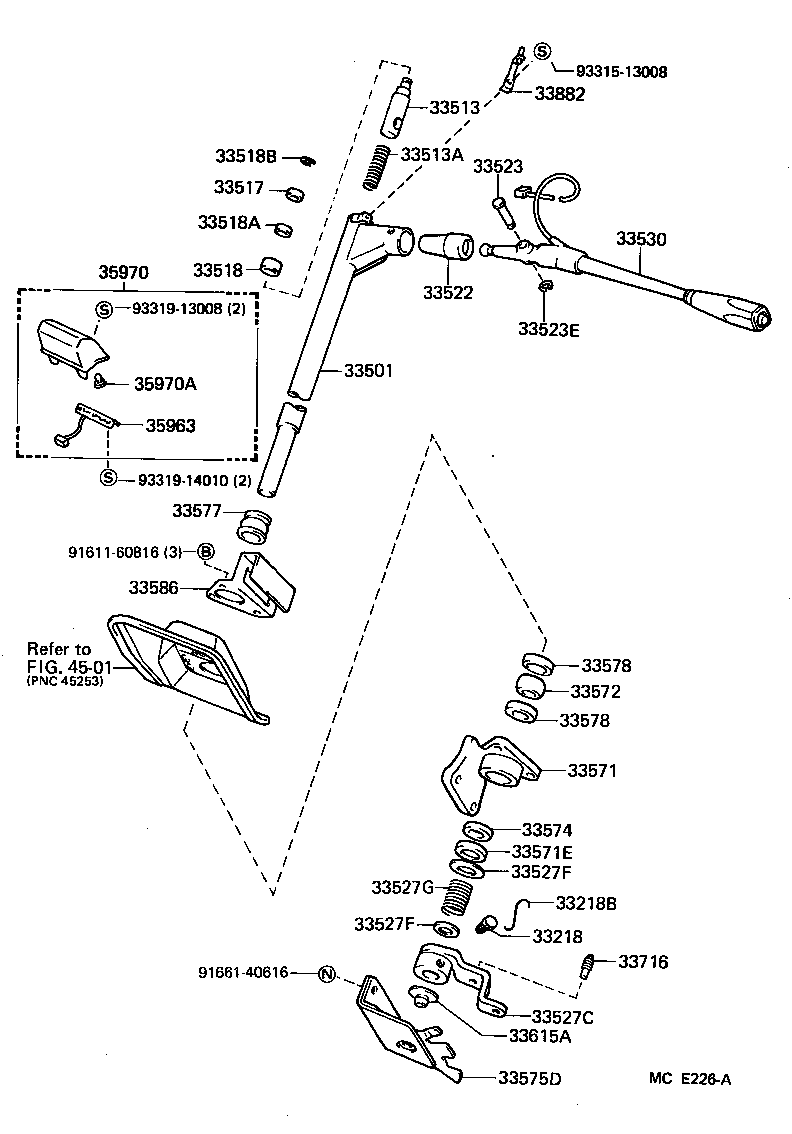

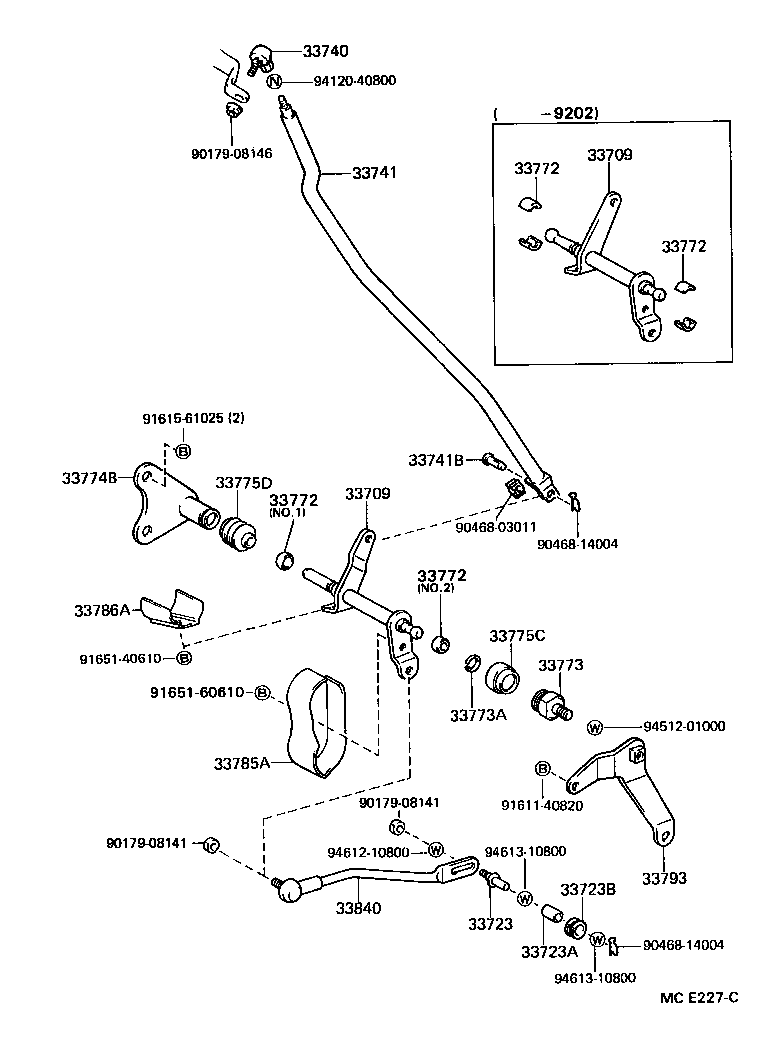

Control Shaft & Crossshaft
84 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 33218 | Bolt, Shift Lever Lock |
| 33218B | Wire(FOR SHIFT LEVER LOCK BOLT) |
| 33501 | Shaft Sub-assy, Control (FOR COLUMN SHIFT) |
| 33504 | Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT) |
| 33505 | Seal Sub-assy, Control Shaft Dust (FOR COLUMN SHIFT) |
| 33507J | Support Sub-assy, Control Shaft (FOR COLUMN SHIFT) |
| 33507K | Spring, Compression (FOR CONTROL SHAFT SUPPORT) |
| 33513 | Shaft, Control Shaft Bracket, Upper |
| 33513A | Spring, Compression (FOR BRACKET UPPER SHAFT) |
| 33513B | Spacer (FOR CONTROL SHAFT BRACKET UPPER SHAFT) |
| 33513C | Bolt (FOR CONTROL SHAFT BRACKET UPPER SHAFT) |
| 33517 | Retainer, Control Shaft Upper Spring |
| 33518 | Bush, Upper Control Shaft Piece |
| 33518A | Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33518B | Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33522 | Seat, Shift Lever Plate (FOR COLUMN SHIFT) |
| 33523 | Pin, Shift Lever (FOR COLUMN SHIFT) |
| 33523E | Ring, E (FOR SHIFT LEVER PIN) |
| 33527C | Lever, Control Shift (FOR COLUMN SHIFT) |
| 33527F | Washer, Plate (FOR CONTROL SHIFT LEVER) |
| 33527G | Spring, Compression (FOR CONTROL SHIFT LEVER) |
| 33530 | Lever Assy, Shift (FOR COLUMN SHIFT) |
| 33535 | Lever, Control Select (FOR COLUMN SHIFT) |
| 33535A | Bush (FOR CONTROL SELECT LEVER) |
| 33536 | Shaft, Control Select Lever (FOR COLUMN SHIFT) |
| 33562 | Stopper, Control Shaft Upper Bracket Shaft |
| 33562A | Pin (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER) |
| 33571 | Bracket, Control Shaft, Lower (FOR COLUMN SHIFT) |
| 33571E | Seal, Dust (FOR CONTROL SHAFT LOWER BRACKET) |
| 33572 | Bush, Control Shaft Lower (FOR COLUMN SHIFT) |
| 33573 | Cover, Control Shaft Dust, Lower |
| 33574 | Retainer, Dust Seal (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33575D | Retainer, Control Shift Lever (FOR COLUMN SHIFT) |
| 33577 | Cover, Control Shaft Hole |
| 33578 | Seat, Control Shaft Lower Bush, NO.1 |
| 33586 | Stopper, Control Shift Lever |
| 33593 | Holder, Spring (FOR SELECT LEVER) |
| 33598 | Holder, Select Shatt Lock Pin (FOR COLUMN SHIFT) |
| 33598A | Pin (FOR COLUMN SHIFT SELECT SHAFT LOCK PIN HOLDER) |
| 33598B | Spring, Compression (FOR SELECT SHAFT LOCK PIN HOLDER) |
| 33607 | Support Sub-assy, Control Rod (FOR COLUMN SHIFT) |
| 33615A | Bush, Control Shift Lever Retainer |
| 33641 | Link, Selecting (FOR COLUMN SHIFT) |
| 33671A | Bush (FOR CONTROL ROD, NO.1 SUPPORT) |
| 33696 | Seat, Select Spring |
| 33696A | Spring, Compression |
| 33709 | Shaft Sub-assy, Cross, NO.1 (FOR COLUMN SHIFT) |
| 33711 | Lever, Control Shaft (FOR COLUMN SHIFT) |
| 33711G | Bolt, Control Shaft Lever Lock |
| 33716 | Pin, Control Shaft Lever Stopper |
| 33723 | Swivel, Connecting Rod (FOR COLUMN SHIFT) |
| 33723A | Bush (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33723B | Grommet (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33727 | Insulator, Connecting Rod Bush Heat |
| 33731 | Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT) |
| 33737 | Rod, Gear Selecting, NO.3 (FOR COLUMN SHIFT) |
| 33737A | Bush (FOR GEAR SELECTING ROD NO.3) |
| 33737C | Grommet (FOR GEAR SELECTING ROD NO.3) |
| 33737D | Pin, W/Hose (FOR GEAR SELECTING ROD NO.3) |
| 33740 | End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT) |
| 33741 | Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT) |
| 33741B | Pin, W/Hole (FOR COLUMN SHIFTING ROD) |
| 33743 | Rod, Gear Shifting, NO.3 (FOR COLUMN SHIFT) |
| 33743B | Bush, NO.1 |
| 33743C | Grommet |
| 33744 | Lever, Gear Shifting, NO.1 (FOR COLUMN SHIFT) |
| 33772 | Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT) |
| 33773 | Support, Cross Shaft, NO.1 (FOR COLUM SHIFT) |
| 33773A | Ring, Hole Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33774B | Support, Cross Shaft, NO.2 (FOR COLUMN SHIFT) |
| 33775C | Cover, Cross Shaft Dust, NO.1 (FOR COLUMN SHIFT) |
| 33775D | Cover, Cross Shaft Dust, NO.2 (FOR COLUMN SHIFT) |
| 33785A | Insulator, Cross Shaft Lever Heat, NO.1(FOR COLUMN SHIFT) |
| 33786A | Insulator, Cross Shaft Lever Heat, NO.2(FOR COLUMN SHIFT) |
| 33793 | Bracket, Cross Shaft, NO.2(FOR COLUMN SHIFT) |
| 33840 | Rod Assy, Gear Shifting, NO.3 (FOR COLUMN SHIFT) |
| 33877A | Label, Shift Lock Information |
| 33878B | Label, Shift Lock Information, NO.2(FOR COLUMN SHIFT) |
| 33880 | Cable Assy, Parking Lock (FOR COLUMN SHIFT) |
| 33882 | Piece, Control Shaft, Upper |
| 33883 | Holder, Cable End Rod |
| 35963 | Plate, Indicator Lamp Earth (FOR COLUMN SHIFT) |
| 35970 | Housing Assy, Position Indicator (FOR COLUMN SHIFT) |
| 35970A | Bulb (FOR COLUMN SHIFT POSITION INDICATOR LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
