Toyota Hiace Quick Delivery
1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan
Discontinued model
Data version 1995-11

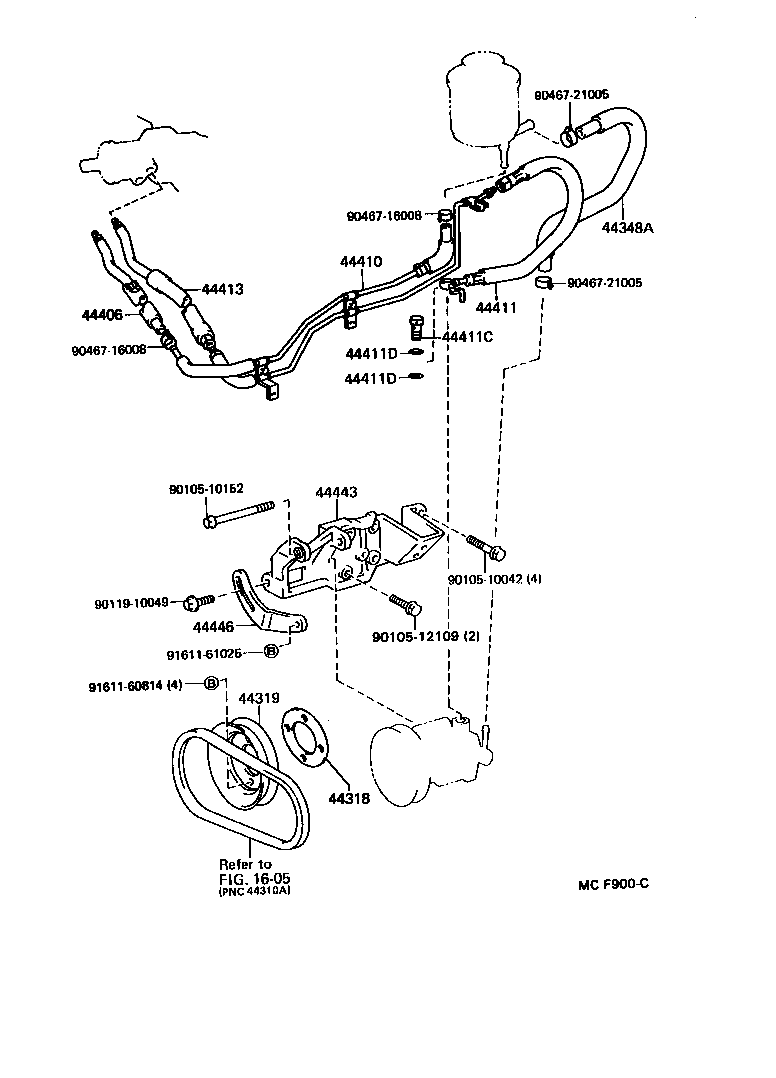

Power Steering Tube
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410E | Clamp(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44411D | Gasket(FOR PRESSURE FEED HOSE) |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
