Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11

Rear Spring & Shock Absorber

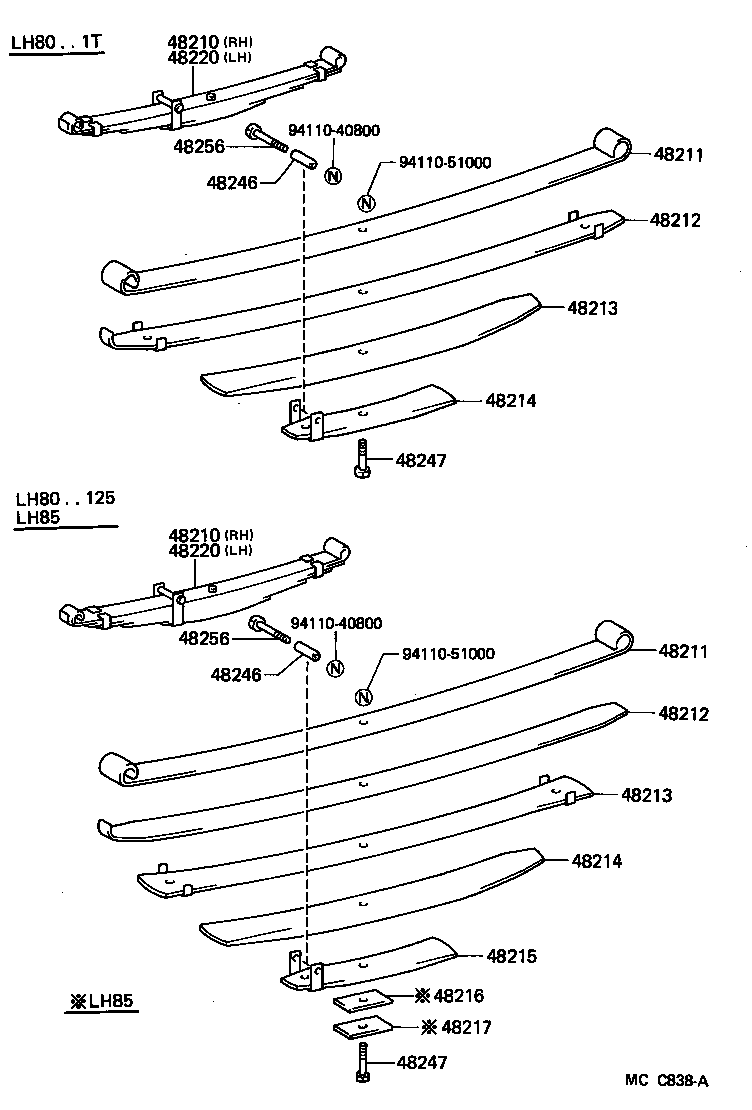

40 part groups · 3 illustrations

PNC	Description
04483	Shackle Kit, Rear Spring
04484	Pin Kit, Rear Spring
48036	Bumper Sub-assy, Rear Spring, LH
48046	Seat Sub-assy, Spring U Bolt, RH
48046A	Bolt, U(FOR REAR SPRING)
48047	Seat Sub-assy, Spring U Bolt, LH
48210	Spring Assy, Rear RH
48210A	Bush(FOR REAR SPRING SHACKLE UPPER)
48210B	Bush(FOR REAR SPRING PIN)
48210G	Bush(FOR REAR SPRING SHACKLE LOWER)
48211	Leaf, Rear Spring, NO.1
48212	Leaf, Rear Spring, NO.2
48213	Leaf, Rear Spring, NO.3
48214	Leaf, Rear Spring, NO.4
48215	Leaf, Rear Spring, NO.5
48216	Leaf, Rear Spring, NO.6
48217	Leaf, Rear Spring, NO.7
48220	Spring Assy, Rear LH
48246	Case, Rear Spring Clip Bolt
48247	Bolt, Rear Spring, Center
48256	Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48306A	Bumper Sub-assy, Rear Spring, RH
48516	Bracket, Rear Shock Absorber, Upper RH
48517	Bracket, Rear Shock Absorber, Upper LH
48530	Absorber Assy, Shock, Rear RH
48530A	Bush(FOR REAR SHOCK ABSORBER)
48530B	Washer, Rear Shock Absorber Cushion, NO.1
48530C	Washer, Rear Shock Absorber Cushion, NO.2
48530D	Washer, Rear Shock Absorber Cushion, NO.3
48530E	Washer, Rear Shock Absorber Cushion, NO.4
48540	Absorber Assy, Shock, Rear LH
48802	Link Sub-assy, Stabilizer
48802D	Bush, Stabilizer Link
48802E	Spacer(FOR REAR STABILIZER BAR)
48805	Bar Sub-assy, Rear Stabilizer
48815R	Bush, Stabilizer(FOR REAR)
48817R	Cushion, Stabilizer(FOR REAR)
48817S	Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817U	Bolt(FOR REAR STABILIZER)
48823R	Cover, Stabilizer Link(FOR REAR)
