Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

11 part groups · 3 illustrations

Illustrations

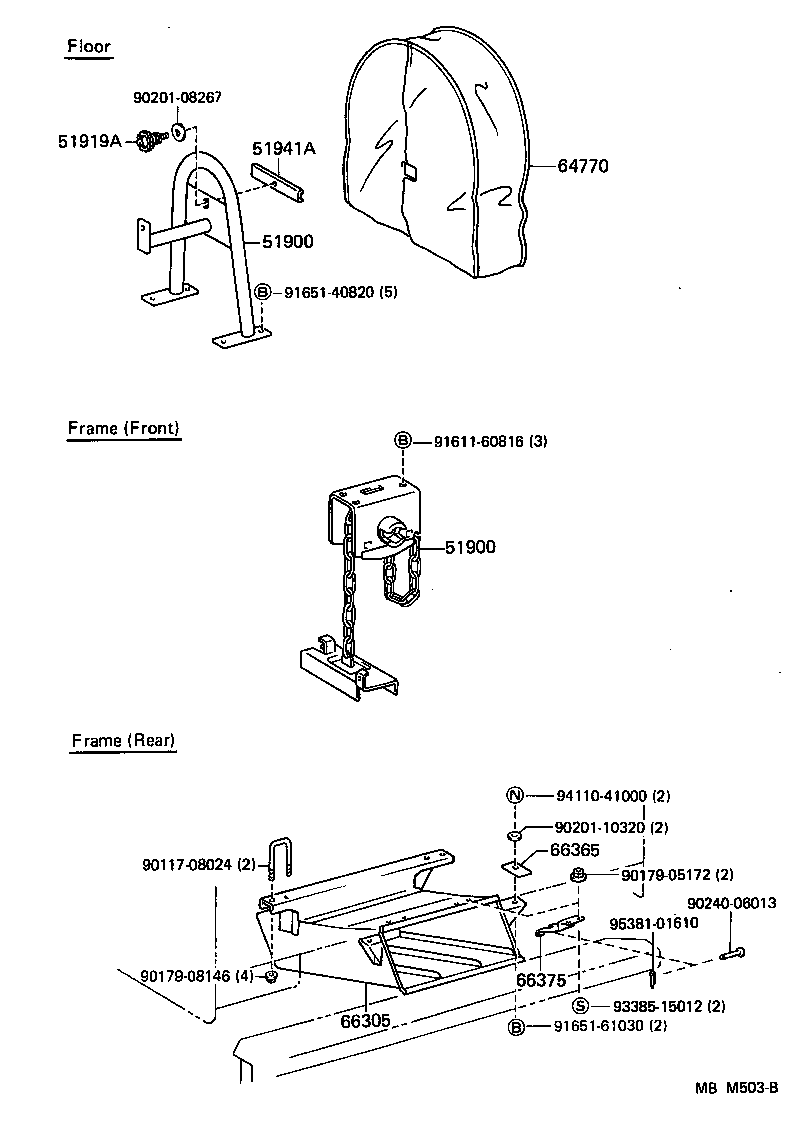

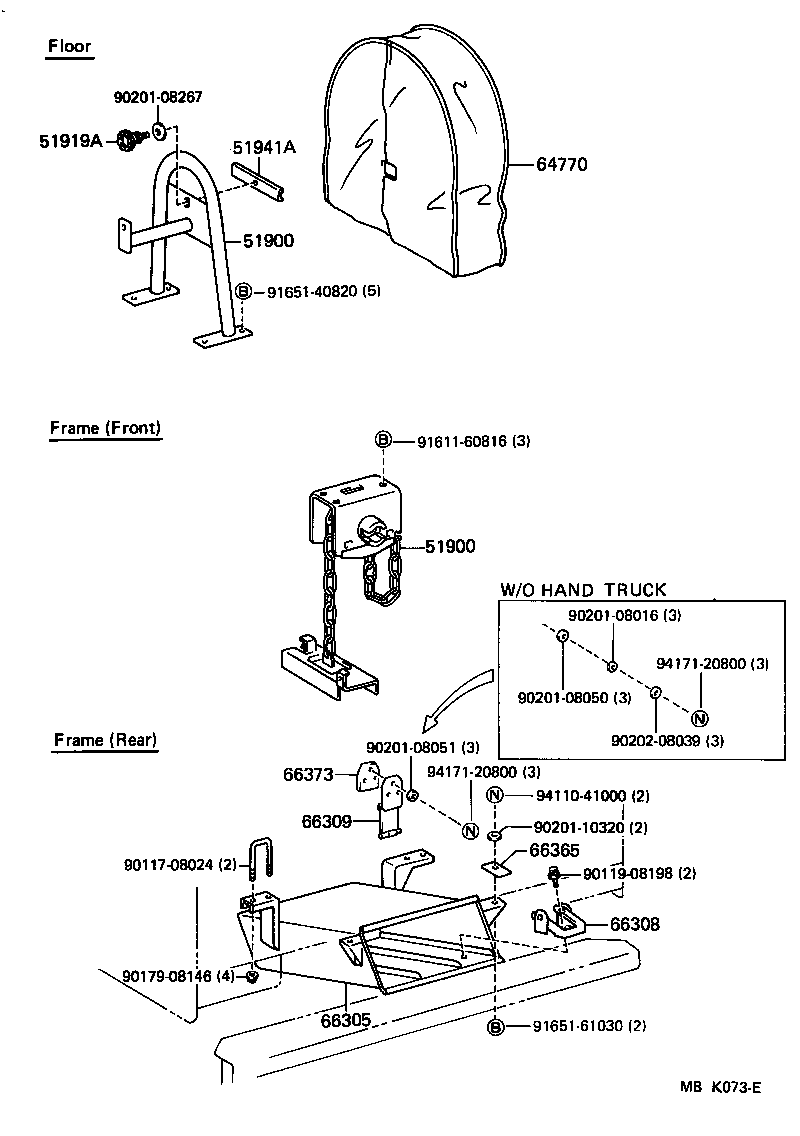

Figure MBK072C MBK072C 1985-08 → — Figure MBK073E MBK073E 1985-08 → — Figure MBM503B MBM503B 1987-08 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51919A Plate, Spare Wheel Mounting
51941A Bracket, Spare Wheel Carrier
51954 Carrier Assy, Spare Wheel
64770 Cover Assy, Spare Wheel
66305 Box Sub-assy, Hand Truck
66308 Stopper Sub-assy, Hand Truck
66309 Hinge Sub Assy, Hand Truck Stopper
66365 Plate, Hand Truck Box
66373 Packing, Stopper Hinge Male
66375 Catch, Hand Truck Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
