Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

13 part groups · 2 illustrations

Illustrations

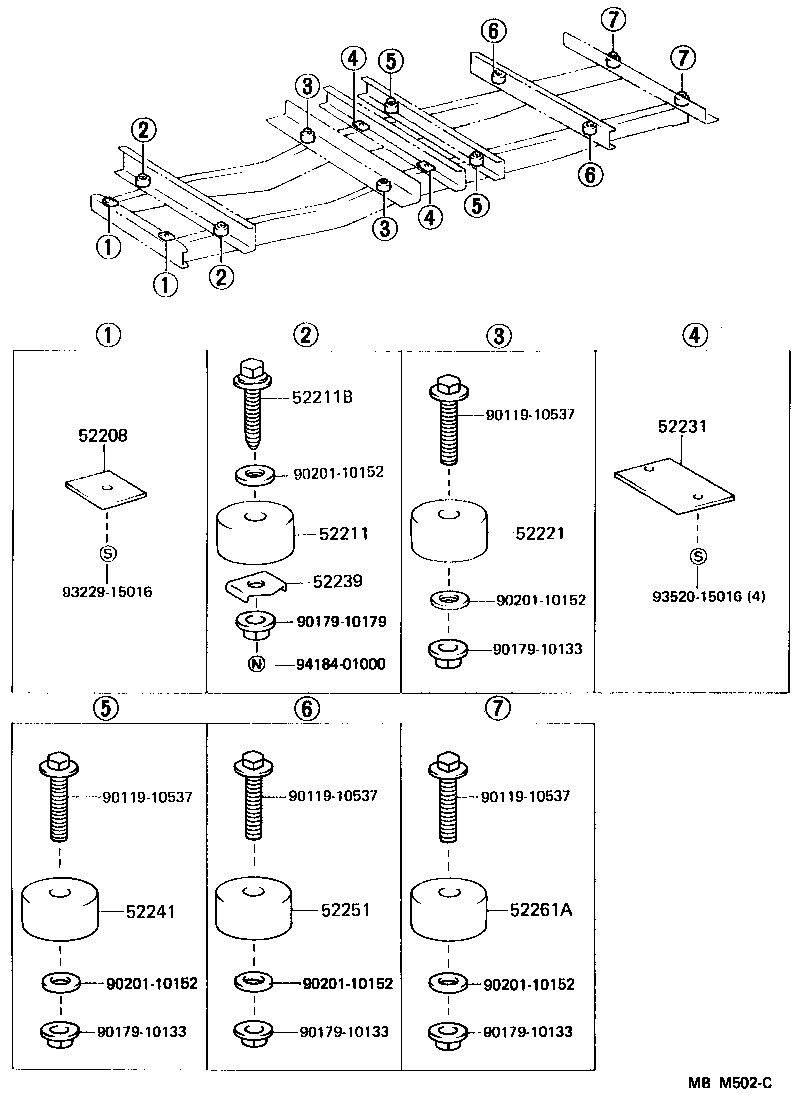

Figure MBK074C MBK074C 1985-08 → — Figure MBM502C MBM502C 1987-11 → —

Part groups

PNCDescription
52208 Shim Sub-assy, Body Mounting
52211 Cushion, Body Mounting, NO.1 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52221 Cushion, Body Mount, NO.2 Upper
52221B Bolt(FOR BODY MOUNT NO.2 CUSHION)
52231 Cushion, Body Mount, NO.3 Upper
52239 Plate, Body Mounting
52241 Cushion, Body Mount, NO.4 Upper
52241B Bolt(FOR BODY MOUNT NO.4 CUSHION)
52251 Cushion, Body Mount, NO.5 Upper
52251B Bolt(FOR BODY MOUNT NO.5 CUSHION)
52261A Cushion, Body Mount, NO.6 Upper
52261B Bolt(FOR BODY MOUNT NO.6 CUSHION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
