Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

136 part groups · 6 illustrations

Illustrations

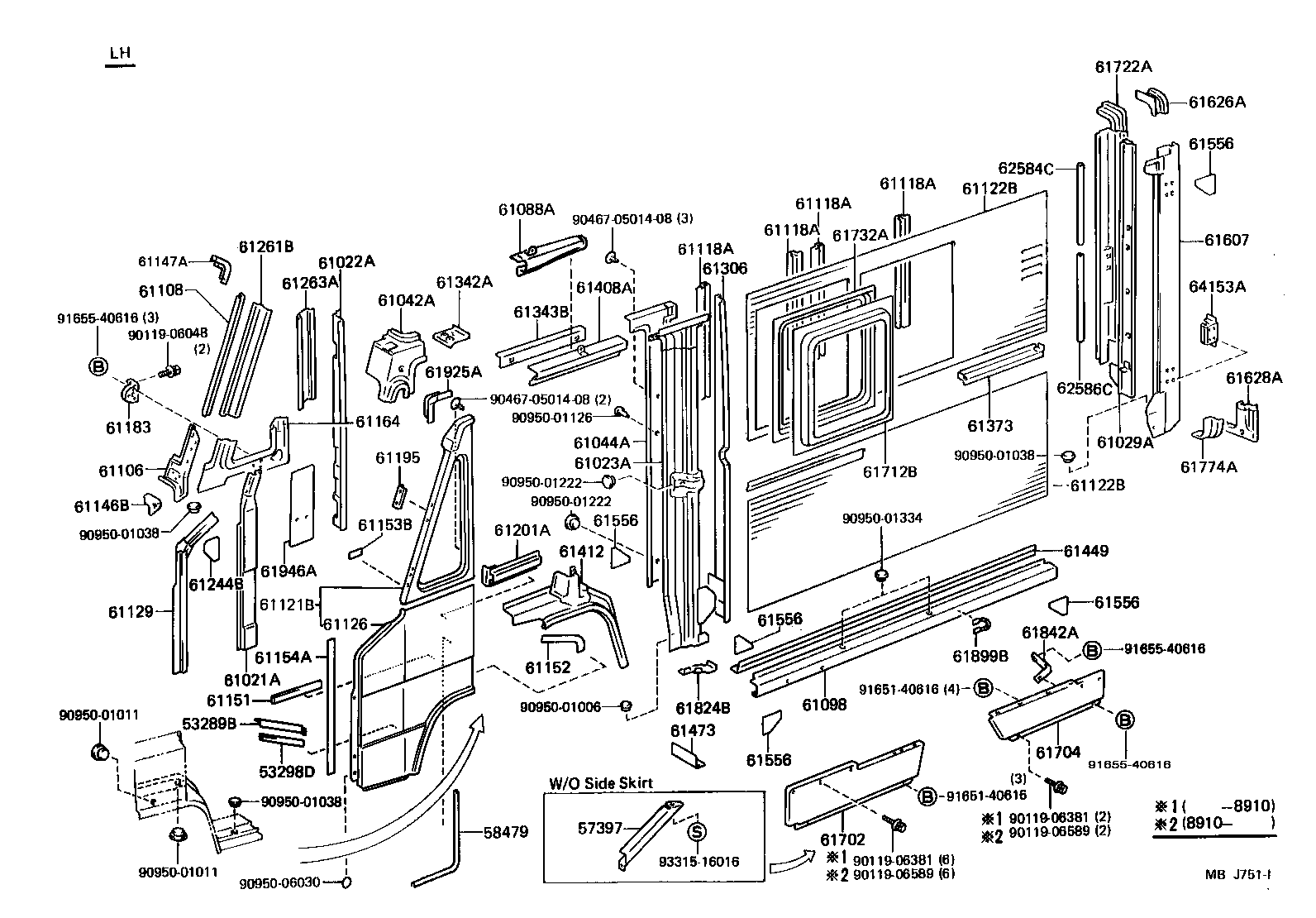

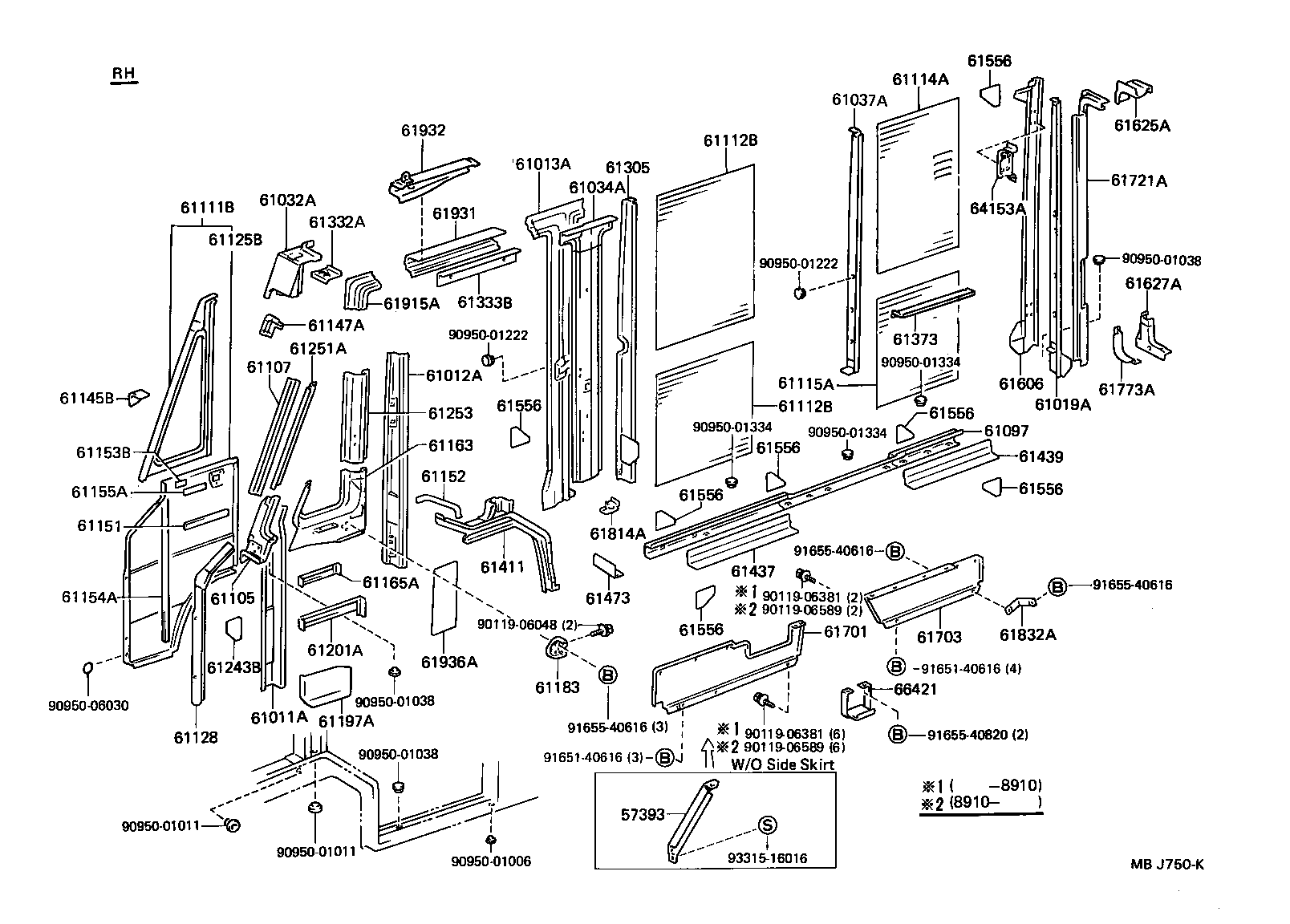

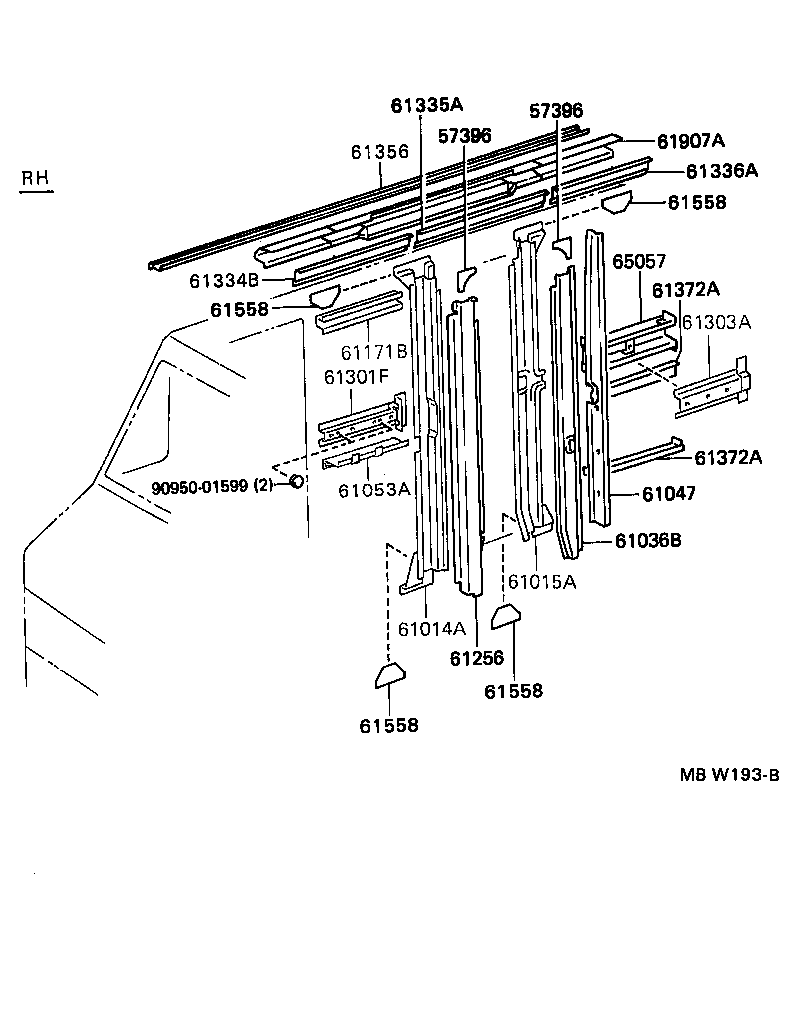

Figure MBJ749H MBJ749H 1985-08 → — Figure MBV149C MBV149C 1990-08 → — Figure MBJ750K MBJ750K 1985-08 → — Figure MBW193B MBW193B 1990-08 → — Figure MBJ751I MBJ751I 1985-08 → — Figure 610836 610836 1990-08 → —

Part groups

PNCDescription
53289B Bracket, Cool Air Intake Guard, NO.3
53298D Cushion, Cool Air Intake Bracket
57393 Stay, Front Step, NO.2 RH
57396 Plate, Front Step, NO.2 LH
57397 Stay, Front Step, NO.2 LH
58479 Protector, Tool Bag
61011A Pillar Sub-assy, NO.1 RH
61012A Pillar Sub-assy, NO.2 RH
61013A Pillar Sub-assy, NO.3 RH
61014A Pillar Sub-assy, NO.4 RH
61015A Pillar Sub-assy, NO.5 RH
61019A Pillar Sub-assy, NO.9 RH
61021A Pillar Sub-assy, NO.1 LH
61022A Pillar Sub-assy, NO.2 LH
61023A Pillar Sub-assy, NO.3 LH
61024A Pillar Sub-assy, NO.4 LH
61029A Pillar Sub-assy, NO.9 LH
61032A Pillar Sub-assy, NO.1 Inner, RH
61034A Pillar Sub-assy, NO.3 Inner, RH
61036B Pillar Sub-assy, NO.5 Inner, RH
61037A Reinforcement Sub-assy, Center Body Pillar, RH
61042A Pillar Sub-assy, NO.1 Inner, LH
61044A Pillar Sub-assy, NO.3 Inner, LH
61047 Reinforce Sub-assy, Center Body Pillar, Center
61053A Rail Sub-assy, NO.1 Center, Inner
61063D Rail Sub-assy, NO.1 Center, Inner LH
61085A Rail Sub-assy, NO.3 Upper Outer, LH
61088A Reinforcement Sub-assy, Seat Belt Anchor Stay, NO.2 RH
61097 Rail Sub-assy, NO.5 Lower Outer, RH
61098 Rail Sub-assy, NO.5 Lower Outer, LH
61105 Pillar Sub-assy, Front Body Lower Outer, RH
61106 Pillar Sub-assy, Front Body Lower Outer, LH
61107 Pillar Sub-assy, Front Body Outer, RH
61108 Pillar Sub-assy, Front Body Outer, LH
61111B Panel, NO.1 Side, RH
61112B Panel, NO.2 Side, RH
61114A Panel, NO.3 Side, RH
61115A Panel, NO.4 Side, RH
61117A Gusset, Side Panel Relief, NO.1
61118A Gusset, Side Panel Relief, NO.2
61121B Panel, NO.1 Side, LH
61122B Panel, NO.2 Side, LH
61125B Panel, Cowl Side, Front RH
61126 Panel, Cowl Side, Front LH
61128 Reinforcement, Cowl Side Panel, RH
61129 Reinforcement, Cowl Side Panel, LH
61145B Gusset, Front Body Pillar, Lower RH
61146B Gusset, Front Body Pillar, Lower LH
61147A Extension, Front Body Pillar, Upper Outer
61151 Cushion, Side Panel Stiffener, NO.1
61152 Cushion, Side Panel Stiffener, NO.2
61153B Cushion, Side Panel Stiffener, NO.3
61154A Cushion, Side Panel Stiffener, NO.4
61155A Cushion, Side Panel Stiffener, NO.5
61163 Pillar, Front Body, Inner RH
61164 Pillar, Front Body, Inner LH
61165A Stiffener, Side Panel, Upper NO.5
61171B Stiffener, Side Panel, Lower NO.2
61183 Bracket, Instrument Panel Side
61195 Retainer, Outer Side Mirror, LH
61197A Cover, Front Pillar, RH
61201A Stiffener Sub-assy, Side Panel, NO.1
61243B Plate, Front Body Pillar End, RH
61244B Plate, Front Body Pillar End, LH
61251A Pillar, NO.1 Inner, RH
61253 Pillar, NO.2 Inner, RH
61256 Pillar, NO.4 Inner, RH
61261B Pillar, NO.1 Inner, LH
61263A Pillar, NO.2 Inner, LH
61301F Rail Sub-assy, NO.1 Center, Outer RH
61302F Rail Sub-assy, NO.1 Center, Outer LH
61303A Rail Sub-assy, NO.2 Center, Outer RH
61305 Reinforce Sub-assy, Center Body Pillar, Lower RH
61306 Reinforce Sub-assy, Center Body Pillar, Lower LH
61332A Rail, NO.1 Upper Inner, Rear RH
61333B Rail, NO.2 Upper Inner, RH
61334B Rail, NO.3 Upper Inner, RH
61335A Rail, NO.4 Upper Inner, RH
61336A Rail, NO.5 Upper Inner, RH
61342A Rail, NO.1 Upper Inner, Rear LH
61343B Rail, NO.2 Upper Inner, LH
61344B Rail, NO.3 Upper Inner, LH
61353B Rail, NO.3 Center Outer, RH
61356 Channel, Roof Drip Side, Front RH
61363A Rail, NO.3 Center Outer, LH
61366A Channel, Roof Drip Side, Front LH
61372A Rail, NO.2 Center, Inner RH
61373 Rail, NO.3 Center, Inner
61408A Rail Sub-assy, NO.1 Upper Outer, LH
61411 Panel, Rocker, Outer RH
61412 Panel, Rocker, Outer LH
61437 Rail, NO.7 Lower Inner, RH
61439 Rail, NO.5 Lower Inner, RH
61449 Rail, NO.5 Lower Inner, LH
61473 Plate, Pillar NO.3, Lower
61556 Gusset, Pillar TO Rail, NO.1
61558 Gusset, Pillar TO Rail, NO.3
61606 Frame Sub-assy, Back Door Opening Side, RH
61607 Frame Sub-assy, Back Door Opening Side, LH
61625A Extension Sub-assy, Quarter Panel, RH
61626A Extension Sub-assy, Quarter Panel, LH
61627A Extension, Quarter Panel, Lower RH
61628A Extension, Quarter Panel, Lower LH
61701 Skirt Sub-assy, Quarter Panel, Front RH
61702 Skirt Sub-assy, Quarter Panel, Front LH
61703 Skirt Sub-assy, Quarter Panel, Rear RH
61704 Skirt Sub-assy, Quarter Panel, Rear LH
61711B Panel, Side Window, Outer RH
61712B Panel, Side Window, Outer LH
61721A Panel, Quarter Inner Corner, RH
61722A Panel, Quarter Inner Corner, LH
61731A Panel, Side Window, Inner RH
61732A Panel, Side Window, Inner LH
61773A Patch, Back Door Opening, Lower RH
61774A Patch, Back Door Opening, Lower LH
61814A Plate, Dust Proof, NO.2 RH
61824B Plate, Dust Ploof, NO.2 LH
61832A Stay, Side Panel, NO.2 RH
61842A Stay, Side Panel, NO.2 LH
61899B Bracket, Side Catch Door Stay
61907A Strength Sub-assy, Upper Rail, NO.3 RH
61915A Pillar, NO.2 Outer, Upper RH
61925A Pillar, NO.2 Outer, Upper LH
61931 Strength, Upper Rail, NO.1 RH
61932 Strength, Upper Rail, NO.2 RH
61933 Strength, Upper Rail, NO.3 RH
61936A Pillar, NO.2 Inner, Lower
61946A Pillar, NO.2 Inner, Lower LH
62583C Cover, Quarter Pillar, Upper RH
62584C Cover, Quarter Pillar, Upper LH
62585C Cover, Quarter Pillar, Lower RH
62586C Cover, Quarter Pillar, Lower LH
64153A Reinforcement, Back Frame
65057 Reinforcement Sub-assy, Side Panel, C RH
65058 Reinforcement Sub-assy, Side Panel, C LH
66421 Step, Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
