Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separation Door Lock & Handle

13 part groups · 2 illustrations

Illustrations

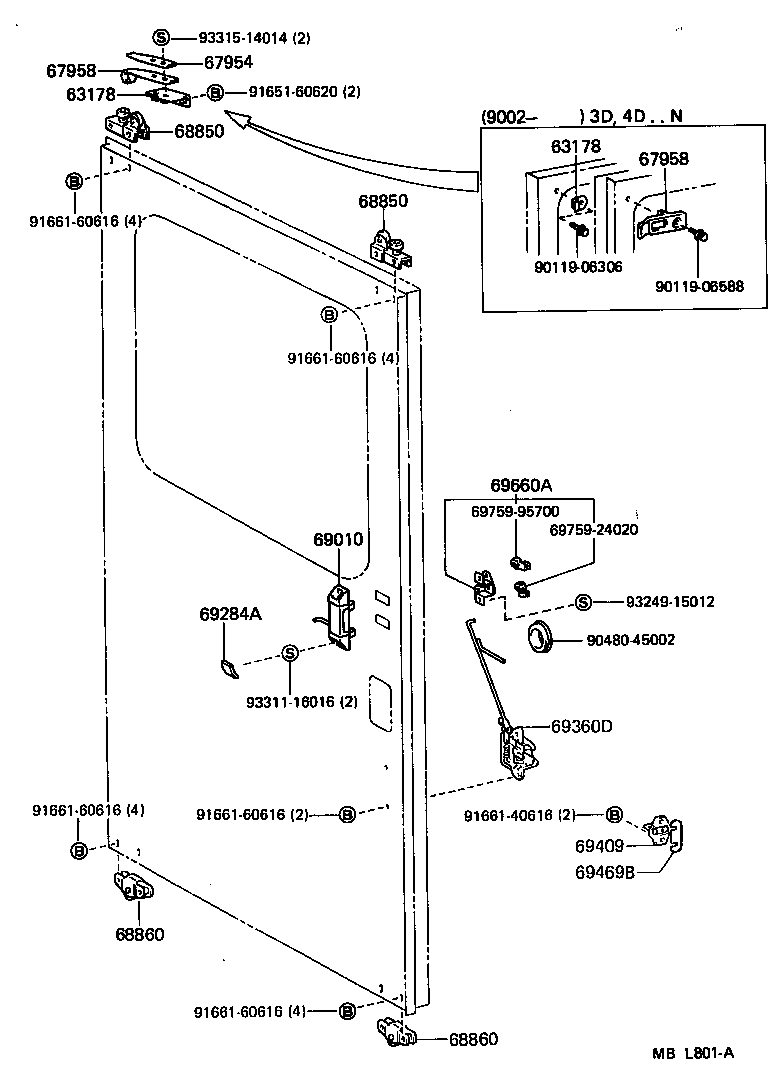

Figure MBK106 MBK106 1985-08 → — Figure MBL801A MBL801A 1987-08 → —

Part groups

PNCDescription
61999 Reinforce, Separation Door Lock Striker
63178 Bracket, Separation Door Stopper
67954 Plate, Separation Door Stopper
67958 Stopper, Separation Door
68850 Roller Assy, Separation Door
68860 Roller Assy, Separation Door, Lower
69010 Handle Sub-assy, Separation Door, NO.1
69284A Plug, Separation Door Handle
69291B Handle, Separation Door
69360D Lock Assy, Separation Door
69409 Striker Sub-assy, Separation Door Lock
69469B Shim, Separation Door Look Striker
69660A Control Assy, Separation Door Remote
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
