Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

29 part groups · 5 illustrations

Illustrations

Figure MEG395C

MEG395C 1985-08 → 1988-08

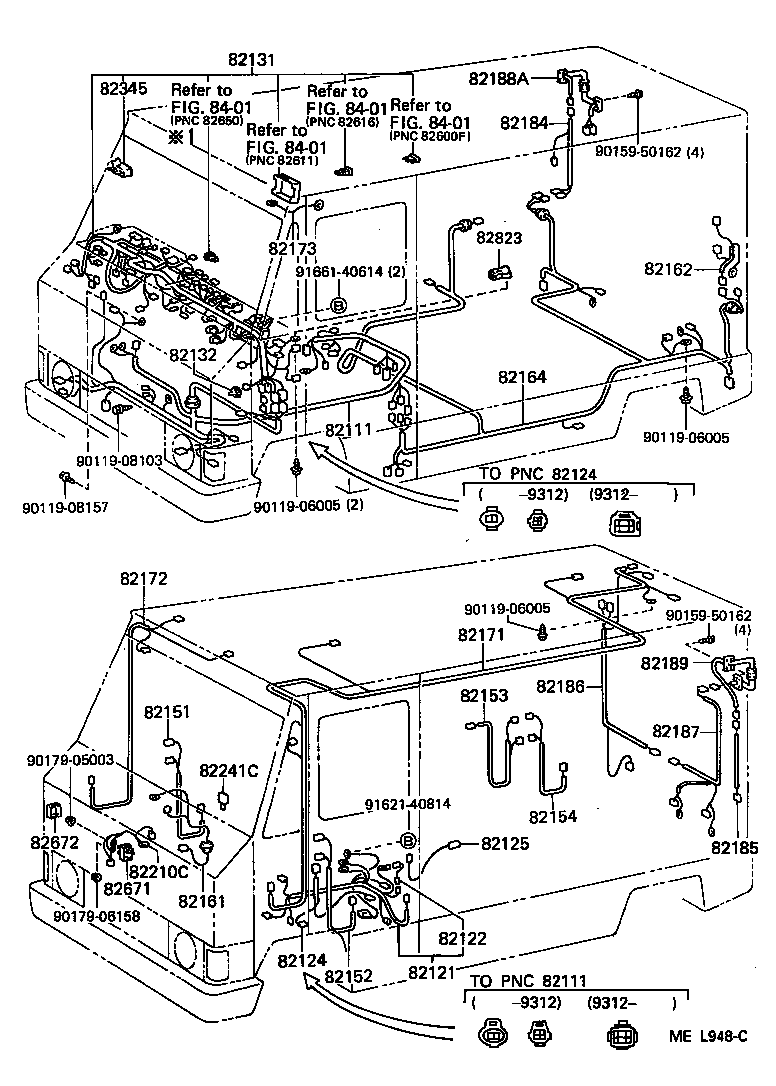

Figure MEL948C

MEL948C 1988-08 → —

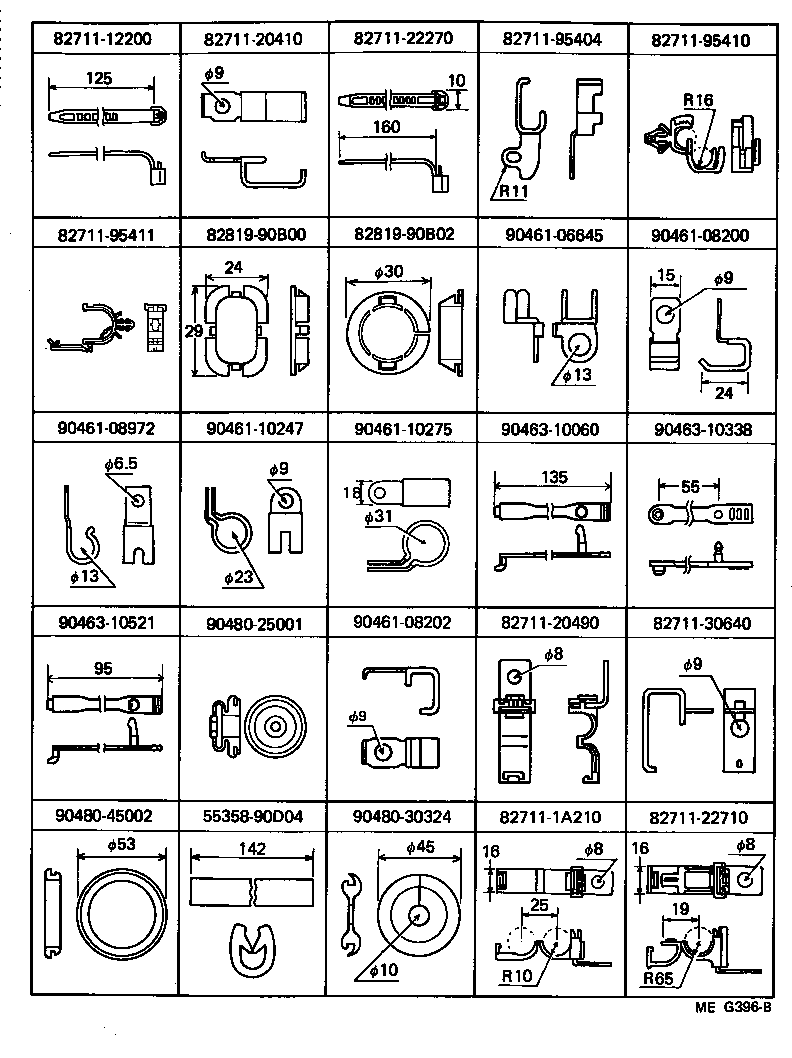

Figure MEG396B

MEG396B 1985-08 → —

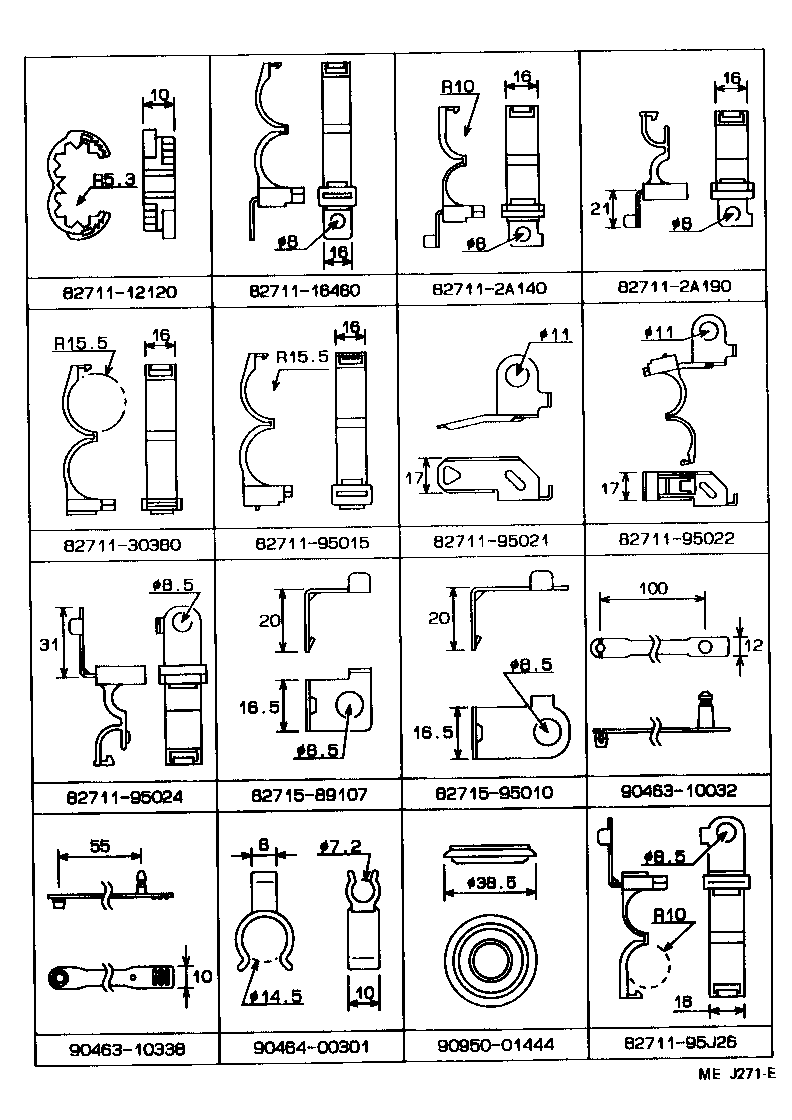

Figure MEJ271E

MEJ271E 1985-08 → —

Figure MES880A

MES880A 1985-08 → —

Part groups

PNC	Description
82111	Wire, Engine Room Main
82121	Wire, Engine
82122	Wire, Engine, NO.2
82124	Wire, Engine, NO.4
82125	Wire, Transmission
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82171	Wire, Roof, NO.1
82172	Wire, Roof, NO.2
82173	Wire, Roof, NO.3
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82188A	Wire, Back Door, NO.3
82189	Wire, Back Door, NO.4
82210C	Fusible Link
82241C	Wire, Relay
82345	Diode
82671	Block, Junction
82672	Cover, Junktion Block
82823	Cap, Terminal, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
