Toyota Hiace Quick Delivery
1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan
Discontinued model
Data version 1995-11
Meter
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

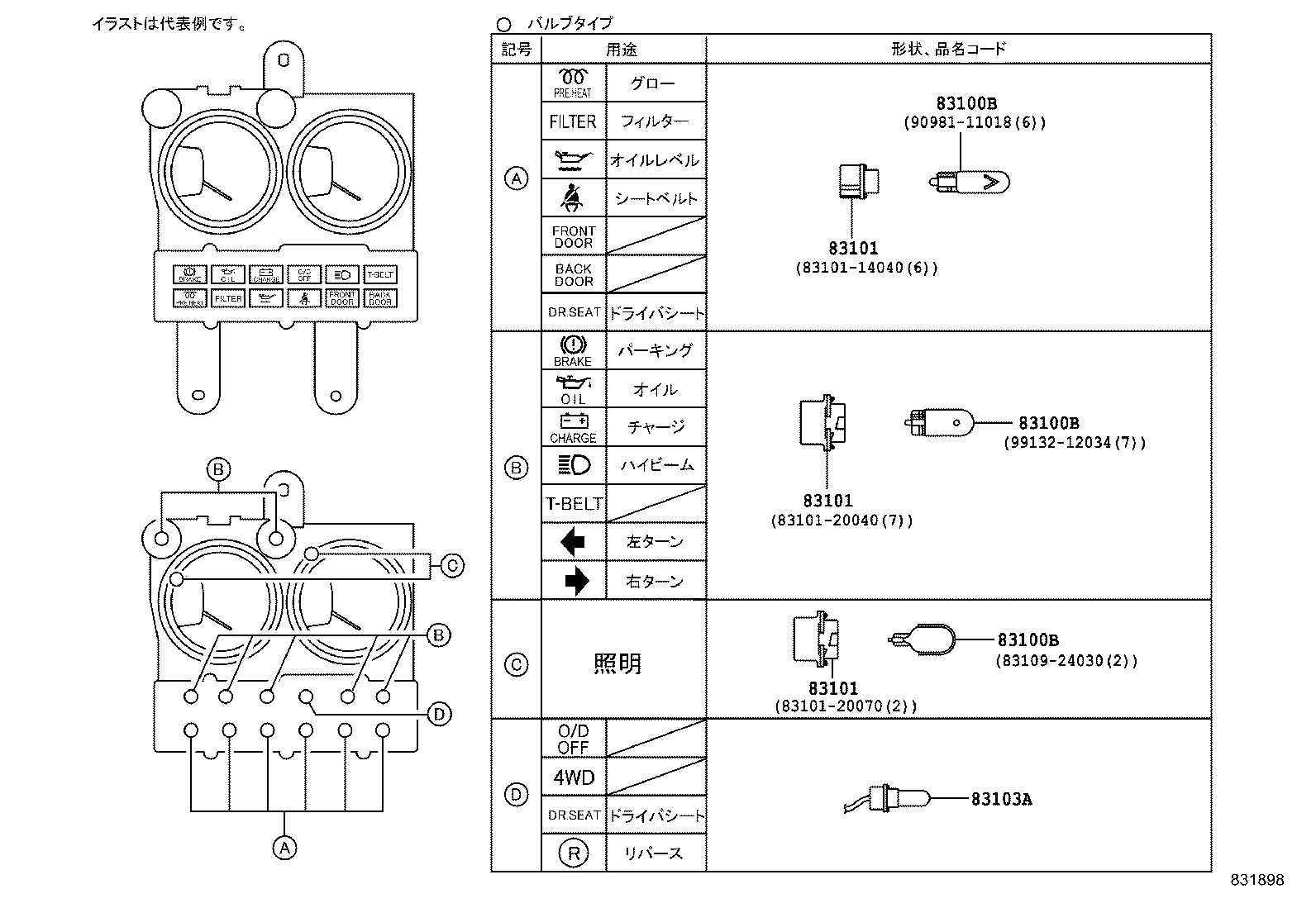

| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

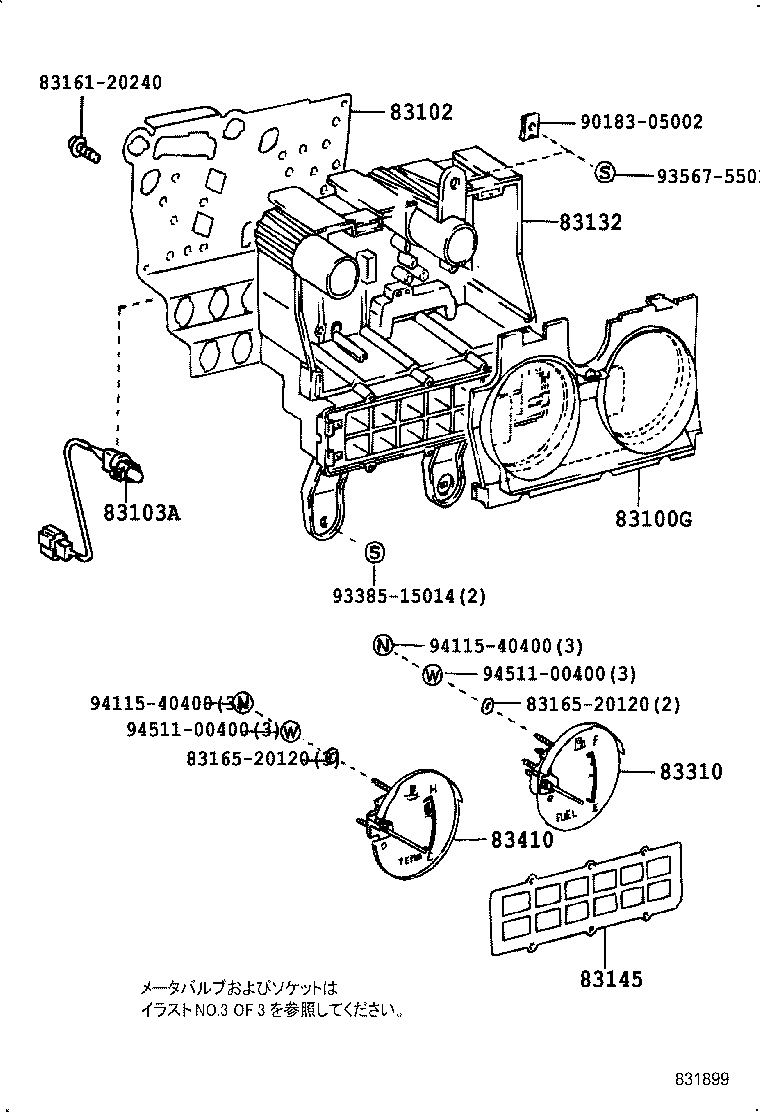

| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103A | Lamp Sub-assy, Meter |
| 83110 | Speedometer Assy |
| 83110B | Bulb, Speedometer |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83210 | Tachograph Assy |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83740 | Cable Assy, Tachograph Drive |
| 83770 | Adapter Assy, Speedometer Cable |
| 84980 | Switch Assy, Timing Belt Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
